Front-end module assembly

OE / Material Codes

13443023-00SC2EM-5301290

$126USD

In Stock

Quality availability

Genuine OEMAftermarket

Need bulk or wholesale pricing?

Technical Specifications

Vehicle Model: BYD Atto 3
Steering Configuration: Left-Hand Drive & Right-Hand Drive
Category: Electric Motors & Powertrain

Shipping & Returns

Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Compatible Vehicles — Front-end module assembly

BYDYuan PLUS/Atto 3

2024

Front-end module assembly Workshop Guide — BYD Atto 3

Front Seat Far-end Right Airbag Module- Removal and Installation

Removal

Remove the plastic part 2 at the headrest. See Plastic Part 2 at Headrest - Removal and Installation
Remove the driver seat right side guard. See Driver Seat Right Guard - Removal and Installation
Remove the driver seat left side guard. See Driver Seat Left Side Guard - Removal and Installation

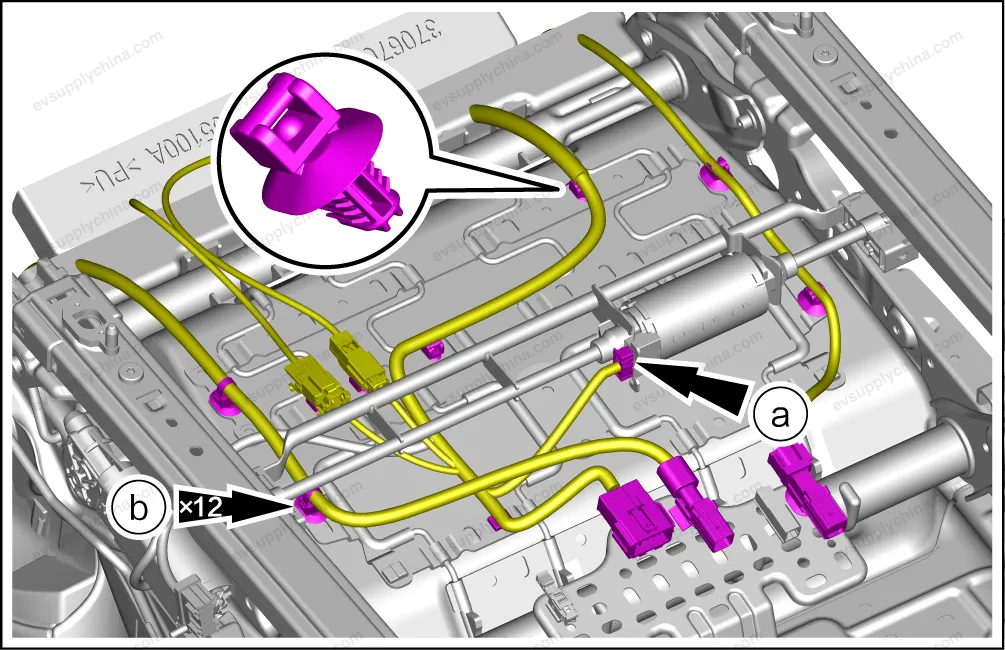

Detach the seat wiring harness from the seat.
Disconnect 1 connector.
Pry up 12 wiring harness clips, and move away the seat wiring harness.

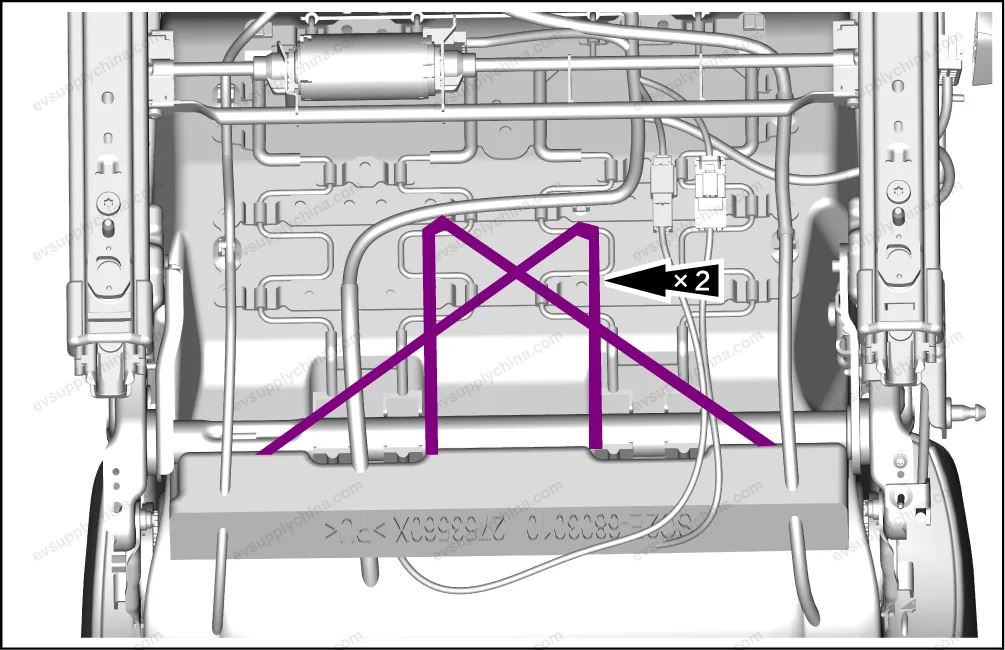

Untie 2 backrest brace webs.

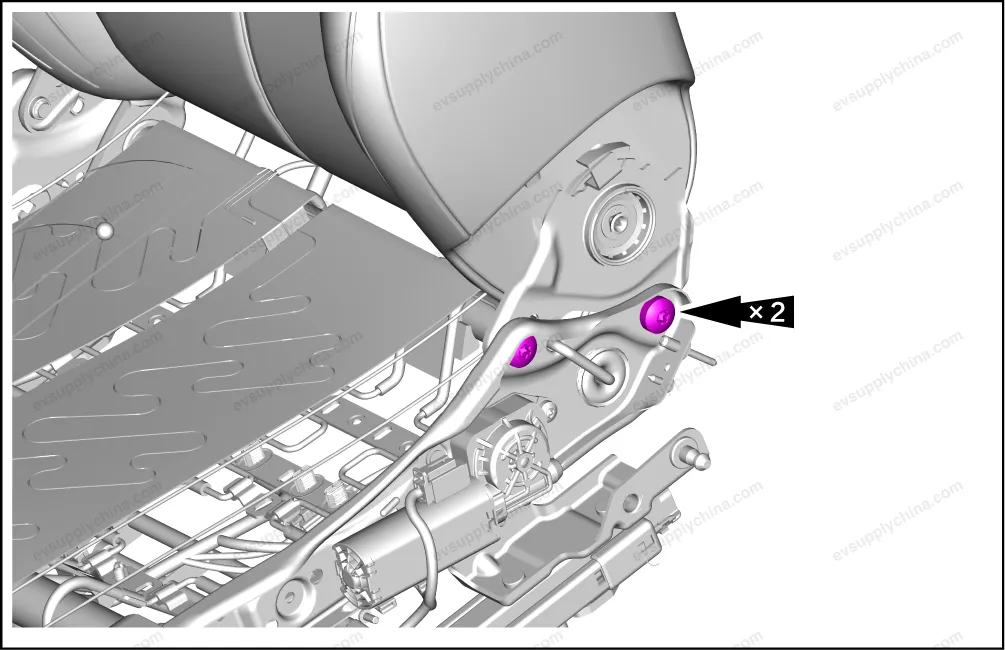

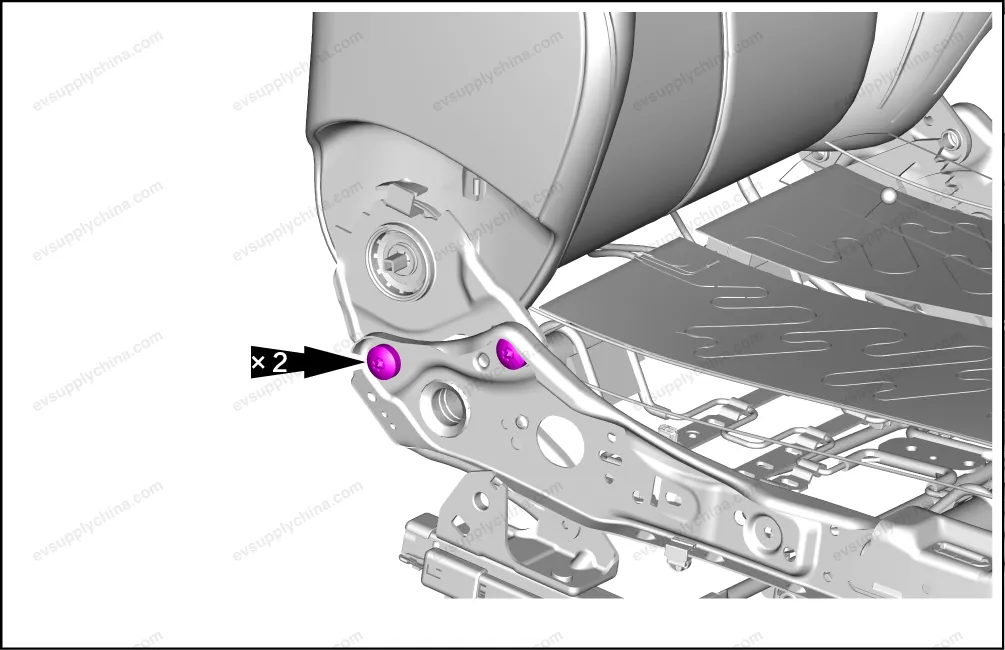

Remove 2 fixing bolts from the left side of the backrest frame and cushion frame.
Remove 2 fixing bolts from the right side of the backrest frame and cushion frame, and take out the backrest assembly.

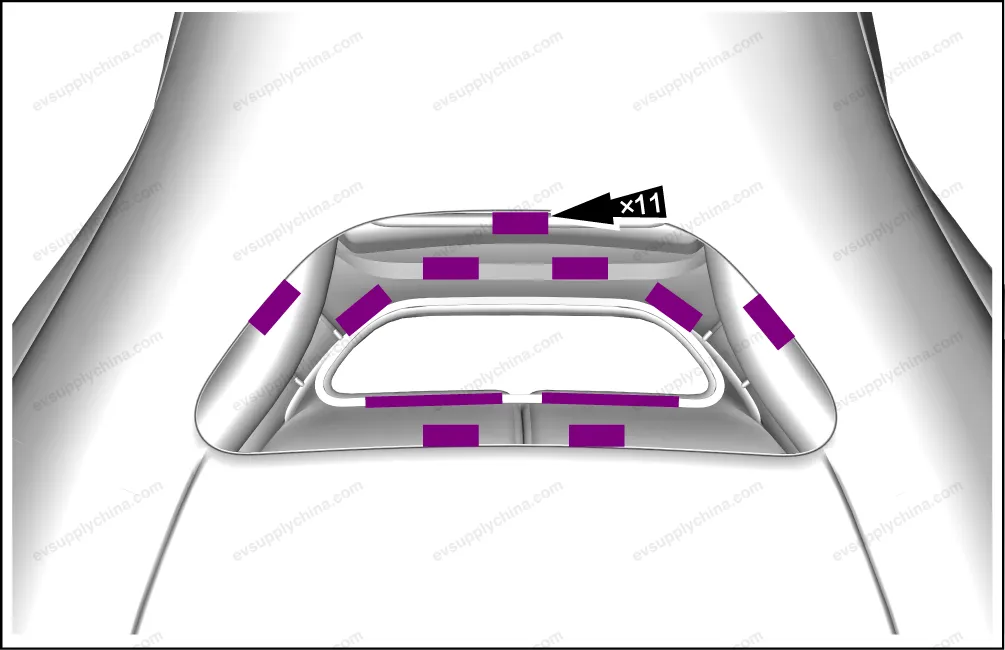

Remove 11 fixing clips at the headrest.

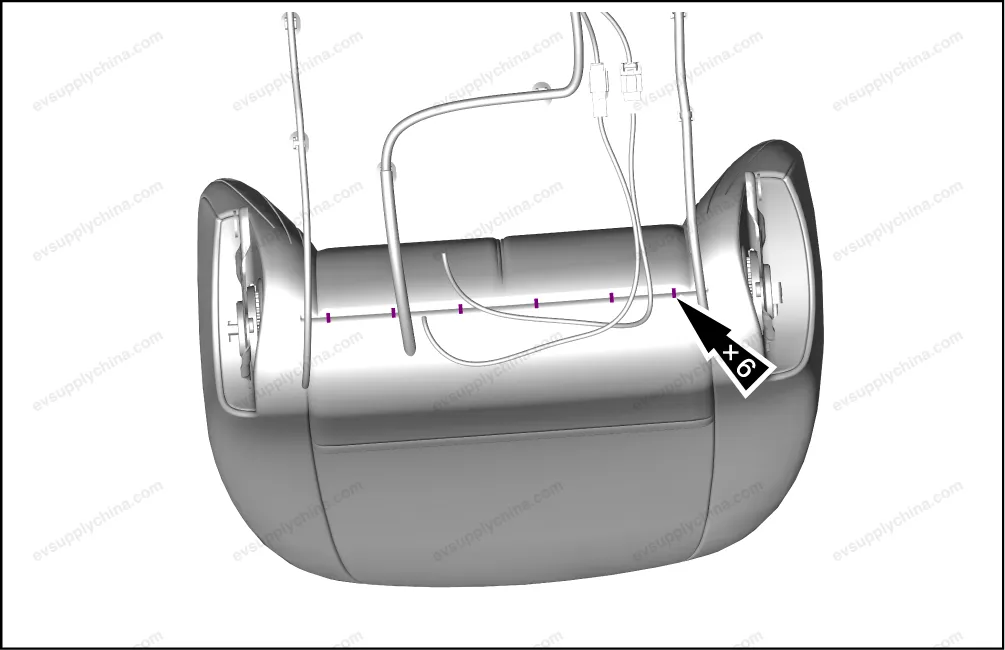

Remove 6 metal clips, and take out the seat backrest foaming mask assembly.

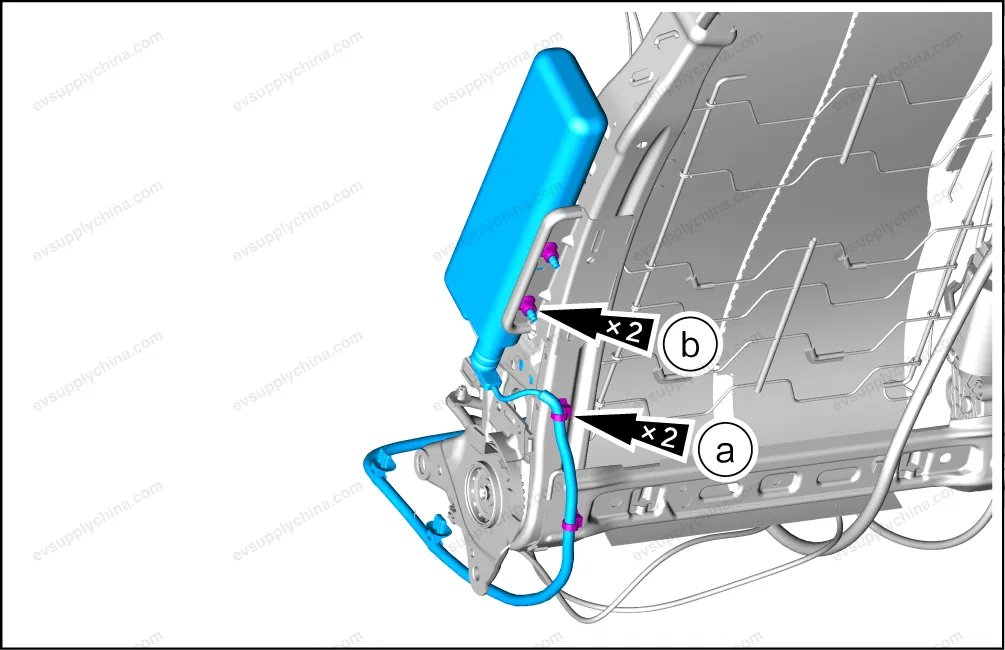

Remove the front seat far-end right airbag module.
Pry up 2 fixing clips.
Remove 2 fixing nuts, and take out the front seat far-end right airbag module.

Warning The safety protection system (SRS) can still work for a period of time after the power is disconnected. Wait at least 3 min before disassembling or removing any SRS component. Ensure that the vehicle electrical system is completely powered off and that no other power is connected. Never expose SRS parts to high temperature or open fire. In case of SRS part falling off, cracks, dents or other defects, replace with new parts.

Installation
