BYD Atto 3
Front bumper beam assembly
OE / Material Codes
13778432-00SC2EM-8400010/77$150USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Bumpers
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Front bumper beam assembly
BYDYuan PLUS/Atto 3
2024Front bumper beam assembly Workshop Guide — BYD Atto 3
Replacement of Front Bumper Beam Right Mounting Plate Assembly
Removal
- Remove the front end module locating mounting plate. See Front Module Locating Mounting Plate
- Clear 2 welding spots from the front bumper beam right mounting plate assembly.
- Clear 5 welding spots, and take out the front bumper beam right mounting plate assembly.
Installation
- Secure the front bumper beam right mounting plate assembly to the mounting position.
- Check and adjust the relative position and dimensions of the front bumper beam right mounting plate assembly and surrounding parts.
- Weld 2 welding spots on the front bumper beam right mounting plate assembly.
- Weld 5 welding spots on the front bumper beam right mounting plate assembly.
Replacement of Front Bumper Beam Left Mounting Plate Assembly
Removal
- Remove the front end module locating mounting plate. See Front Module Locating Mounting Plate
- Clear 2 welding spots from the front bumper beam left mounting plate assembly.
- Clear 5 welding spots, and take out the front bumper beam left mounting plate assembly.
Installation
- Secure the front bumper beam left mounting plate assembly to the mounting position.
- Check and adjust the relative position and dimensions of the front bumper beam left mounting plate assembly and surrounding parts.
- Weld 2 welding spots on the front bumper beam left mounting plate assembly.
- Weld 5 welding spots on the front bumper beam left mounting plate assembly.
Front Bumper Beam Assembly - Removal and Installation
Removal
- Remove the front module assembly. See Front Module Assembly - Removal and Installation
- Remove the engine sound simulator. See Engine Sound Simulator - Removal and Installation
- Remove the engine sound simulator 2. See Engine Sound Simulator 2 - Removal and Installation

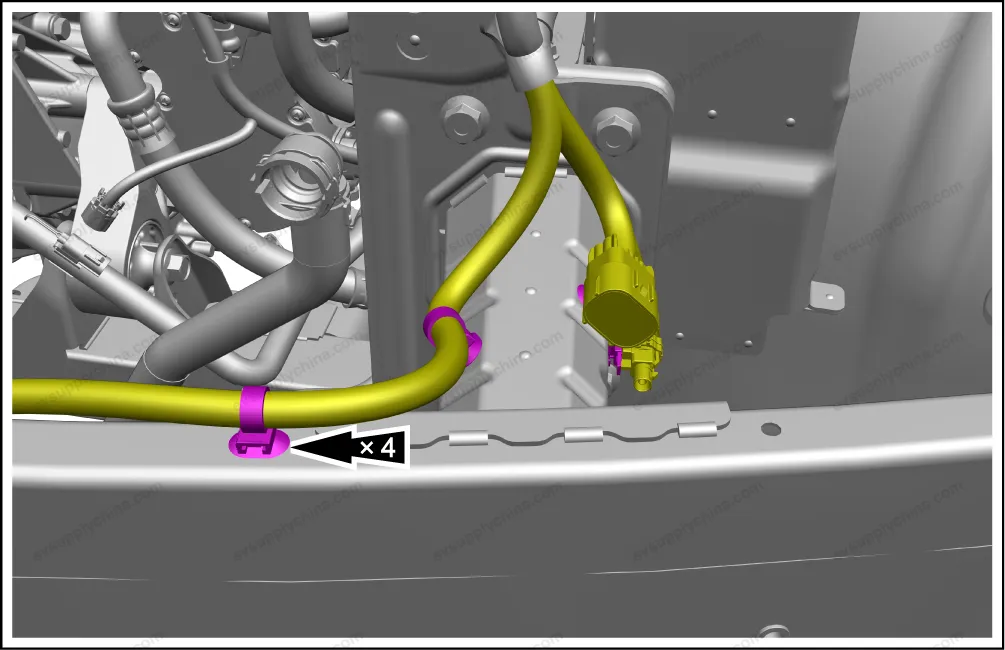

- Detach 4 wiring harness clips from the front bumper beam assembly.

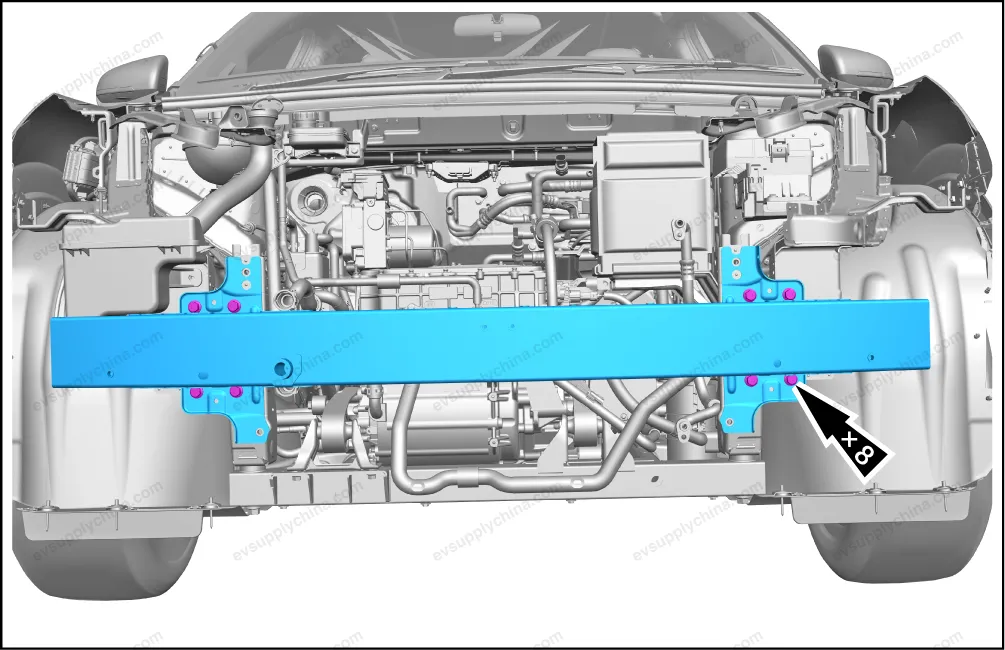

- Remove 8 fixing bolts, and take out the front bumper beam assembly.
Installation
- Follow the removal steps in reverse order to install.
Front bumper beam assembly Fitment Diagram — BYD Atto 3
