Powertrain rear suspension mount assembly Workshop Guide — BYD Atto 3
Powertrain Rear Mount Bracket Assembly - Removal and Installation
Removal
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation

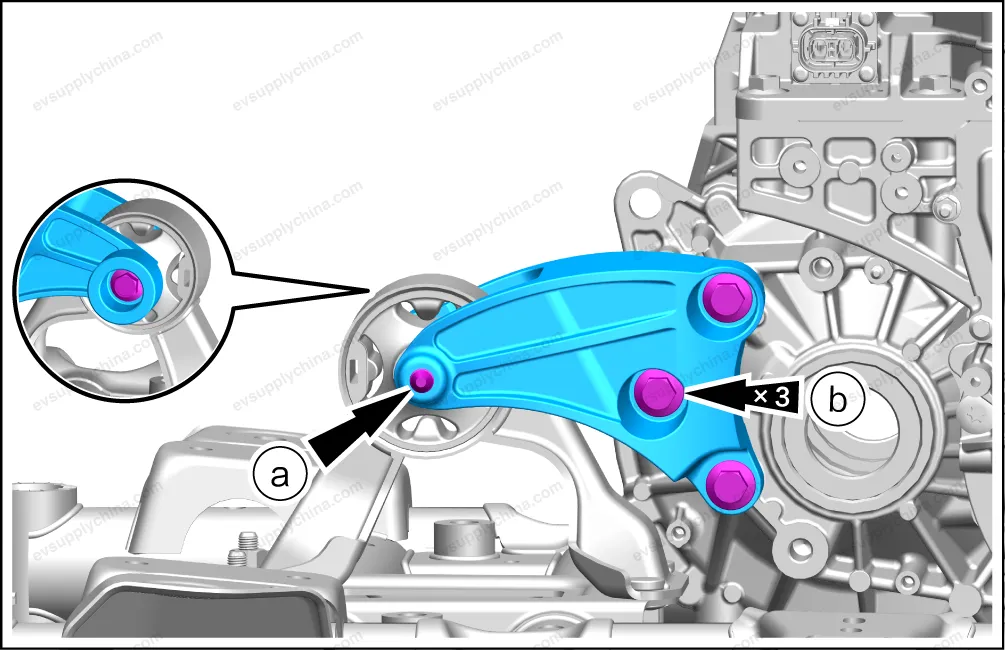

- Remove the powertrain rear mount bracket assembly.
- Remove 1 fixing bolt.
- Remove 3 fixing bolts, and take out the powertrain rear mount bracket assembly.
Warning Before removing, use equipment to support the powertrain to prevent falling parts and personal injury.
Installation
- The installation steps are opposite to the removal steps.
Powertrain Rear Mount Support Assembly - Removal and Installation
Removal
- Remove the powertrain rear mount bracket assembly. See Powertrain Rear Mount Bracket Assembly - Removal and Installation

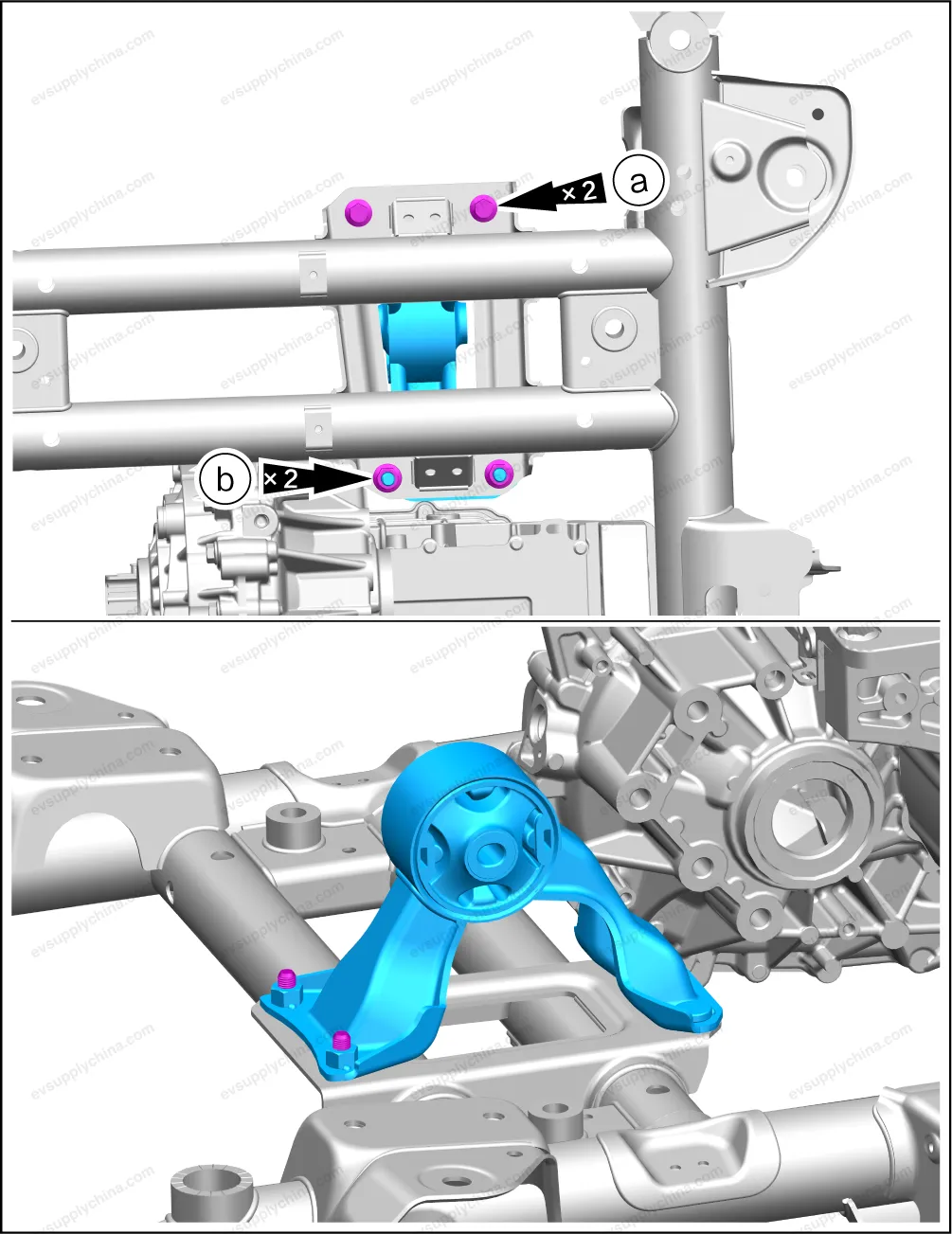

- Remove the powertrain rear mount support assembly.
- Remove 2 fixing bolt.
- Remove 2 fixing nuts, and take out the powertrain rear mount support assembly.
Warning Before removing, use equipment to support the powertrain to prevent falling parts and personal injury.
Installation
- The installation steps are opposite to the removal steps.
Powertrain Rear Mount Bracket Mass Block - Removal and Installation
Removal
- Remove the left/right front wheel assembly. See Wheel Assembly - Removal and Installation
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation

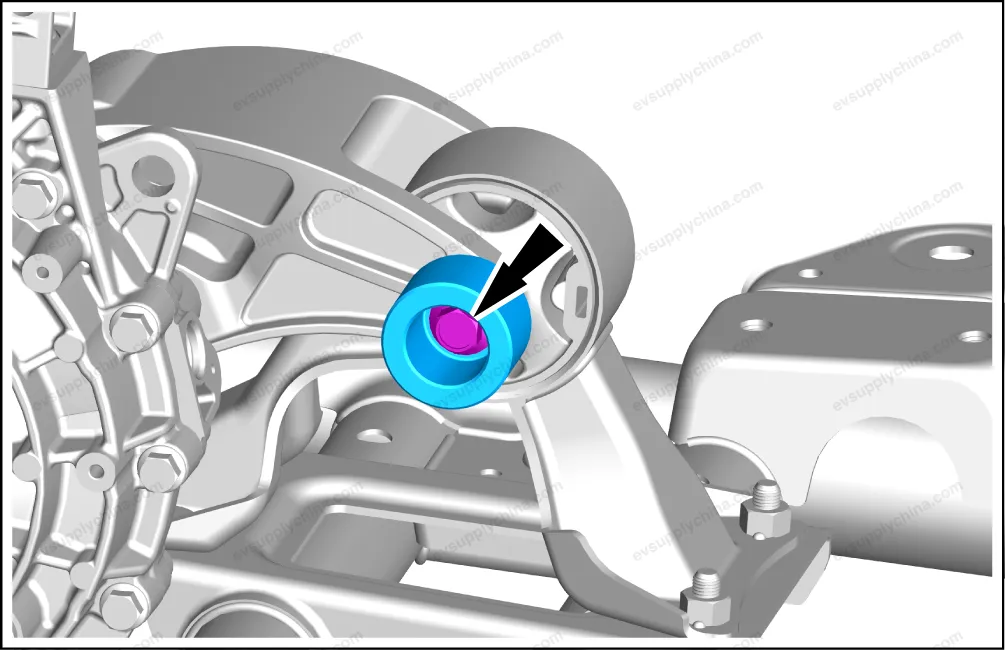

- Remove 1 fixing bolt, and take out the powertrain rear mount bracket mass block.
Caution Before removing, use equipment to support the powertrain to prevent falling parts and personal injury.
Install
- The installation is performed in reverse order of removal.
