Powertrain left suspension mount assembly
OE / Material Codes
13252893-00TA30-1001500ATechnical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Electric Motors & Powertrain
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Powertrain left suspension mount assembly
Powertrain left suspension mount assembly Workshop Guide — BYD Atto 3
Powertrain Left Mount Support Assembly - Removal and Installation
Removal
- Remove the battery assembly. See Battery Assembly - Removal and Installation
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation
- Remove the electric compressor assembly. See Electric Compressor Assembly - Removal and Installation
- Remove the powertrain left mount support assembly.
- Remove 1 fixing nut/bolt.
- Remove 3 fixing bolts, and take out the powertrain left mount support assembly.
Warning Before removing, use equipment to support the powertrain to prevent falling parts and personal injury.
Installation
- The installation steps are opposite to the removal steps.
Powertrain Right Mount Support Assembly - Removal and Installation
Removal
- Remove the right front wheel assembly. See Wheel Assembly - Removal and Installation
- Remove the right front wheel mudguard assembly. See Right Front Wheel Mudguard Assembly - Removal and Installation
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation

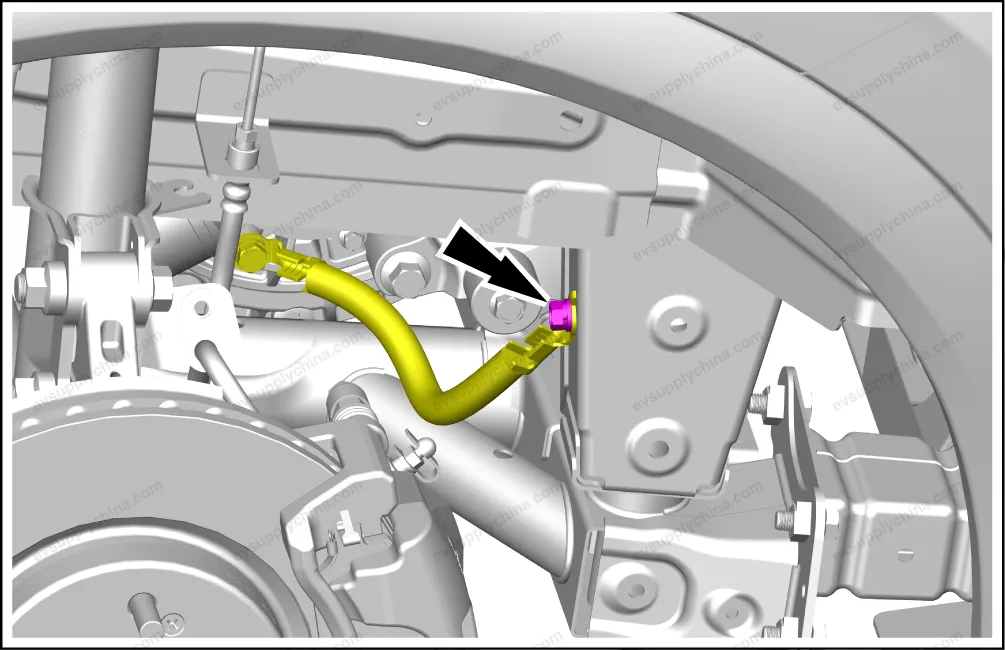

- Remove 1 fixing bolt, and take out the ground wiring harness of front motor assembly.

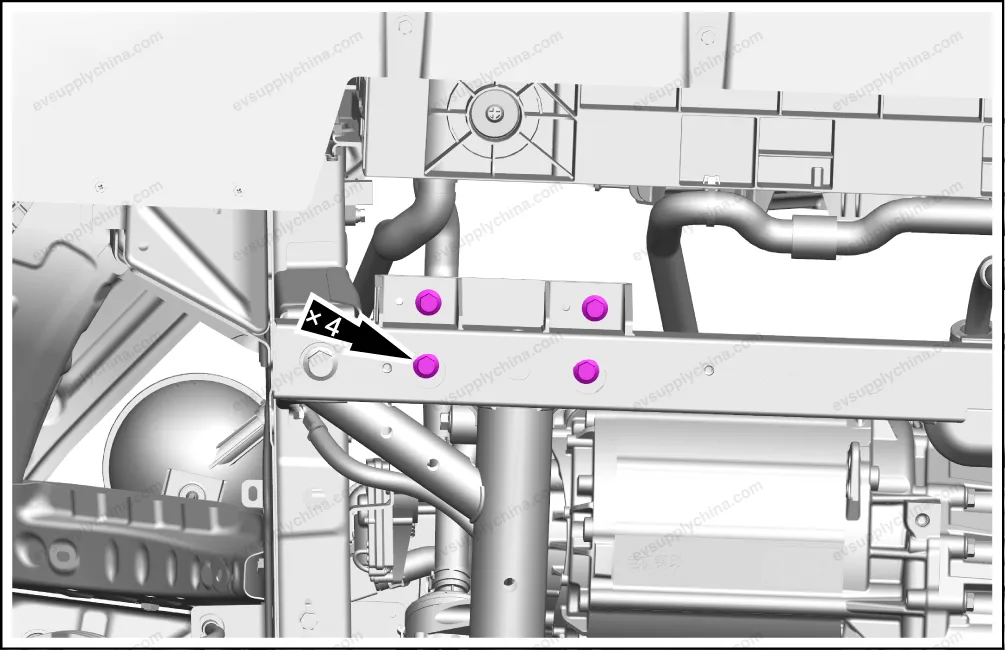

- Remove 4 fixing bolts from the powertrain right mount bracket assembly.

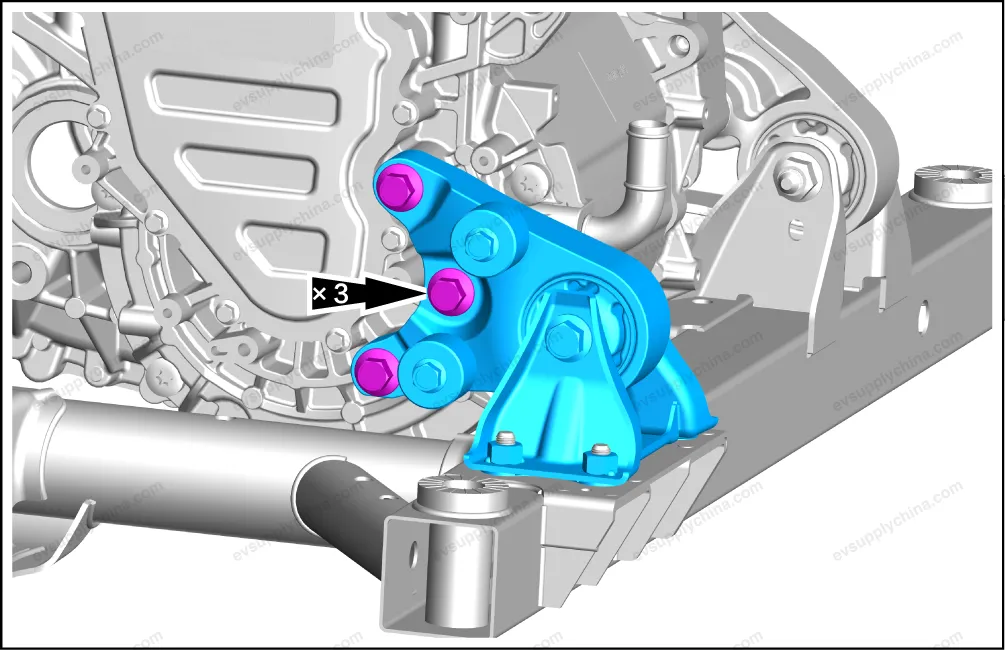

- Remove 3 fixing bolts, and take out the powertrain right mount bracket assembly and the powertrain right mount support assembly.

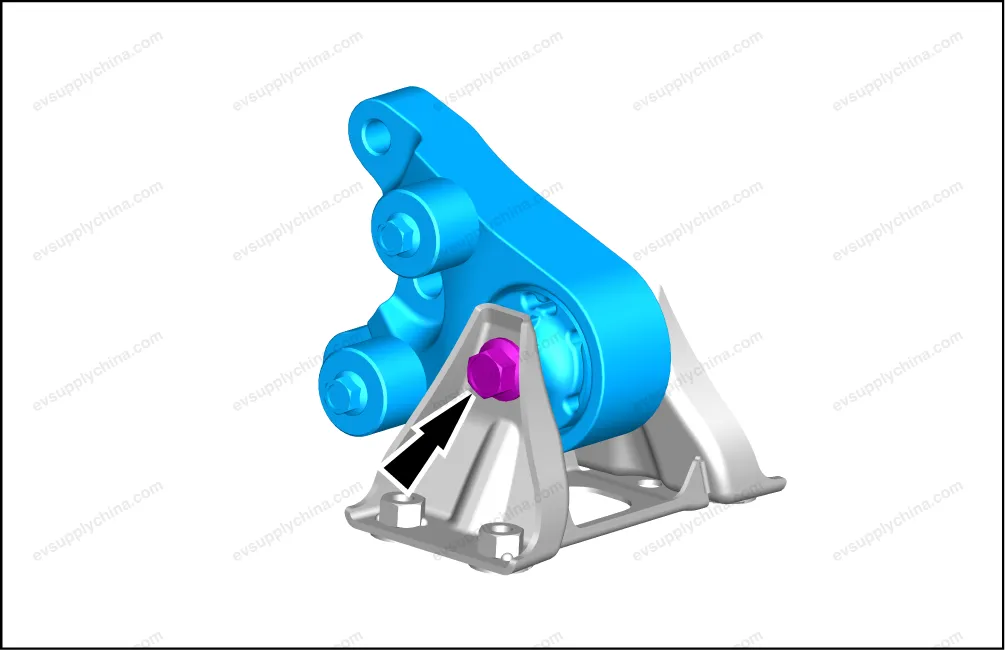

- Remove 1 fixing bolts and take out the powertrain right mount support assembly.
Warning Before removing, use equipment to support the powertrain to prevent falling parts and personal injury.
Installation
- The installation steps are opposite to the removal steps.
Powertrain Right Mount Bracket Assembly - Removal and Installation
Removal
- Remove the right front wheel assembly. See Wheel Assembly - Removal and Installation
- Remove the right front wheel mudguard assembly. See Right Front Wheel Mudguard Assembly - Removal and Installation
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation
- Remove 1 fixing bolt, and take out the ground wiring harness of front motor assembly.
- Remove 4 fixing bolts from the powertrain right mount bracket assembly.
- Remove 3 fixing bolts, and take out the powertrain right mount bracket assembly and the powertrain right mount support assembly.

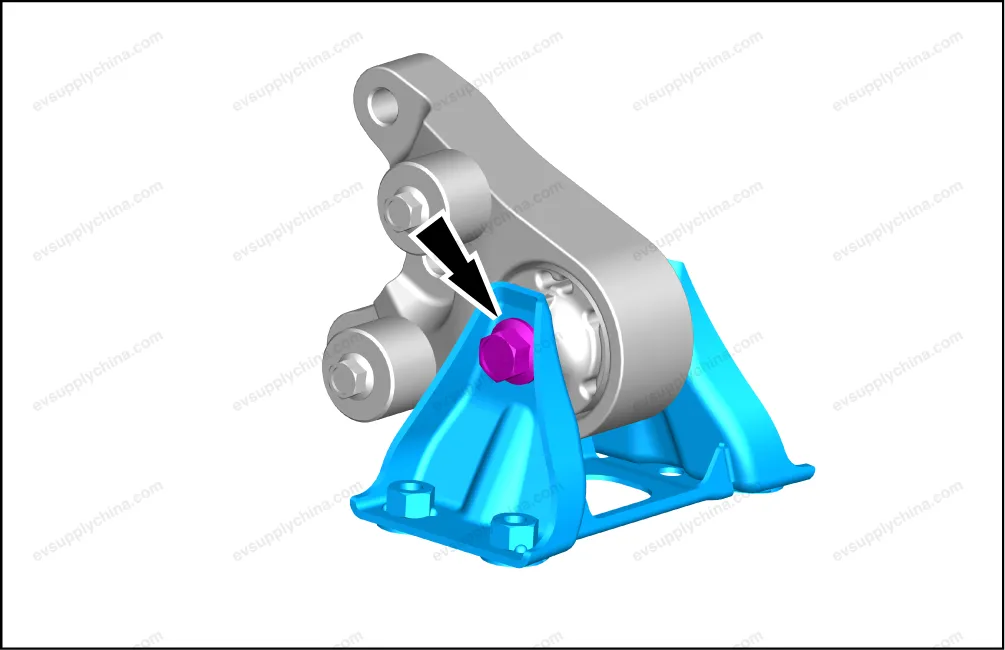

- Remove 1 fixing bolt, and take out the powertrain right mount bracket assembly.
Warning Before removing, use equipment to support the powertrain to prevent falling parts and personal injury.
Installation
- The installation steps are opposite to the removal steps.
