OEM
BYD Atto 3

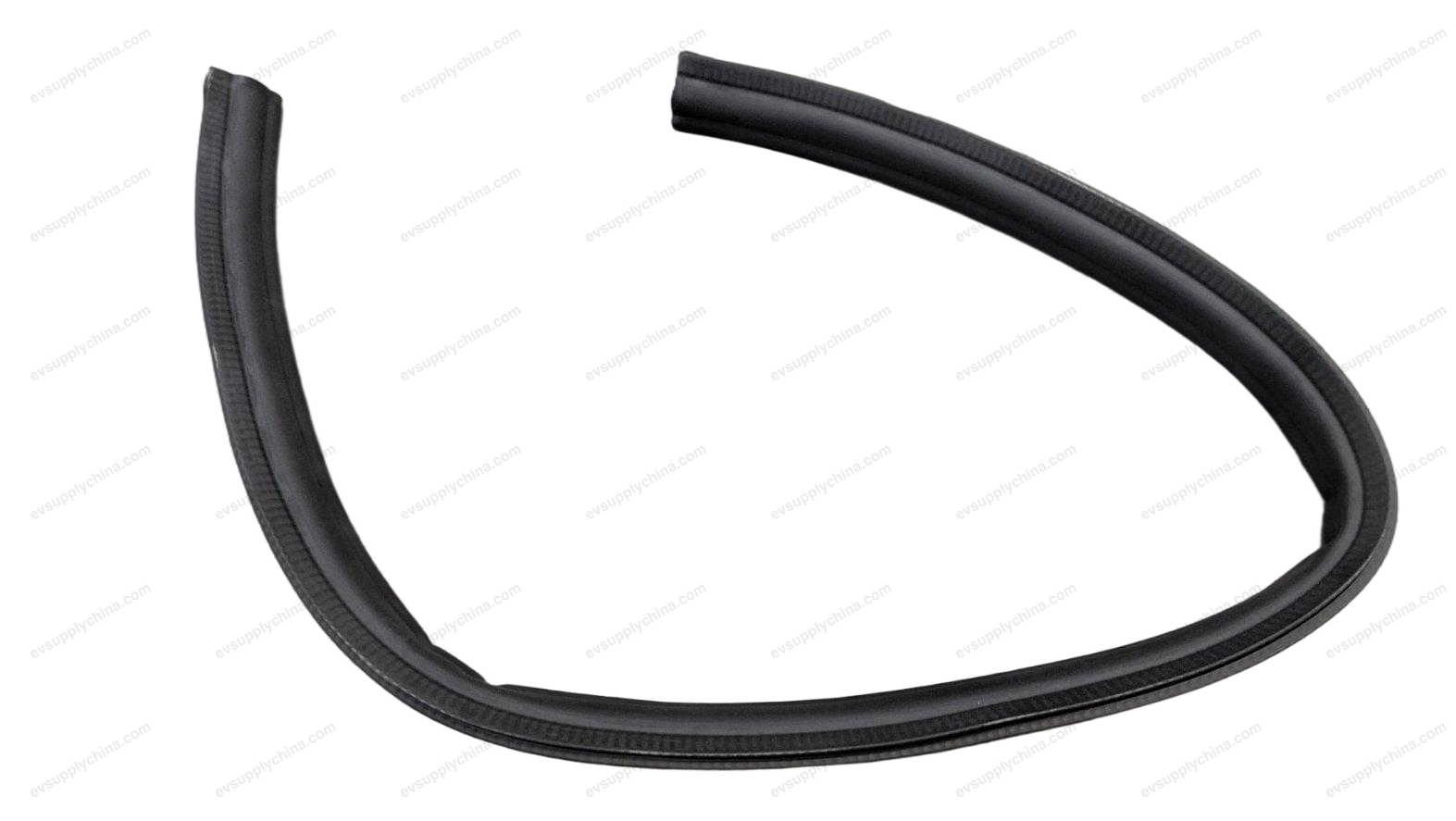

Ventilation cover sealing strip
OE / Material Codes
13456258-00SC2EM-5307115Price on requestIn Stock
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Ventilation cover sealing strip
BYDYuan PLUS/Atto 3
2024Ventilation cover sealing strip Workshop Guide — BYD Atto 3
Ventilation Cover Assembly - Removal and Installation
Removal
- Remove the front compartment left trim panel assembly. See Front Compartment Left Trim Panel Assembly - Removal and Installation
- Remove the front compartment right trim panel assembly. See Front Compartment Right Trim Panel Assembly - Removal and Installation
- Remove the front wiper left wiper arm assembly. See Front Wiper Left Wiper Arm Assembly - Removal and Installation
- Remove the front wiper right wiper arm assembly. See Front Wiper Right Wiper Arm Assembly - Removal and Installation
- Remove the ventilation cover seal. Attendance Ventilation Cover Seal - Removal and Installation
- Remove 8 fixing clips from the ventilation cover assembly.
- Pry up the connection between the ventilation cover assembly and the front windshield, and take it out.
Installation
- The installation steps are opposite to the removal steps.
Ventilation Cover Seal - Removal and Installation
Removal
- Pry up the ventilation cover seal in the direction of the arrow.
Installation
- The installation steps are opposite to the removal steps.
Ventilation cover sealing strip Fitment Diagram — BYD Atto 3
