OEM
BYD Atto 3
Ventilation cover assembly
OE / Material Codes
13455939-00SC2EM-5302100$45USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Ventilation cover assembly Workshop Guide — BYD Atto 3
Ventilation Cover Assembly - Removal and Installation
Removal
- Remove the front compartment left trim panel assembly. See Front Compartment Left Trim Panel Assembly - Removal and Installation
- Remove the front compartment right trim panel assembly. See Front Compartment Right Trim Panel Assembly - Removal and Installation
- Remove the front wiper left wiper arm assembly. See Front Wiper Left Wiper Arm Assembly - Removal and Installation
- Remove the front wiper right wiper arm assembly. See Front Wiper Right Wiper Arm Assembly - Removal and Installation
- Remove the ventilation cover seal. Attendance Ventilation Cover Seal - Removal and Installation

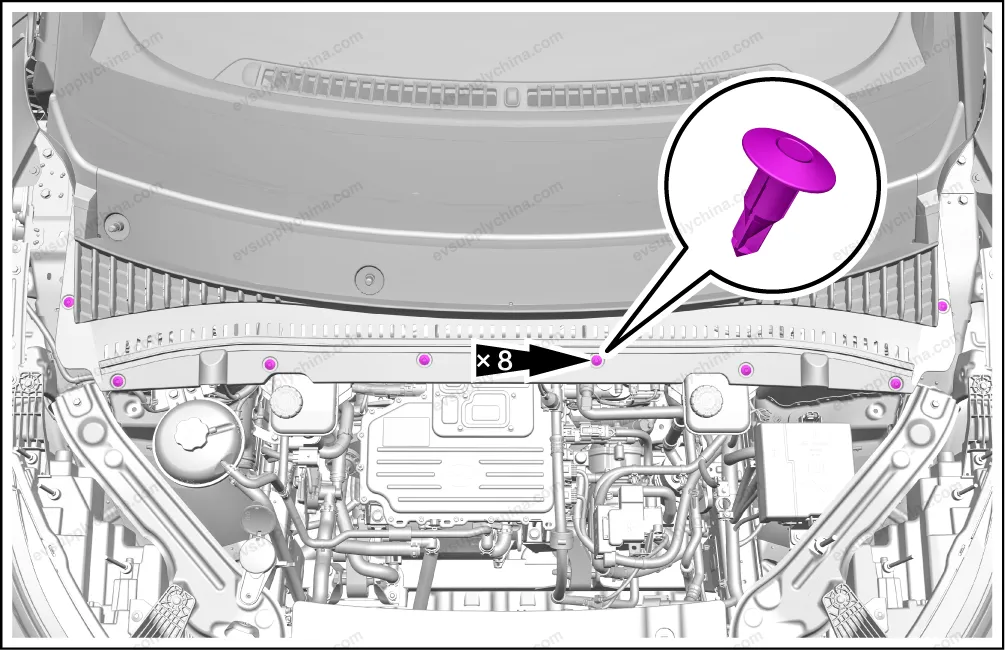

- Remove 8 fixing clips from the ventilation cover assembly.

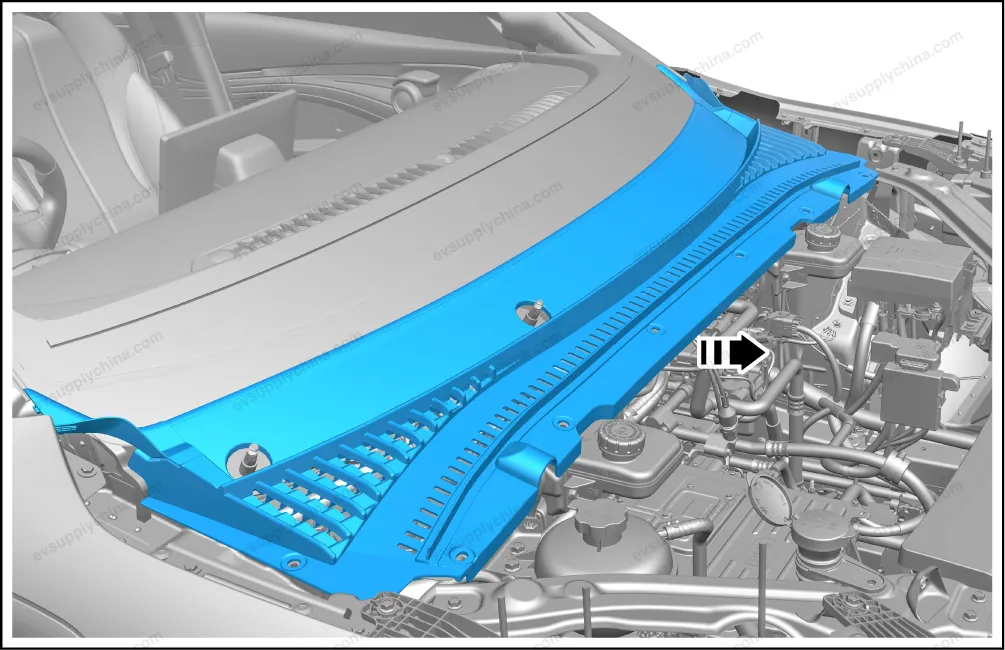

- Pry up the connection between the ventilation cover assembly and the front windshield, and take it out.
Installation
- The installation steps are opposite to the removal steps.
Ventilation Cover Seal - Removal and Installation
Removal

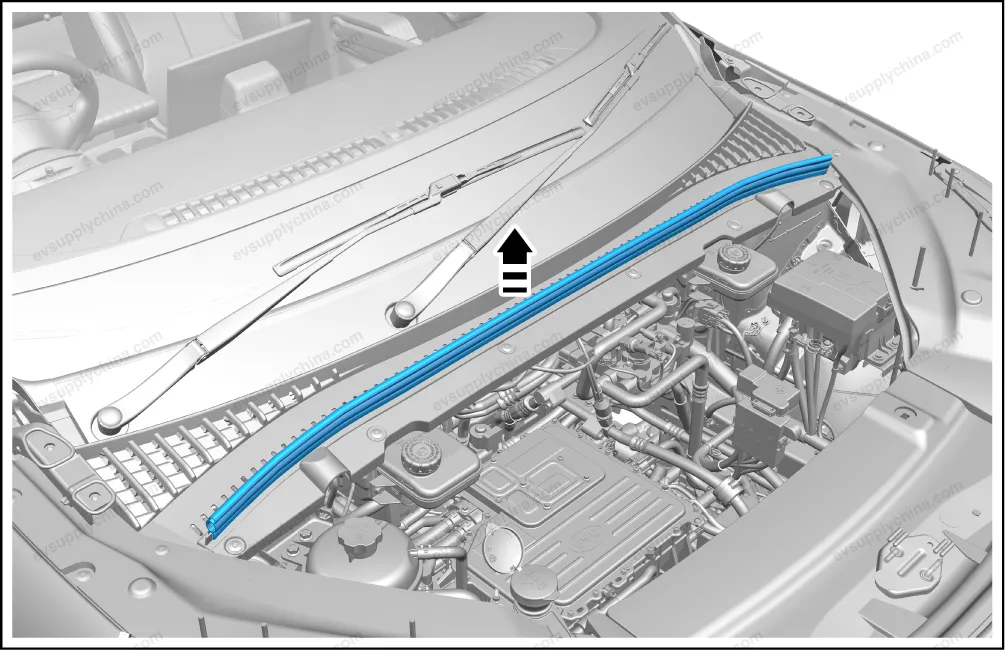

- Pry up the ventilation cover seal in the direction of the arrow.
Installation
- The installation steps are opposite to the removal steps.
Ventilation cover assembly Fitment Diagram — BYD Atto 3
