OEM
BYD Atto 3
Front hood lock bracket
OE / Material Codes
13443025-00SC2EM-8400181Price on requestIn Stock
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Hood & Bonnets
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Front hood lock bracket
BYDYuan PLUS/Atto 3
2024Front hood lock bracket Workshop Guide — BYD Atto 3
Front Compartment Cover Lock Bracket - Removal and Installation
Removal
- Remove the grille upper cover assembly. See Grille Upper Cover Assembly - Removal and Installation
- Remove the front compartment cover lock bracket.
- Remove 3 fixing bolt.
- Remove 2 fixing bolt.
- Detach 3 wiring harness clips, and take out the front compartment cover lock bracket.
Installation
- The installation steps are opposite to the removal steps.
- Adjust the front compartment cover assembly. See Adjustment of Front Compartment Cover Assembly
Caution After installing the front compartment cover lock bracket, adjust the front compartment cover assembly.

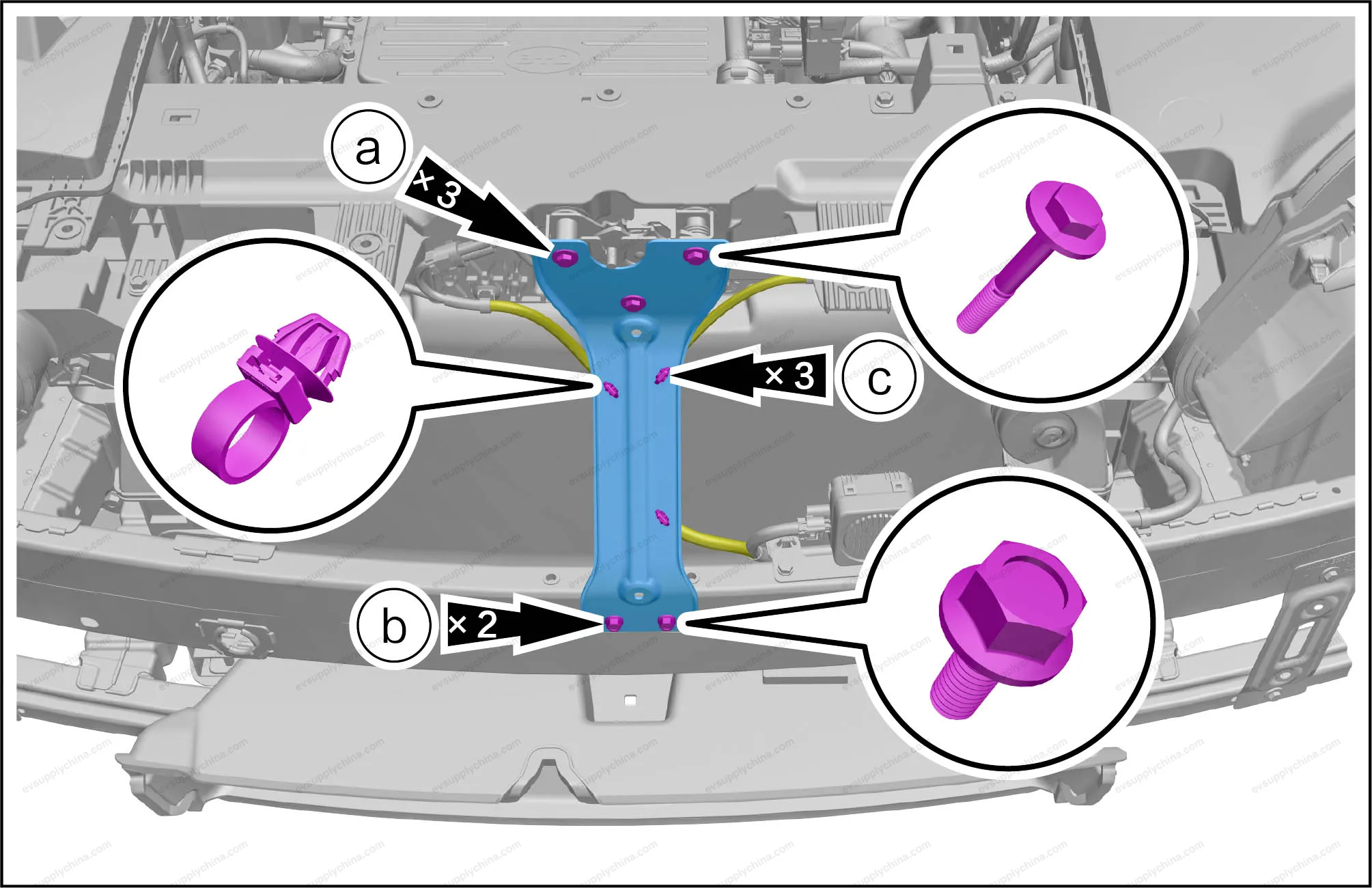

Front hood lock bracket Fitment Diagram — BYD Atto 3
