OEMPremium
BYD Atto 3
Rear door left hinge assembly
OE / Material Codes
12466299-00SA2FC-6306100$6USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Rear door left hinge assembly
BYDSong Pro
2019–2021BYDSong Pro New Energy DM
2019BYDSong Pro New Energy EV
2019BYDD1
2021–2023BYDSong Pro New Energy DM-i
2022–2024BYDYuan PLUS/Atto 3
2022–2024Rear door left hinge assembly Workshop Guide — BYD Atto 3
Left Rear Door Upper Hinge Assembly - Removal and Installation
Removal
- Remove the left B-pillar upper guard assembly. See Left B-Pillar Upper Guard Assembly - Removal and Installation
- Remove 2 fixing nuts of the left rear door upper hinge assembly.
- Remove 2 fixing bolts, and take out the left rear door upper hinge assembly.
Installation
- The installation steps are opposite to the removal steps.
- Adjust the left rear door assembly after the installation. See Adjustment of Rear Door Assembly
Left Rear Door Lower Hinge Assembly - Removal and Installation
Removal
- Open the left front door.

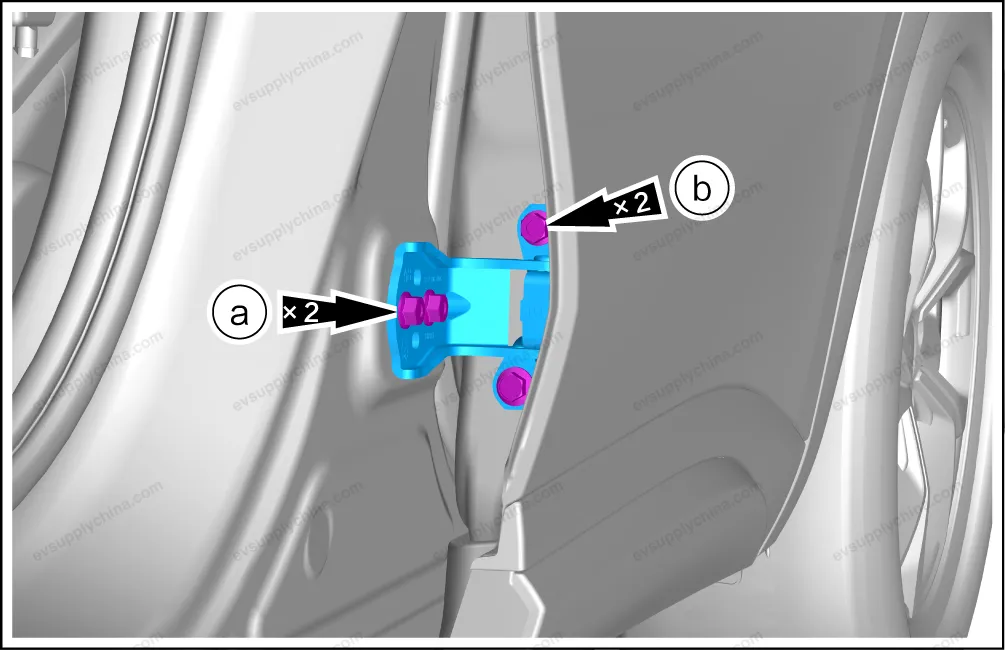

- Remove the left rear door lower hinge assembly.
- Remove 2 fixing bolts of the left rear door lower hinge assembly and the body.
- Remove 2 fixing bolts of the left rear door lower hinge assembly and the door.
- Take out the left rear door lower hinge assembly.
Install
- The installation is performed in reverse order of removal.
- Adjust the left rear door assembly after the installation. See Adjustment of Rear Door Assembly
Right Rear Door Upper Hinge Assembly - Removal and Installation
Removal
- Remove the right B-pillar upper guard assembly. See Right B-Pillar Upper Guard Assembly - Removal and Installation
- Remove 2 fixing nuts of the right rear door upper hinge assembly.
- Remove 2 fixing bolts, and take out the right rear door upper hinge assembly.
Installation
- The installation steps are opposite to the removal steps.
- Adjust the right rear door assembly after the installation. See Adjustment of Rear Door Assembly
