OEM
BYD Atto 3
Rear wiper motor and bracket assembly
OE / Material Codes
13171274-00SC2E-6310100$25USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Wiper System
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Rear wiper motor and bracket assembly
BYDYuan PLUS/Atto 3
2022–2025BYDFrigate 07 DM-i
2023–2024BYDFrigate 07 DM-p
2023–2024BYDYuan UP/Atto 2
2024–2025BYDSong L DM-i
2024–2025Rear wiper motor and bracket assembly Workshop Guide — BYD Atto 3
Rear Wiper Motor and Bracket Assembly - Removal and Installation
Removal
- Remove the tailgate lower guard assembly. See Tailgate Lower Guard Assembly - Removal and Installation
- Remove the rear wiper arm and blade assembly. See Rear Wiper Arm and Blade Assembly - Removal and Installation

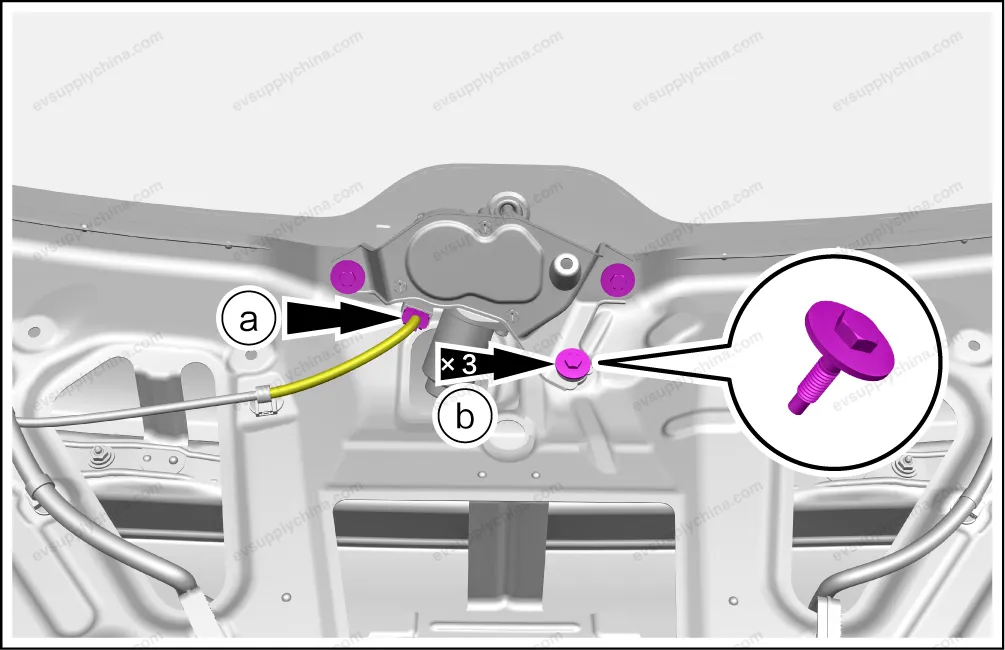

- Remove the fasteners from the rear wiper motor and bracket assembly.
- Disconnect 1 connector.
- Remove 3 fixing bolt.
- Take out the rear wiper motor and bracket assembly.
Installation
- The installation steps are opposite to the removal steps.

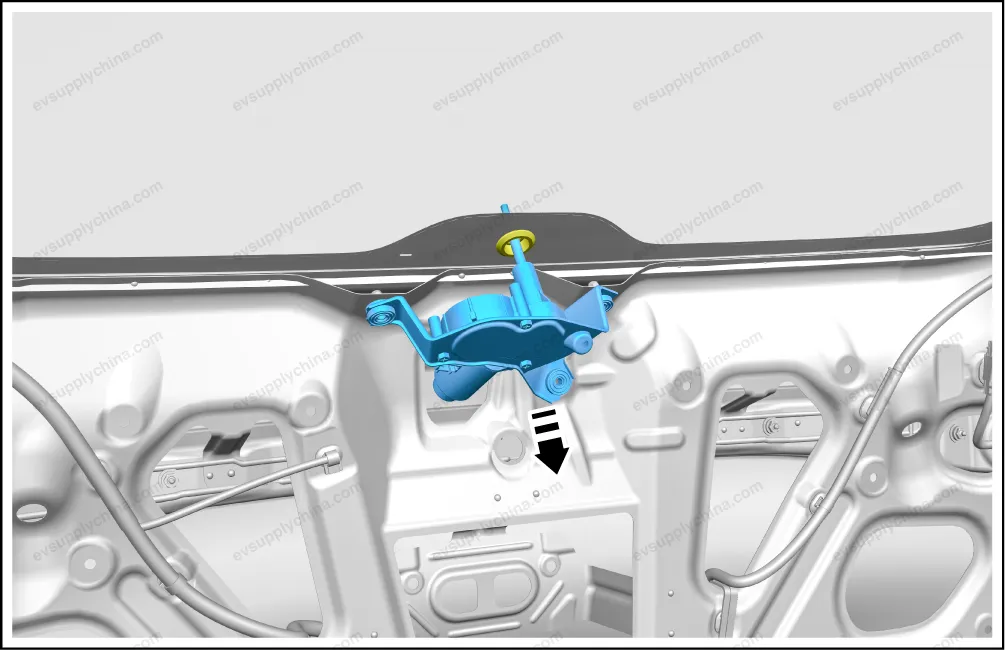

Rear wiper motor and bracket assembly Fitment Diagram — BYD Atto 3
Other parts in this assembly
