OEM
BYD Atto 3
Front wiper drive system assembly
OE / Material Codes
13442417-00SC2EM-5205300$52USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Wiper System
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Front wiper drive system assembly Workshop Guide — BYD Atto 3
Front Wiper Drive System Assembly - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Remove the ventilation cover assembly. See Ventilation Cover Assembly - Removal and Installation
- Remove the front wiper drive system assembly.
- Disconnect 1 connector.
- Remove 2 fixing bolt.
- Take out the front wiper drive system assembly.
Installation
- The installation steps are opposite to the removal steps.

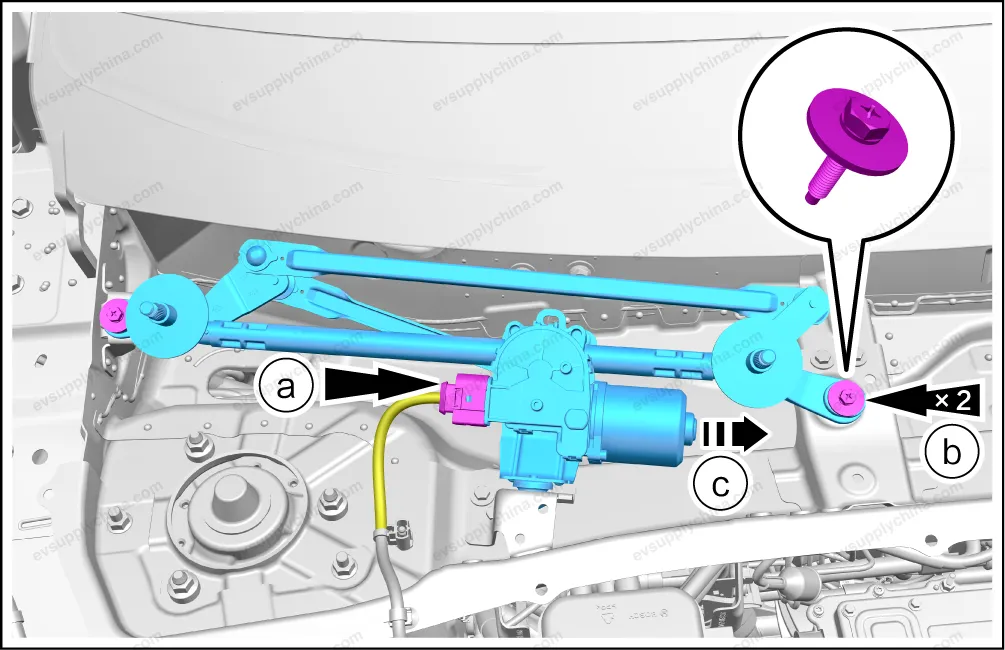

Front wiper drive system assembly Fitment Diagram — BYD Atto 3
