OEM
BYD Atto 3
Front wiper left wiper arm assembly
OE / Material Codes
13442420-00SC2EM-5205120Price on requestIn Stock
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Wiper System
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Front wiper left wiper arm assembly Workshop Guide — BYD Atto 3
Front Wiper Left Wiper Arm Assembly - Removal and Installation
Removal
- Remove the front wiper left blade assembly. See Front Wiper Left Wiper Blade Assembly - Removal and Installation

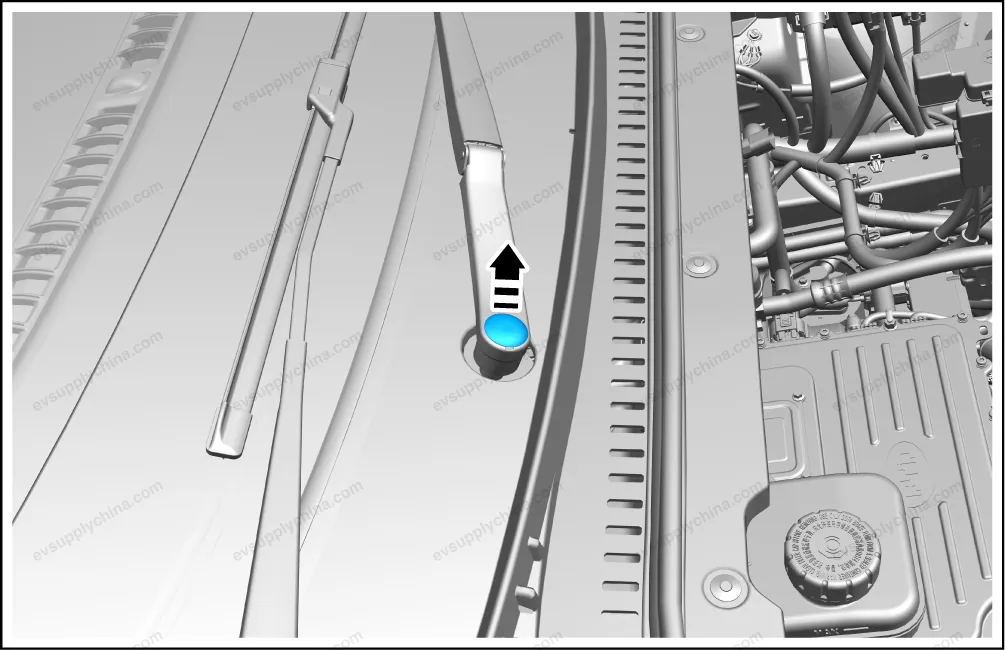

- Pry up the wiper arm decorative nut.

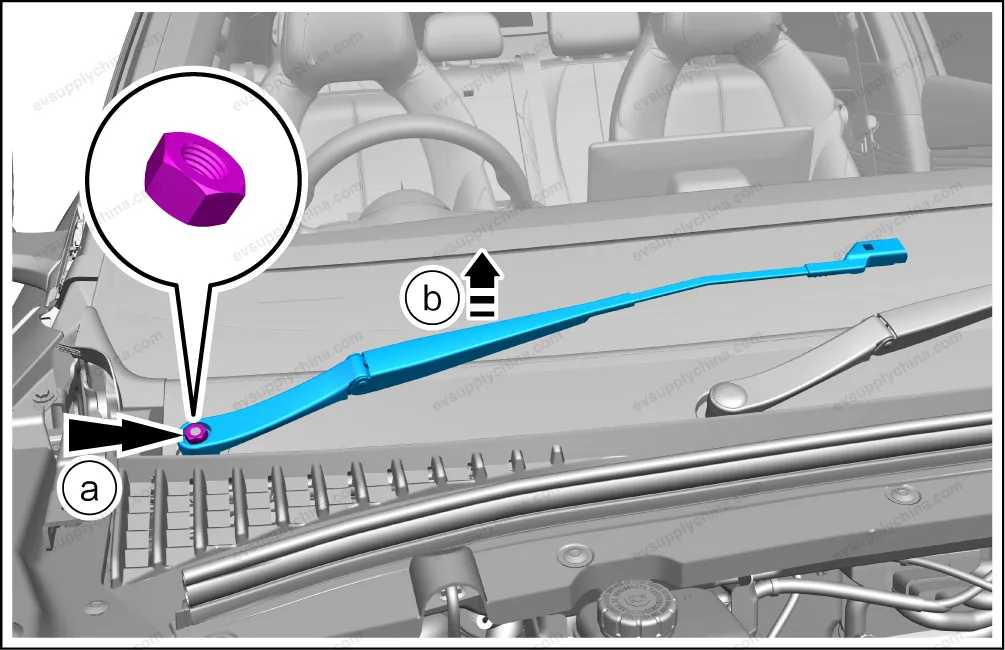

- Remove the front wiper left wiper arm assembly.
- Remove 1 fixing nuts.
- Take out the front wiper left wiper arm assembly.
Caution Take care when removing the front wiper arm to prevent damage to the front windshield.
Installation
- The installation steps are opposite to the removal steps.
Front Wiper Right Wiper Arm Assembly - Removal and Installation
Removal
- Remove the front wiper right blade assembly. See Front Wiper Right Blade Assembly - Removal and Installation
- Pry up the wiper arm decorative nut.

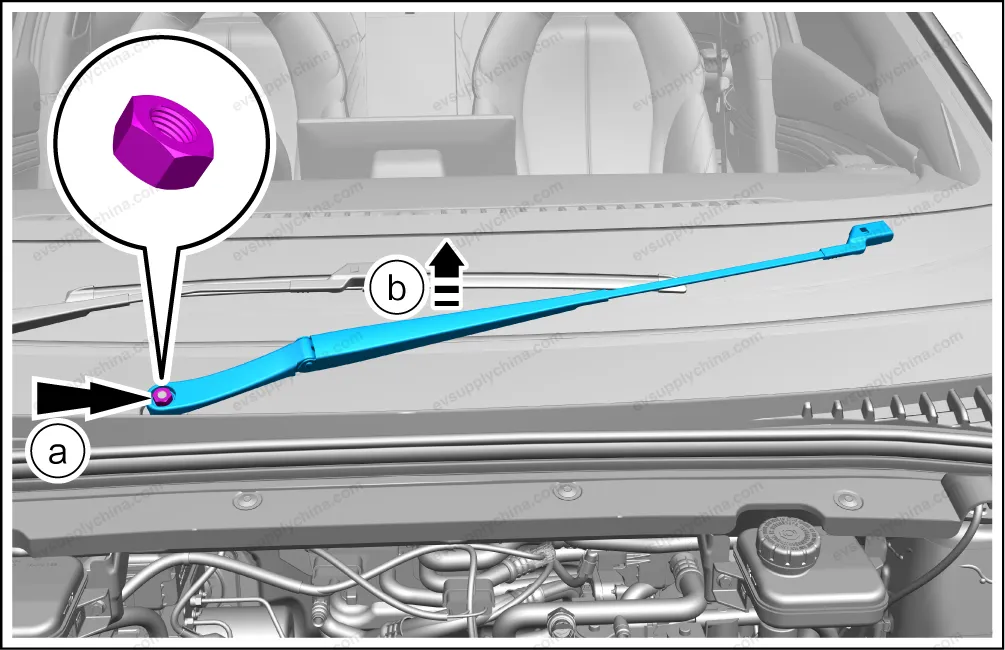

- Remove the front wiper right wiper arm assembly.
- Remove 1 fixing nuts.
- Take out the front wiper right wiper arm assembly.
Caution Take care when removing the front wiper arm to prevent damage to the front windshield.
Installation
- The installation steps are opposite to the removal steps.
