Front wiper left blade assembly
OE / Material Codes
13592871-00SC2EM-5205110ATechnical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Wiper System
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Front wiper left blade assembly Workshop Guide — BYD Atto 3
Front Wiper Left Wiper Blade Assembly - Removal and Installation
Removal

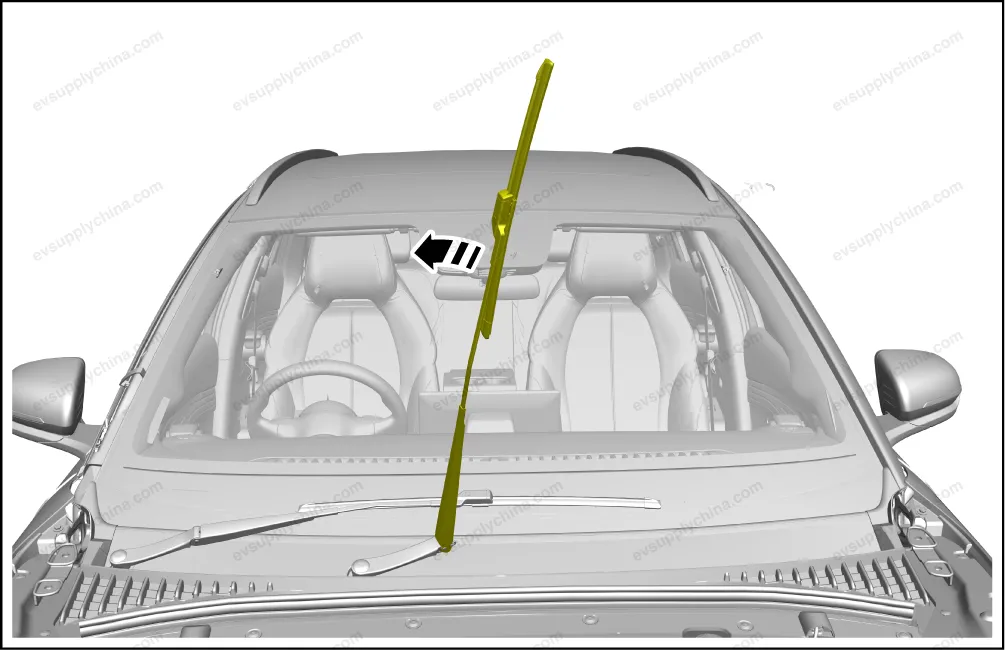

- Lift the front wiper left wiper arm assembly.
- Remove the front wiper left blade assembly.

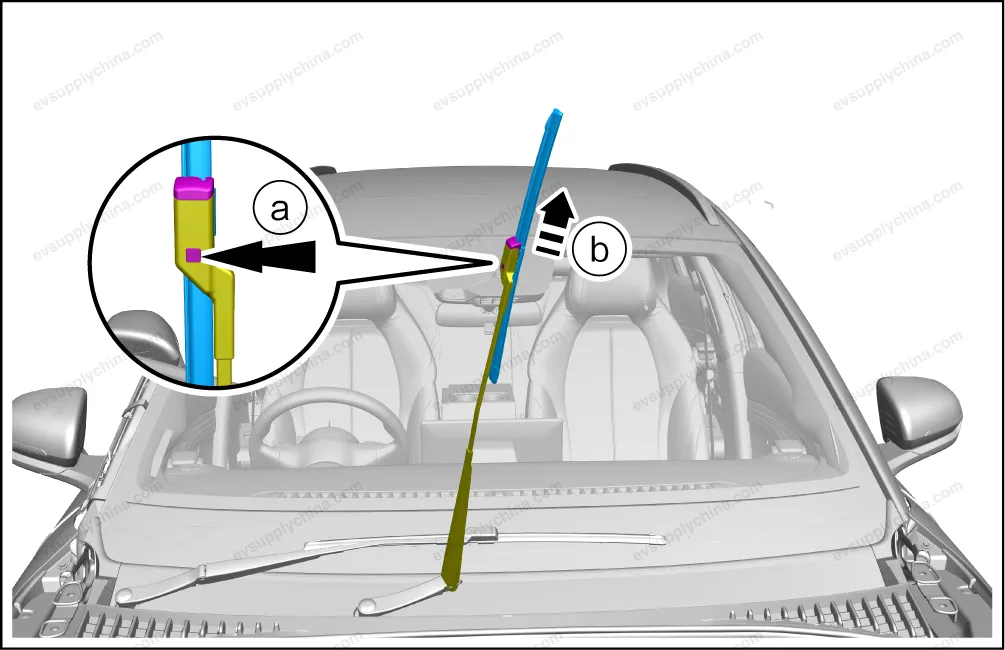

- Press the locking clip.
- Detach the left front wiper blade assembly from the left front wiper arm assembly in the direction of the arrow, and take it out.
Caution After taking out the wiper blade, gently lower the wiper arm and prevent rebound from damaging the front windshield.
Installation
- The installation steps are opposite to the removal steps.
Caution When installing the wiper blade inlet wiper arm, you should hear a "click" sound and check whether it is installed in place. After installing the wiper blade, gently lower the wiper arm to prevent the front windshield glass from being damaged due to too fast falling.
Front Wiper Right Blade Assembly - Removal and Installation
Removal

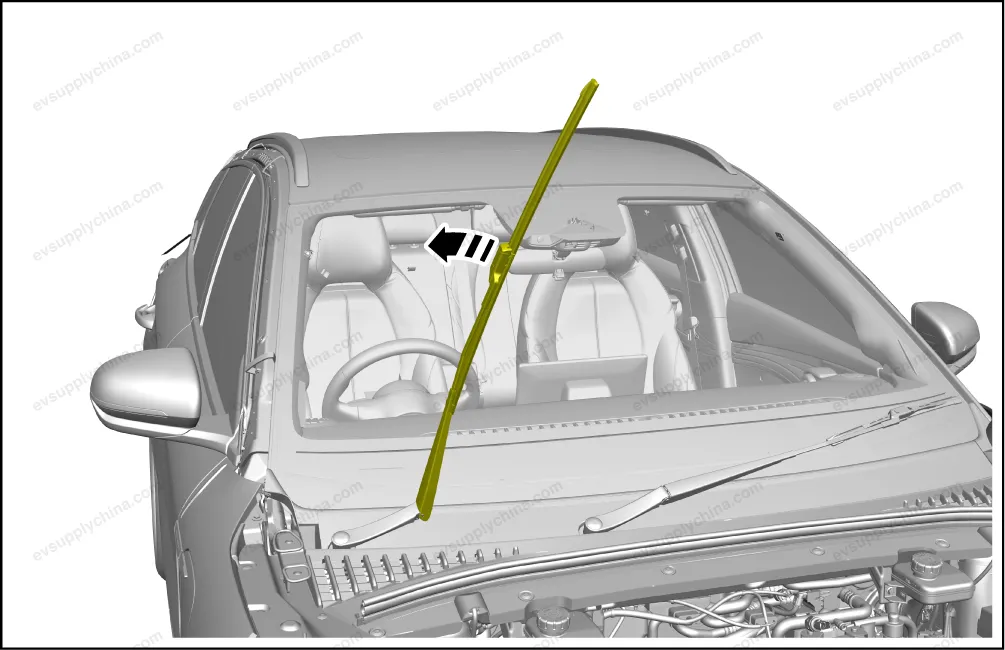

- lift the front wiper right wiper arm assembly.
- Remove the front wiper right blade assembly.

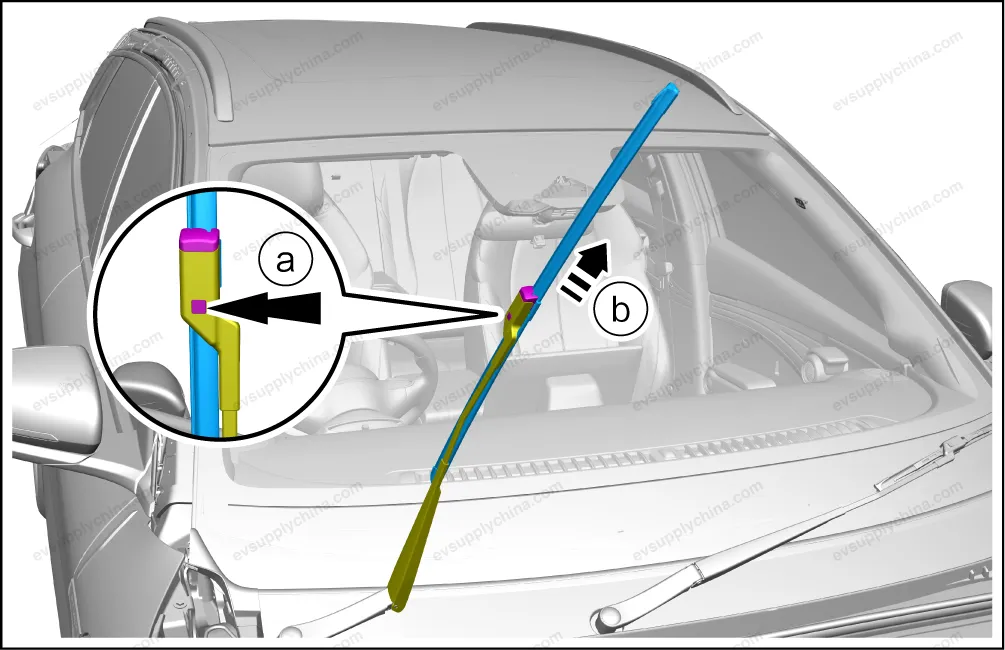

- Press the locking clip.
- Detach the right front wiper blade assembly from the right front wiper arm assembly in the direction of the arrow, and take it out.
Caution After taking out the wiper blade, gently lower the wiper arm and prevent rebound from damaging the front windshield.
Installation
- The installation steps are opposite to the removal steps.
Caution When installing the wiper blade inlet wiper arm, you should hear a "click" sound and check whether it is installed in place. After installing the wiper blade, gently lower the wiper arm to prevent the front windshield glass from being damaged due to too fast falling.
