Rear brake pad assembly
OE / Material Codes
16643529-00SC2EM-3502001Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Brakes
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Rear brake pad assembly
Rear brake pad assembly Workshop Guide — BYD Atto 3
Rear Brake Pad Assembly Aftersales Package - Removal and Installation
Removal
- Connect the vehicle with VDS and enter the rear brake "Maintenance Mode Release".
- Remove the left rear wheel assembly. See Wheel Assembly - Removal and Installation

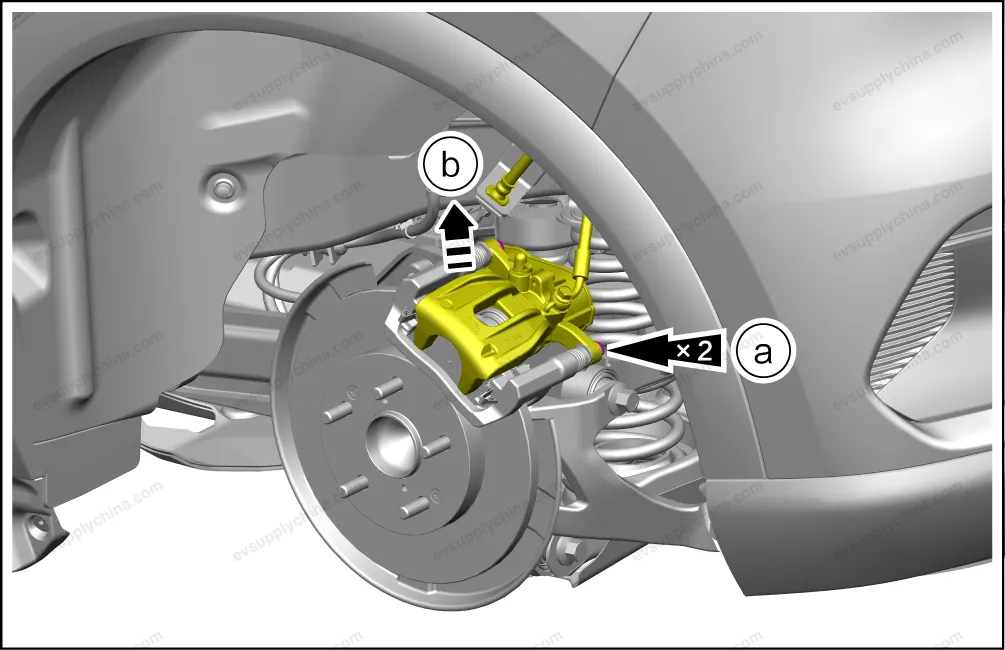

- Remove 2 fixing bolts, take out the left rear brake caliper sub-assembly aftersales package.

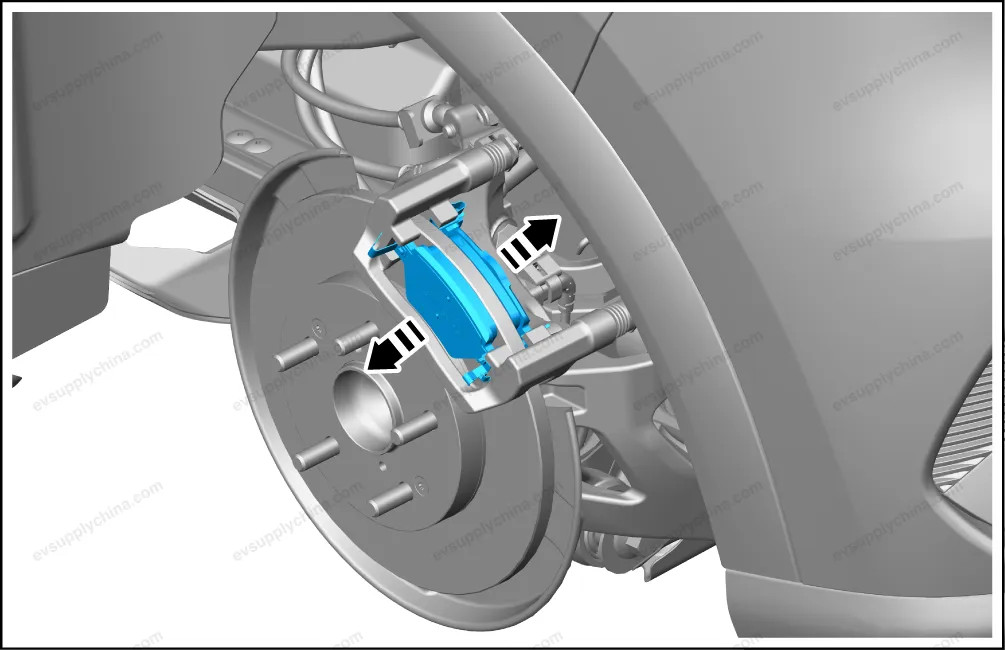

- Take out the rear brake pad assembly aftersales package.
Caution After taking out the rear brake caliper sub-assembly aftersales package, in case the brake pipeline is pulled and damaged, fix it on the vehicle body with a tie.
Caution After taking out the rear brake pad assembly aftersales package, replace the rear brake pad return bayonet pin on the brake caliper bracket as well.
Installation
- The installation steps are opposite to the removal steps.
Caution After replacing the rear brake pad assembly aftersales package, reset the piston of the rear brake caliper sub-assembly with a reset tool.
Brake Pad Holder - Removal and Installation
Removal
- Remove the left front wheel assembly. See Wheel Assembly - Removal and Installation
- Remove the left front brake lining assembly. See Front Brake Pad Assembly - Removal and Installation
- Take out the brake pad holder.
Install
- The installation is performed in reverse order of removal.
