BYD Atto 3
front brake disc
OE / Material Codes
13781672-00HA2EL-3501111A$56USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Brakes
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — front brake disc
BYDYuan PLUS/Atto 3
2024front brake disc Workshop Guide — BYD Atto 3
Front Brake Disc - Removal and Installation
Removal
- Remove the left front wheel assembly. See Wheel Assembly - Removal and Installation

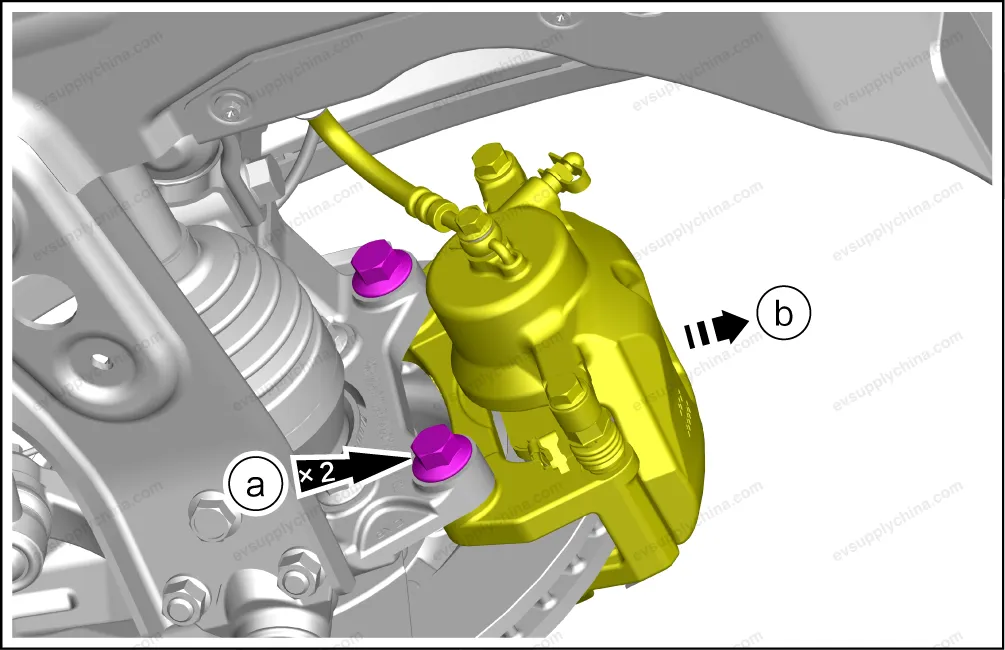

- Detach the left front brake caliper assembly.
- Remove 2 fixing bolts from the left front brake caliper assembly.
- Detach the left front brake caliper assembly from the brake disc.

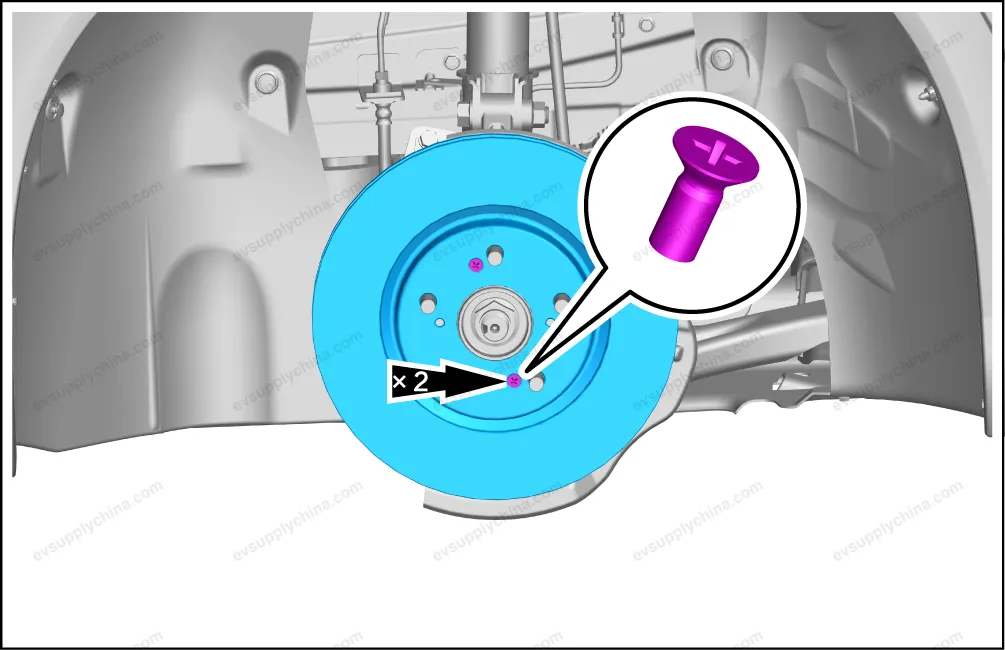

- Remove 2 fixing bolts, and take out the front brake disc.
Caution After disengaging from the brake disc, fix the brake caliper assembly to the body with a tie to prevent damage to the hose.
Installation
- The installation steps are opposite to the removal steps.
front brake disc Fitment Diagram — BYD Atto 3
