OEMPremium
BYD Atto 3
Rear wheel hub unit assembly
OE / Material Codes
12987652-00HA2EL-3104100$57USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Wheels & Hubs
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Rear wheel hub unit assembly
BYDQin PLUS EV
2021–2025BYDYuan PLUS/Atto 3
2022–2025Rear wheel hub unit assembly Workshop Guide — BYD Atto 3

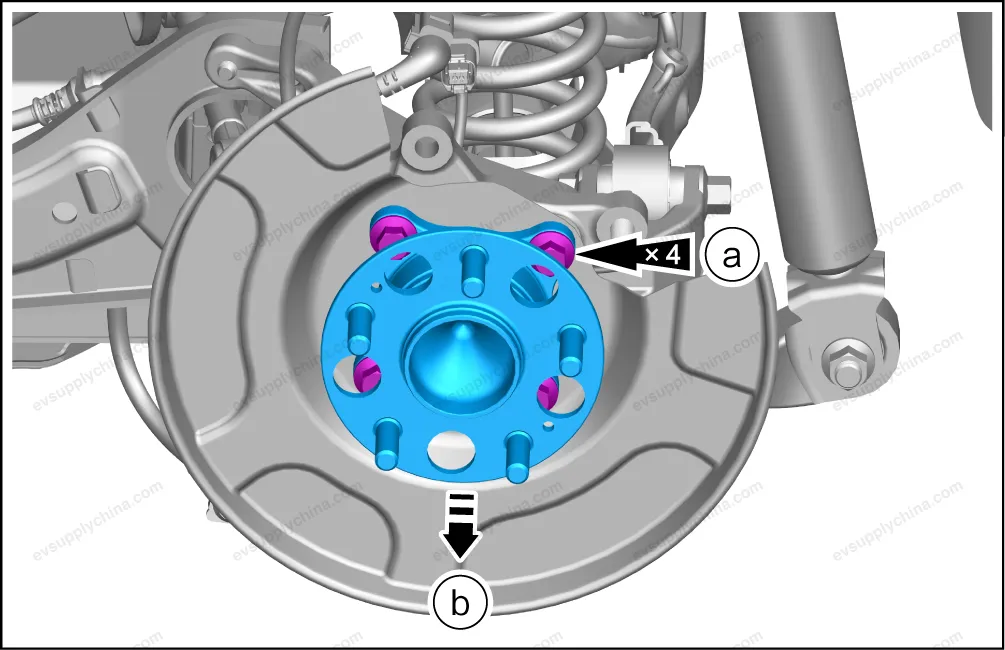

Rear Hub Unit Assembly - Removal and Installation
Removal
- Remove the rear left brake disc. Refer to Rear Brake Disc - Removal and Installation
- Remove the rear left wheel speed sensor. Refer to Rear Left Wheel Speed Sensor - Removal and Installation
- Remove 4 fixing bolts and take out the rear hub unit assembly.
Installation
- Install it in the reverse order of removal.
Rear wheel hub unit assembly Fitment Diagram — BYD Atto 3
