OEMPremium
BYD Atto 3
Front brake pad assembly
OE / Material Codes
16643626-00SC2EM-3501001$36USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Brakes
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Front brake pad assembly
BYDYuan PLUS/Atto 3
2024Front brake pad assembly Workshop Guide — BYD Atto 3
Front Brake Pad Assembly - Removal and Installation
Removal
- Remove the left front wheel assembly. See Wheel Assembly - Removal and Installation

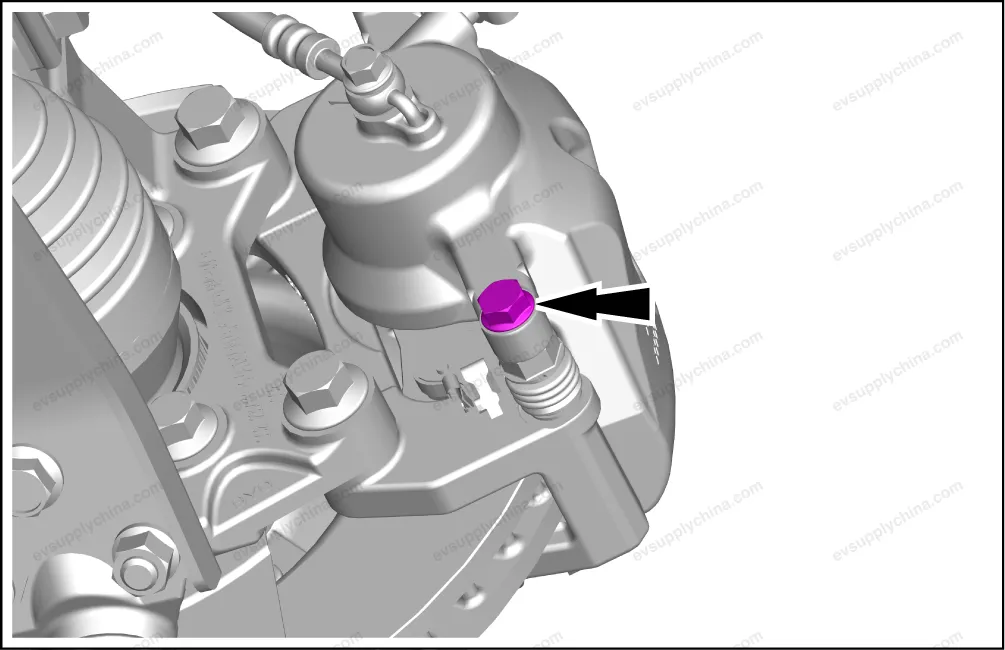

- Remove 1 fixing bolt of the left front brake caliper sub-assembly.
- Detach the left front brake hose assembly.

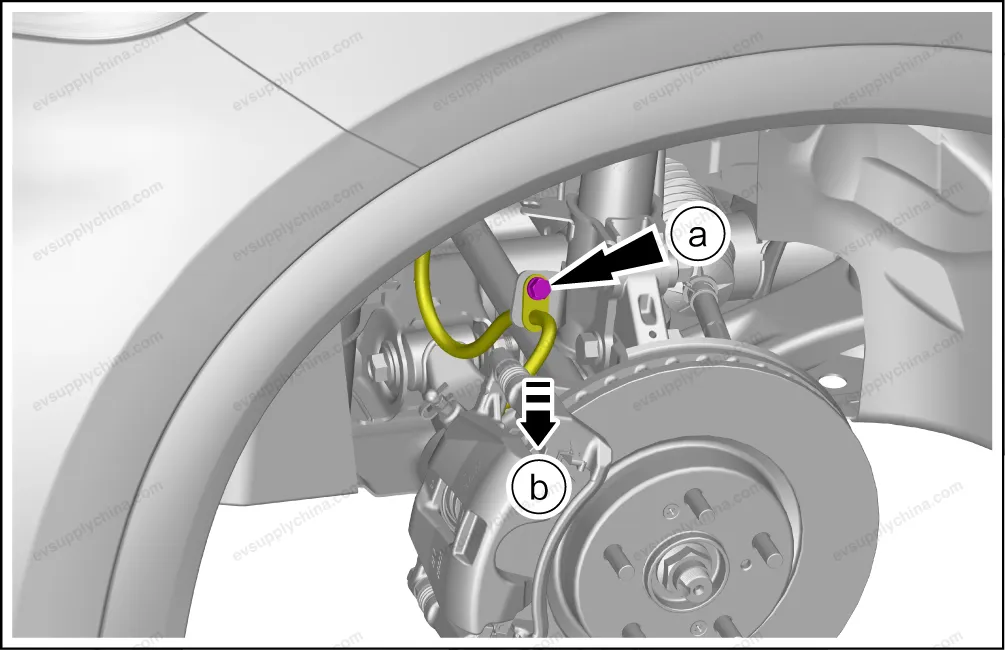

- Remove 1 fixing bolt.
- Detach the left front brake hose from the left front shock absorber strut.
- Remove the front brake pad assembly.

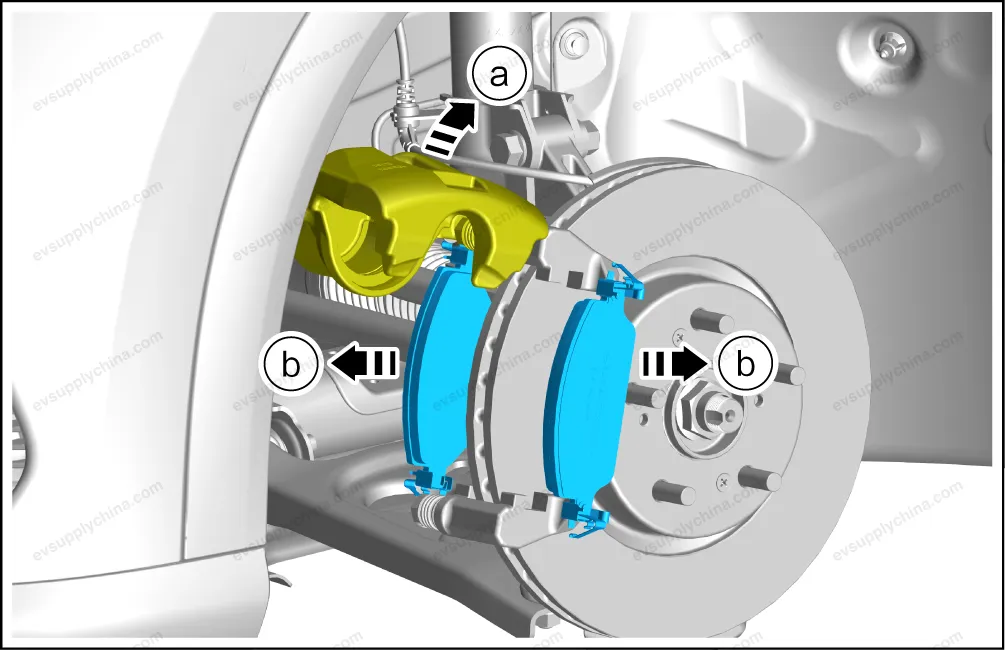

- Turn the left front brake caliper body sub-assembly upward.
- Remove the front brake pad assembly.
Caution After turning upwards, it should be fixed with a tie to avoid injury caused by the left front brake caliper body sub-assembly turning downwards suddenly.
Installation
- The installation steps are opposite to the removal steps.
Caution To replace the brake pad assembly, replace the brake pad holder as well.
Brake Pad Holder - Removal and Installation
Removal
- Remove the left front wheel assembly. See Wheel Assembly - Removal and Installation
- Remove the left front brake lining assembly. See Front Brake Pad Assembly - Removal and Installation

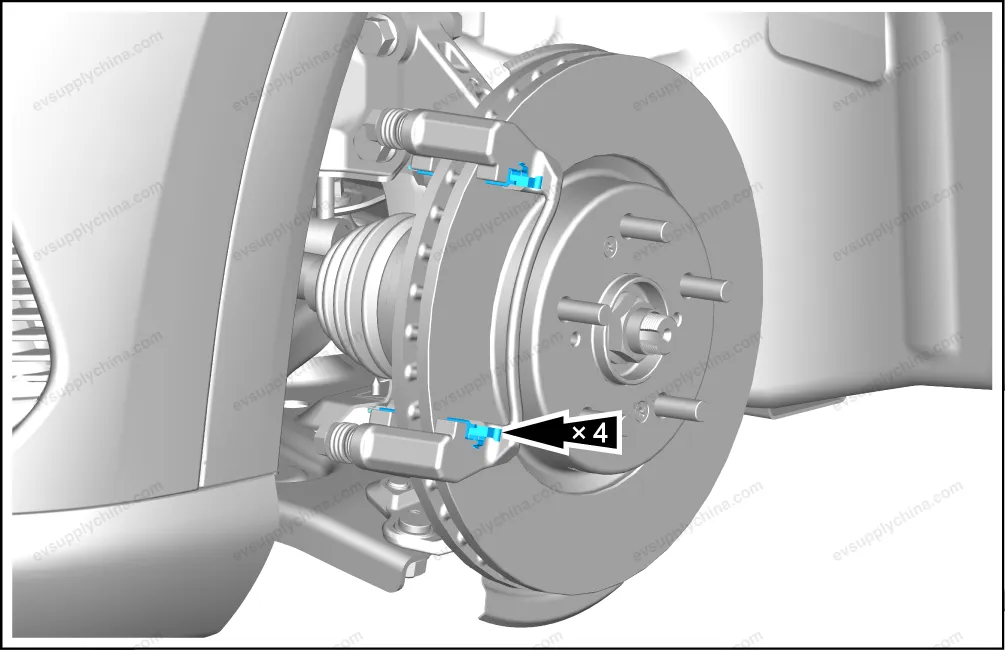

- Take out the brake pad holder.
Install
- The installation is performed in reverse order of removal.
