OEMPremium
BYD Atto 3

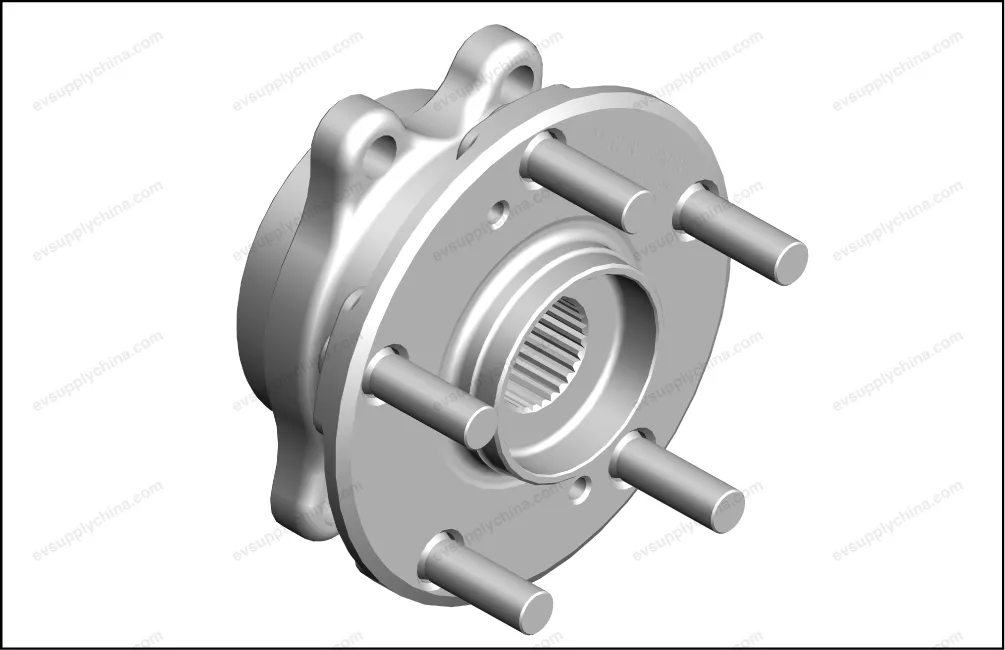

Front wheel hub unit assembly
OE / Material Codes
13423446-00HAD-3103100A$52USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Wheels & Hubs
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Front wheel hub unit assembly
BYDDolphin
2021–2023BYDYuan PLUS/Atto 3
2022–2025Front wheel hub unit assembly Workshop Guide — BYD Atto 3
Front Hub Unit Assembly - Removal and Installation
Removal
- Remove the left front wheel assembly. See Wheel Assembly - Removal and Installation
- Remove the left front drive half shaft assembly. See Left Front Drive Half Shaft Assembly - Removal and Installation
- Remove the left front brake disc. See Front Brake Disc - Removal and Installation

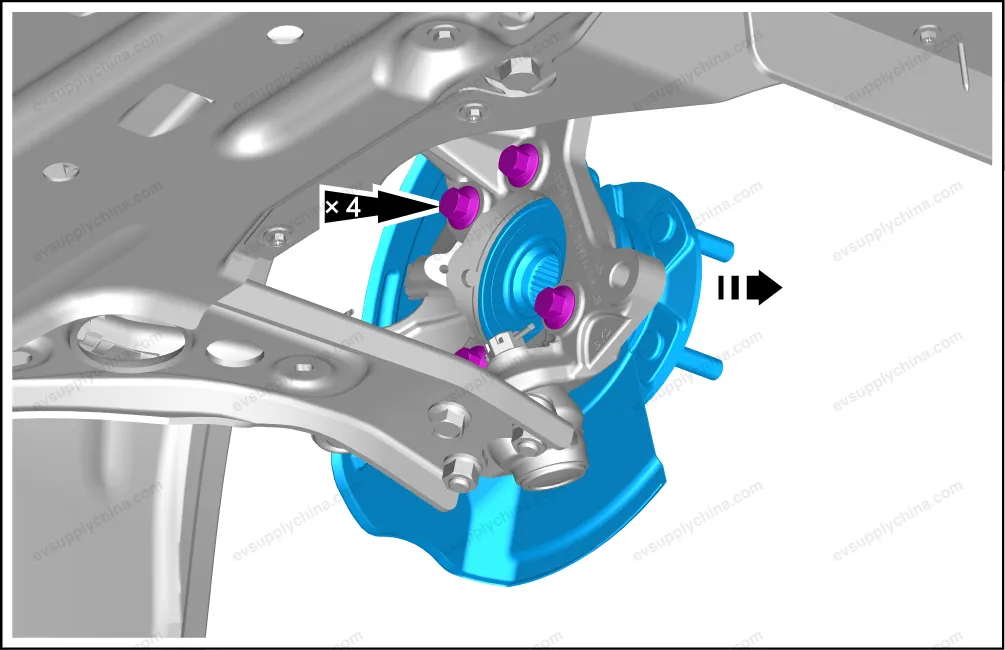

- Remove 4 fixing bolts, and take out the front hub unit and the left front brake mudguard.
- Take out the front hub unit assembly.
Installation
- The installation steps are opposite to the removal steps.
Front wheel hub unit assembly Fitment Diagram — BYD Atto 3
Other parts in this assembly
