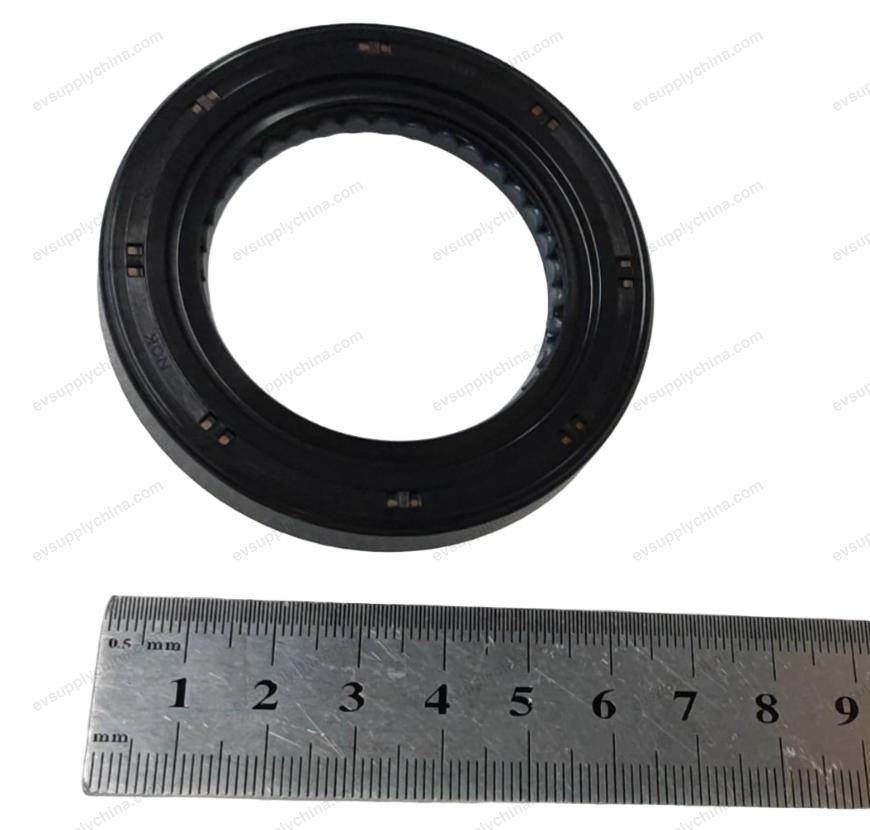

Differential oil seal
OE / Material Codes
10173783-00e6-1701550Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Driveshafts & Axles
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Differential oil seal
Differential oil seal Workshop Guide — BYD Atto 3
Left Differential Oil Seal - Removal and Installation
Removal
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation
- Discharge the differential mechanism gear oil. See Replacement of Differential Gear Oil
- Remove the left front drive half shaft assembly. See Left Front Drive Half Shaft Assembly - Removal and Installation

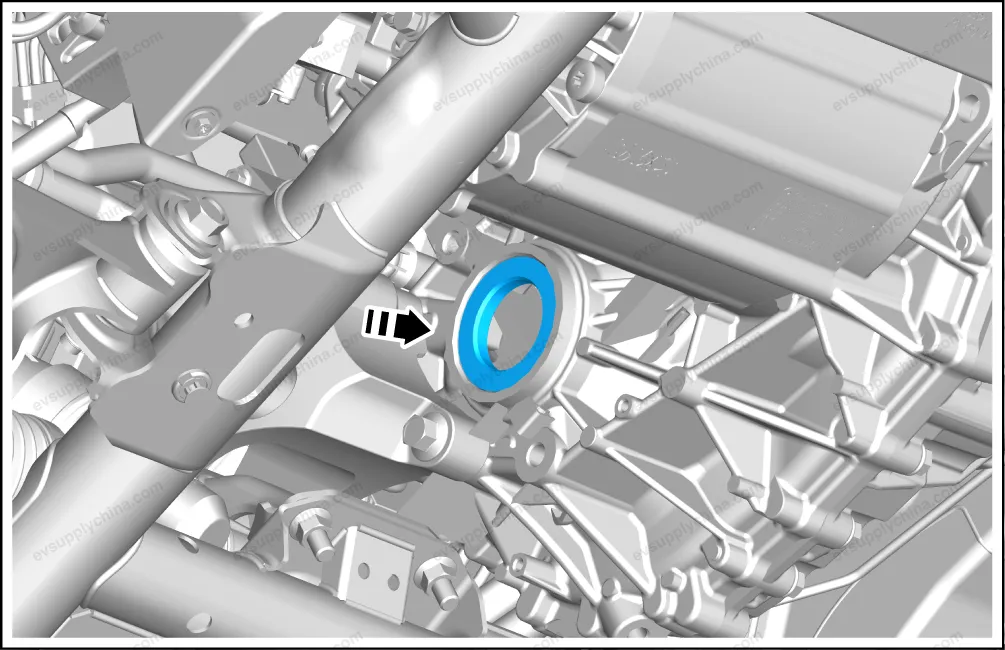

- Carefully remove the left differential oil seal.
Caution When removing the oil seal, special care should be taken not to scratch the reducer housing. The differential oil seal is not reusable and needs to be installed with a new differential oil seal.
Installation
- Install the differential oil seal with the special tool (Tool Name: half shaft oil seal installation tool; Material No. 13461863-00).
See the Manual of Special Tools
Caution Before installing the differential oil seal, clean the differential oil seal base and the new differential oil seal. Apply a thin layer of differential lubricating oil to the outer wall of the differential oil seal before installation. When installing the differential oil seal, be careful to prevent installing it at an angle. After the differential oil seal is installed, it is necessary to check and ensure that it is installed in place.
Right Differential Oil Seal - Removal and Installation
Removal
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation
- Discharge the differential mechanism gear oil. See Replacement of Differential Gear Oil
- Remove the right front drive half shaft assembly. See Right Front Drive Half Shaft Assembly - Removal and Installation

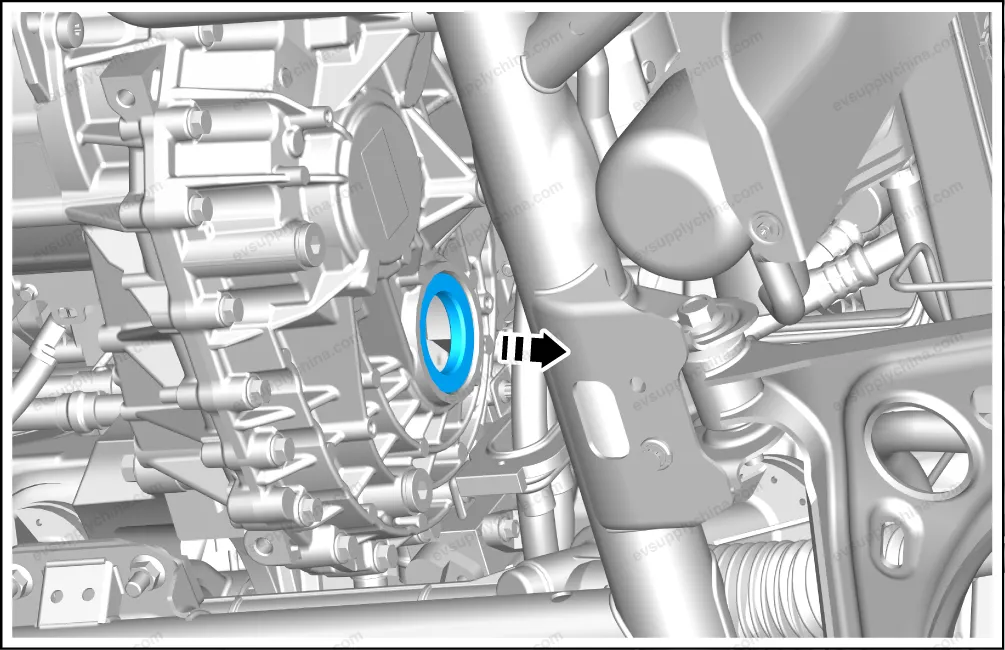

- Carefully remove the right differential oil seal.
Caution When removing the oil seal, special care should be taken not to scratch the reducer housing. The differential oil seal is not reusable and needs to be installed with a new differential oil seal.
Install

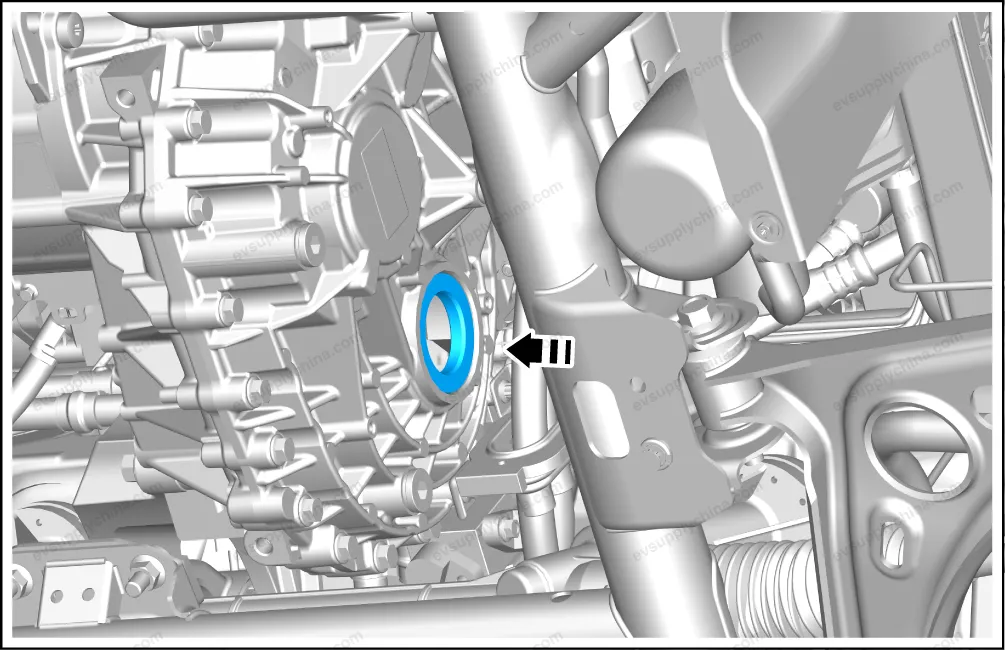

- Install the differential oil seal with the special tool (Tool Name: half shaft oil seal installation tool; Material No. 13461863-00).
See the Manual of Special Tools
Caution Before installing the differential oil seal, clean the differential oil seal base and the new differential oil seal. Apply a thin layer of differential lubricating oil to the outer wall of the differential oil seal before installation. When installing the differential oil seal, be careful to prevent installing it at an angle. After the differential oil seal is installed, it is necessary to check and ensure that it is installed in place.
Differential oil seal Fitment Diagram — BYD Atto 3
