Cooling water pipe assembly
OE / Material Codes
13253857-00SC2E-8101280Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Radiator & Cooling
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Cooling water pipe assembly
Cooling water pipe assembly Workshop Guide — BYD Atto 3

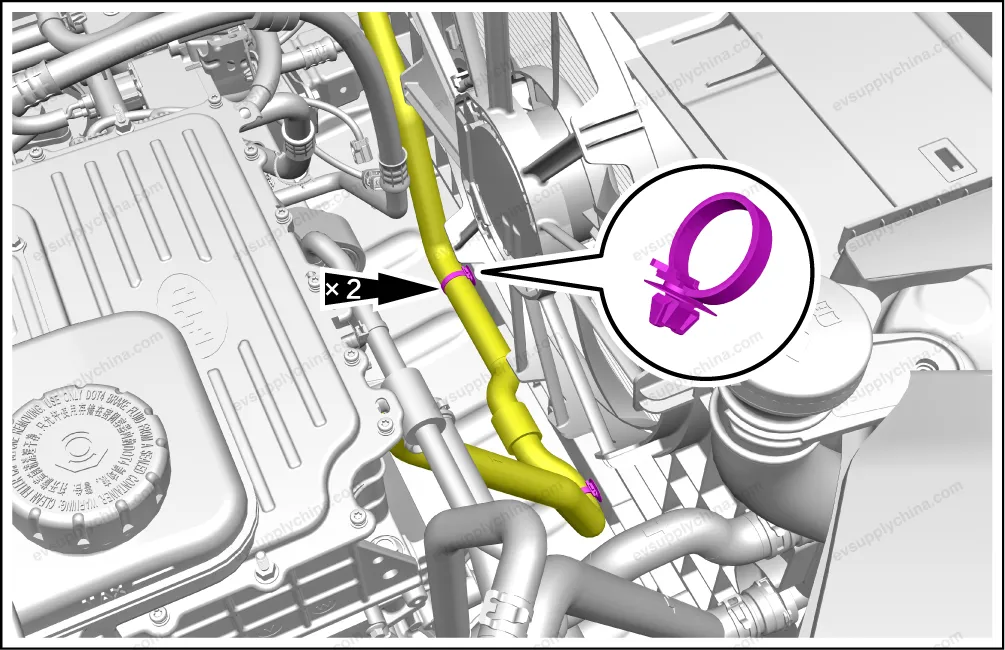

Cooling Water Pipe Assembly - Removal and Installation
Removal
- Power off the high voltage electrical system. See Power-off and power-on of high voltage electrical system
- Discharge coolant. See Replacement of Coolant
- Loosen 2 fixing clamps, and remove the cooling water pipe assembly.
Installation
- The installation steps are opposite to the removal steps.
- After the installation, fill in the coolant. See Replacement of Coolant
Caution After installation, check the pipeline joints to make sure there is no leakage. If any, the inspection and repair shall be carried out again.

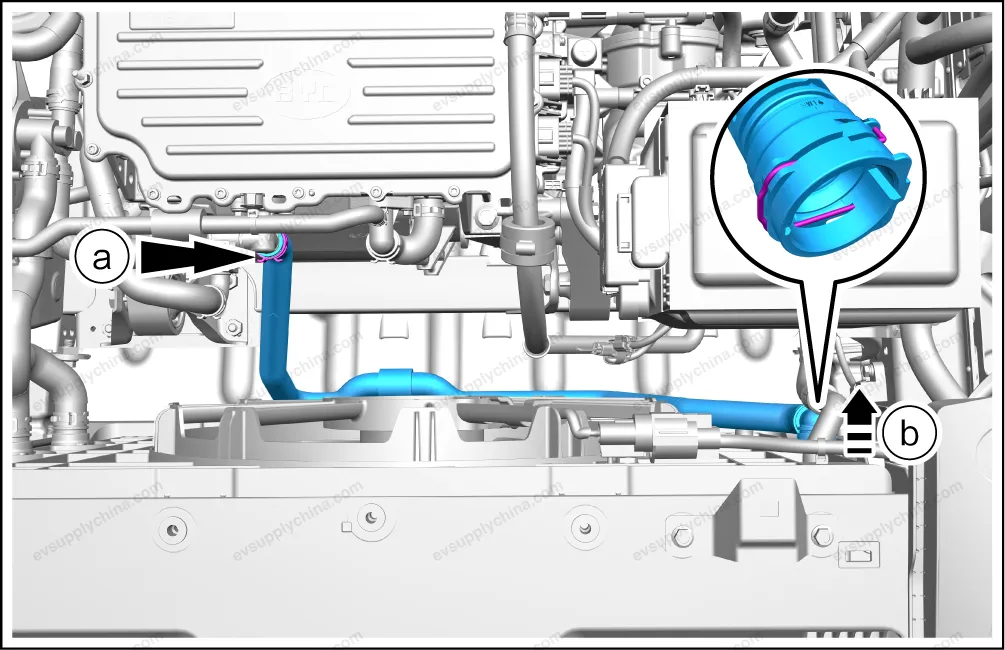

Cooling Pipe Assembly 1 - Removal and Installation
Removal
- Discharge coolant. See Replacement of Coolant
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation
- Detach the 2 pipe clamps.
- Remove the cooling pipe assembly 1.
- Loosen 1 fixing clamp, and detach the cooling pipe assembly 1 from the integrated intelligent front drive assembly.
- Pry up a hold-open catch, and take out the cooling pipe assembly 1.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, check the pipeline joints to make sure there is no leakage. If any, the inspection and repair shall be carried out again.

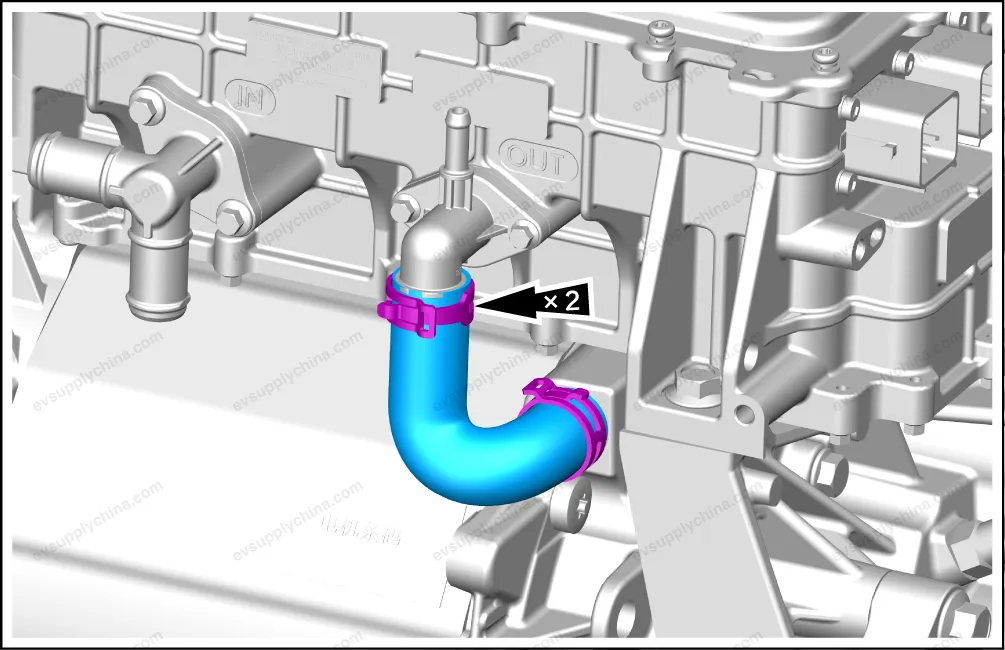

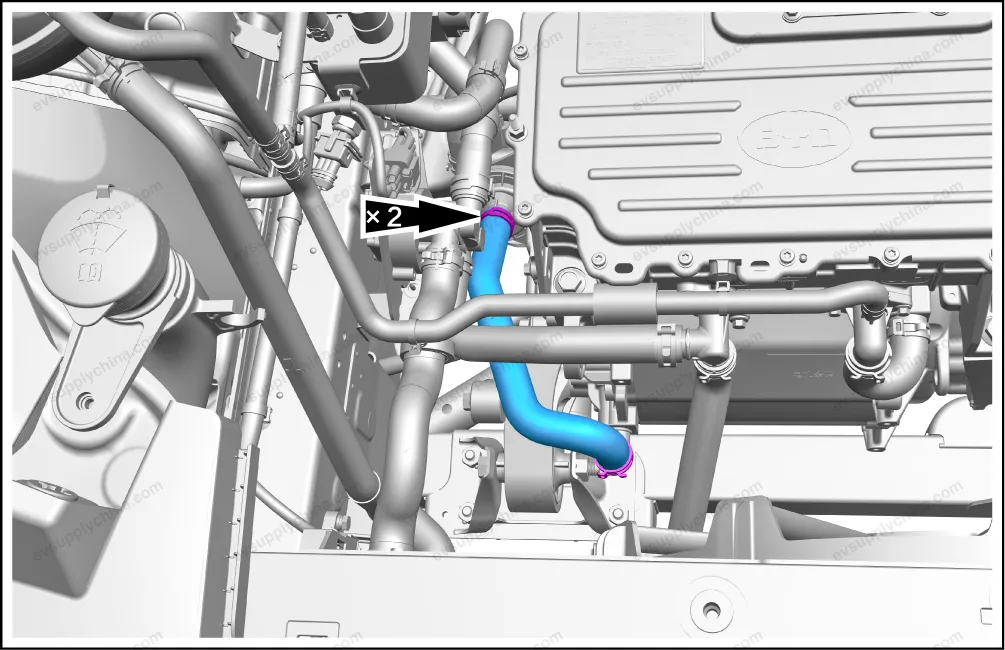

Cooling Pipe Assembly 2 - Removal and Installation
Removal
- Discharge coolant. See Replacement of Coolant
- Loosen 2 fixing clamps, detach the cooling pipe assembly 2 from the electric water pump assembly I and the integrated intelligent
front drive assembly, and take it out.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, check the pipeline joints to make sure there is no leakage. If any, the inspection and repair shall be carried out again.
