OEMPremium
BYD Atto 3

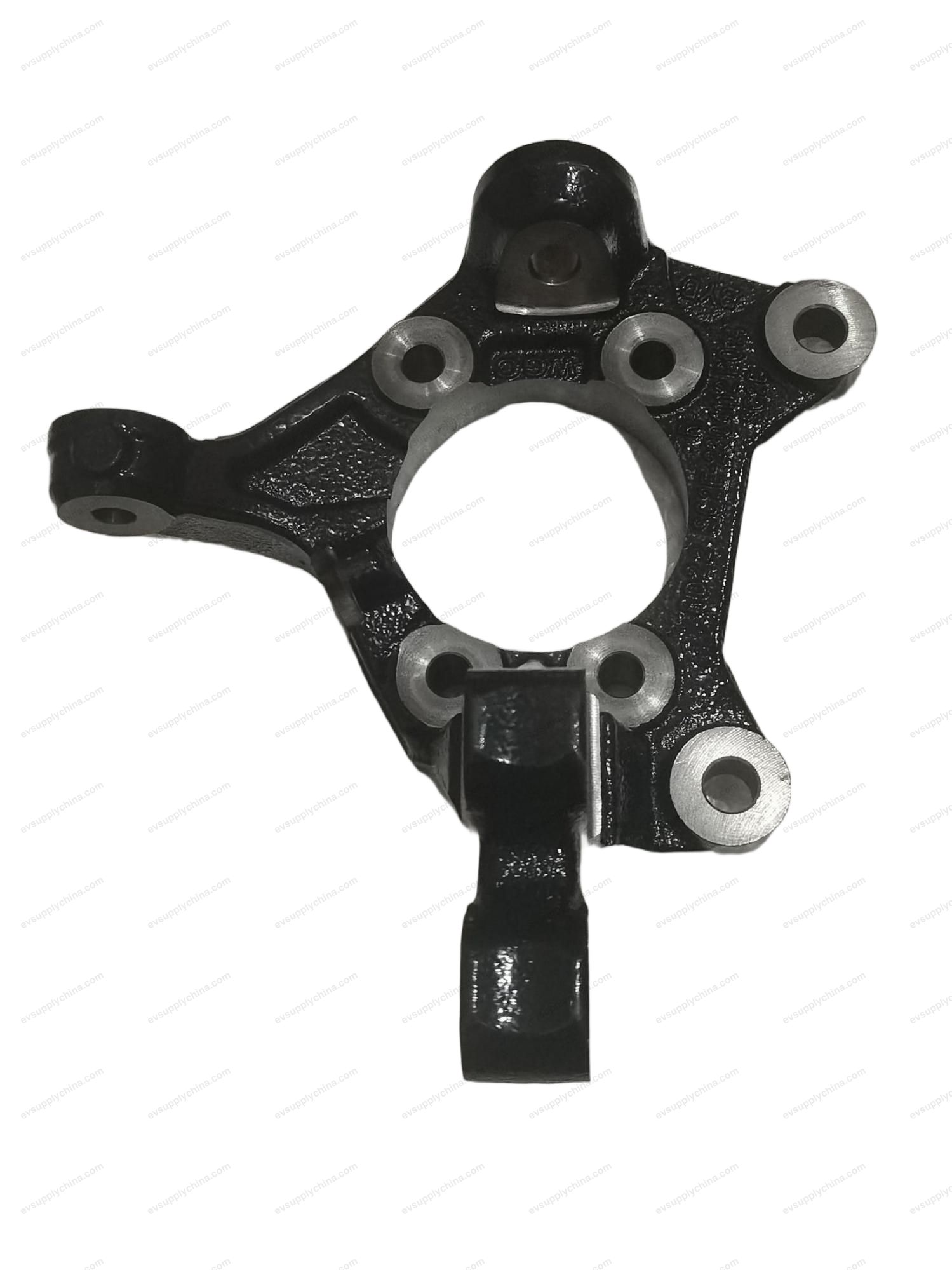

Left front steering knuckle
OE / Material Codes
13781671-00SC2E-2304111A$52USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Driveshafts & Axles
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left front steering knuckle
BYDYuan PLUS/Atto 3
2024Left front steering knuckle Workshop Guide — BYD Atto 3
Left Front Steering Knuckle - Removal and Installation
Removal
- Remove the left front hub unit assembly. See Front Hub Unit Assembly - Removal and Installation
- Remove the left front ball stud press assembly. See Ball Stud Press Assembly - Removal and Installation
- Remove the left front wheel speed sensor. See Left Front Wheel Speed Sensor - Removal and Installation

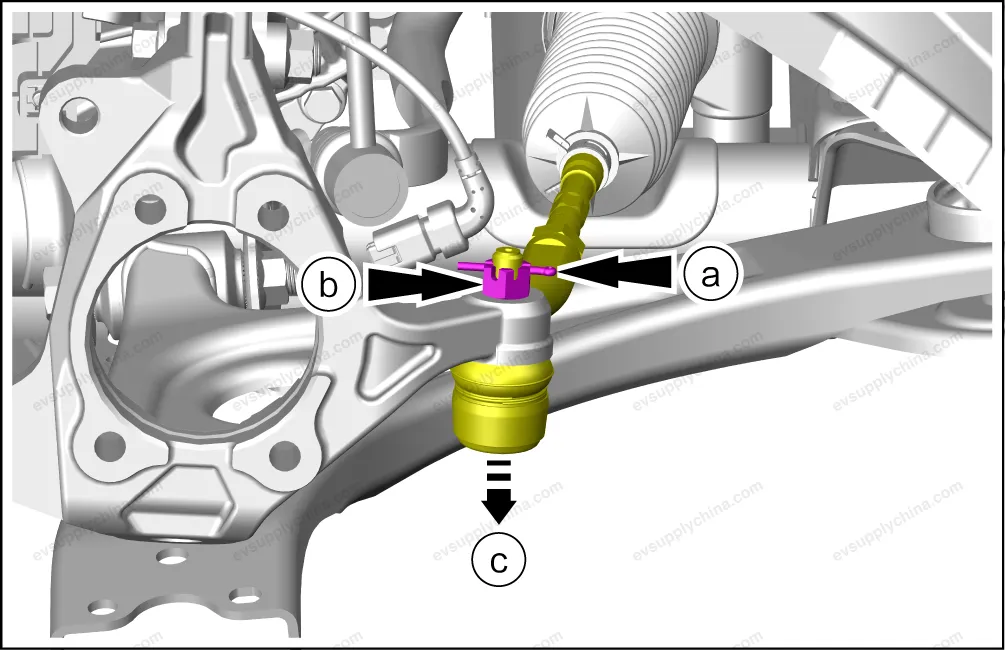

- Detach the mechanical steering gear with tie rod assembly from the left front steering knuckle.
- Remove 1 fixing pin.
- Remove 1 fixing nuts.
- Remove the ball joint with the ball joint remover.
- Remove the left front steering knuckle.

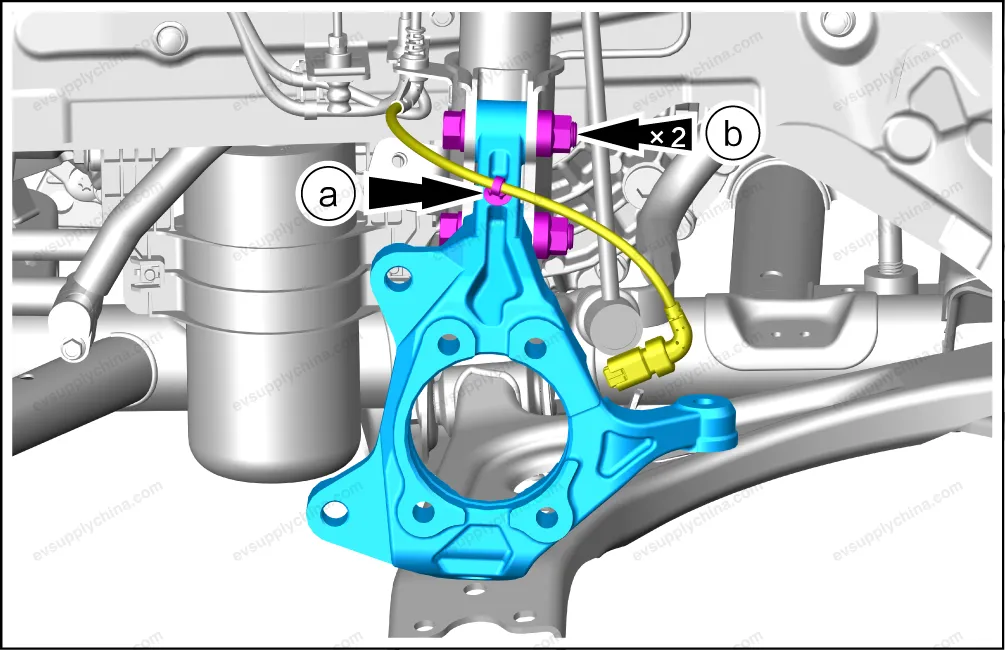

- Detach the wiring harness clip, and put aside the wiring harness
- Remove 2 fixing nuts, take out 2 fixing bolts, and take out the left front steering knuckle.
Installation
- The installation steps are opposite to the removal steps.
- Wheel alignment shall be carried out after the installation. See Four-Wheel Alignment
Right Front Steering Knuckle - Removal and Installation
Removal
- Remove the right front hub unit assembly. See Front Hub Unit Assembly - Removal and Installation
- Remove the right front ball stud press assembly. See Ball Stud Press Assembly - Removal and Installation
- Remove the right front wheel speed sensor. See Right Front Wheel Speed Sensor - Removal and Installation

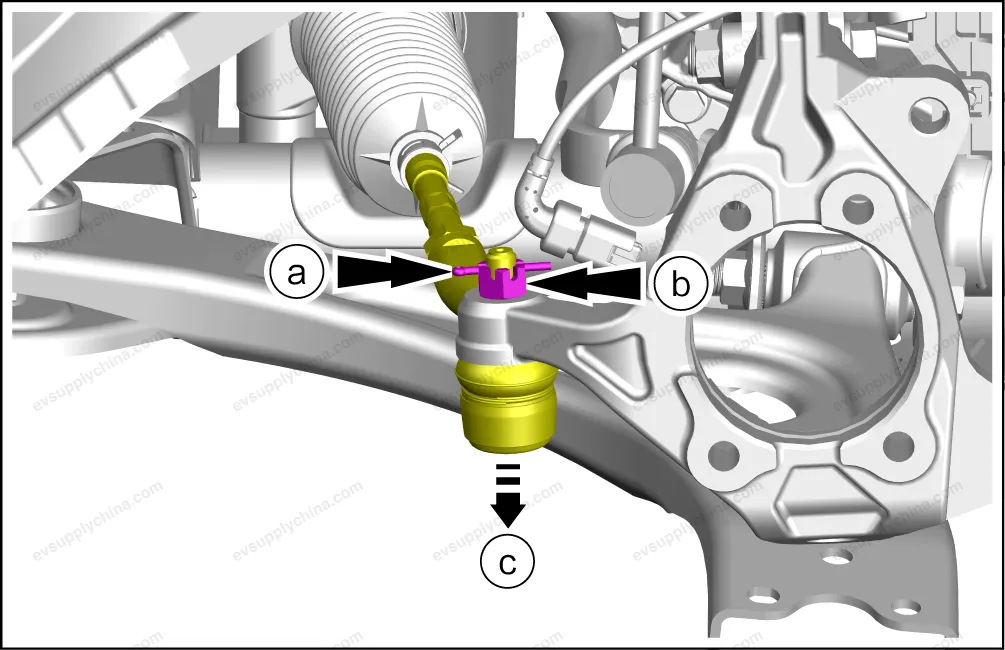

- Detach the mechanical steering gear with tie rod assembly from the right front steering knuckle.
- Remove 1 fixing pin.
- Remove 1 fixing nut.
- Remove the ball joint with the ball joint remover.
- Remove the right front steering knuckle.

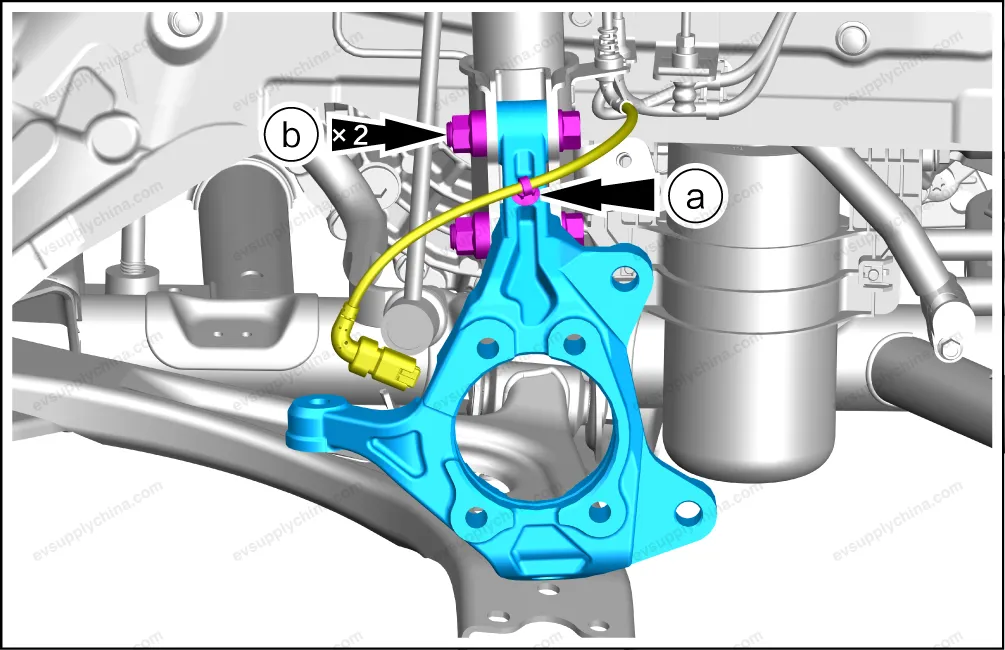

- Detach the wiring harness clip and put aside the wiring harness.
- Remove 2 fixing nuts/bolts, and take out the right front steering knuckle.
Installation
- The installation steps are opposite to the removal steps.
- Wheel alignment shall be carried out after the installation. See Four-Wheel Alignment
