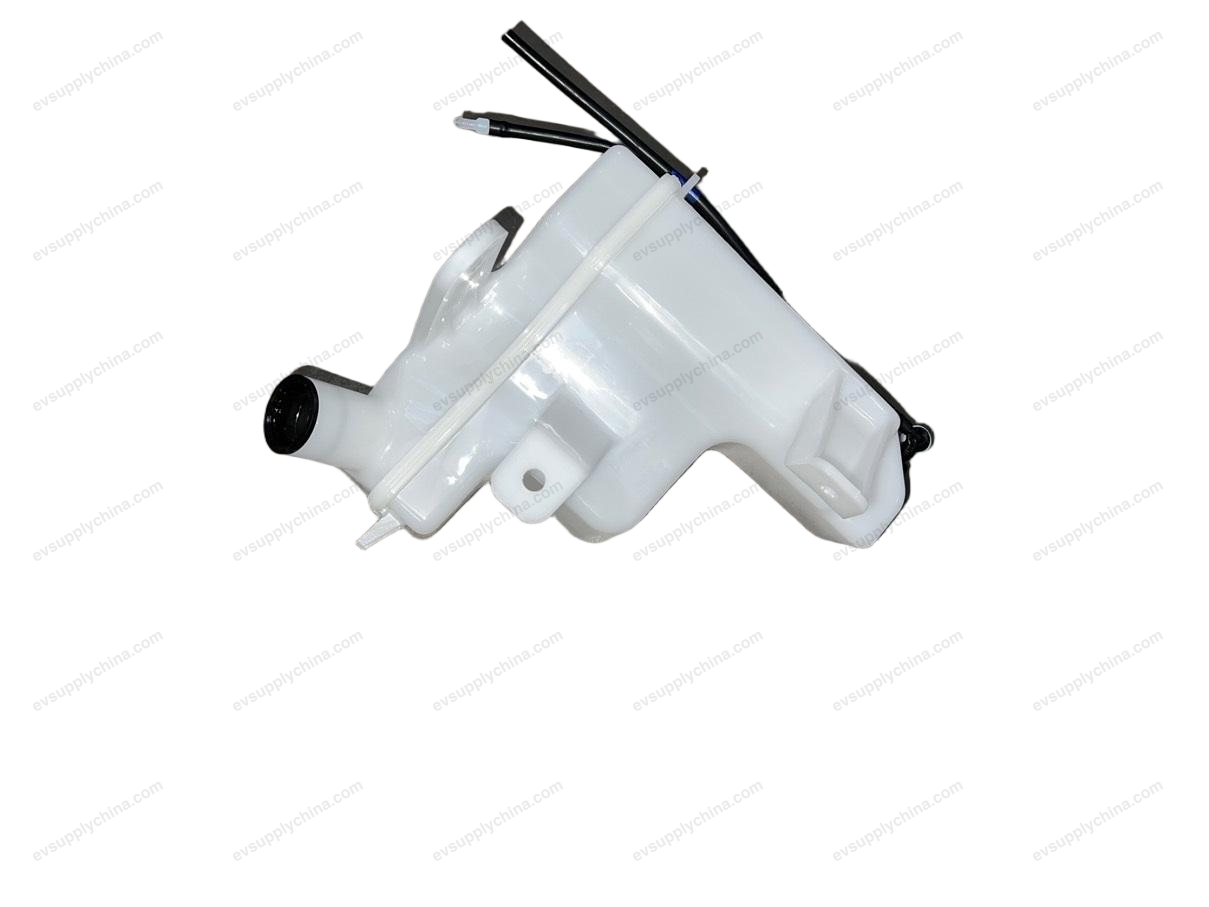

Detergent reservoir and motor assembly
OE / Material Codes
13171356-00SC2E-5207110ATechnical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Wiper System
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Detergent reservoir and motor assembly
Detergent reservoir and motor assembly Workshop Guide — BYD Atto 3
Washer Reservoir and Motor Assembly - Removal and Installation
Removal
- Remove the front bumper assembly. See Front Bumper Assembly - Removal and Installation
- Remove the washer reservoir neck assembly. See Washer Reservoir Neck Assembly - Removal and Installation
- Disconnect the wiring harness connection of the washer reservoir and motor assembly.
- Disconnect 1 connector.

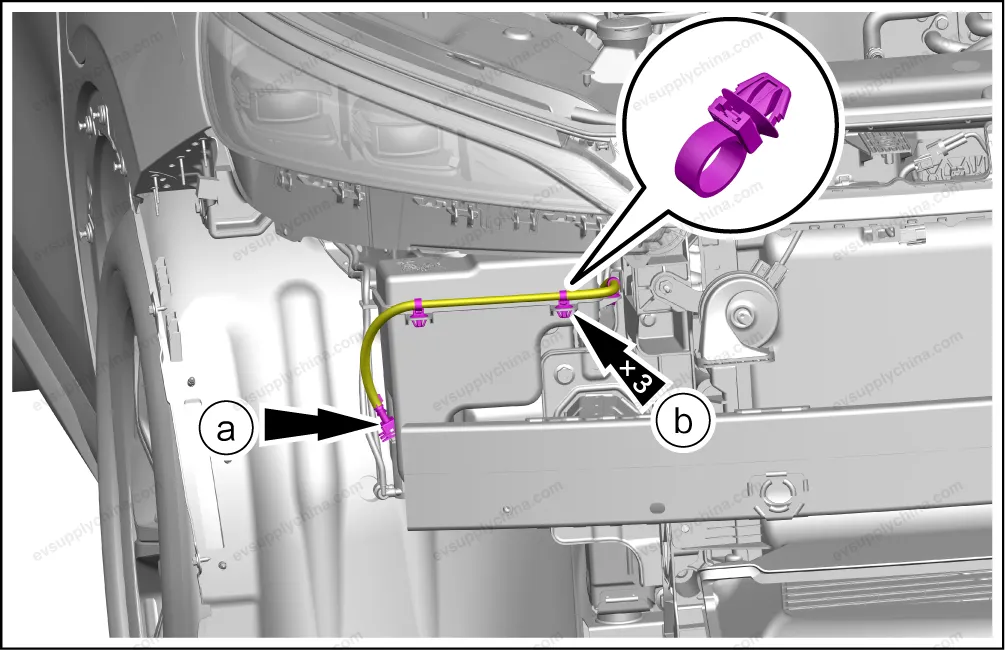

- Detach 3 wiring harness clips.

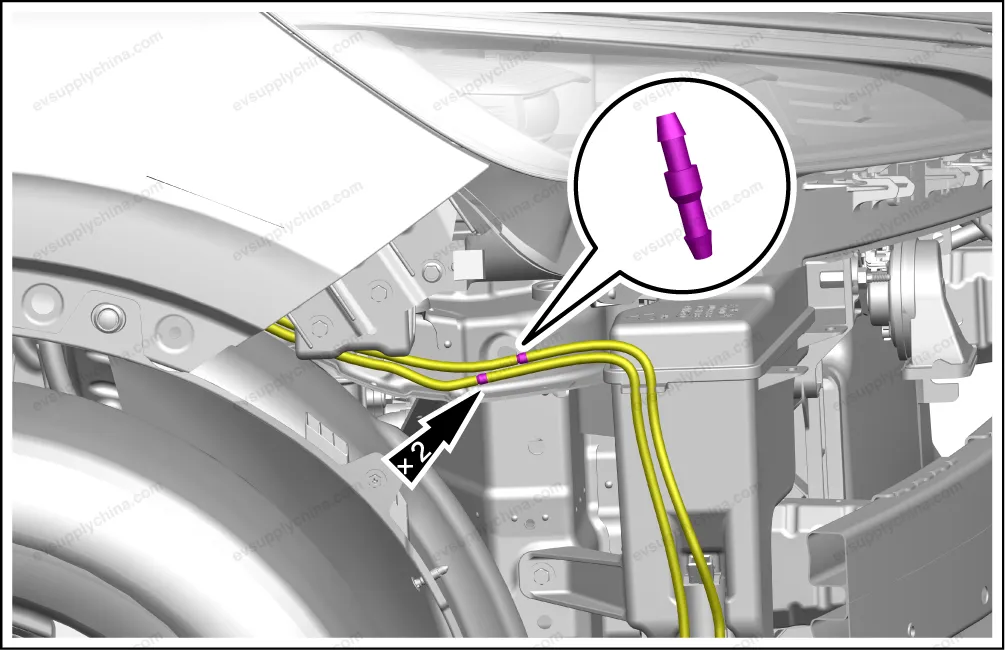

- Detach 2 pipeline connections of the washer reservoir and motor assembly.

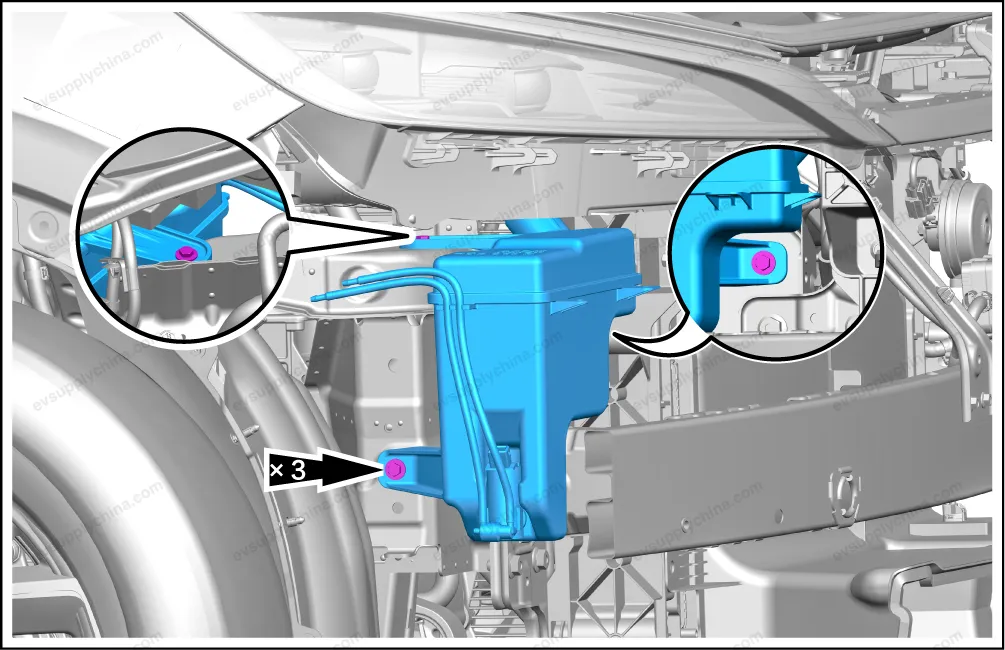

- Remove 3 fixing bolts from the washer reservoir and motor assembly.
Caution Place a collection container under the washer reservoir and motor assembly, pry up the washer motor, and drain the washing liquid.
Installation
- The installation steps are opposite to the removal steps.
Caution When the installation is complete, add the washing fluid to the proper position. When the outdoor temperature is below 0°C, it is prohibited to fill running water or mineral water.
