BYD Atto 3

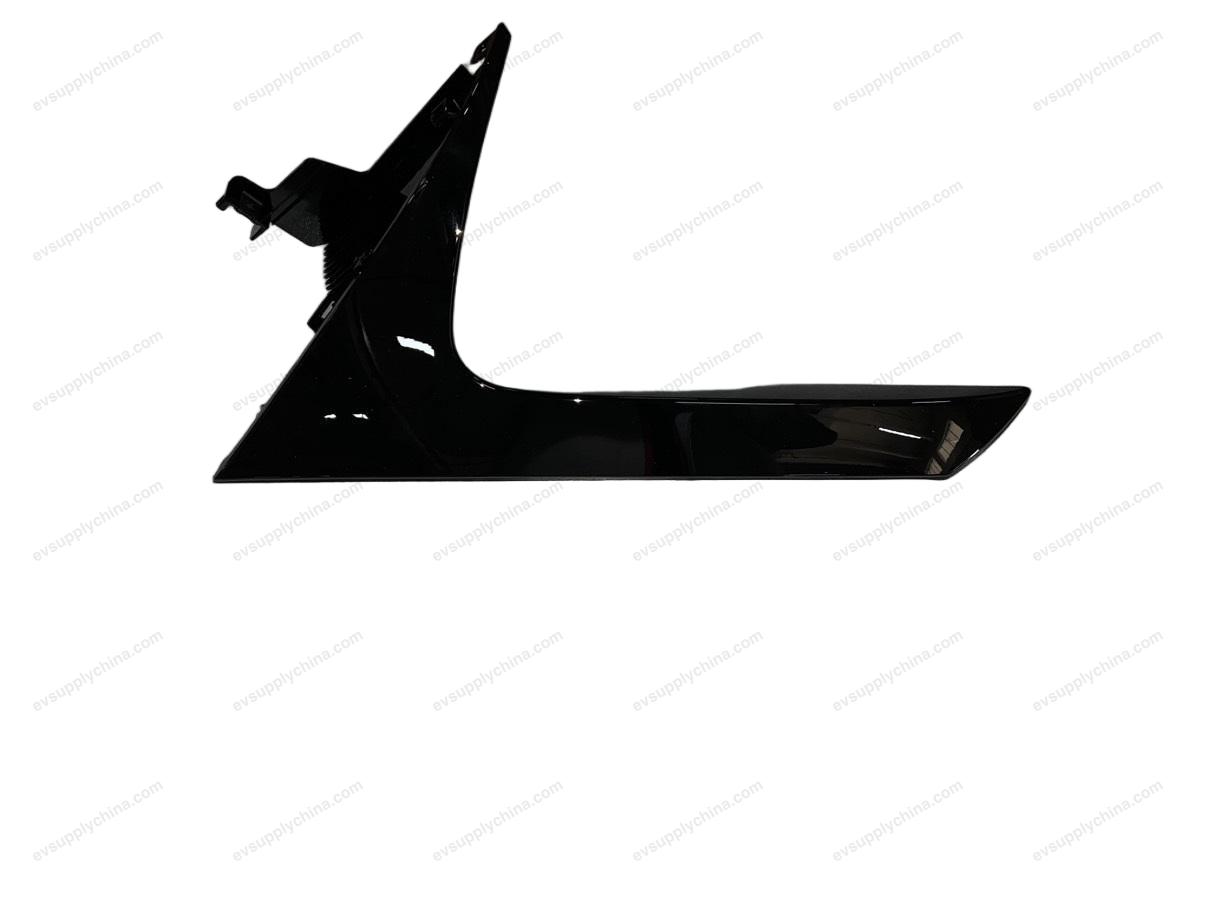

Spoiler left trim panel assembly
OE / Material Codes
13222057-00SC2E-5614130$27USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Spoiler left trim panel assembly
BYDYuan PLUS/Atto 3
2022–2025Spoiler left trim panel assembly Workshop Guide — BYD Atto 3
Spoiler Left Trim Panel Assembly - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Remove the tailgate upper guard assembly. See Tailgate Upper Guard Assembly - Removal and Installation
- Disconnect the wiring harness of spoiler assembly.
- Disconnect 1 connector.

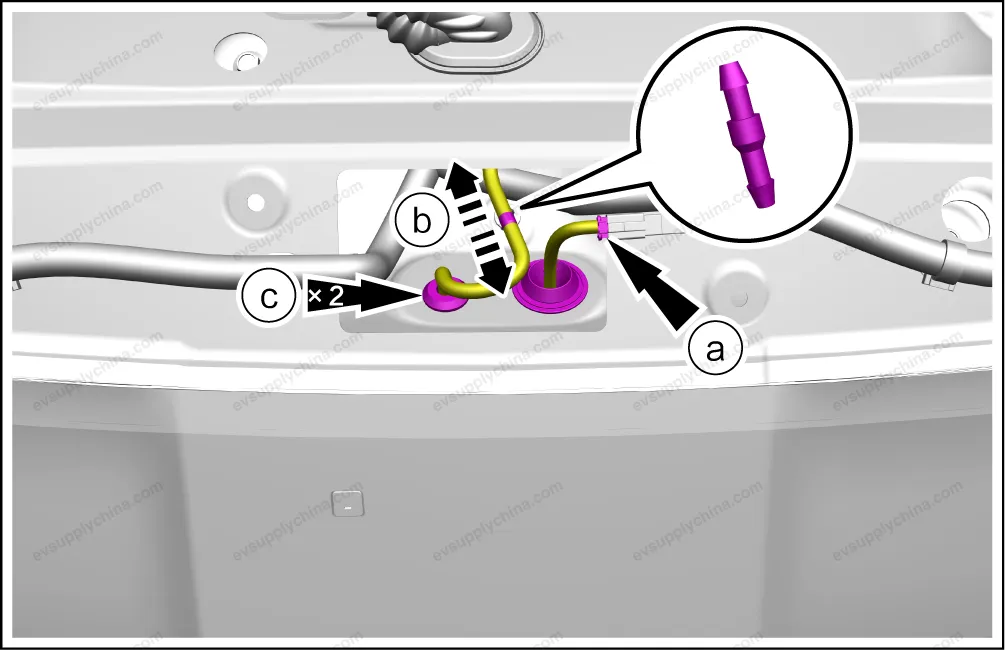

- Detach the rear wash line sub-assembly IV from the rear wash line sub-assembly III.
- Detach 2 silicon seals.

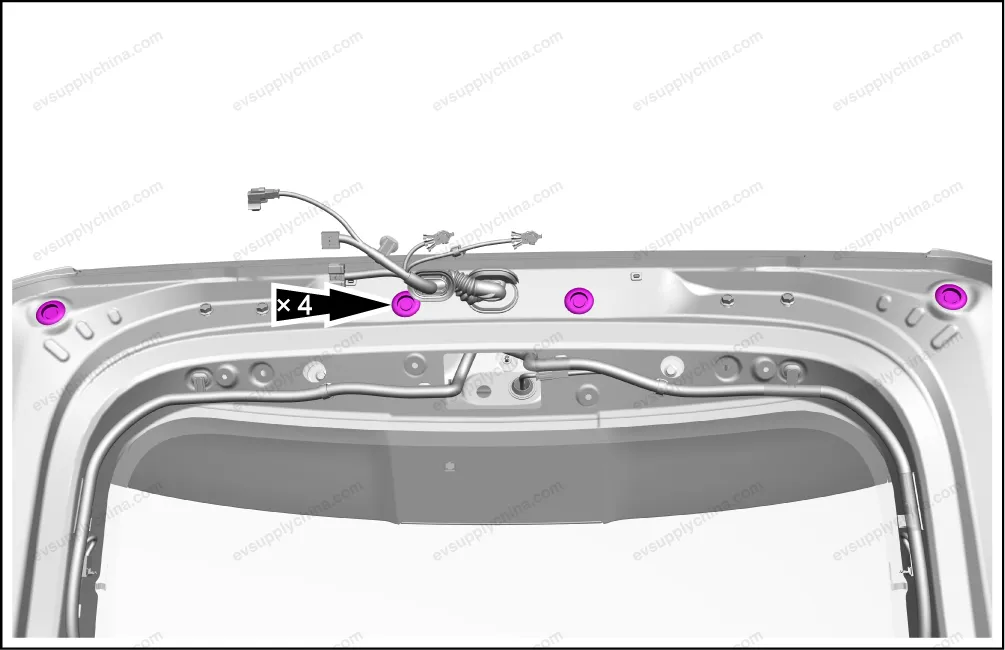

- Remove 4 rubber covers from the tailgate.

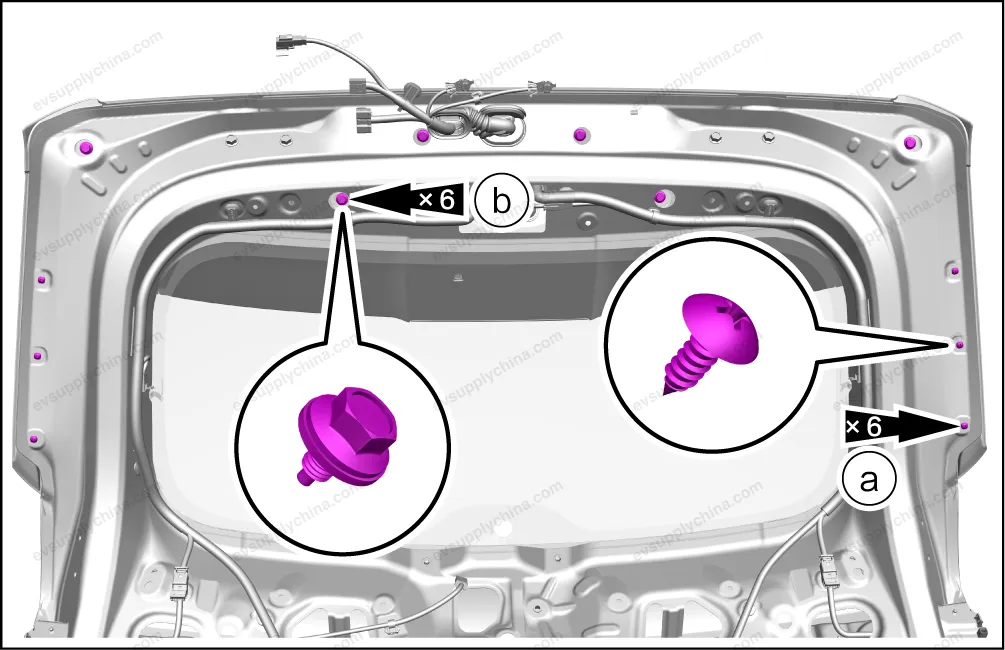

- Remove the fasteners from the spoiler assembly and its accessories.
- Remove 6 fixing screws.
- Remove 6 fixing bolt.

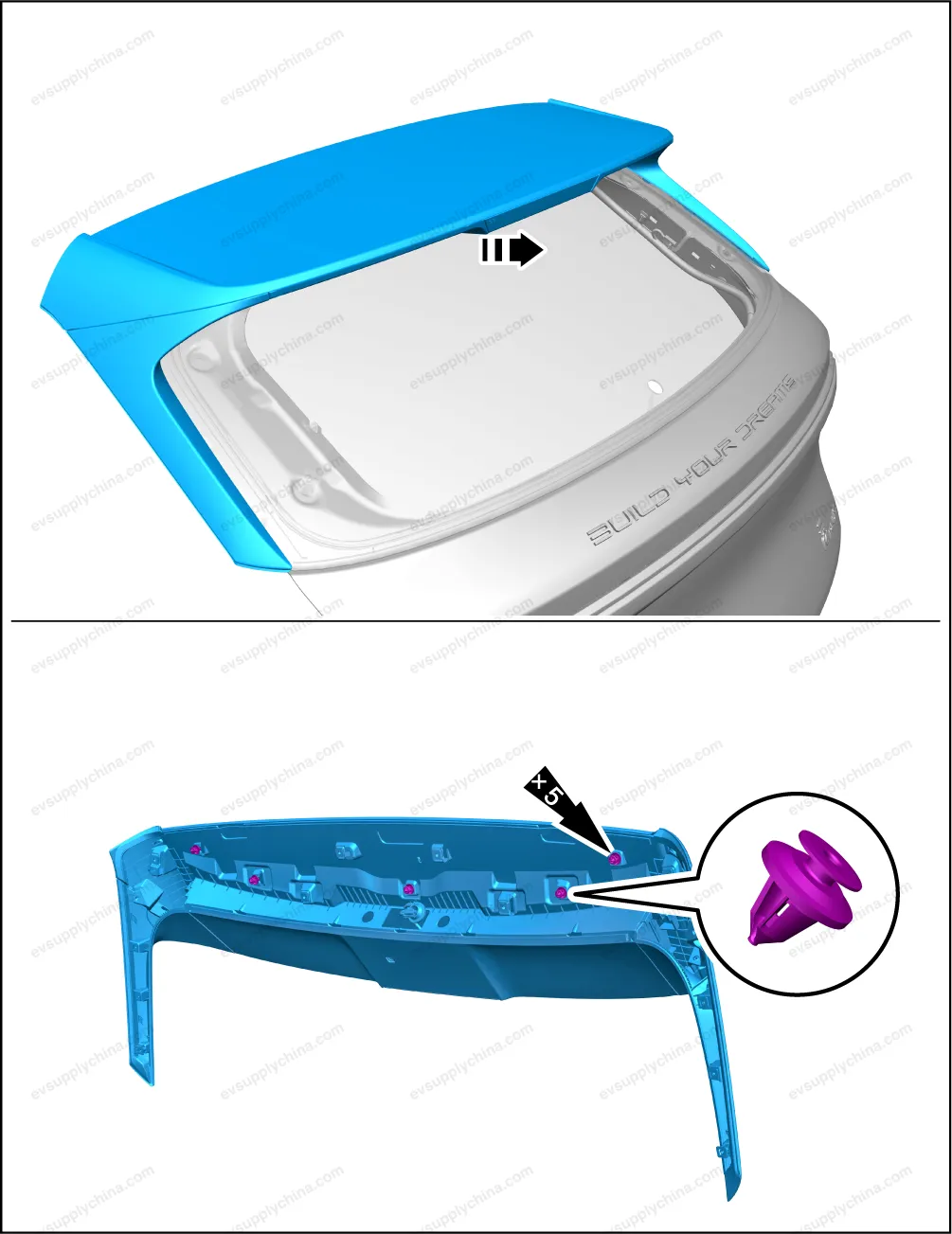

- Pry up the spoiler assembly and its accessories.

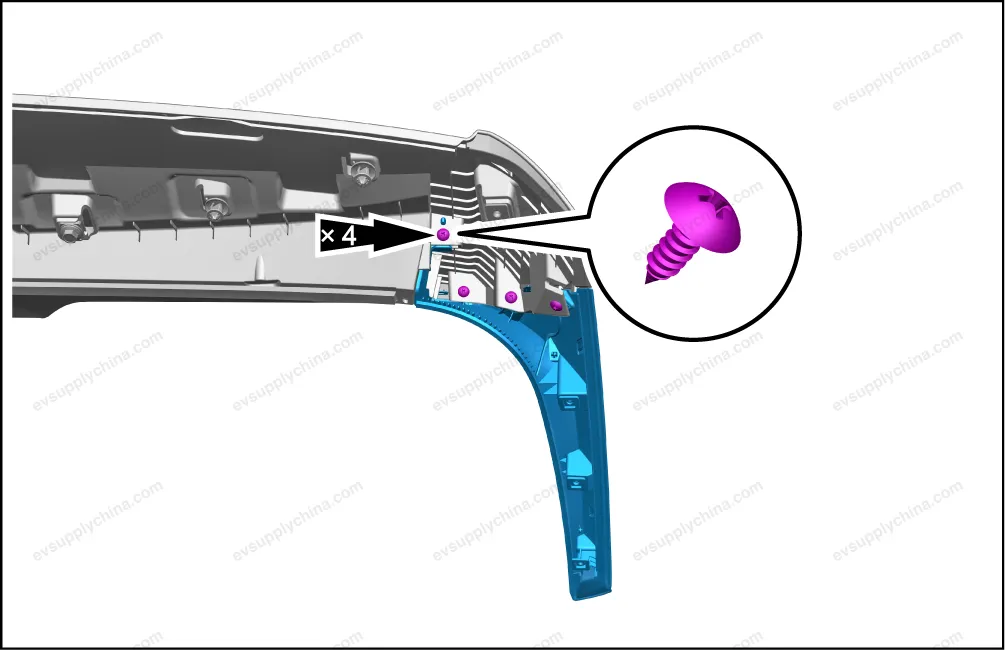

- Remove 4 fixing screws, and take out the left spoiler trim panel assembly.
Installation
- The installation steps are opposite to the removal steps.
Instrument Panel Left Trim Panel Assembly - Removal and Installation
Removal

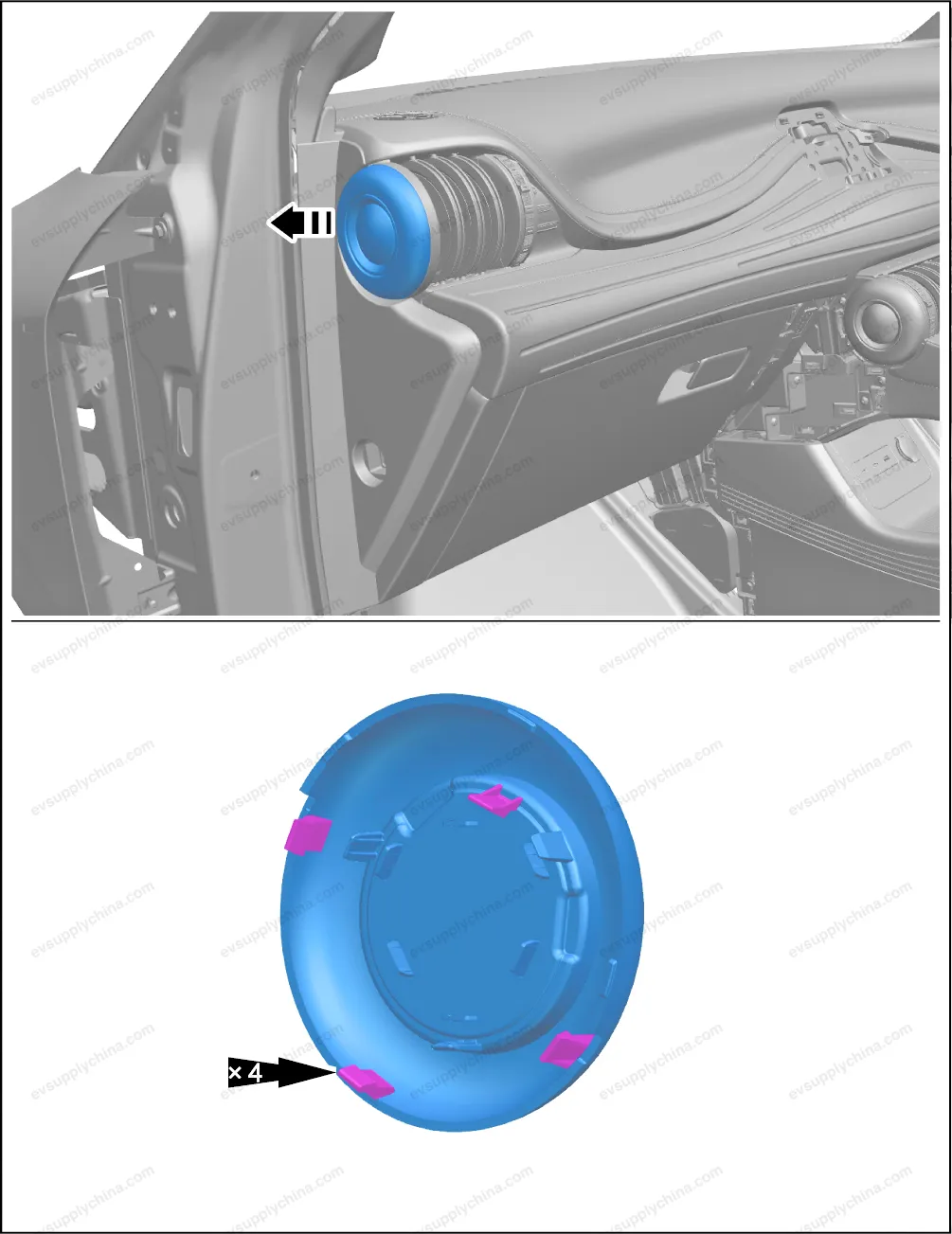

- Pry up the instrument panel left trim panel assembly.
Caution Be careful when removing the trim panel to avoid scratching the surface material.
Installation
- The installation steps are opposite to the removal steps.
Instrument Panel Left Trim Panel Assembly - Removal and Installation
Removal
- Remove the instrument panel left end guard assembly. See Left Shield Assembly of Instrument Panel - Removal and Installation
- Remove the lower fixing plate of PAD mounting base guard. See Lower Fixing Plate of PAD Mounting Base Guard - Removal and Installation
- Remove the console body assembly. See Console Body Assembly - Removal and Installation

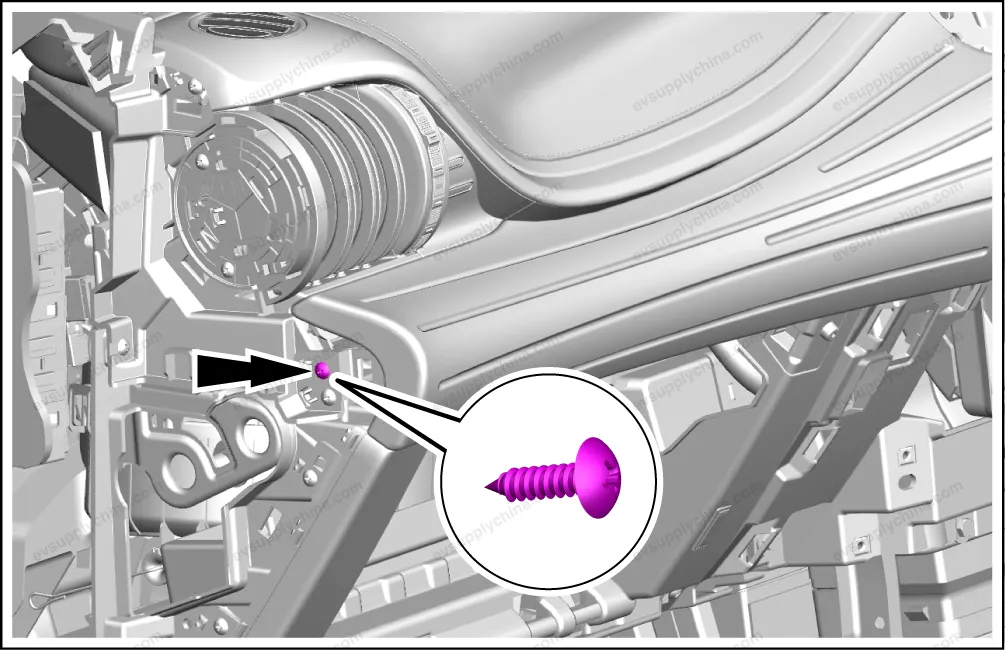

- Remove one fixing screw.

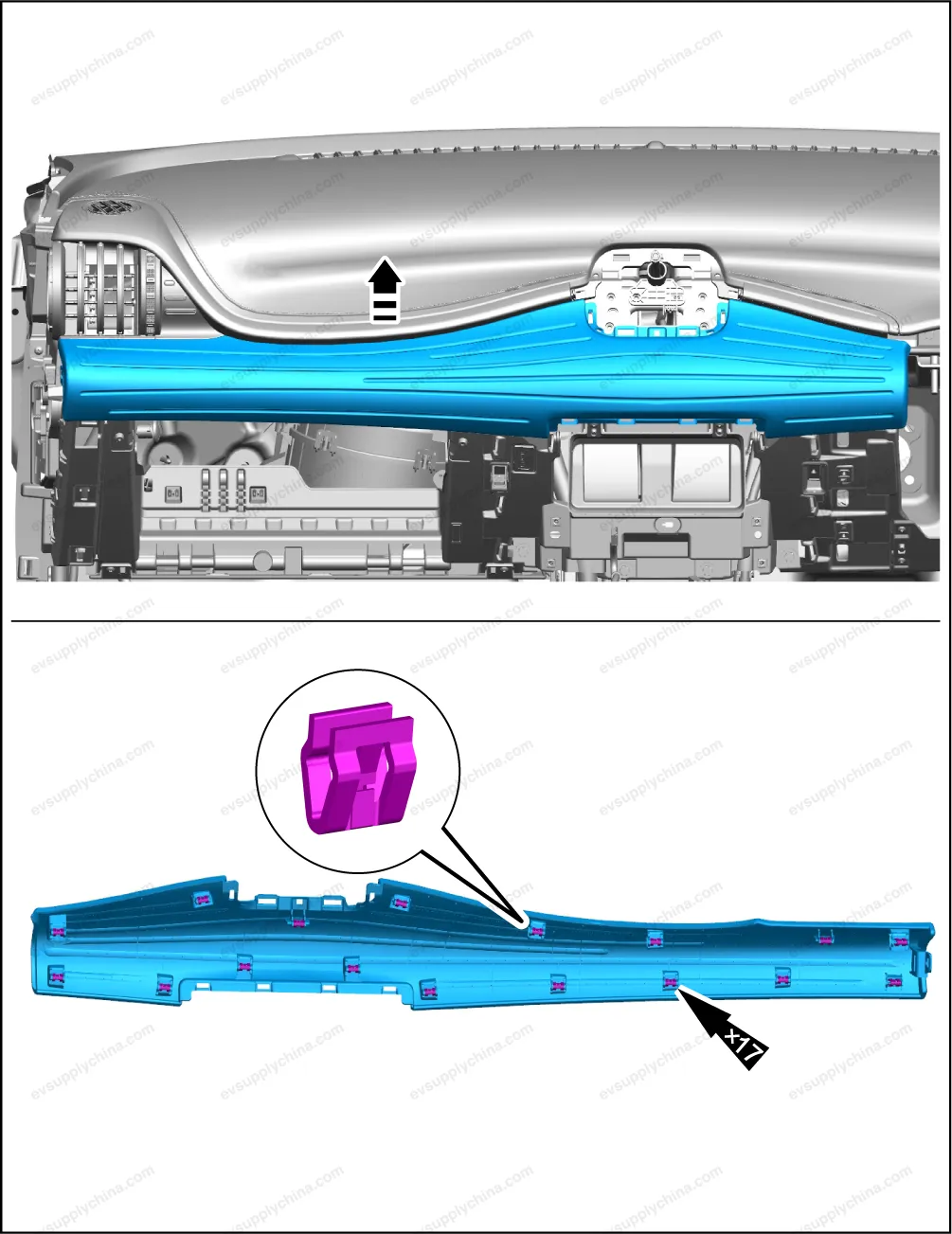

- Detach 17 fixing clips, and take out the instrument panel left trim panel assembly.
Installation
- Follow the removal steps in reverse order to install.
