BYD Atto 3

Right side cover of the ventilation cover body

OE / Material Codes

13200421-00SC2E-5302116
$3USD
In Stock
Quality availability

Technical Specifications

Vehicle Model
BYD Atto 3
Steering Configuration
Universal (Left & Right-Hand Drive)
Category
Exterior Body Parts

Shipping & Returns

Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Compatible Vehicles — Right side cover of the ventilation cover body

BYDYuan PLUS/Atto 3
2022–2025

Right side cover of the ventilation cover body Workshop Guide — BYD Atto 3

Ventilation Cover Assembly - Removal and Installation

Removal

  1. Remove the front compartment left trim panel assembly. See Front Compartment Left Trim Panel Assembly - Removal and Installation
  2. Remove the front compartment right trim panel assembly. See Front Compartment Right Trim Panel Assembly - Removal and Installation
  3. Remove the front wiper left wiper arm assembly. See Front Wiper Left Wiper Arm Assembly - Removal and Installation
  4. Remove the front wiper right wiper arm assembly. See Front Wiper Right Wiper Arm Assembly - Removal and Installation
  5. Remove the ventilation cover seal. Attendance Ventilation Cover Seal - Removal and Installation
  6. Remove 8 fixing clips from the ventilation cover assembly.
    Right side cover of the ventilation cover body — BYD BYD Atto 3 — OE 13200421-00, SC2E-5302116
  7. Pry up the connection between the ventilation cover assembly and the front windshield, and take it out.
    Right side cover of the ventilation cover body — BYD BYD Atto 3 — OE 13200421-00, SC2E-5302116

Installation

  1. The installation steps are opposite to the removal steps.

Fixed Sheet Metal Cover on the Right Side of the Armrest - Removal and Installation

Removal

  1. Remove the rear seat middle armrest assembly. See Rear Seat Center Armrest Assembly - Removal and Installation

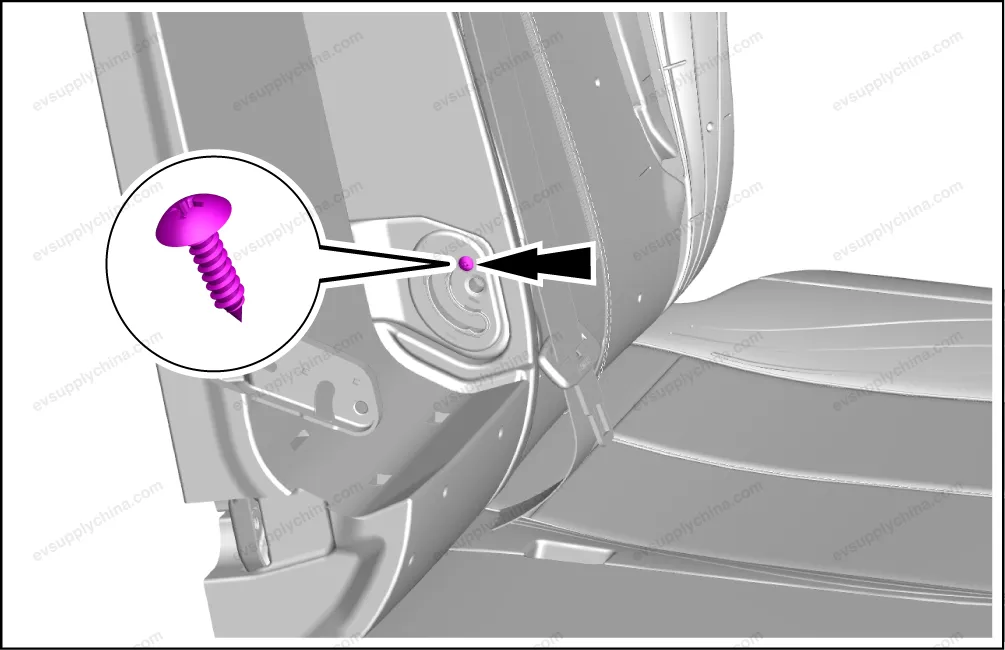

  2. Remove 1 fixing screw from the fixed sheet metal cover on the left side of the armrest.
    Right side cover of the ventilation cover body — BYD BYD Atto 3 — OE 13200421-00, SC2E-5302116

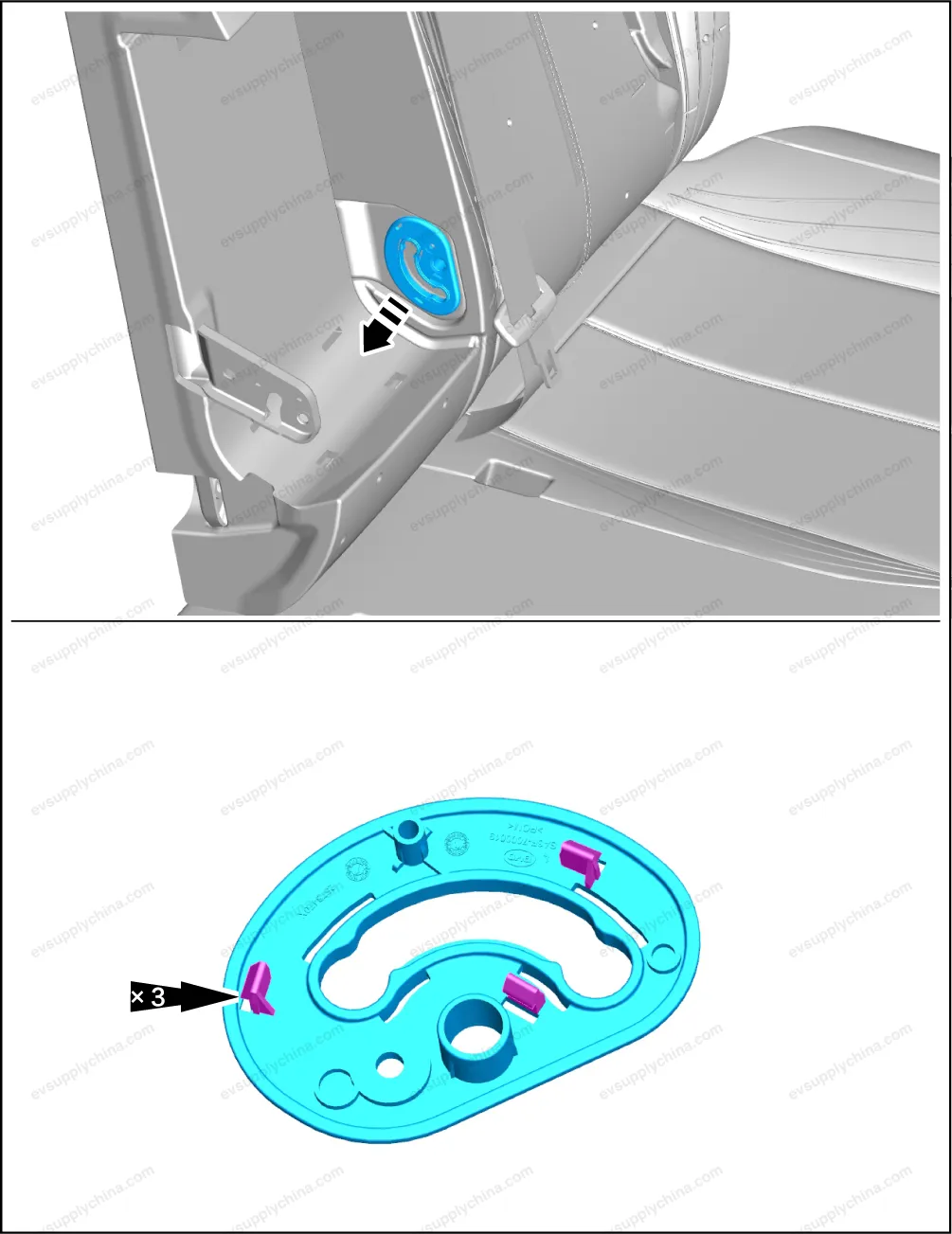

  3. Pry up the fixed sheet metal cover on the left side of the armrest.
    Right side cover of the ventilation cover body — BYD BYD Atto 3 — OE 13200421-00, SC2E-5302116

Caution Be careful when removing the trim panel to avoid scratching the surface material.

Install

  1. The installation is performed in reverse order of removal.

Ventilation Cover Seal - Removal and Installation

Removal

  1. Pry up the ventilation cover seal in the direction of the arrow.
    Right side cover of the ventilation cover body — BYD BYD Atto 3 — OE 13200421-00, SC2E-5302116

Installation

  1. The installation steps are opposite to the removal steps.
