OEMPremiumAftermarket
BYD Atto 3
Right rear light assembly
OE / Material Codes
13184245-00SC2E-4133020$174USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Rear Tail Lights
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right rear light assembly
BYDYuan PLUS/Atto 3
2022–2025Right rear light assembly Workshop Guide — BYD Atto 3
Left Rear Reversing Light Not Working
| Left middle combination tail light — 1 — Ground |
| 4 — Left rear reversing light power |
| Left domain control module — 9 — Reversing light power |
- Check the reverse signal.
- Check the wiring harness connector of left middle combination tail light.
- Check the ground line of left rear reversing light for open circuit.
- Check the power of left rear reversing light.
- Check the wiring harness connector of left domain control module.
- Check the power line of left rear reversing light for open circuit.
Right Rear Reversing Light Not Working
| Right Center combination tail light — 1 — Ground |
| 4 — Right rear reversing light power |
| Left domain control module — 9 — Reversing light power |
- Check the reverse signal.
- Check the wiring harness connector of right rear reversing light.

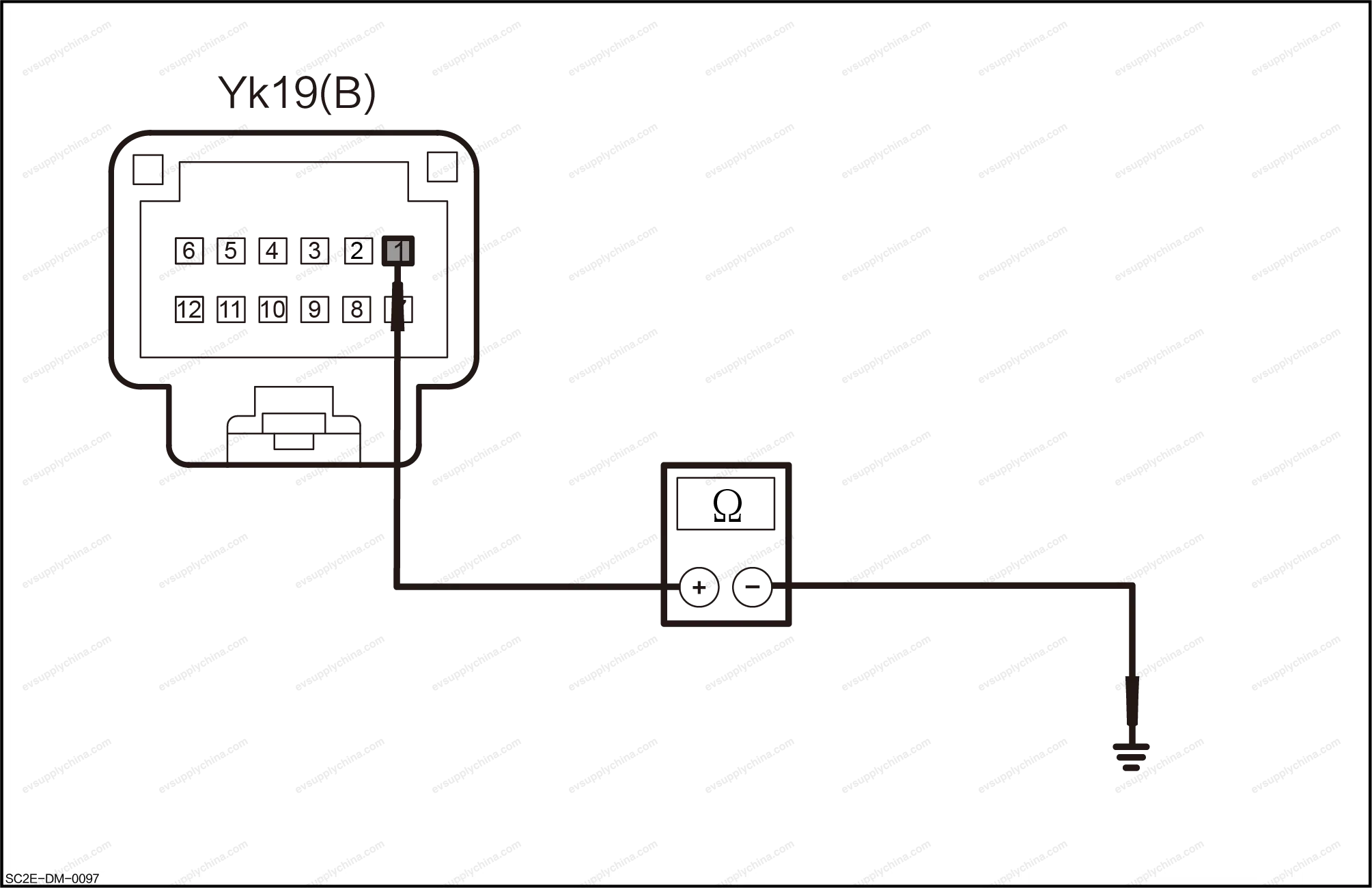

- Check the ground line of right rear reversing light for open circuit.
- Check the power of right rear reversing light.
- Check the wiring harness connector of left domain control module.
- Check the power line of right rear reversing light for open circuit.
Right Rear Position Light Not Working
| Right rear combination light — 1 — Ground |
| 2 — Power of right rear position light |

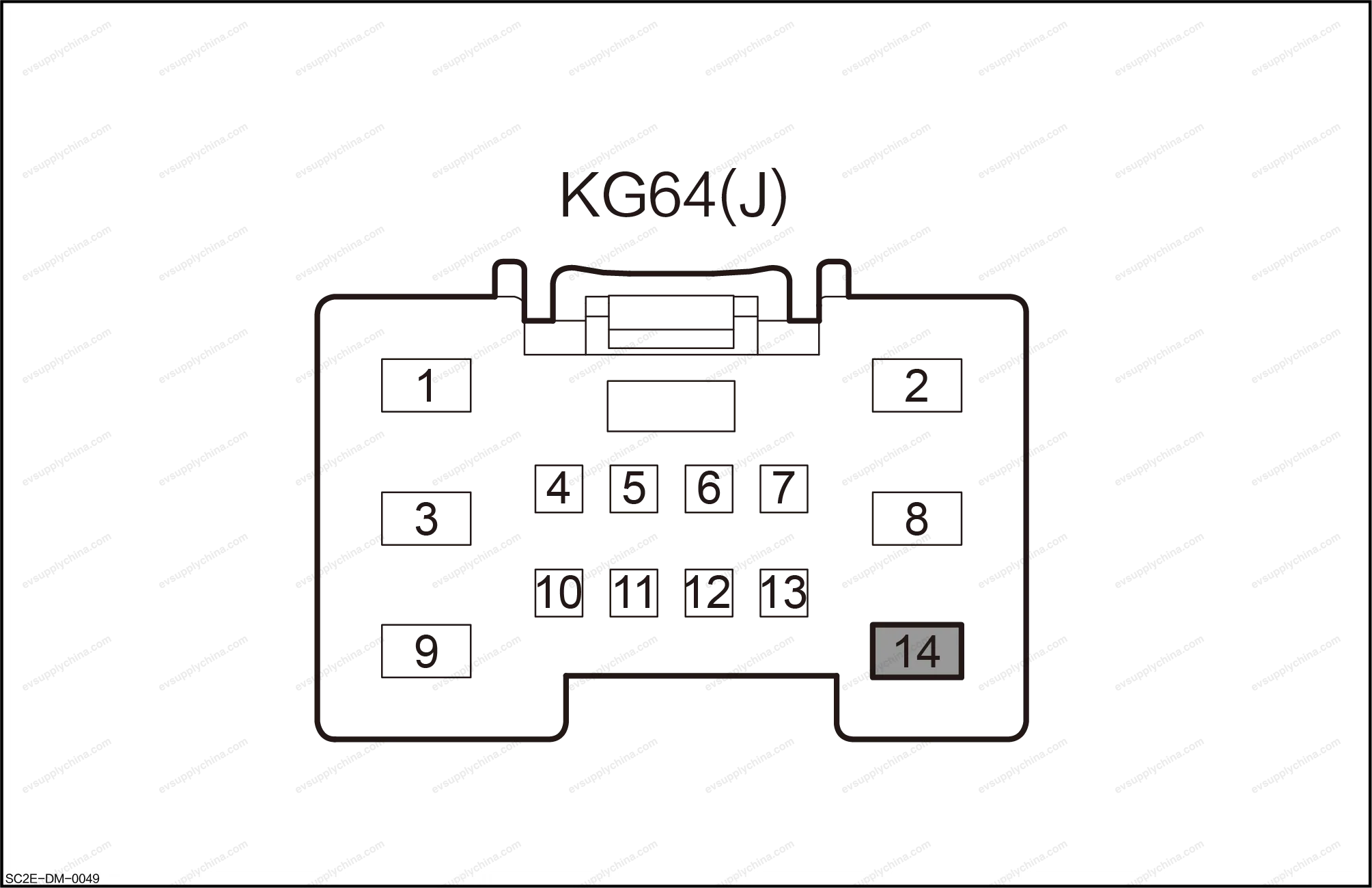

| Left domain control module — 14 — Power of right rear position light |
- Check the communication network.
- Use a VDS to actively control the right rear position light.

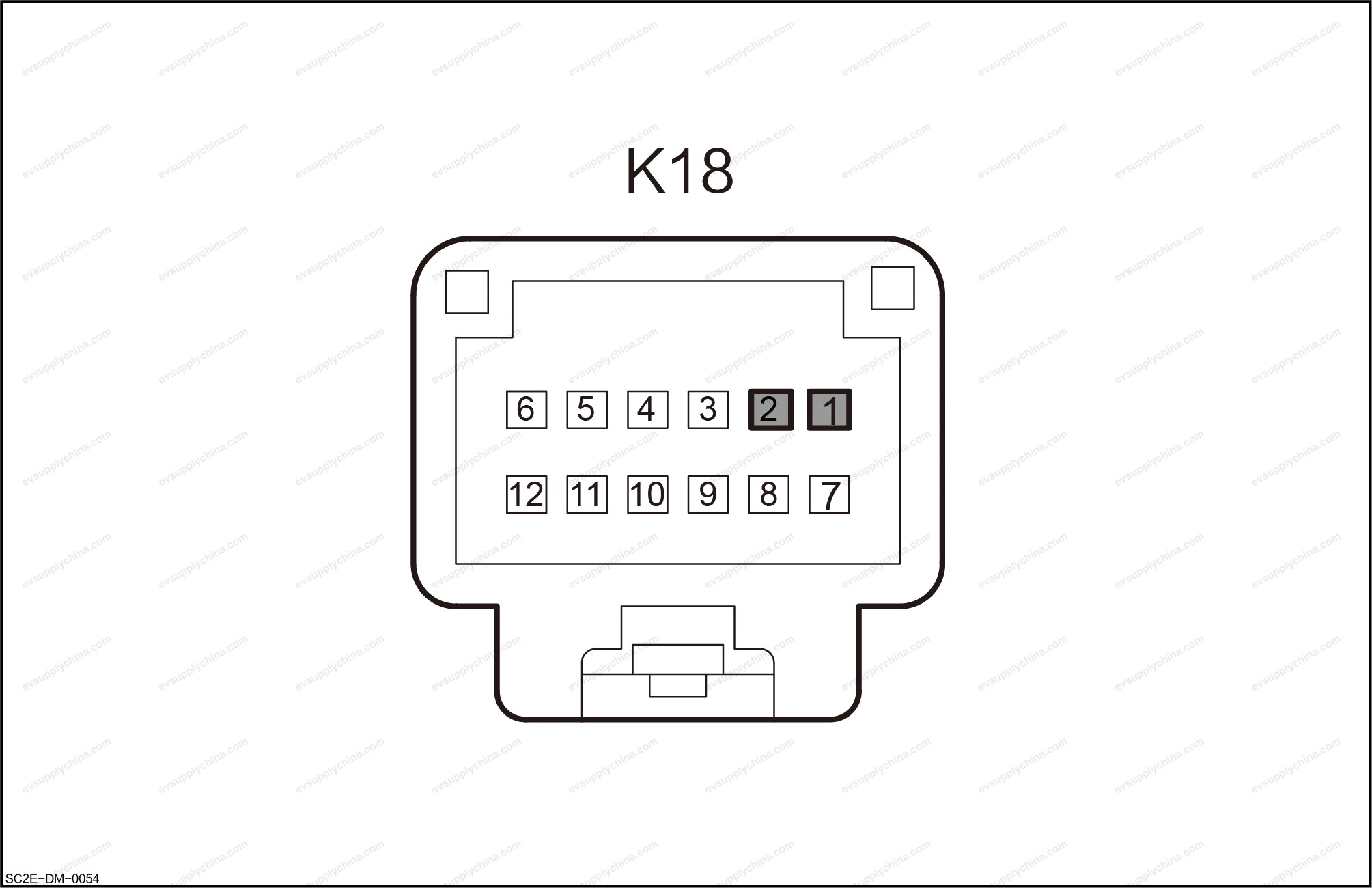

- Check the wiring harness connector of right rear combination light.

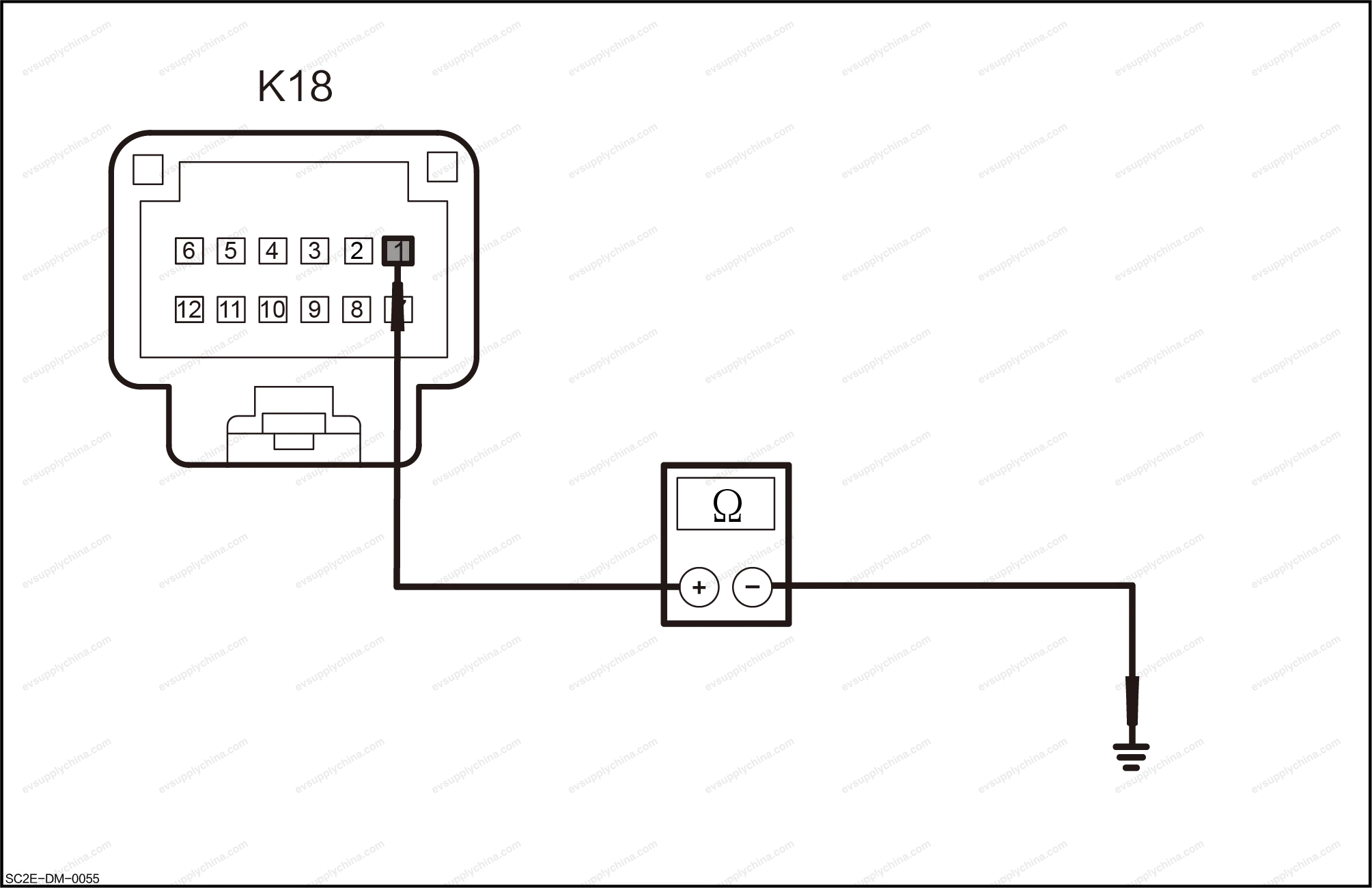

- Check the ground line of right rear position light for open circuit.
- Check the power of right rear position light.
- Check the wiring harness connector of left domain control module.

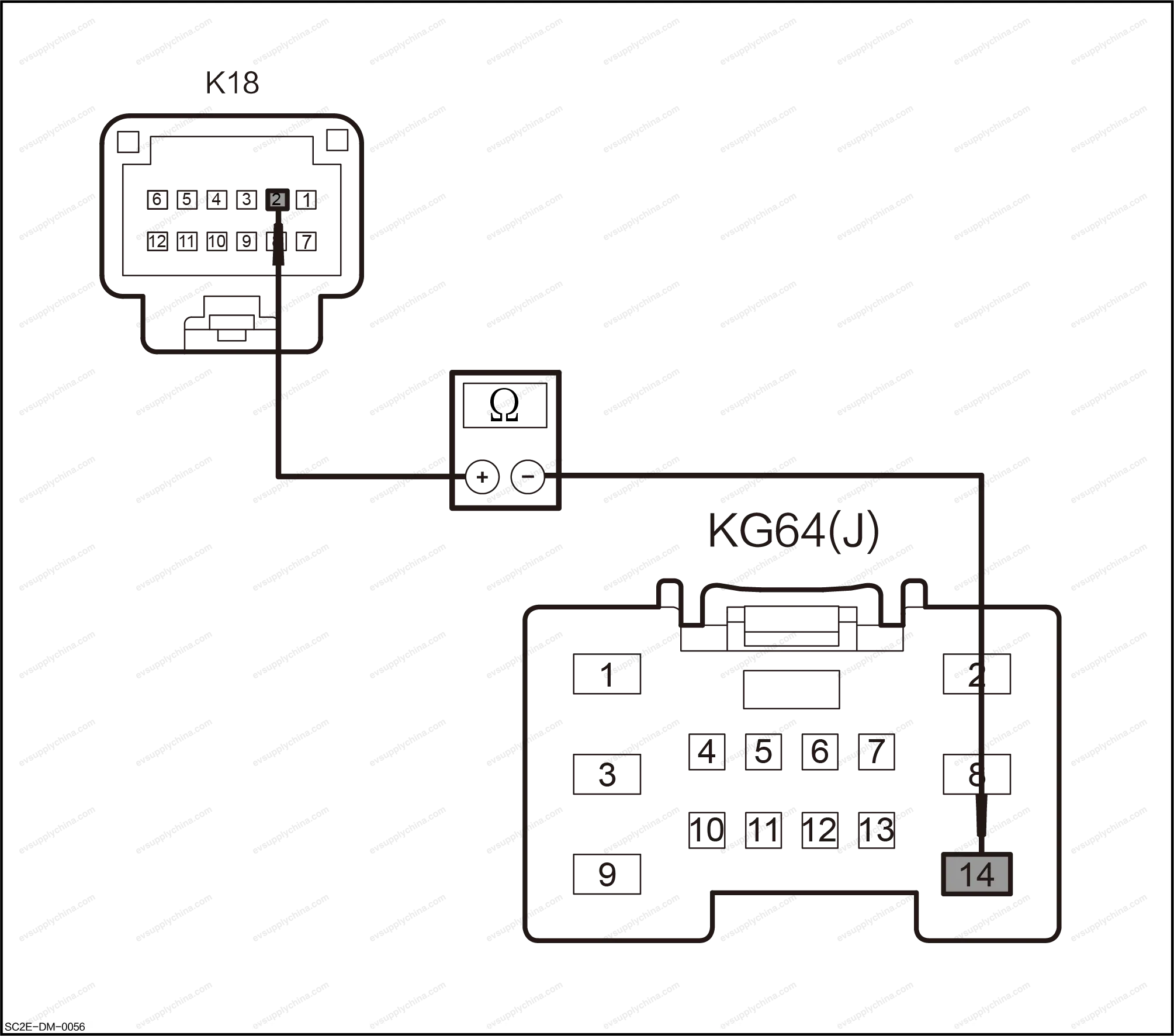

- Check the power line of right rear position light for open circuit.
Right Rear Turn Signal Not Working

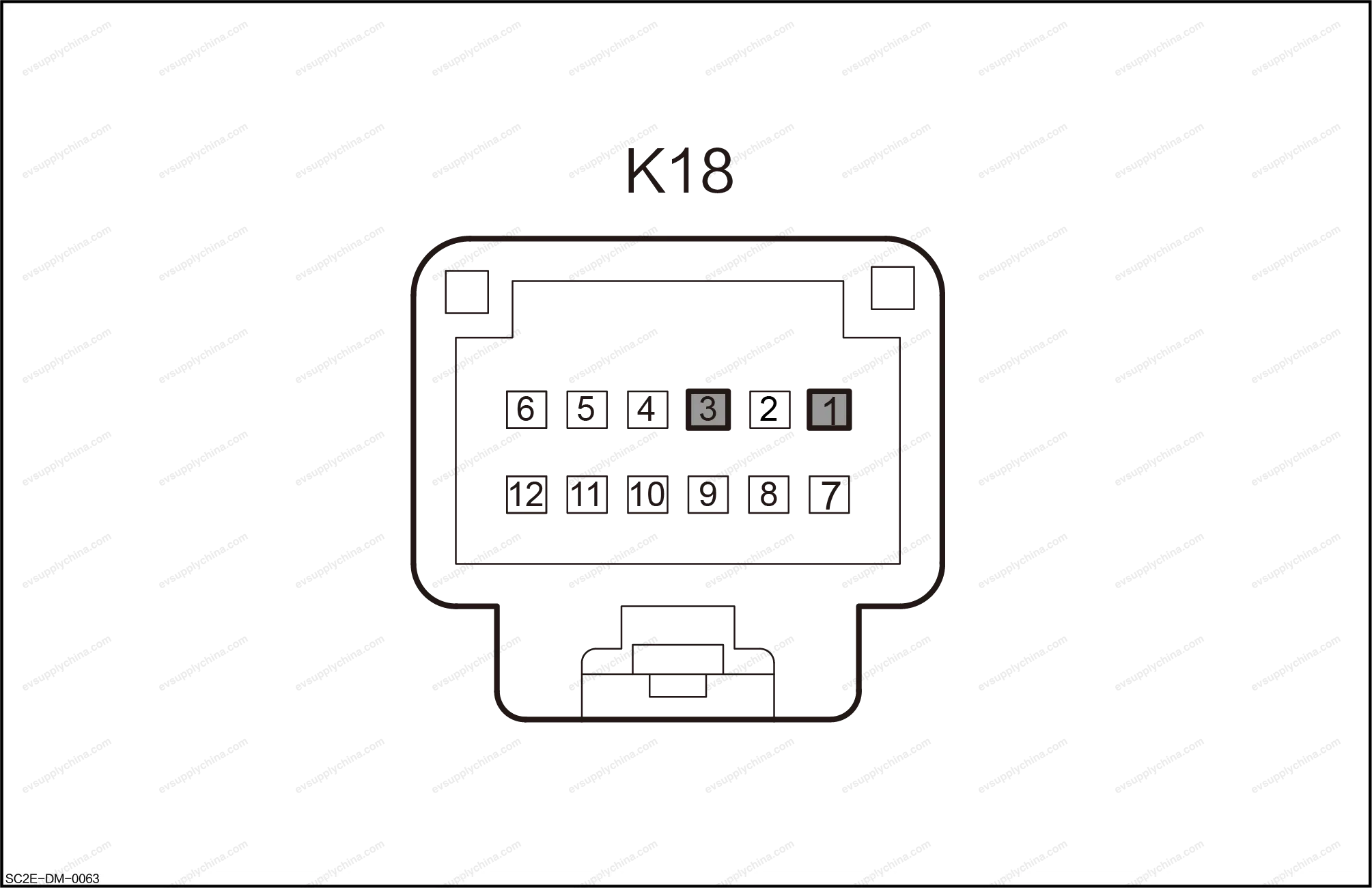

| Right rear combination light — 1 — Ground |
| 3 — Power of right rear turn signal |

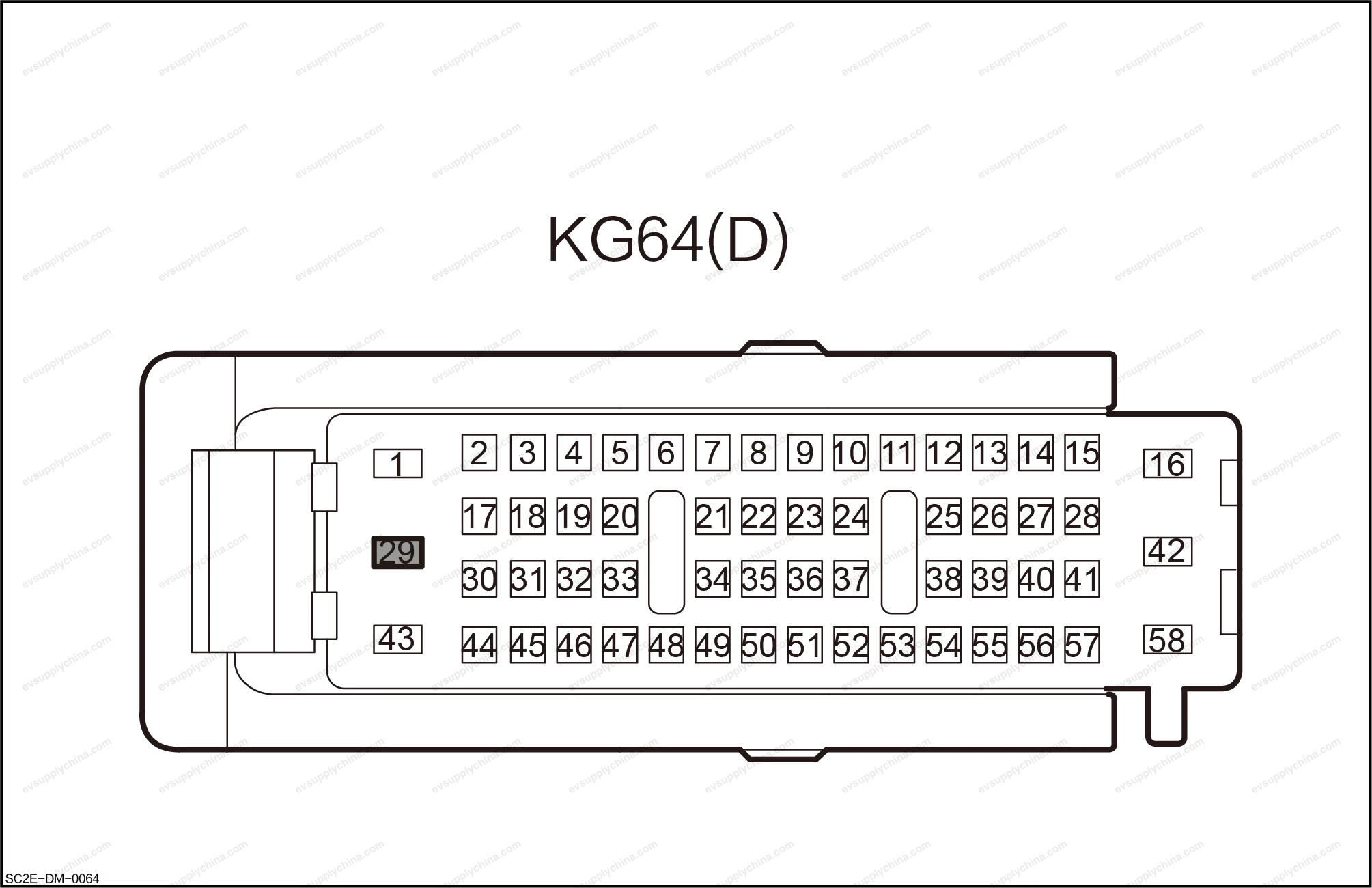

| Left domain control module — 29 — Rear turn signal power |
- Check the communication network.
- Use a VDS to actively control the right rear turn signal.
- Check the wiring harness connector of right rear combination light.
- Check the ground line of right rear turn signal for open circuit.

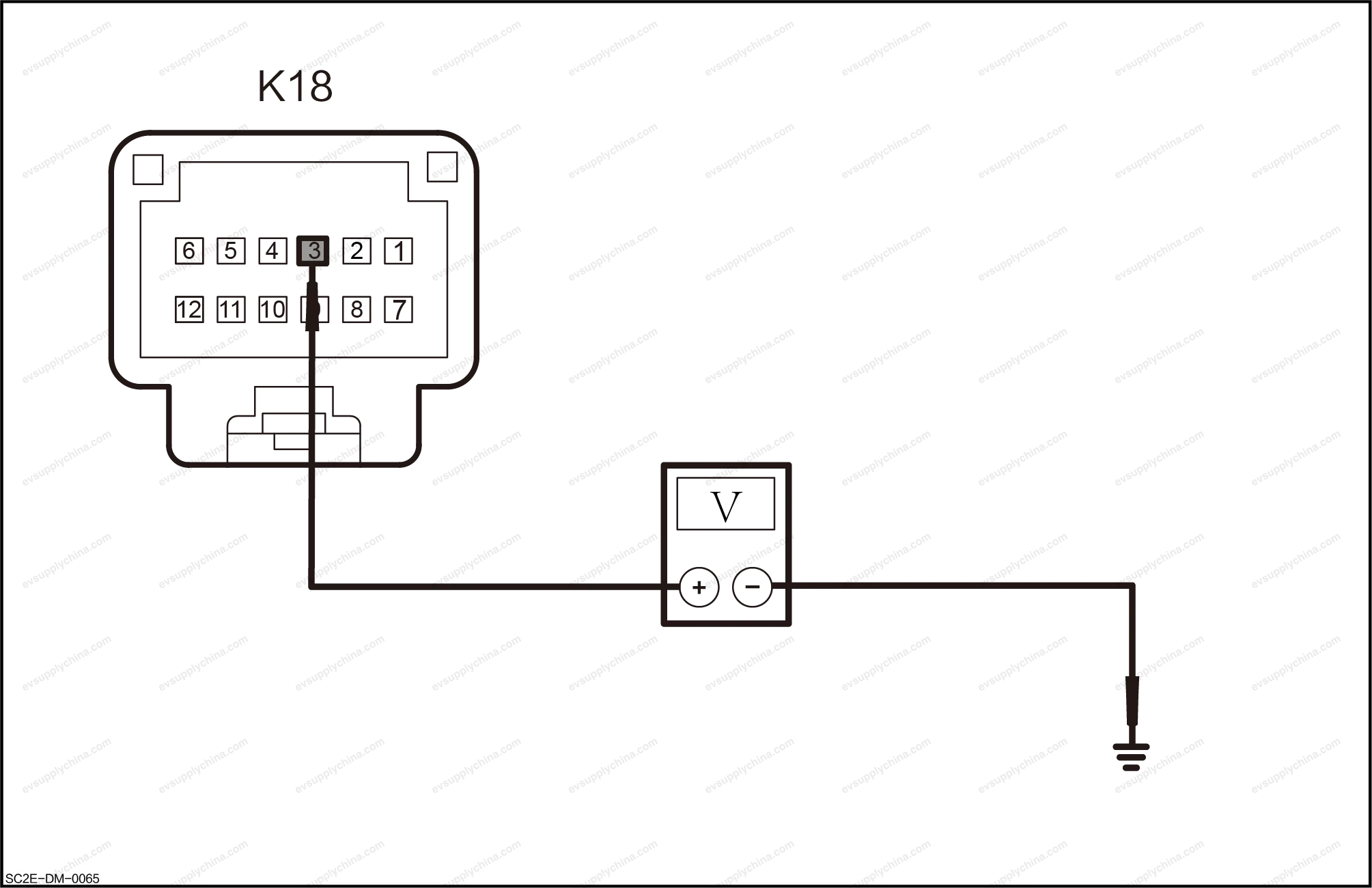

- Check the power of right rear turn signal.
- Check the wiring harness connector of left domain control module.

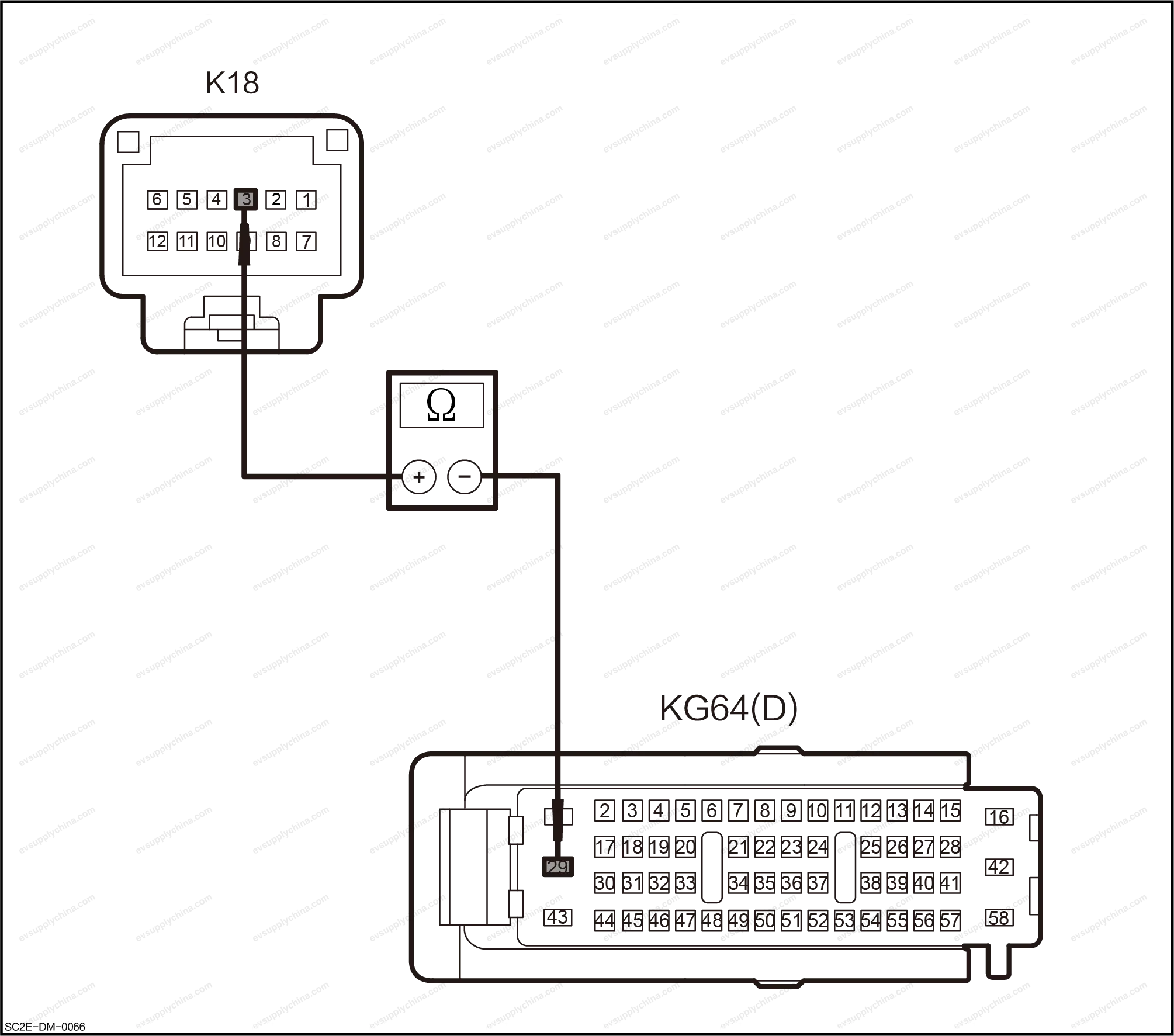

- Check the right rear turn signal power for open circuit.
Right Rear Brake Light Not Working
| Right rear combination light — 1 — Ground |
| 4 — Right rear brake light power |

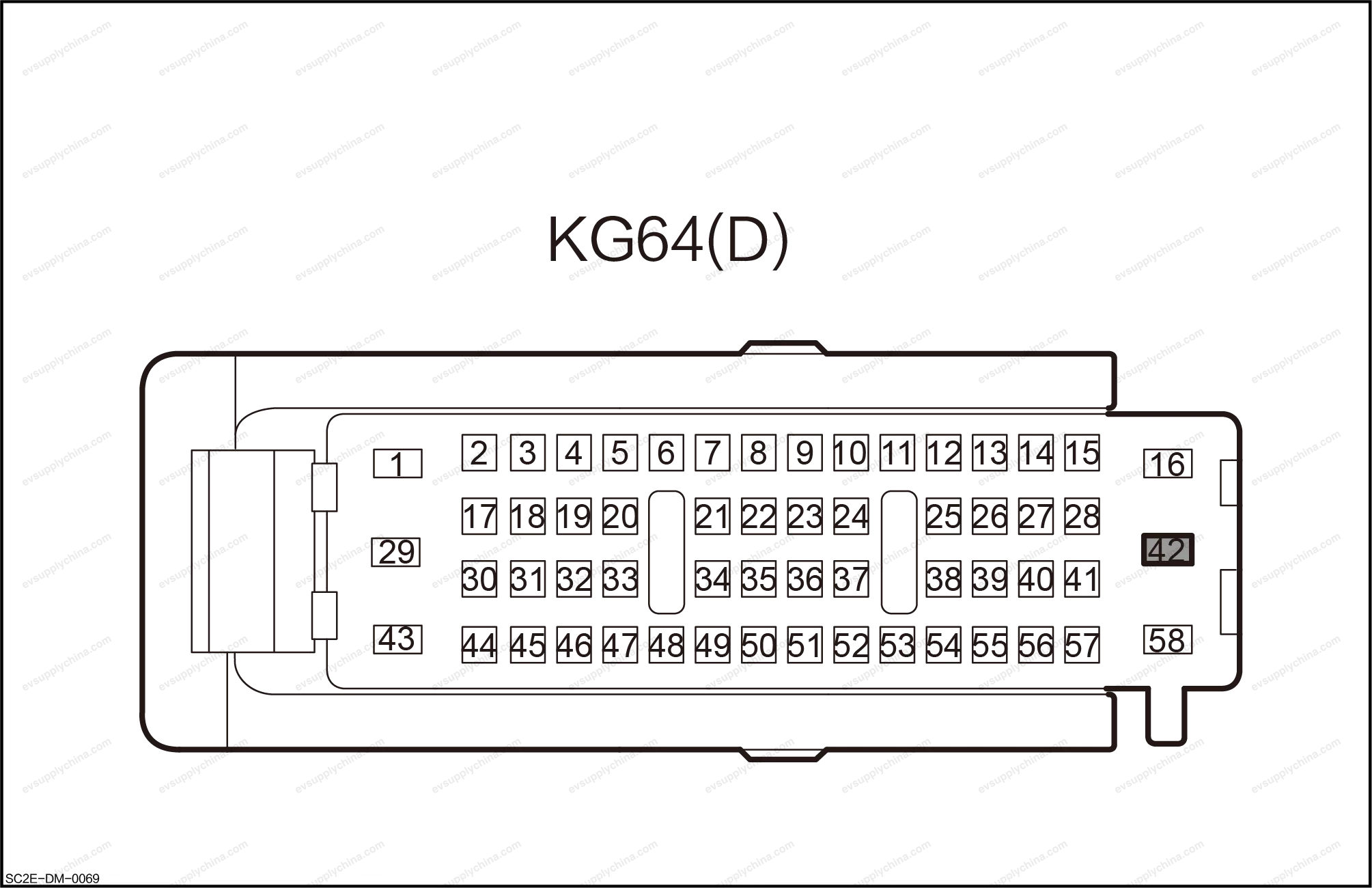

| Left domain control module — 42 — Power of rear brake light |
- Use a VDS to actively control the right rear brake light.

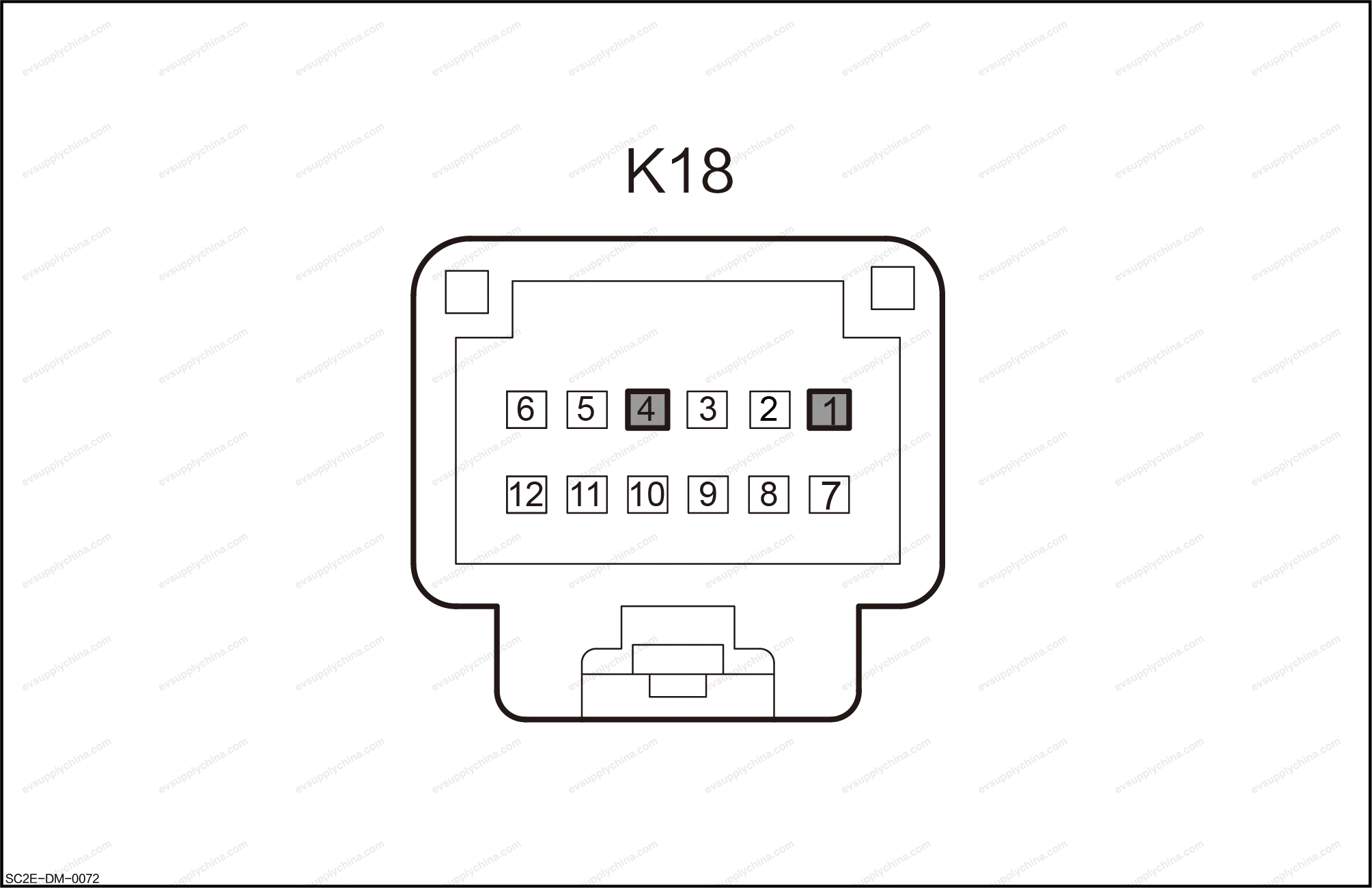

- Check the wiring harness connector of right rear combination light.
- Check the ground line of right rear brake light for open circuit.
- Check the power of right rear brake light.
- Check the wiring harness connector of left domain control module.

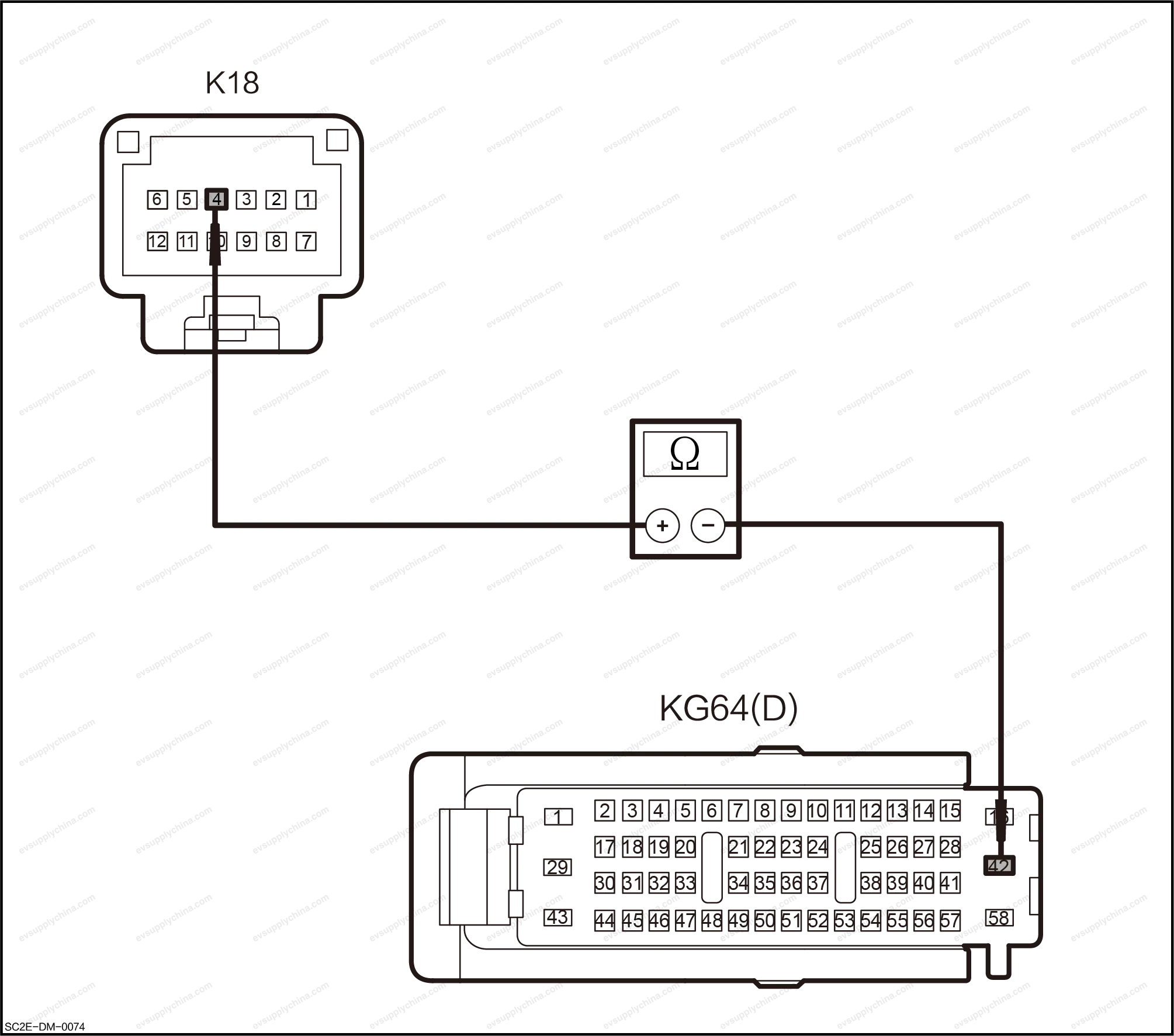

- Check the power line of right rear brake light for open circuit.
Right rear light assembly Fitment Diagram — BYD Atto 3
Other parts in this assembly
