OEM
BYD Atto 3
Charging port light
OE / Material Codes
10983083-00e6U-4115100$4USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Rear Tail Lights
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Charging port light
BYDe5 450
2018BYDe5 300
2016–2017BYDe6 400
2016–2017BYDE6
2012–2014BYDTang New Energy
2015–2017BYDTang 100
2017BYDSong MAX New Energy DM
2019BYDSong New Energy EV400
2018BYDSong New Energy DM
2017BYDSong New Energy EV300
2017Charging port light Workshop Guide — BYD Atto 3
Charging Port Light - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Remove the front compartment right trim panel assembly. See Front Compartment Right Trim Panel Assembly - Removal and Installation

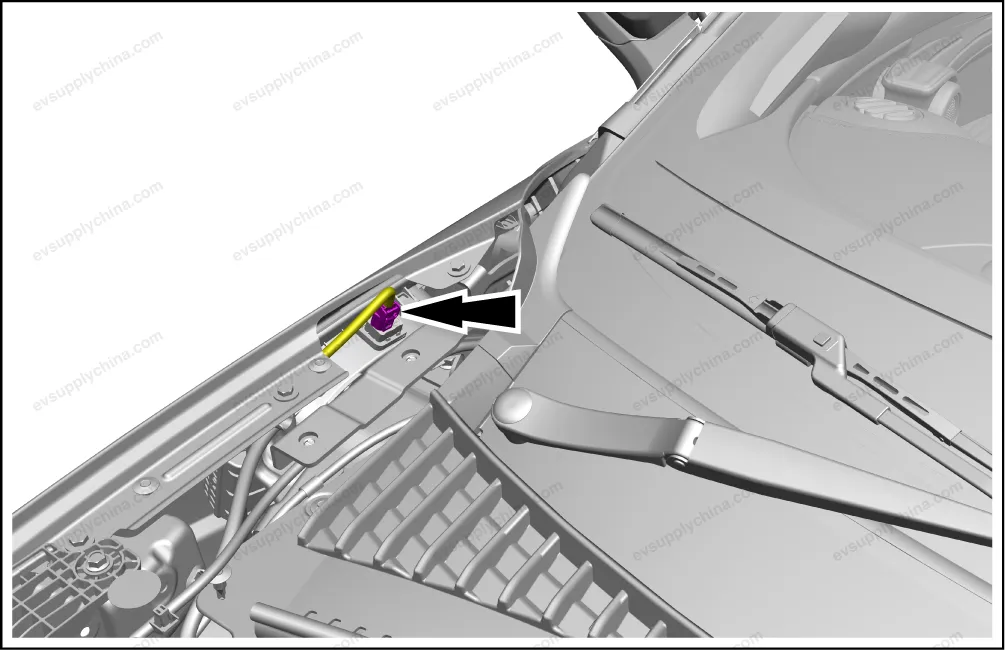

- Disconnect 1 connector of the charging port light.

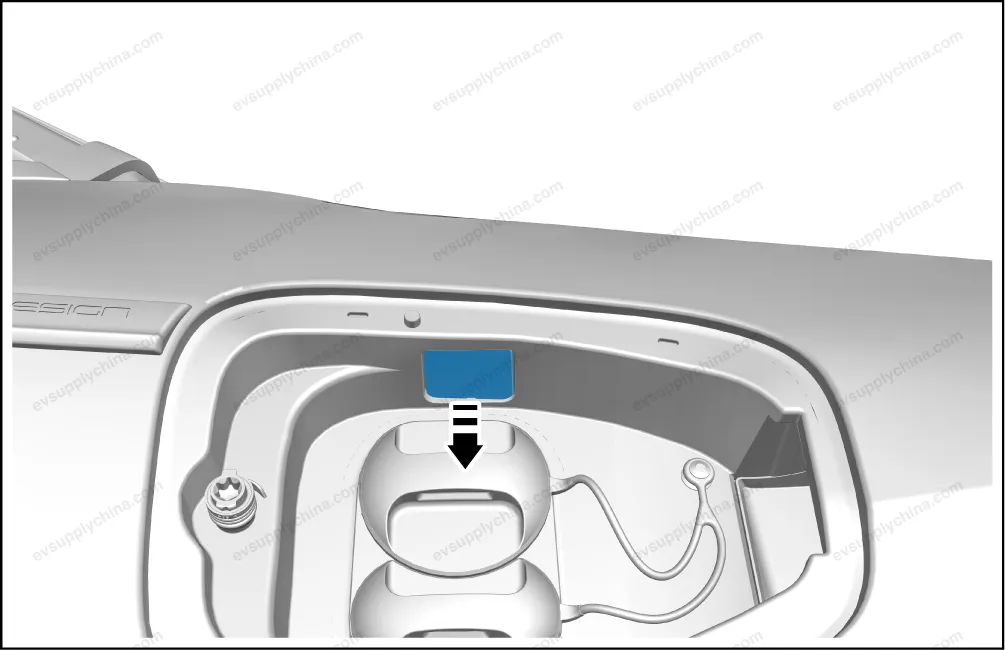

- Pry up the charging port light.
Installation
- The installation steps are opposite to the removal steps.
AC/DC Charging Port Cover Assembly - Removal and Installation
Removal
- Remove the right front wheel mudguard assembly. See Right Front Wheel Mudguard Assembly - Removal and Installation
- Remove the charging port light. See Charging Port Light - Removal and Installation

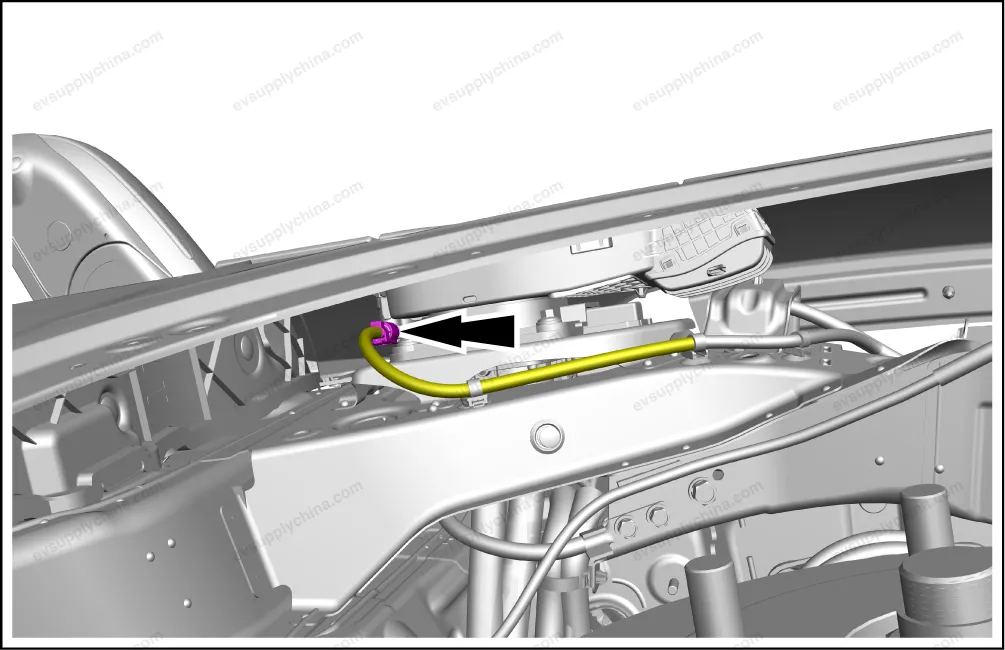

- Disconnect 1 harness connector of AC/DC charging port cover assembly I.

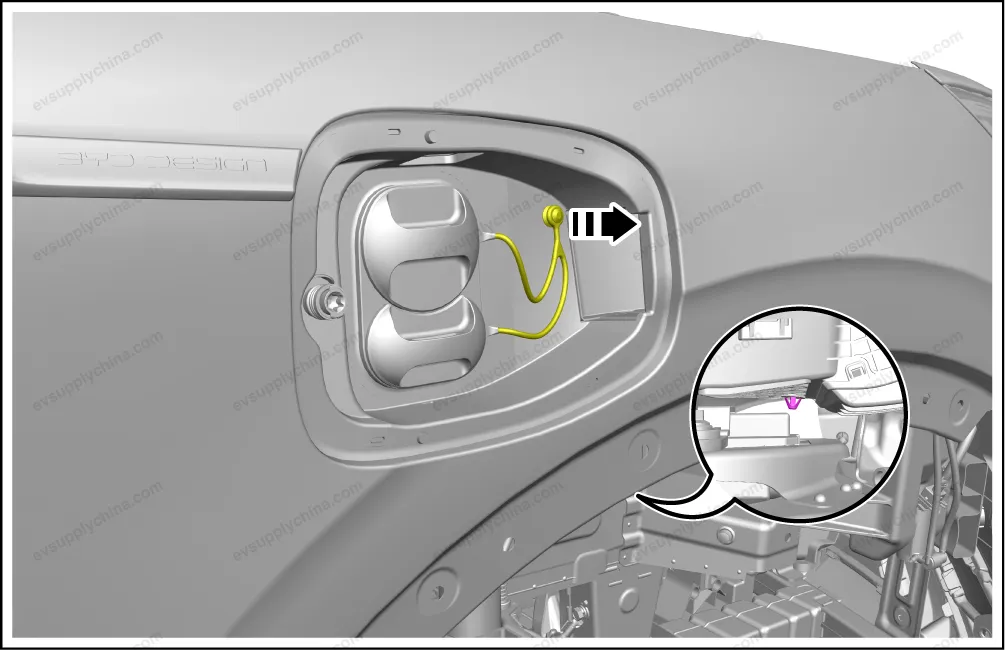

- Detach the cover cable from the integrated AC/DC charging socket.

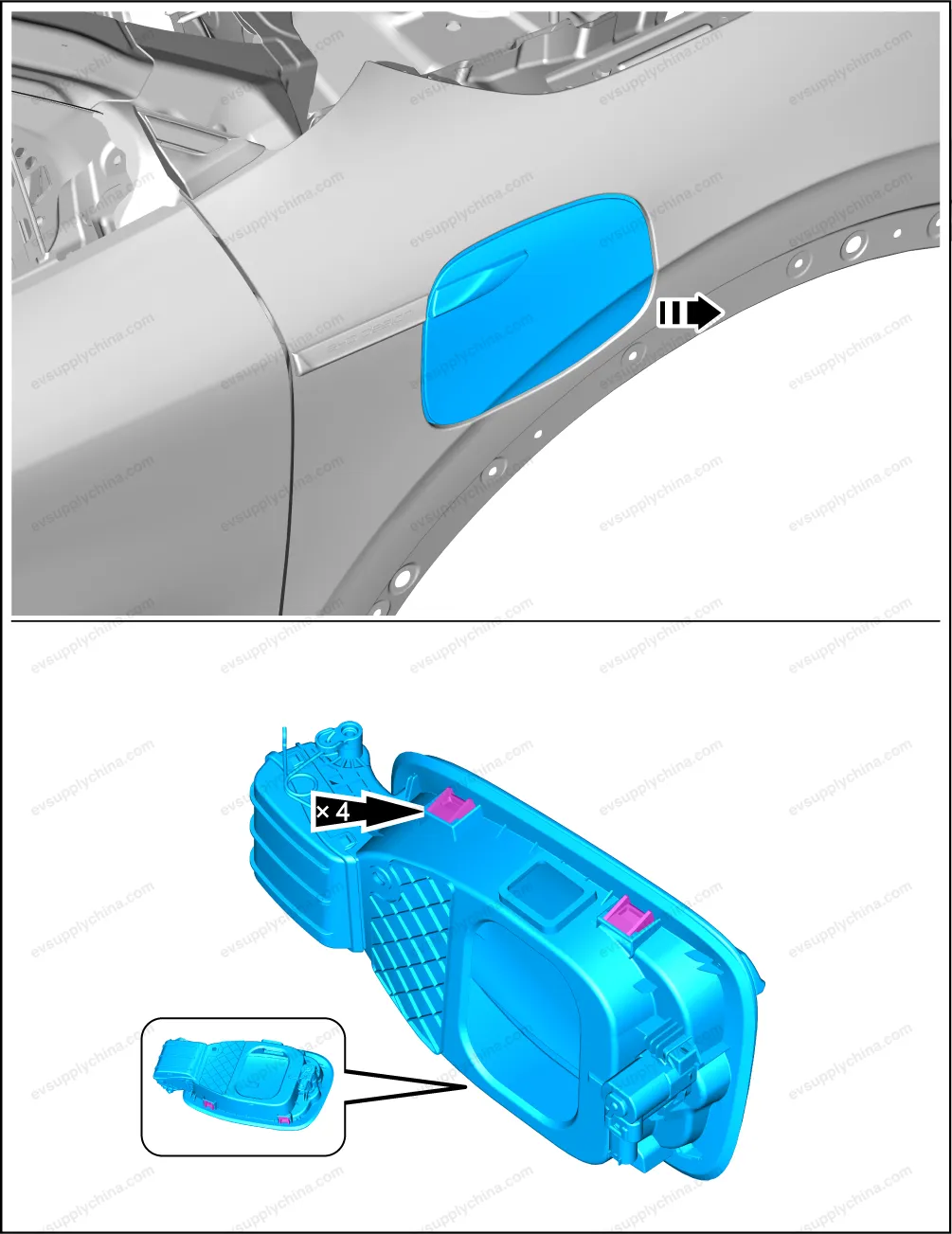

- Pry up the AC/DC charging port cover assembly I.
Install
- The installation is performed in reverse order of removal.
