BYD Atto 3
Left combination rear light assembly
OE / Material Codes
13184242-00SC2E-4133010$174USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Rear Tail Lights
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left combination rear light assembly
BYDYuan PLUS/Atto 3
2022–2025Left combination rear light assembly Workshop Guide — BYD Atto 3
Left Combination Rear Light Assembly - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Remove the left rear side wall guard assembly. See Left Rear Side Wall Guard Assembly - Removal and Installation

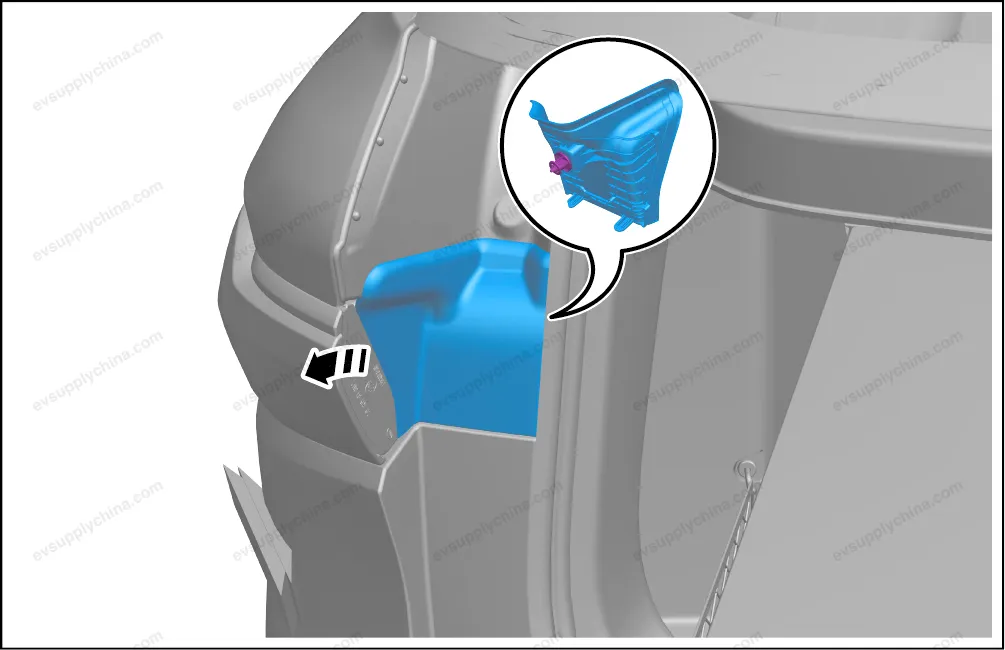

- Pry up the left combination rear light bezel.

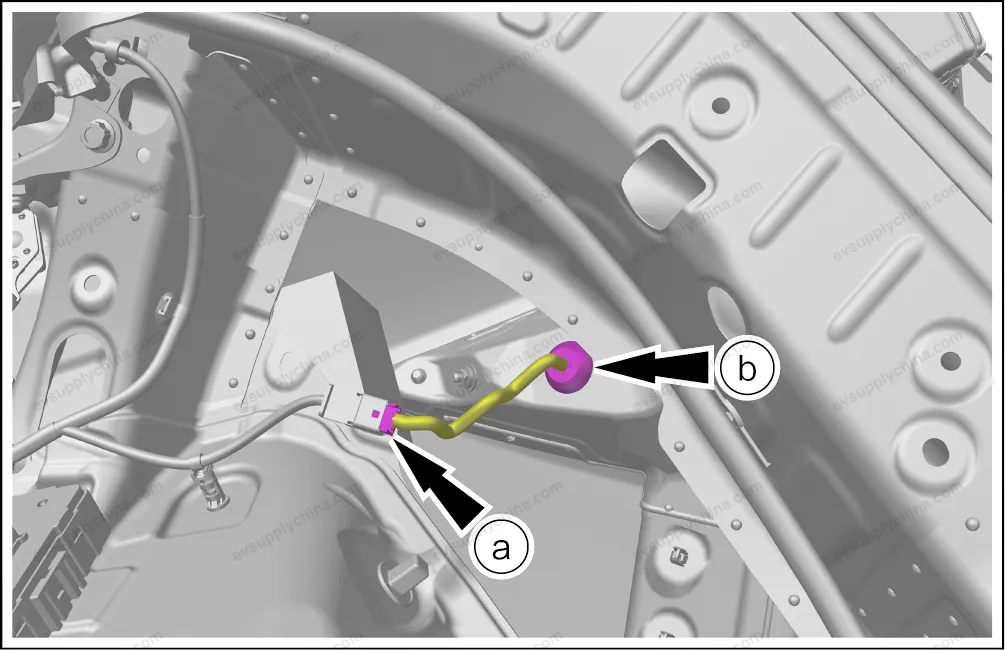

- Disconnect the wiring harness of left combination tail light assembly.
- Disconnect 1 connector.
- Detach 1 waterproof rubber sleeve.

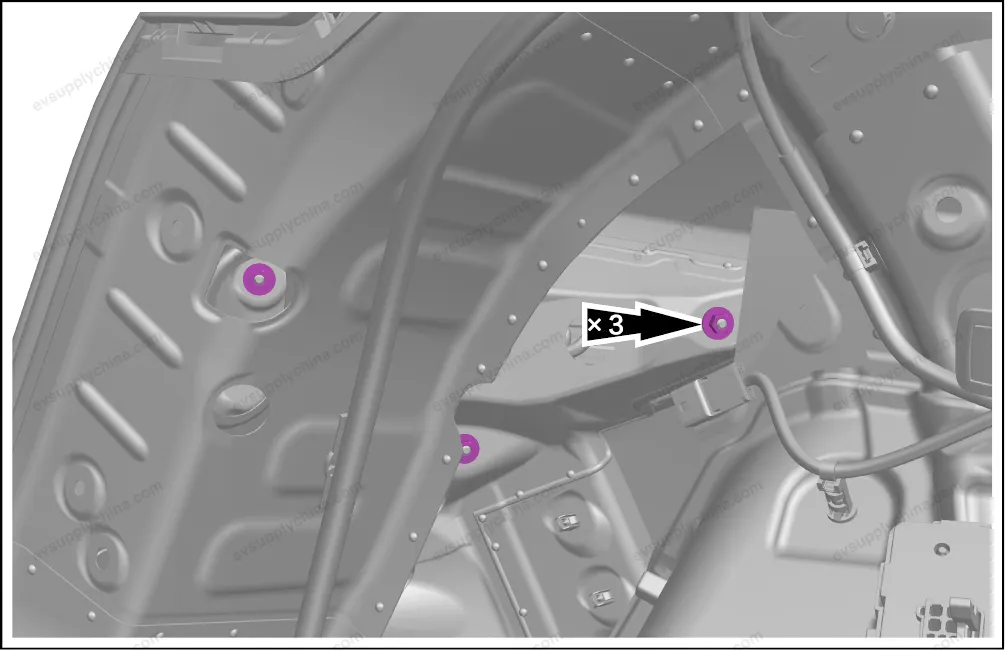

- Remove 3 fixing nuts of the left combination tail light assembly.

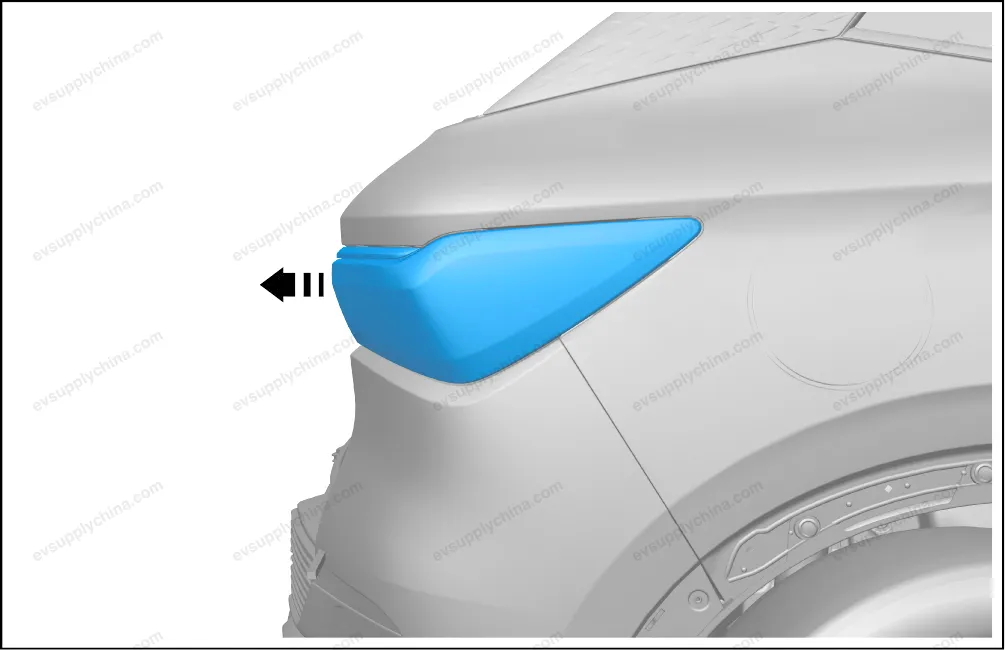

- Remove the left combination rear light assembly.
Installation
- The installation steps are opposite to the removal steps.
Right Combination Rear Light Assembly - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Remove the right rear side wall guard assembly. See Right Rear Side Wall Guard Assembly - Removal and Installation

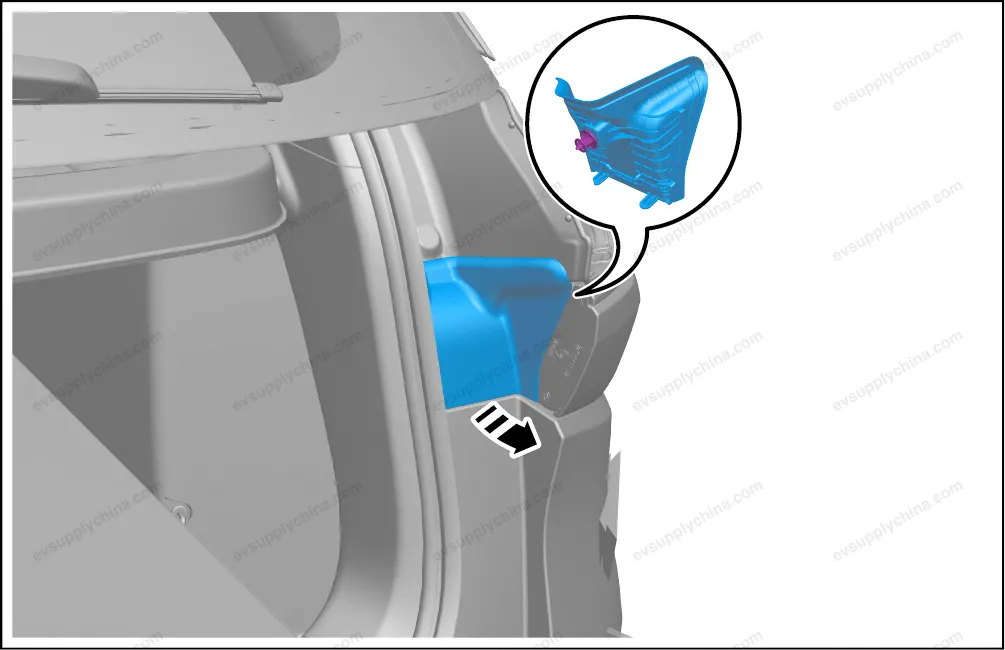

- Pry up the right combination rear light bezel.

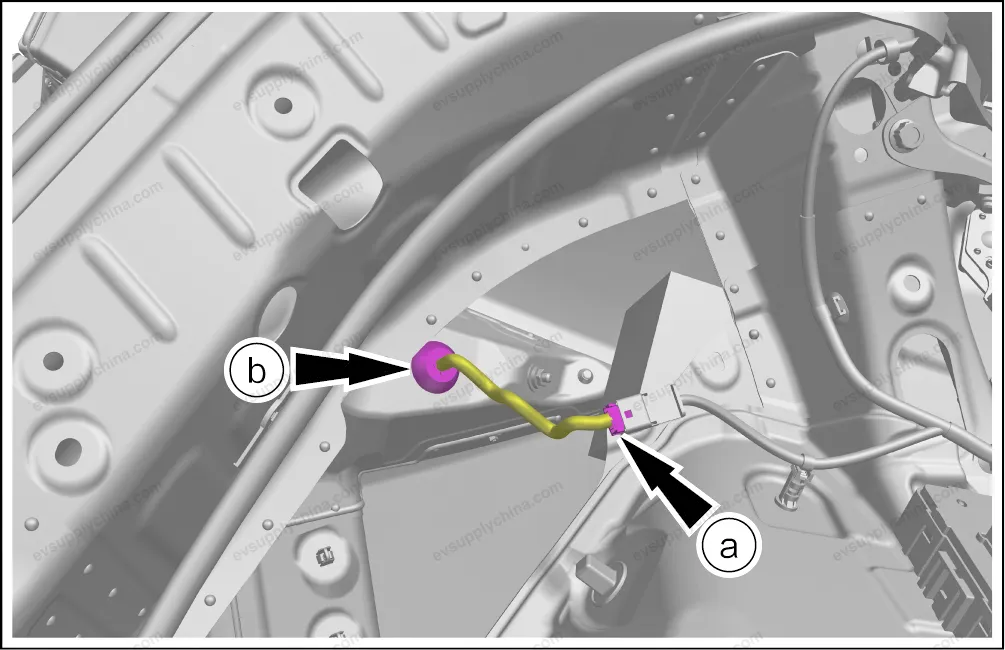

- Disconnect the wiring harness of right combination tail light assembly.
- Disconnect 1 connector.
- Detach 1 waterproof rubber sleeve.

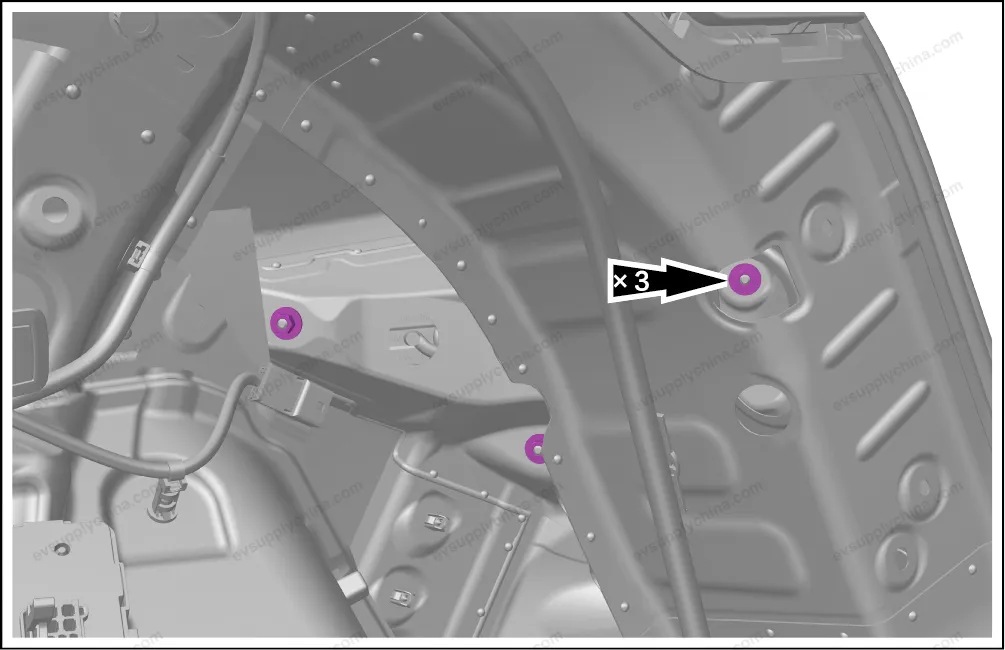

- Remove 3 fixing nuts of the right combination tail light assembly.

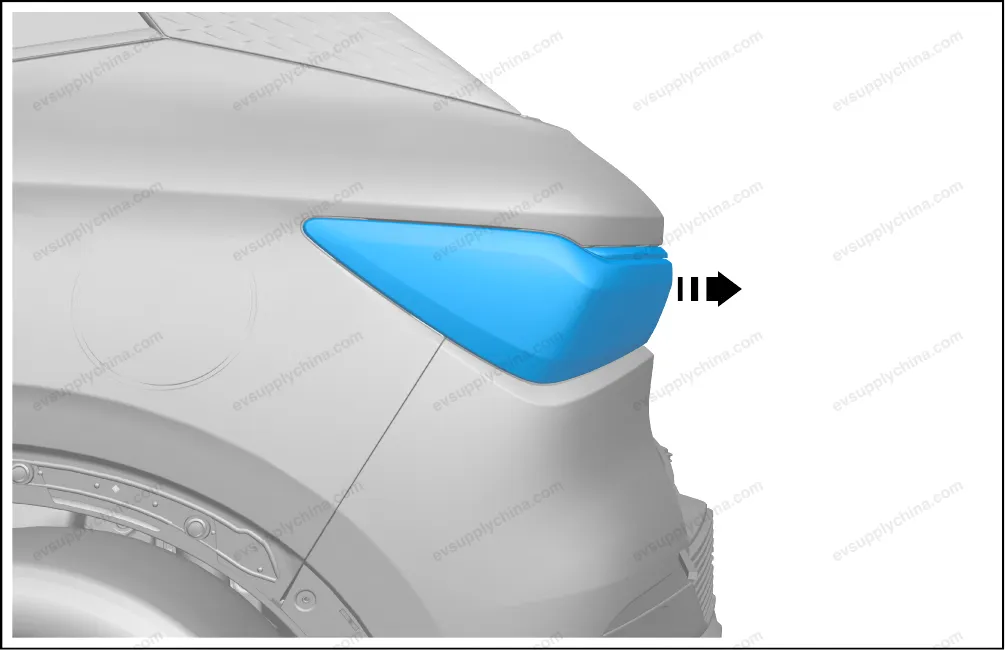

- Remove the right combination rear light assembly.
Installation
- The installation steps are opposite to the removal steps.
