OEM
BYD Atto 3

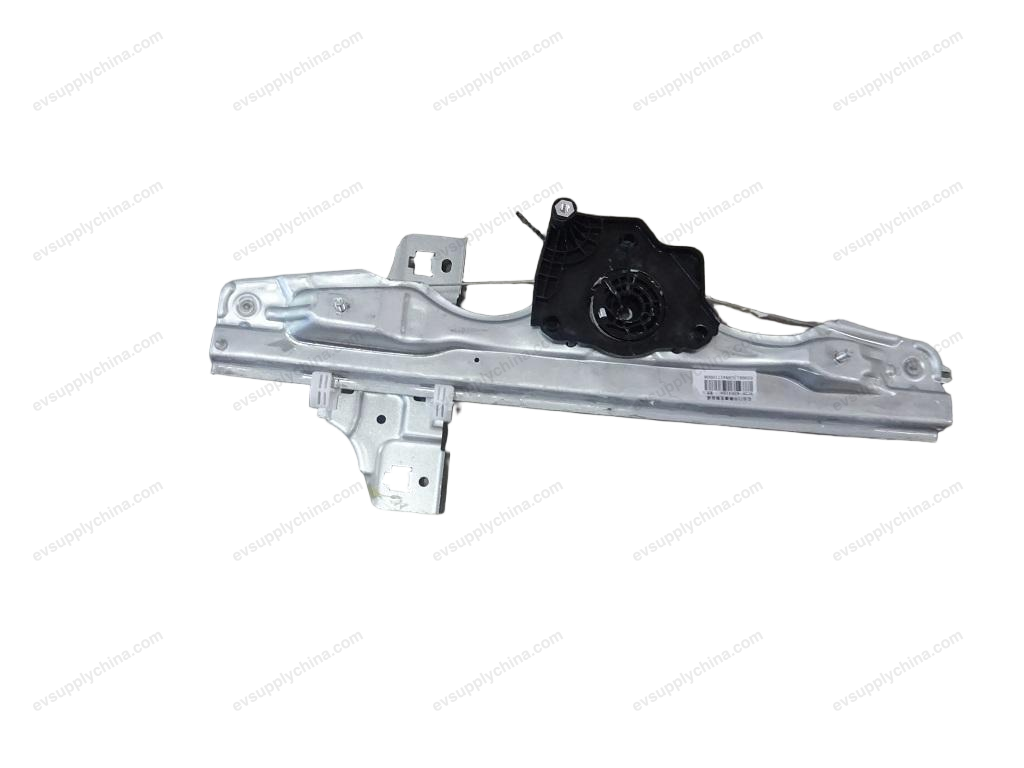

Right Rear Door Window Bracket Assembly
OE / Material Codes
13177382-00SC2E-6204120$22USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right Rear Door Window Bracket Assembly
BYDYuan PLUS/Atto 3
2022–2025Right Rear Door Window Bracket Assembly Workshop Guide — BYD Atto 3
Right Rear Window Regulator Bracket Assembly - Removal and Installation
Removal
- Remove the right rear door glass assembly. See Right Rear Door Glass Assembly - Removal and Installation

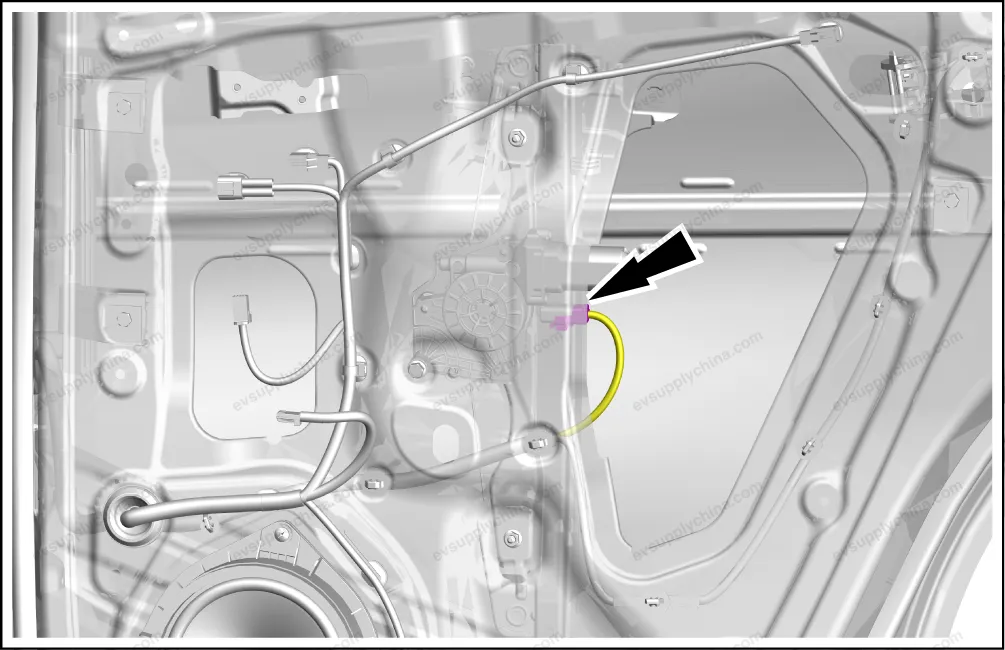

- Disconnect 1 connector of the right rear window regulator bracket assembly.
- Remove the right rear window regulator bracket assembly.

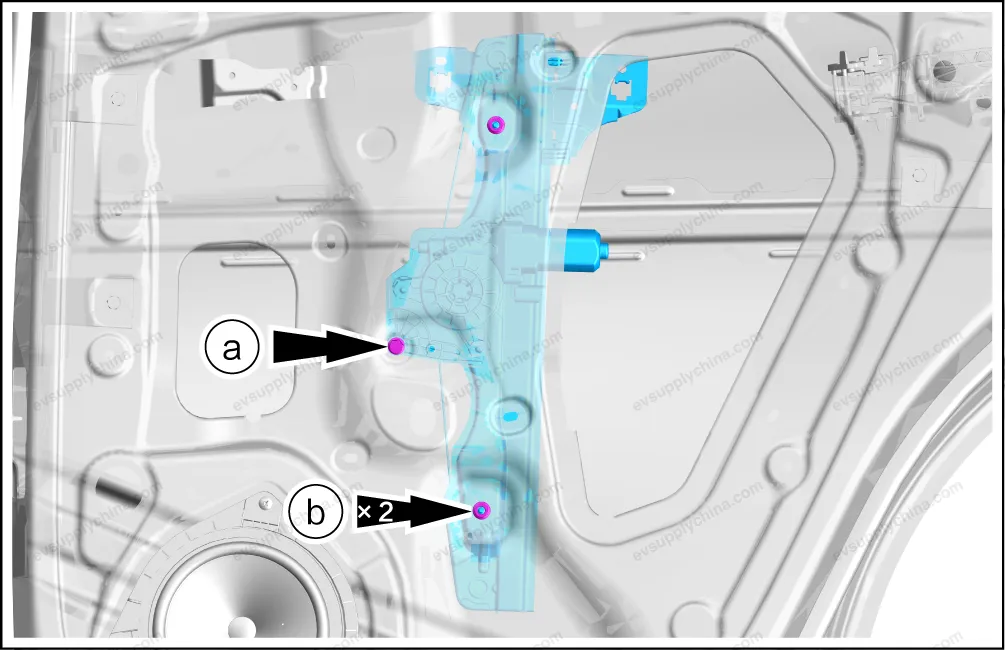

- Remove 1 fixing bolt.
- Remove 2 fixing nuts, and take out the right rear window regulator bracket assembly.
Installation
- The installation steps are opposite to the removal steps.
Caution On completion of installation, test the rear window regulator bracket assembly for normal function.
Right Rear Door Window Mud Tank Assembly - Removal and Installation
Removal
- Remove the right rear B-pillar exterior trim panel assembly. See Right Rear B-Pillar Exterior Trim Panel Assembly - Removal and Installation
- Remove the right C-pillar exterior trim panel assembly. See Right C-Pillar Exterior Trim Panel Assembly - Removal and Installation
- Take out the right rear door mud tank assembly.
Installation
- The installation steps are opposite to the removal steps.
Left Rear Window Regulator Bracket Assembly - Removal and Installation
Removal
- Remove the left rear door glass assembly. See Left Rear Door Glass Assembly - Removal and Installation

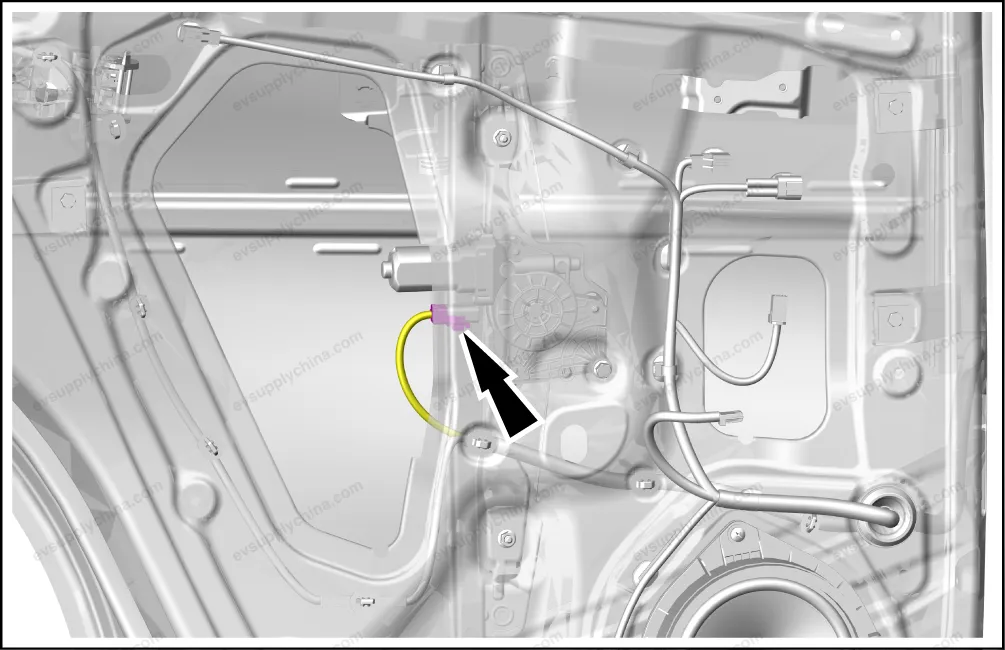

- Disconnect 1 connector of the left rear window regulator bracket assembly.
- Remove the left rear window regulator bracket assembly.

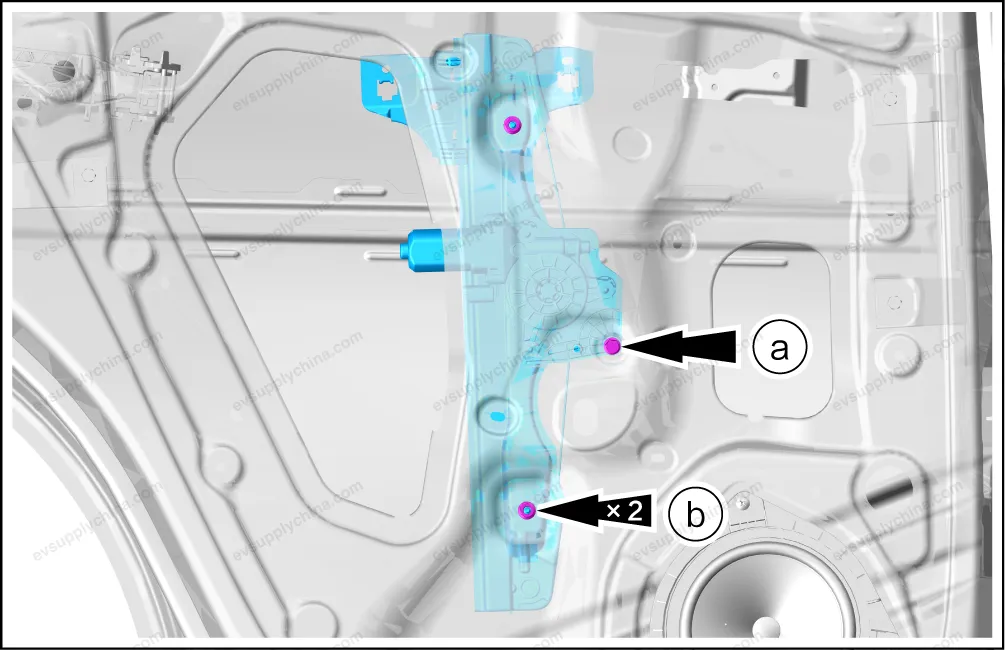

- Remove 1 fixing bolt.
- Remove 2 fixing nuts, and take out the left rear window regulator bracket assembly.
Installation
- The installation steps are opposite to the removal steps.
Caution On completion of installation, test the rear window regulator bracket assembly for normal function.
