OEM
BYD Atto 3

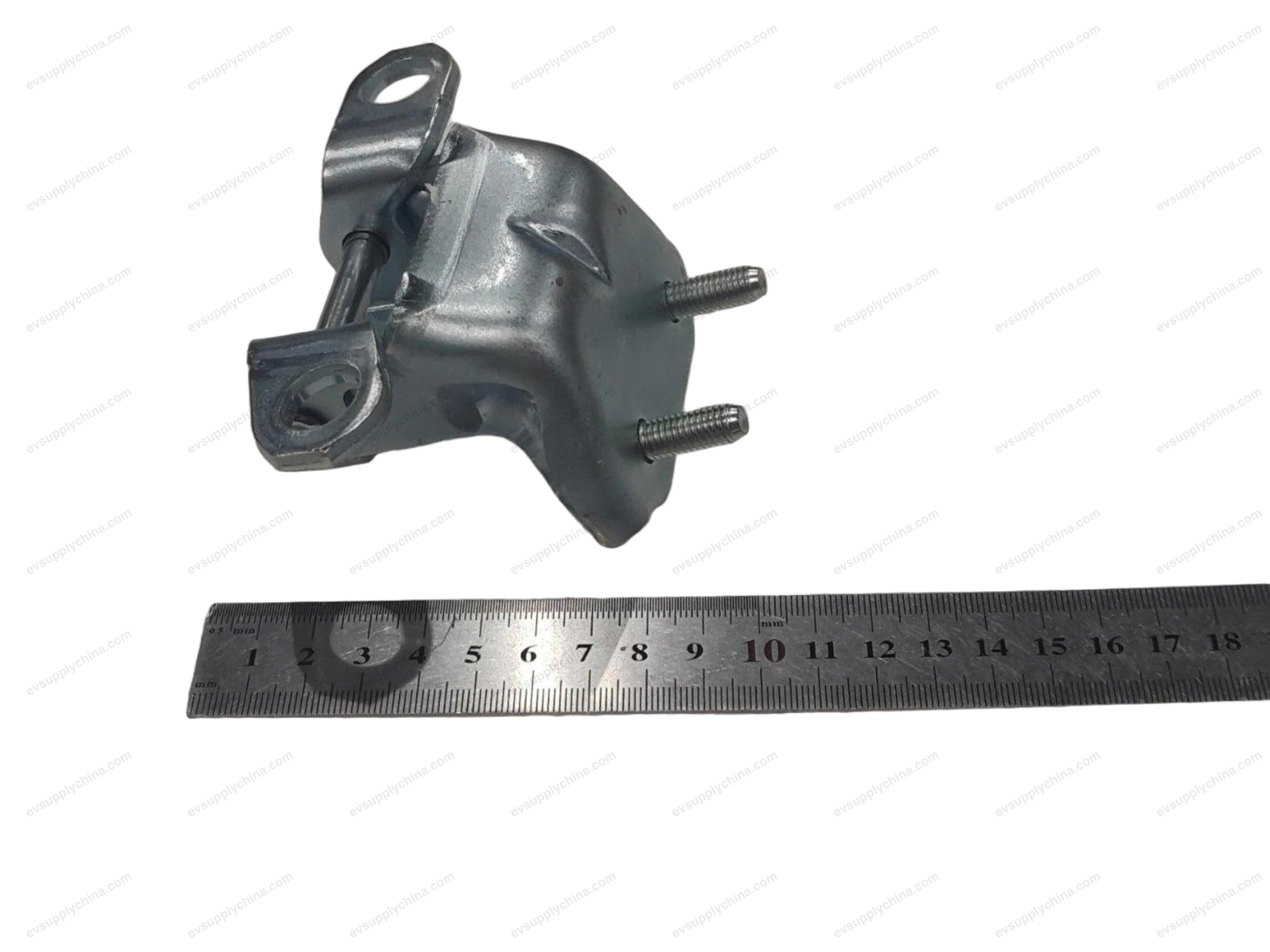

Right rear door upper hinge assembly
OE / Material Codes
13174832-00SC2E-6206109Price on requestIn Stock
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Doors & Tailgates
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right rear door upper hinge assembly
BYDYuan PLUS/Atto 3
2022–2025Right rear door upper hinge assembly Workshop Guide — BYD Atto 3
Right Rear Door Upper Hinge Assembly - Removal and Installation
Removal
- Remove the right B-pillar upper guard assembly. See Right B-Pillar Upper Guard Assembly - Removal and Installation
- Remove 2 fixing nuts of the right rear door upper hinge assembly.
- Remove 2 fixing bolts, and take out the right rear door upper hinge assembly.
Installation
- The installation steps are opposite to the removal steps.
- Adjust the right rear door assembly after the installation. See Adjustment of Rear Door Assembly
Left Rear Door Upper Hinge Assembly - Removal and Installation
Removal
- Remove the left B-pillar upper guard assembly. See Left B-Pillar Upper Guard Assembly - Removal and Installation
- Remove 2 fixing nuts of the left rear door upper hinge assembly.
- Remove 2 fixing bolts, and take out the left rear door upper hinge assembly.
Installation
- The installation steps are opposite to the removal steps.
- Adjust the left rear door assembly after the installation. See Adjustment of Rear Door Assembly
