OEM
BYD Atto 3

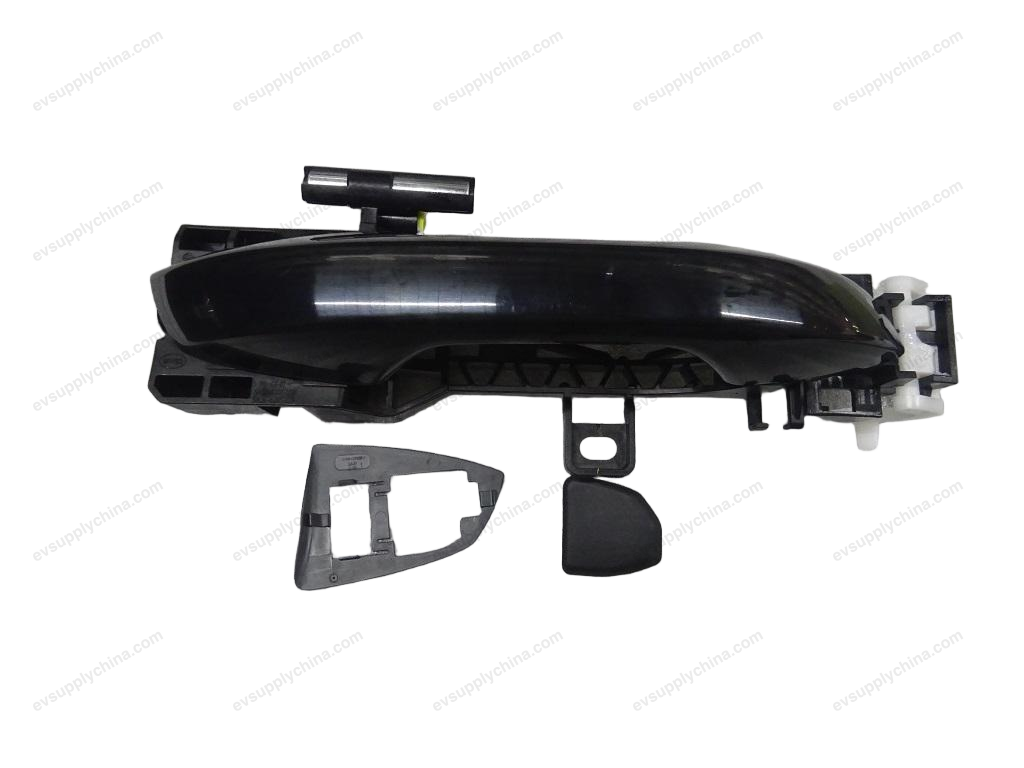

Right rear door outside handle assembly
OE / Material Codes
13168425-00SA3F-6205109D$18USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Doors & Tailgates
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right rear door outside handle assembly
BYDYuan PLUS/Atto 3
2022–2025Right rear door outside handle assembly Workshop Guide — BYD Atto 3
Right Rear Door Outer Handle Assembly - Removal and Installation
Removal
- Lift the right rear door glass to the limit position.
- Remove the right rear door sealing plug I. See Right Rear Door Sealing Plug I - Removal and Installation
- Take out 1 screw cover, and loosen 1 fixing screw of the right rear door outer handle assembly.
- Pull the outer handle, and take out the plug.
- Detach the outer handle gasket.
- Unlock the right rear door outer handle assembly.
- Press the locking mechanism by hand.
- And turn the unlocking mechanism over at the same time.
- Take out the right rear door outer handle assembly.
- Remove 1 fixing screw of the right rear door outer handle seat assembly.
- Remove the right rear door outer handle seat assembly.
- Detach 1 fixing clip, and detach the right rear door lock outward-opening lever from the right rear door outer handle seat assembly.
- Take out the right rear door outer handle seat assembly.
Installation
- The installation steps are opposite to the removal steps.
Right Rear Door Handle Box Cover - Removal and Installation
Removal

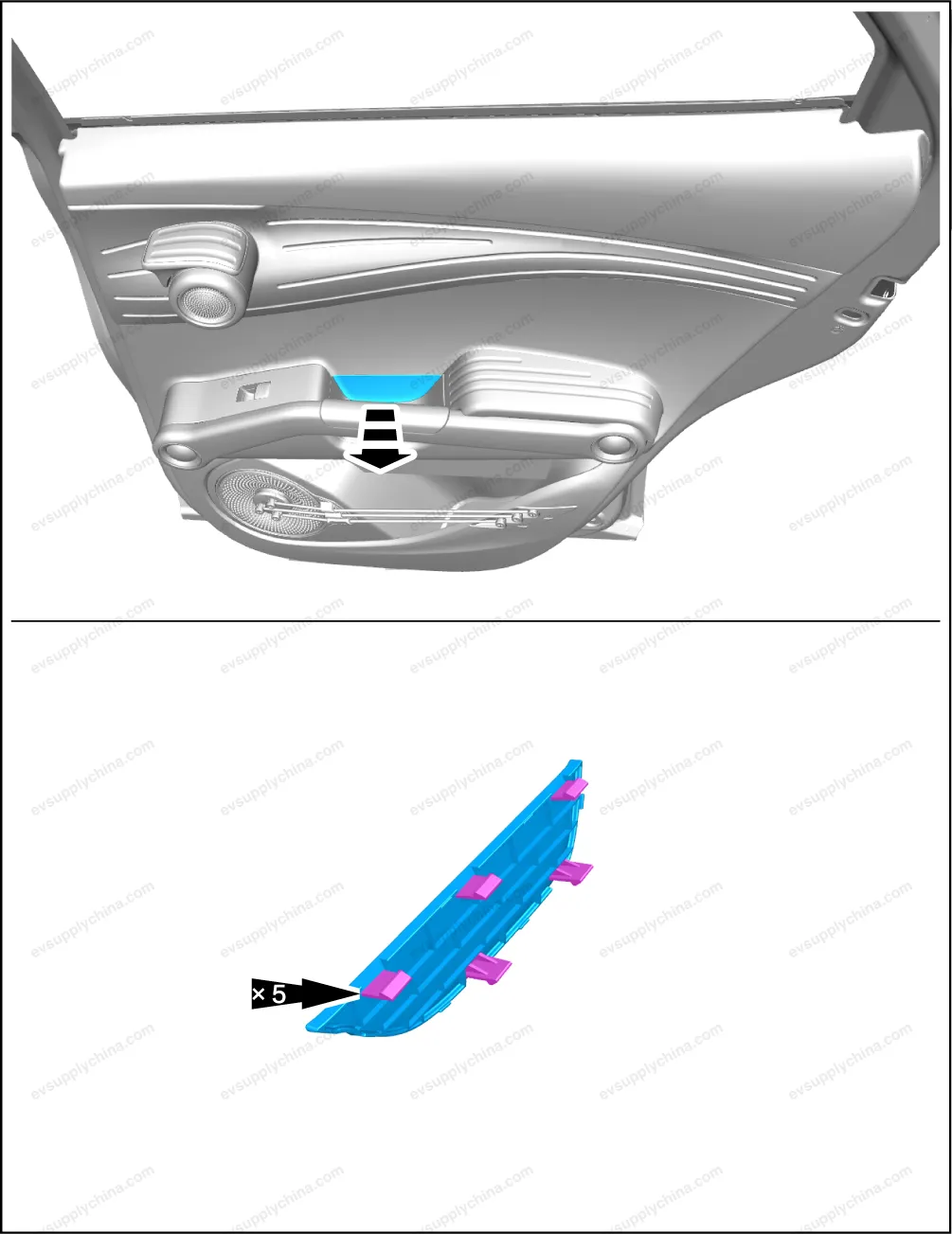

- Pry up the right rear door handle box cover.
Caution Be careful when removing the trim panel to avoid scratching the surface material.
Installation
- The installation steps are opposite to the removal steps.
Right Rear Door Snap Handle Ambient Light Assembly - Removal and Installation
Removal
- Remove the right rear door guard board assembly. Right Rear Door Guard Assembly - Removal and Installation

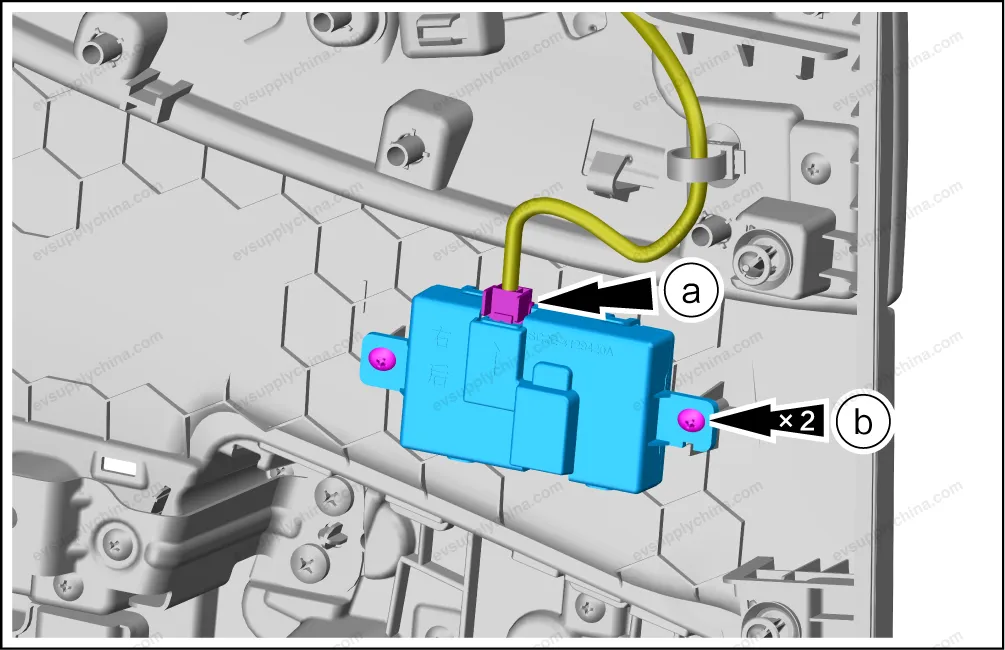

- Remove the right rear door snap handle ambient light control module.
- Disconnect 1 connectors.
- Remove 2 fixing screws, and take out the right rear door snap handle ambient light control module.

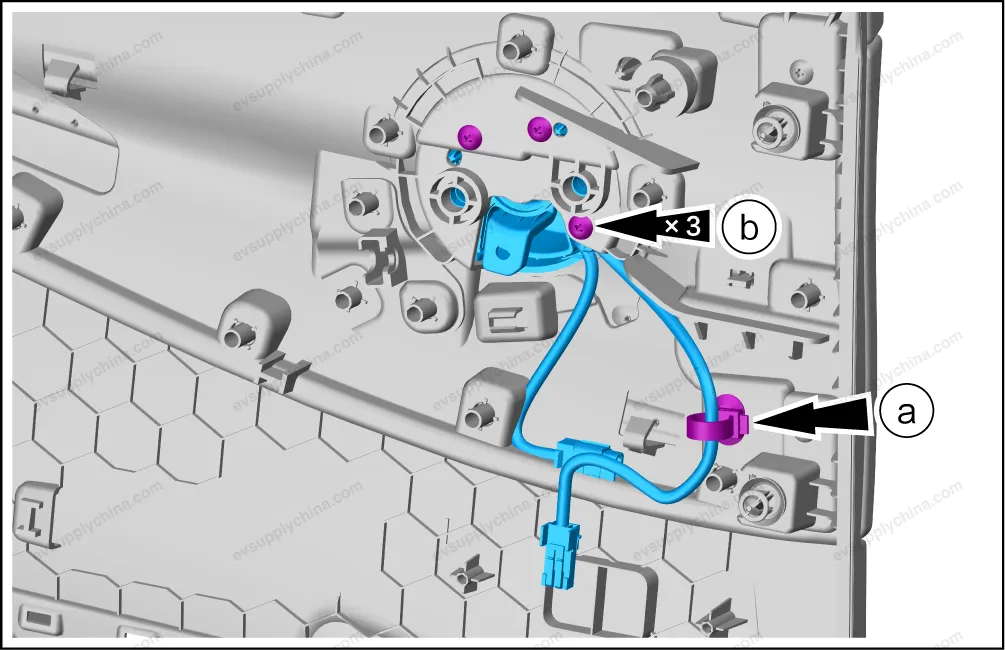

- Remove the right rear door inner snap handle assembly.
- Detach 1 fixing clip.
- Remove 3 fixing screws, and take out the right rear door inner snap handle assembly.

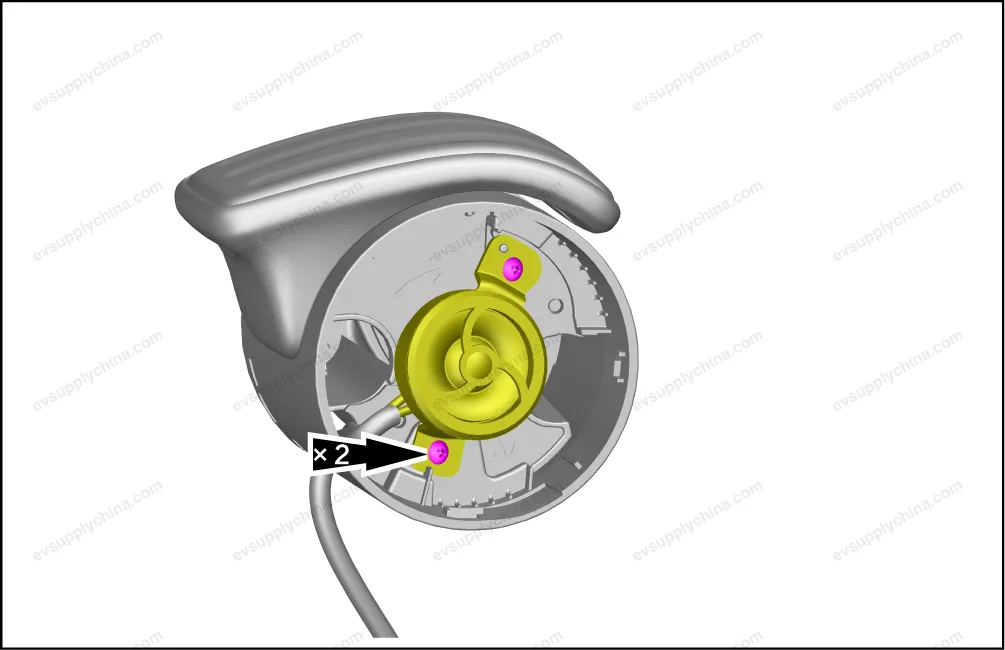

- Remove 2 fixing screws, and put aside the right rear tweeter horn.

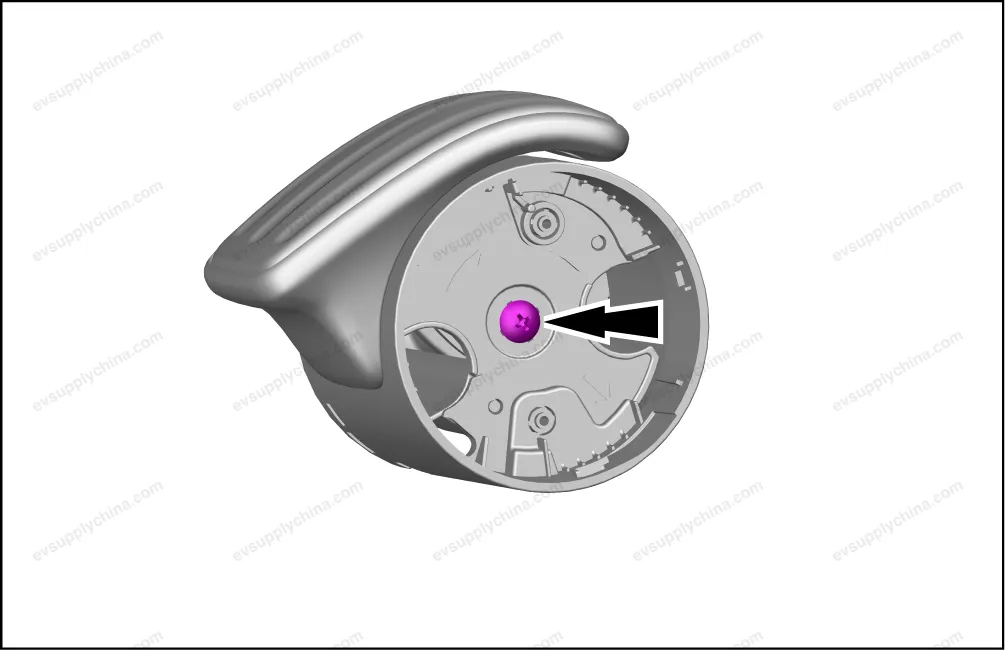

- Remove 1 fixing screws.

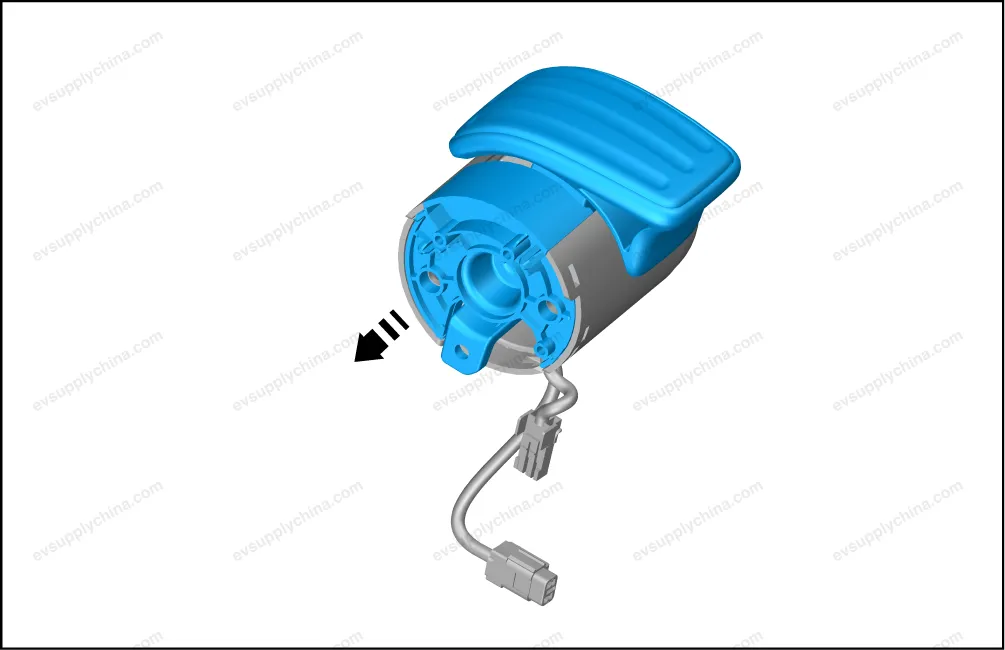

- Pry up the right rear door inner snap handle seat and the handle.

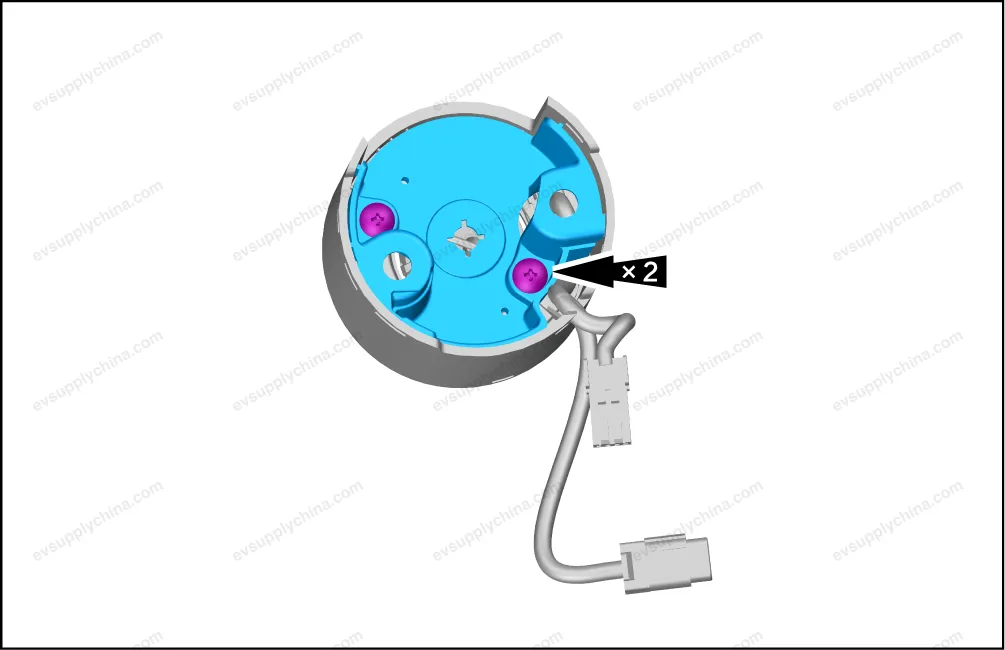

- Remove 2 fixing screws, and take out the right door inner snap handle inner plate.
- Take out the right rear door inner snap handle ambient light and the tweeter horn.
Install
- The installation is performed in reverse order of removal.
