OEM
BYD Atto 3

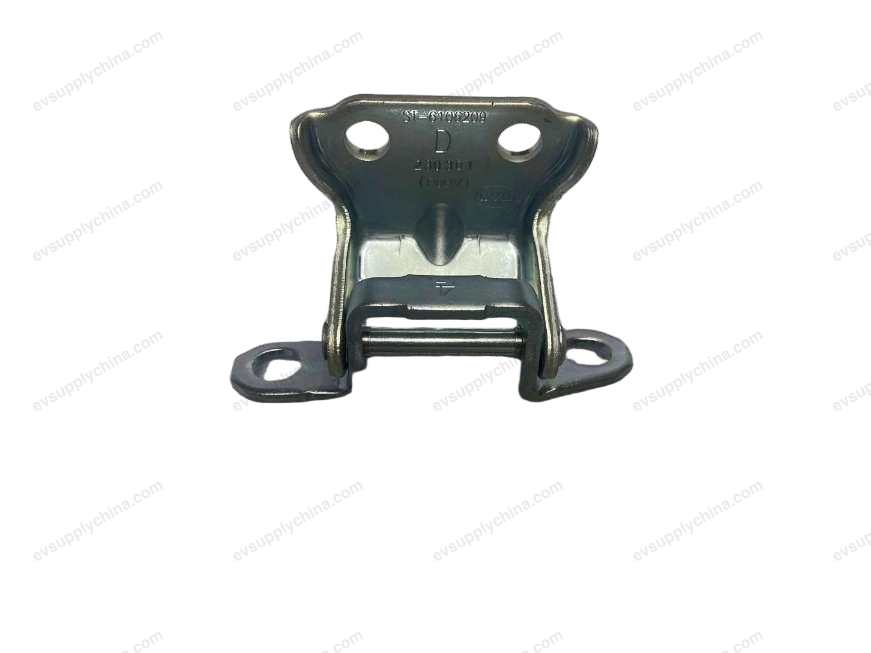

Right front door lower hinge assembly
OE / Material Codes
12326118-00ST-6106209$5USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Doors & Tailgates
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right front door lower hinge assembly
BYDTang
2018–2019BYDTang New Energy DM
2018–2019BYDTang New Energy EV600
2019BYDTang New Energy EV600D
2019BYDSong Pro
2019BYDSong Pro New Energy DM
2019BYDSong Pro New Energy EV
2019Right front door lower hinge assembly Workshop Guide — BYD Atto 3

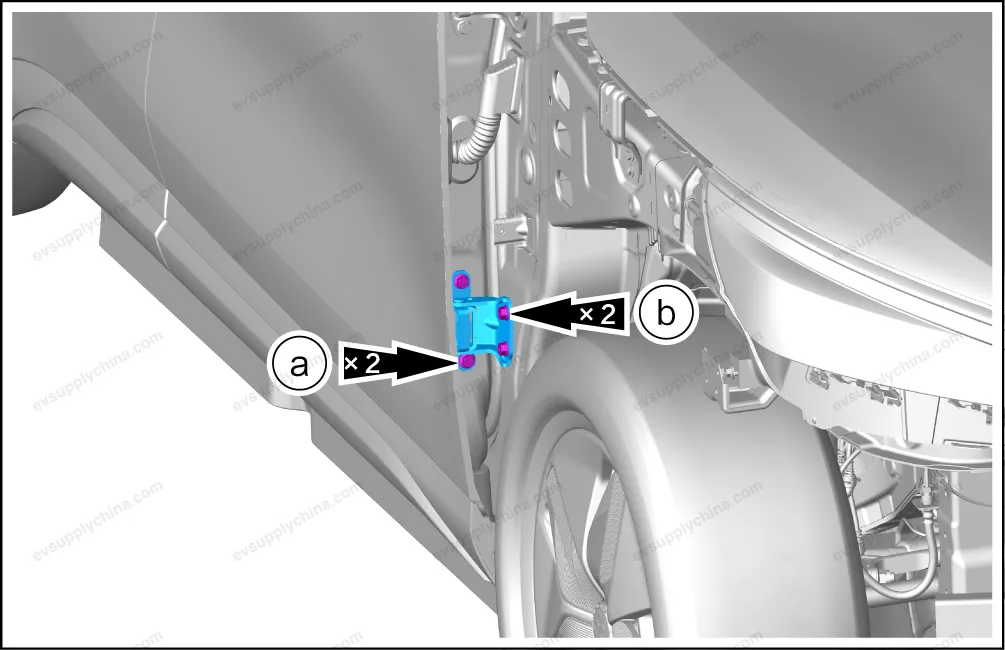

Right Front Door Lower Hinge Assembly - Removal and Installation
Removal
- Remove the right fender assembly. See Right Fender Assembly - Removal and Installation
- Remove the right front door lower hinge assembly.
- Remove 2 connecting bolts between the right front door lower hinge assembly and the door.
- Remove the connecting bolts between the right front door lower hinge assembly and the vehicle body.
- Take out the right front door lower hinge assembly.
Installation
- The installation steps are opposite to the removal steps.
- After the installation, adjust the front door assembly. See Adjustment of Front Door Assembly

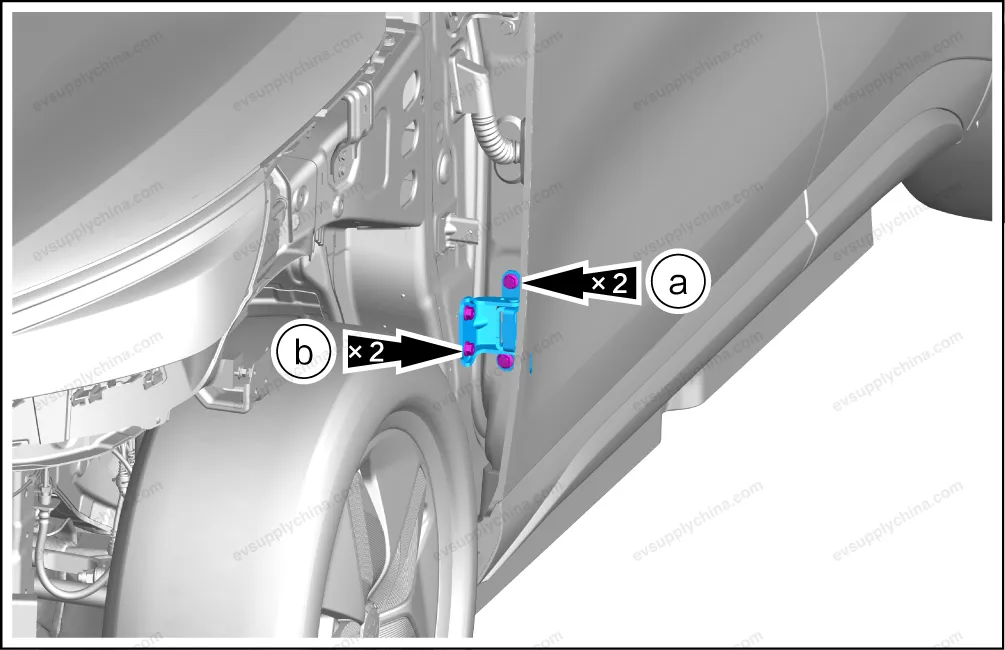

Left Front Door Lower Hinge Assembly - Removal and Installation
Removal
- Remove the left fender assembly. See Left Fender Assembly - Removal and Installation
- Remove the left front door lower hinge assembly.
- Remove 2 connecting bolts between the left front door lower hinge assembly and the door.
- Remove the connecting bolts between the left front door lower hinge assembly and the vehicle body.
- Take out the left front door lower hinge assembly.
Installation
- The installation steps are opposite to the removal steps.
- After the installation, adjust the front door assembly. See Adjustment of Front Door Assembly
