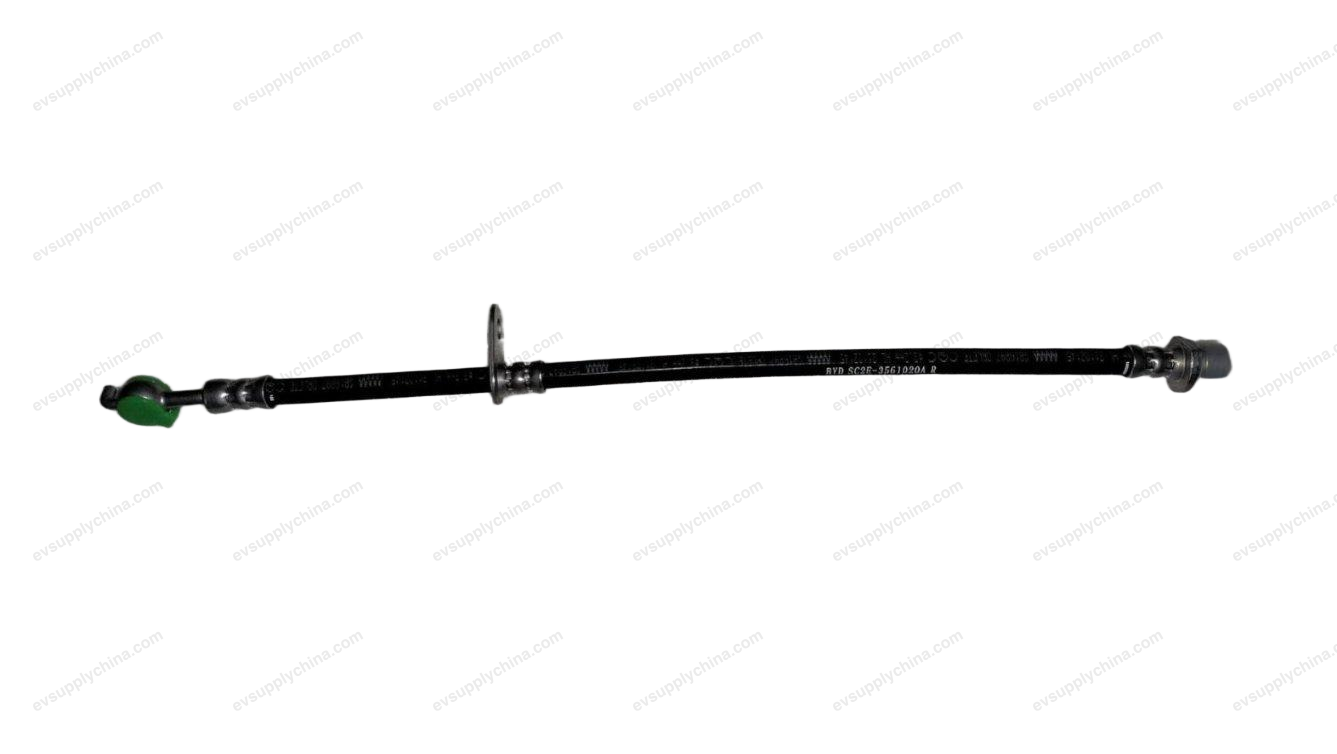

Right front brake hose assembly
OE / Material Codes
13434536-00SC2E-3561020ATechnical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Brakes
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right front brake hose assembly
Right front brake hose assembly Workshop Guide — BYD Atto 3
Right Front Brake Hose Assembly - Removal and Installation
Removal
- Set the intelligent power brake system assembly to "installation mode". See Installation Mode of Intelligent Power Braking System
- Remove the right front wheel assembly. See Wheel Assembly - Removal and Installation
- Discharge brake fluid. See Replacement of Brake Fluid

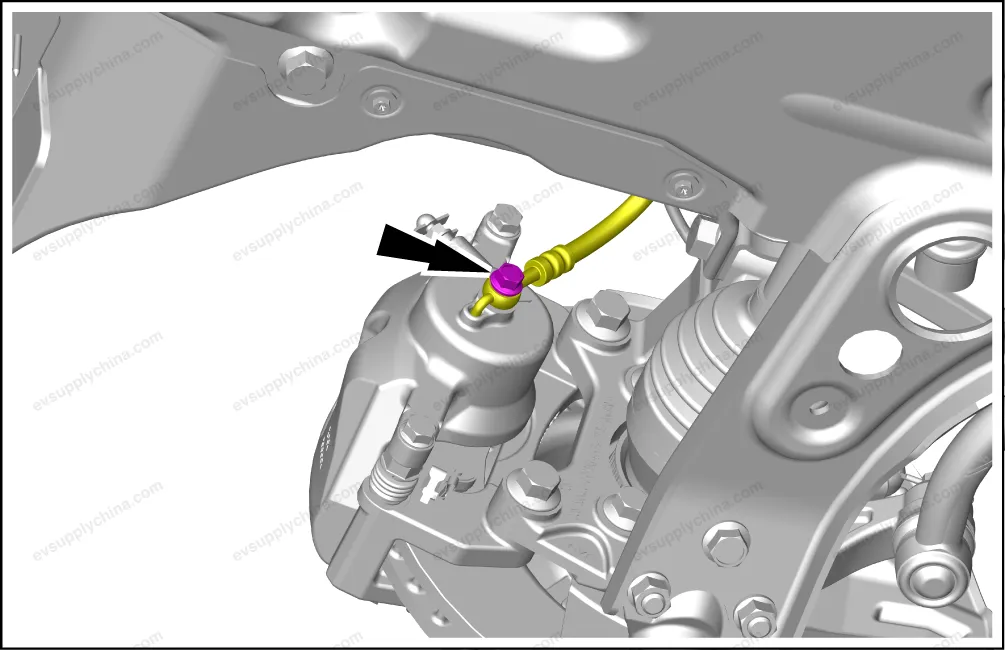

- Remove one fixing bolt and detach the right front brake hose assembly.

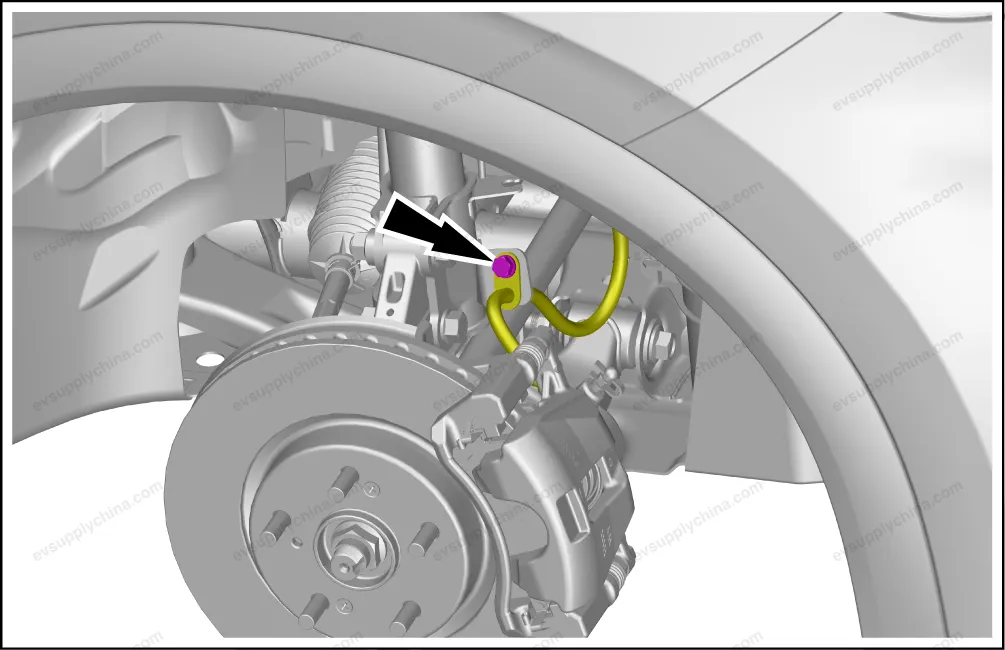

- Remove one fixing bolt and detach the right front brake hose assembly from the right front shock absorber strut assembly.
- Remove the right front brake hose assembly.

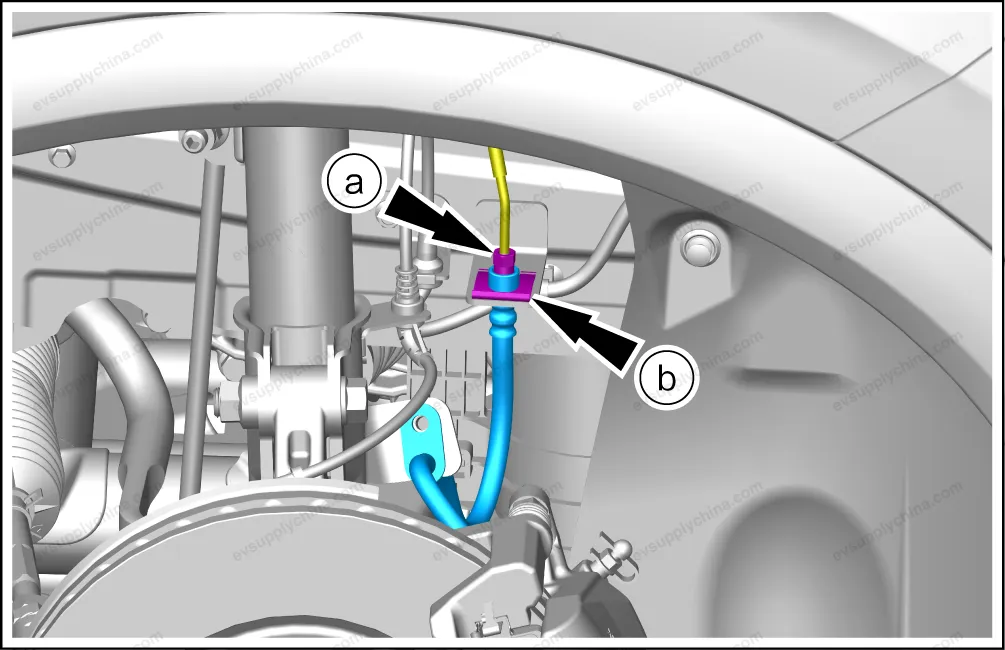

- Remove 1 fixing nut.
- Remove 1 E-clip, and take out the right front brake hose assembly.
Caution The brake fluid has a strong corrosive effect on the paint. If it is accidentally splashed on the paint of the vehicle body, it must be cleaned with a rag as soon as possible. Avoid oil contact with skin. If it is accidentally splashed into the eyes, immediately rinse with plenty of water and seek medical attention as soon as possible. Do not discharge the oil at will, and recycle it according to local regulations.
Installation
- The installation steps are opposite to the removal steps.
- Fill the brake fluid and drain the brake system of the right front wheel. See Air Discharge of Braking System
Caution After the installation, press the brake pedal several times to ensure that the brake system works normally. Perform road test for inspection.
Left Front Brake Hose Assembly - Removal and Installation
Removal
- Set the intelligent power brake system assembly to "installation mode". See Installation Mode of Intelligent Power Braking System
- Remove the left front wheel assembly. See Wheel Assembly - Removal and Installation
- Discharge brake fluid. See Replacement of Brake Fluid
- Remove one fixing bolt and detach the left front brake hose assembly.

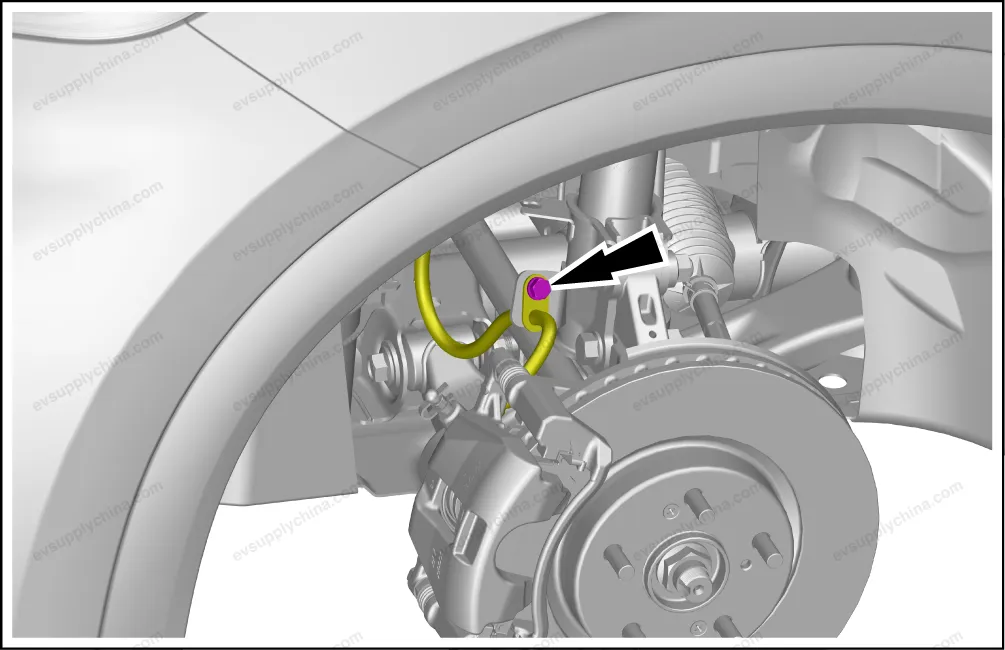

- Remove 1 fixing bolt, and detach the left front brake hose assembly from the left front shock absorber strut assembly.
- Remove the left front brake hose assembly.

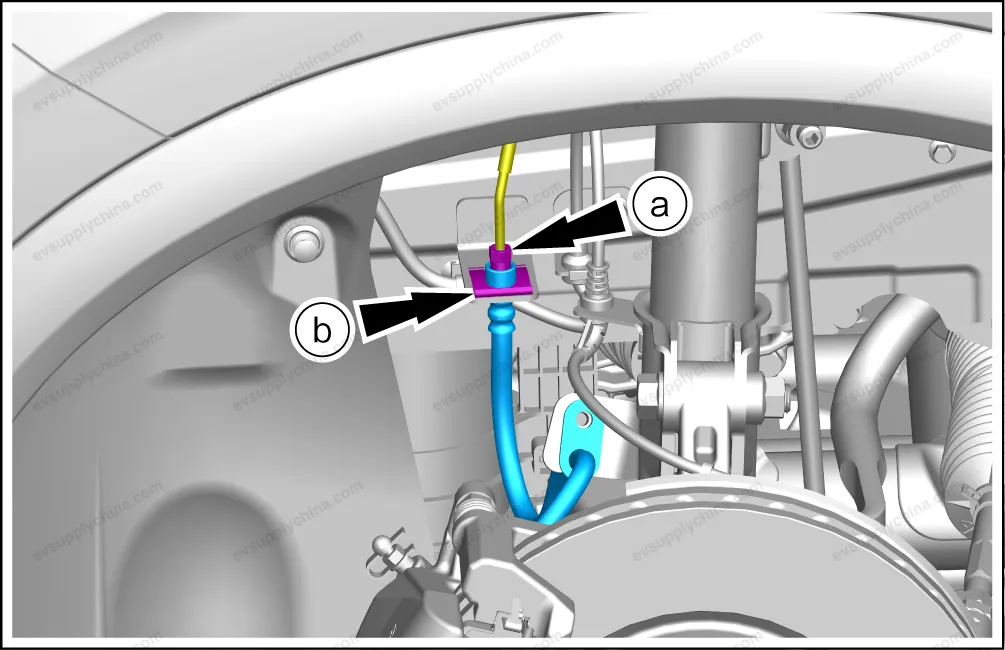

- Remove 1 fixing nuts.
- Remove one E-clip and take out the left front brake hose assembly.
Caution The brake fluid has a strong corrosive effect on the paint. If it is accidentally splashed on the paint of the vehicle body, it must be cleaned with a rag as soon as possible. Avoid oil contact with skin. If it is accidentally splashed into the eyes, immediately rinse with plenty of water and seek medical attention as soon as possible. Do not discharge the oil at will, and recycle it according to local regulations.
Installation
- The installation steps are opposite to the removal steps.
- Fill the brake fluid, and drain the brake system of the left front wheel. See Air Discharge of Braking System
Caution After the installation, press the brake pedal several times to ensure that the brake system works normally. Perform road test for inspection.
