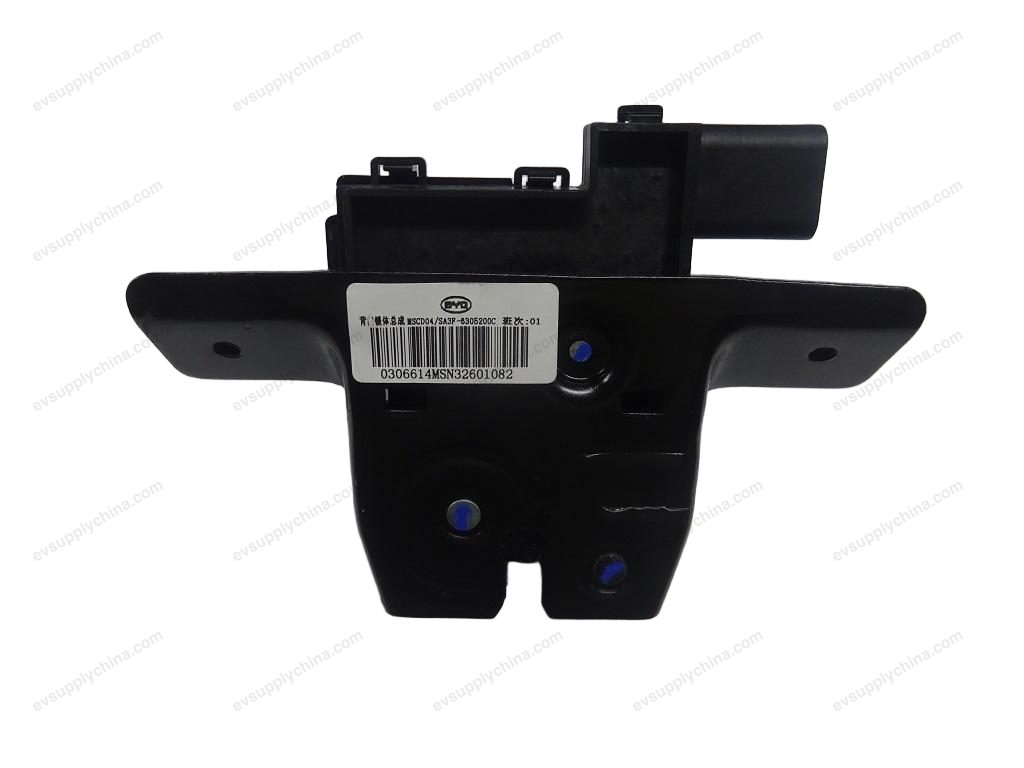

Rear door lock assembly
OE / Material Codes
13056671-00SA3F-6305200CTechnical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Rear door lock assembly
Rear door lock assembly Workshop Guide — BYD Atto 3
Left Rear Door Lock Body Assembly - Removal and Installation
Removal
- Remove the left rear door rear movable guide rail and mud tank assembly. See Left Rear Door Rear Movable Guide Rail and Mud Tank Assembly - Removal and Installation

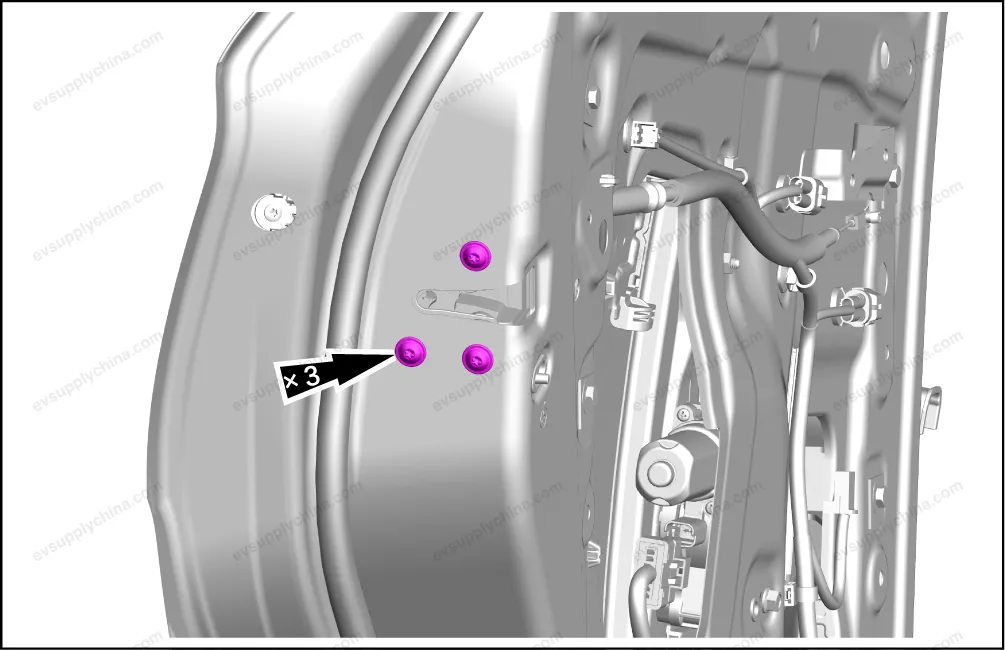

- Remove 3 fixing bolts of the left rear door lock body assembly.

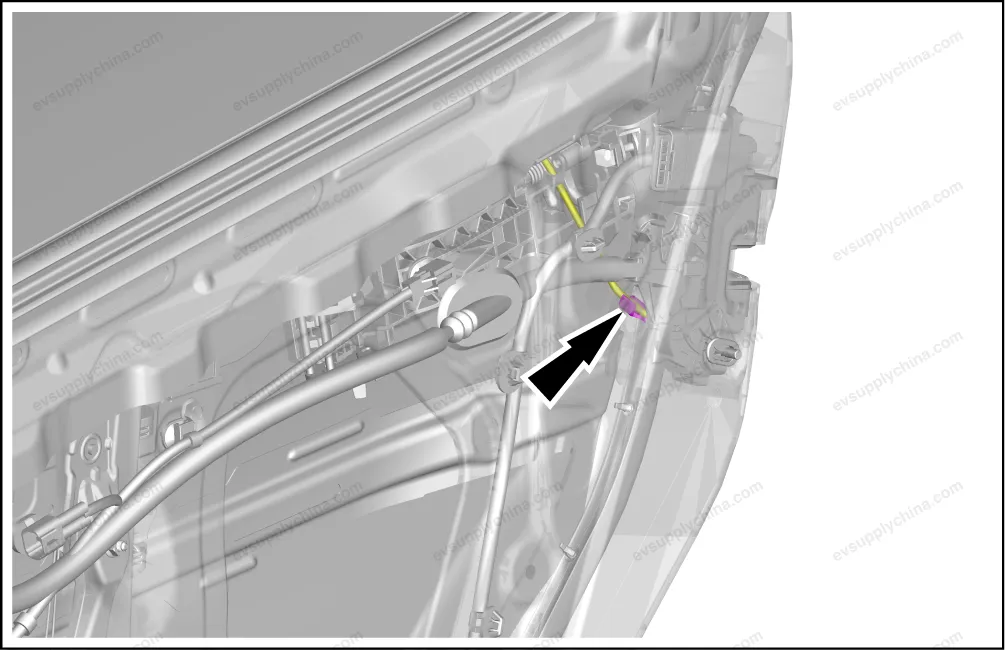

- Detach one fixing clip, and detach the left rear door lock outward-opening lever from the left rear door lock body assembly.

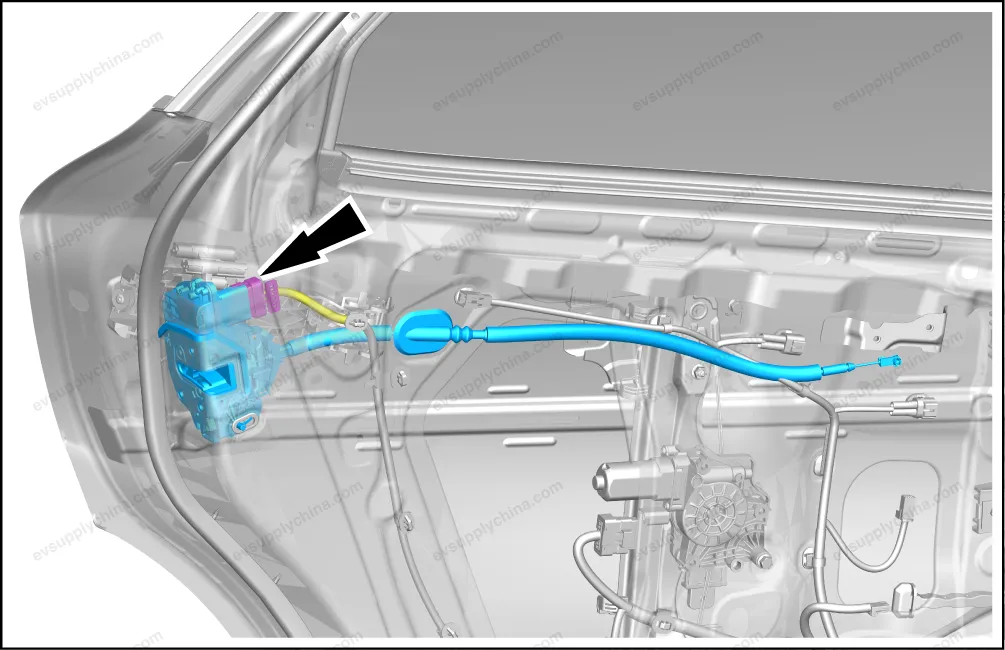

- Disconnect one connector, and take out the left rear door lock body assembly.
Caution To take out the rear door lock body assembly, the rubber plug connecting the rear door lock body assembly and the door shall be detached first.
Installation
- Follow the removal steps in reverse order to install.
Caution After the installation, check the functionality of the rear door lock body assembly.
Right Rear Door Lock Body Assembly - Removal and Installation
Removal
- Remove the right rear door rear movable guide rail and mud tank assembly. See Right Rear Door Rear Movable Guide Rail and Mud Tank Assembly - Removal and Installation

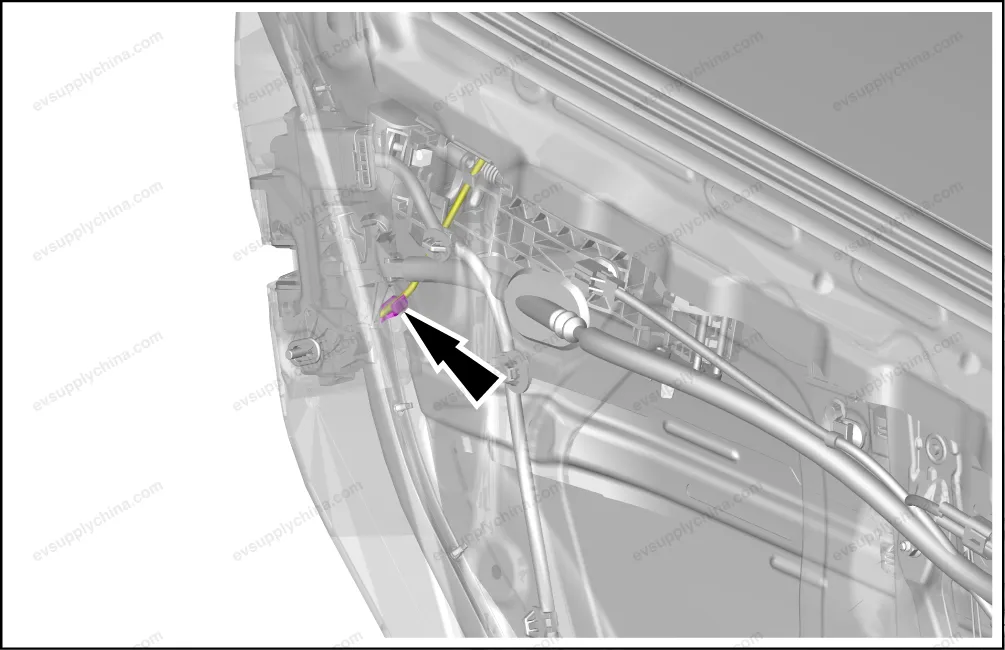

- Detach one fixing clip, and detach the right rear door lock outward-opening lever from the right rear door lock body assembly.

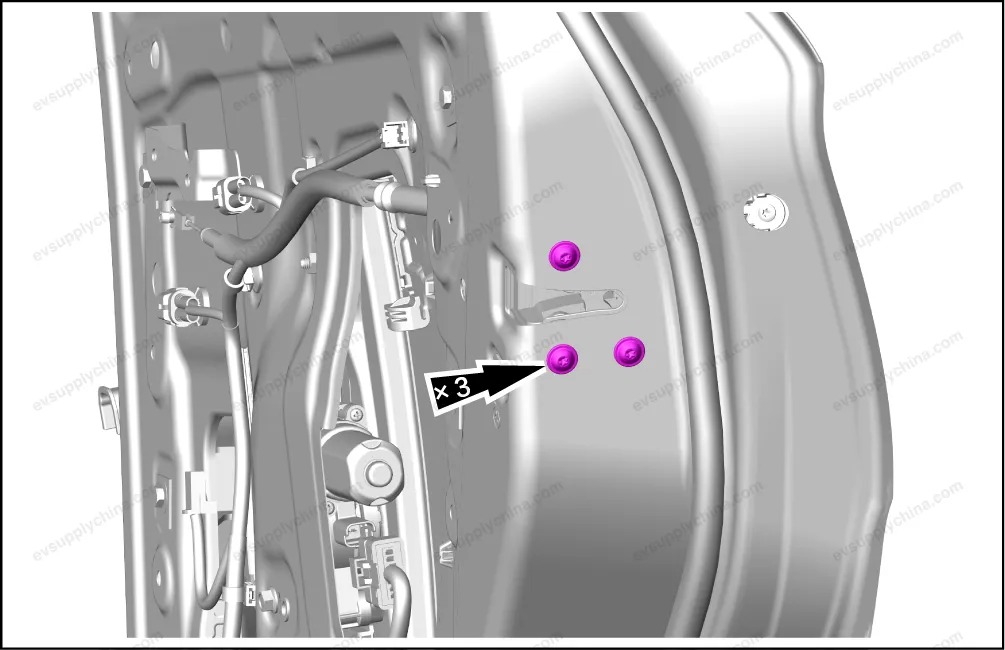

- Remove 3 fixing bolts of the right rear door lock body assembly.

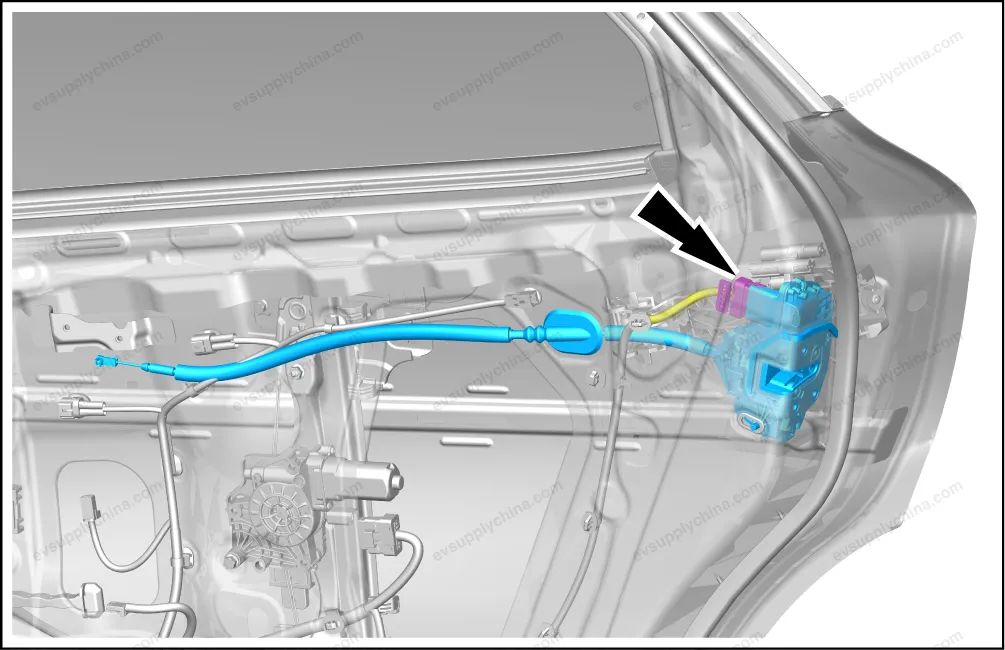

- Disconnect one connector, and take out the right rear door lock body assembly.
Caution To take out the rear door lock body assembly, the rubber plug connecting the rear door lock body assembly and the door shall be detached first.
Installation
- Follow the removal steps in reverse order to install.
Caution After the installation, check the functionality of the rear door lock body assembly.
Side Door Lock Ring Assembly - Removal and Installation
Removal

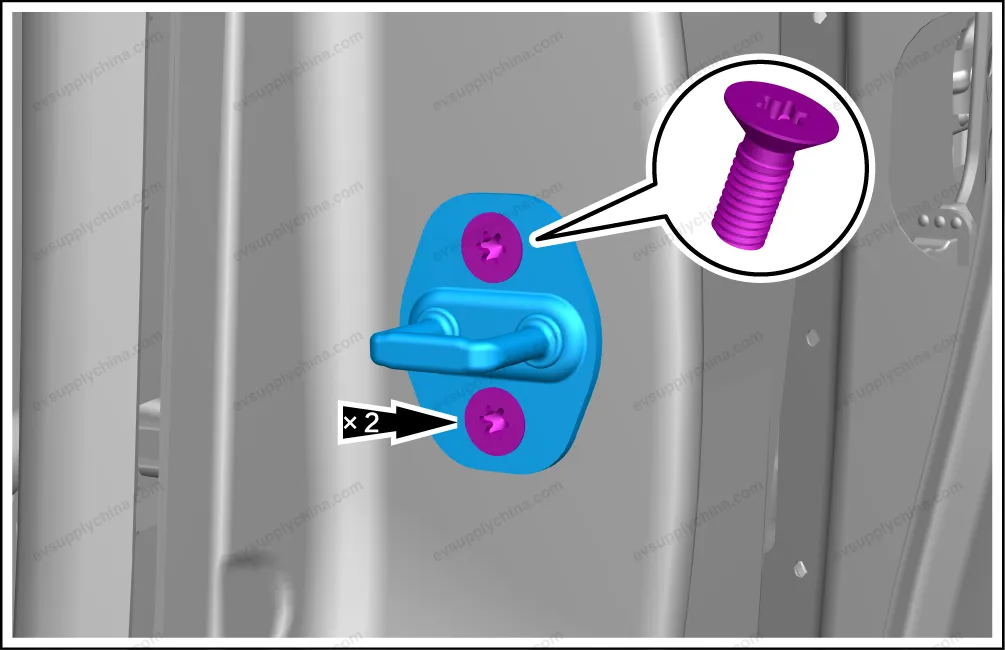

- Remove 2 fixing bolts, and take out the side door lock ring assembly.
Installation
- The installation steps are opposite to the removal steps.
