OEM
BYD Atto 3

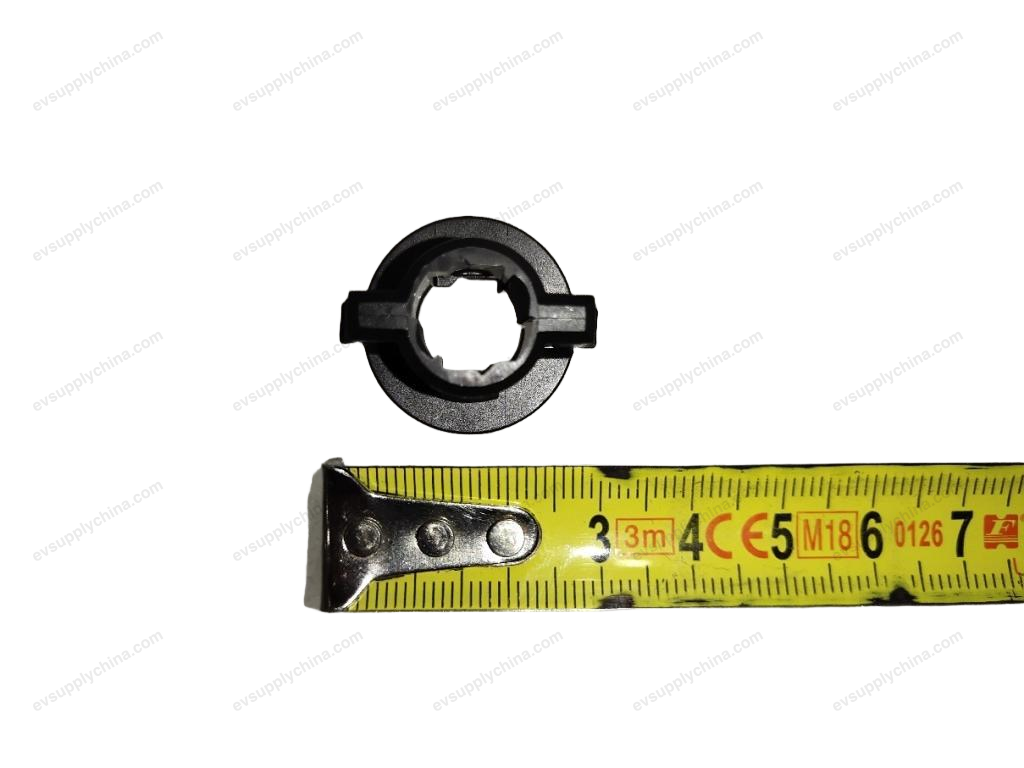

Mounting bracket

OE / Material Codes

12451852-00VBH-4134202
Price on requestIn Stock
Quality availability

Technical Specifications

Vehicle Model
BYD Atto 3
Steering Configuration
Universal (Left & Right-Hand Drive)
Category
Exterior Body Parts

Shipping & Returns

Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Compatible Vehicles — Mounting bracket

BYDS2
2019
BYDe1
2019
BYDYuan New Energy EV360
2019
BYDYuan New Energy EV535
2019
BYDTang
2019
BYDTang New Energy EV600
2019
BYDTang New Energy EV600D
2019
BYDSong MAX
2019

Mounting bracket Workshop Guide — BYD Atto 3

Console Middle Mounting Bracket Assembly - Removal and Installation

Removal

  1. Remove the floor duct assembly. See Floor Duct Assembly - Removal and Installation
  2. Detach 2 wiring harness clips from the console middle mounting bracket assembly.
    Mounting bracket — BYD BYD Atto 3 — OE 12451852-00, VBH-4134202
  3. Remove 2 fixing nuts, and take out the console middle mounting bracket assembly.
    Mounting bracket — BYD BYD Atto 3 — OE 12451852-00, VBH-4134202

Installation

  1. The installation steps are opposite to the removal steps.

Console Rear Mounting Bracket Assembly - Removal and Installation

Removal

  1. Remove the console body assembly. See Console Body Assembly - Removal and Installation
  2. Remove the interior detection antenna assembly (console rear mounting bracket). See Interior Detection Antenna Assembly (Rear Mounting Bracket of Console) - Removal and Installation
  3. Detach the floor wiring harness clip from the console rear mounting bracket assembly.
    Mounting bracket — BYD BYD Atto 3 — OE 12451852-00, VBH-4134202
  4. Detach the instrument wiring harness clip from the console rear mounting bracket assembly.
    Mounting bracket — BYD BYD Atto 3 — OE 12451852-00, VBH-4134202
  5. Remove 2 clips connecting the console rear mounting bracket assembly and the carpet.
    Mounting bracket — BYD BYD Atto 3 — OE 12451852-00, VBH-4134202
  6. Remove the console rear mounting bracket assembly.
    Mounting bracket — BYD BYD Atto 3 — OE 12451852-00, VBH-4134202
  7. Remove 2 fixing nuts.
  8. Remove 2 fixing screws, and take out the console rear mounting bracket assembly.

Installation

  1. The installation steps are opposite to the removal steps.

Brake Fluid Reservoir Mounting Bracket Assembly - Removal and Installation

Removal

  1. Remove 2 fixing bolts, and detach the brake fluid reservoir assembly.
    Mounting bracket — BYD BYD Atto 3 — OE 12451852-00, VBH-4134202
  2. Remove the brake fluid reservoir mounting bracket assembly.
    Mounting bracket — BYD BYD Atto 3 — OE 12451852-00, VBH-4134202
  3. Remove 1 fixing clip, and detach the front compartment wiring harness.
  4. Remove 4 fixing nuts, and take out the brake fluid reservoir mounting bracket assembly.

Installation

  1. The installation steps are opposite to the removal steps.
