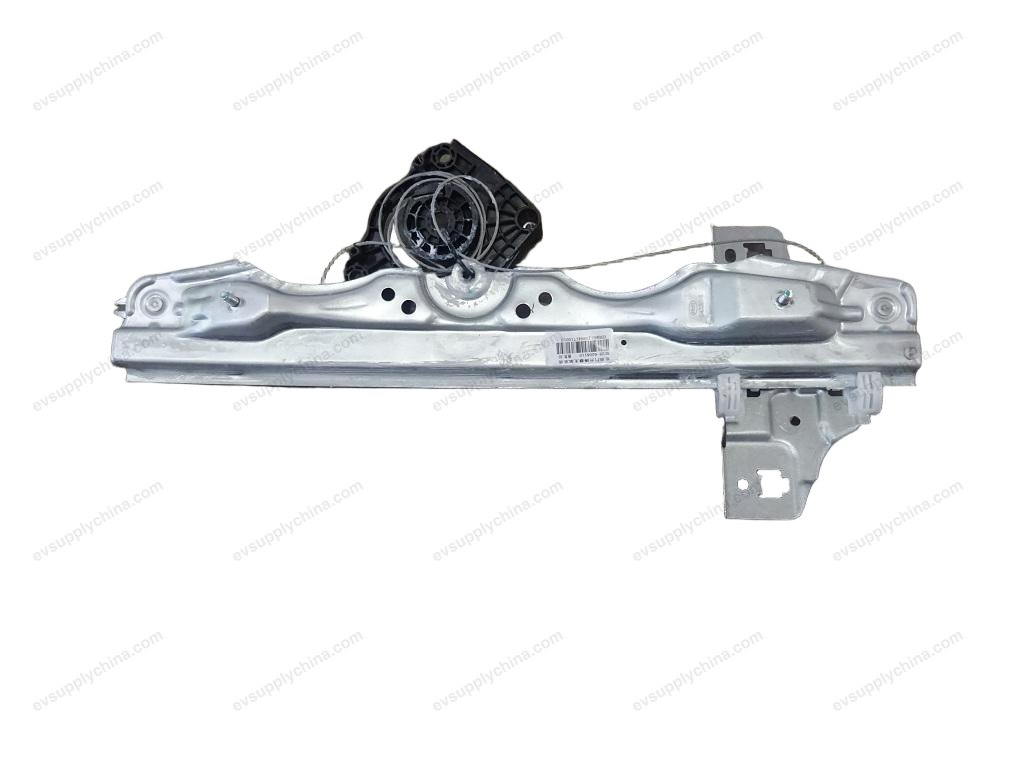

Left rear door lifter bracket assembly
OE / Material Codes
13180416-00SC2E-6204110Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Doors & Tailgates
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left rear door lifter bracket assembly
Left rear door lifter bracket assembly Workshop Guide — BYD Atto 3
Tailgate Left Gas Spring Door Bracket - Removal and Installation
Removal
- Open the tailgate.
- Pry up the pin with a minisize flat-head screwdriver, and detach from the tailgate left gas spring door bracket.
- Remove 2 fixing bolts, and take out the tailgate left air spring door bracket.
Caution When detaching the tailgate left air spring body, the help of another technician is required to support the tailgate assembly. When prying up the pin with a minisize slot type screwdriver, do not pry up the pin completely from the ball cage.
Installation
- The installation steps are opposite to the removal steps.
