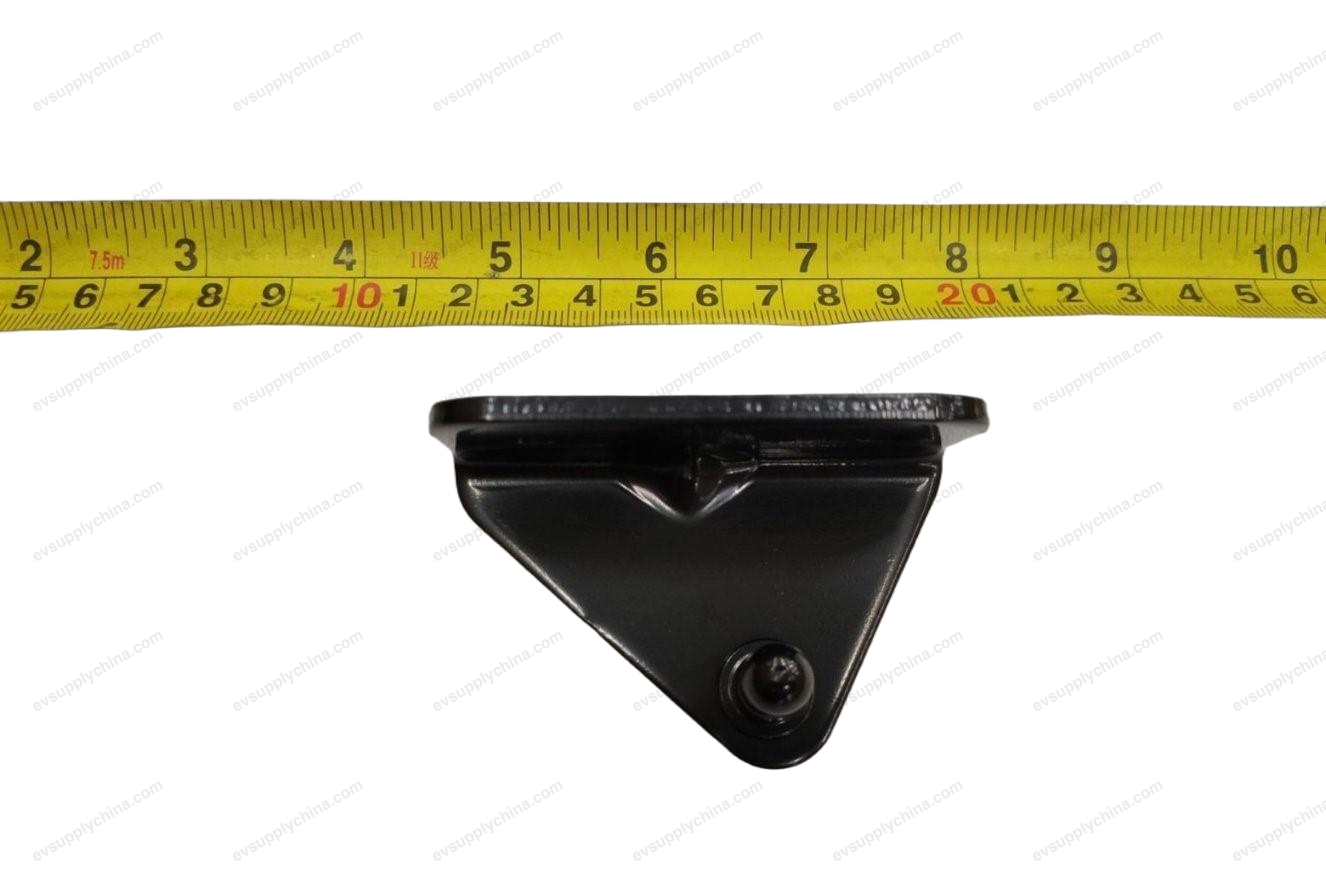

Left gas spring body bracket for tailgate
OE / Material Codes
13732947-00SC2EM-6309113Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Doors & Tailgates
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left gas spring body bracket for tailgate
Left gas spring body bracket for tailgate Workshop Guide — BYD Atto 3
Tailgate Left Air Spring Body Bracket - Removal and Installation
Removal
- Open the tailgate.

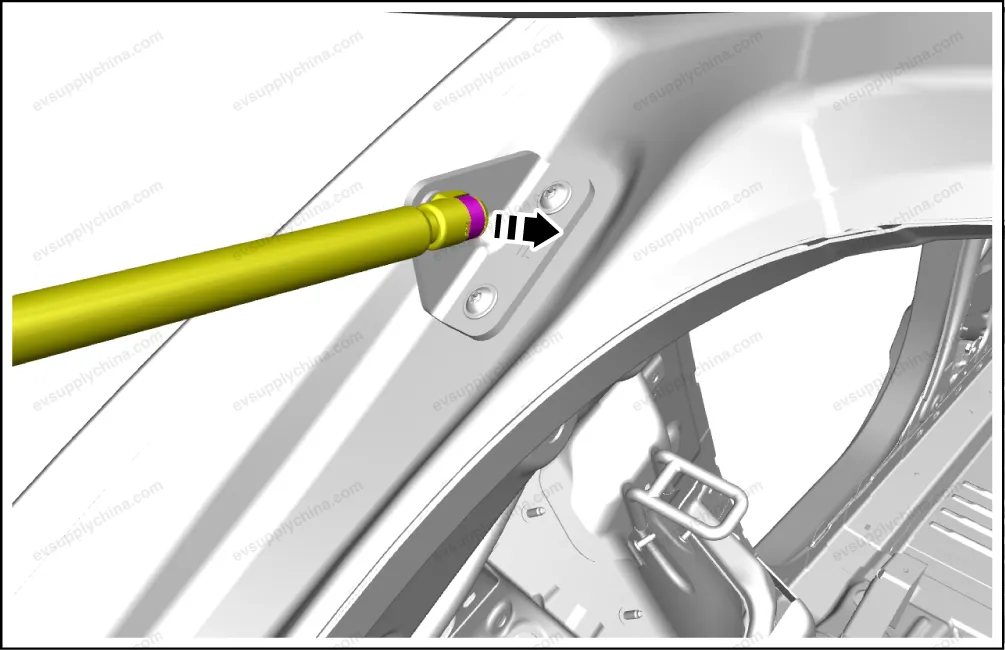

- Pry up the pin with a minisize flat-head screwdriver, and detach from the tailgate left gas spring body bracket.

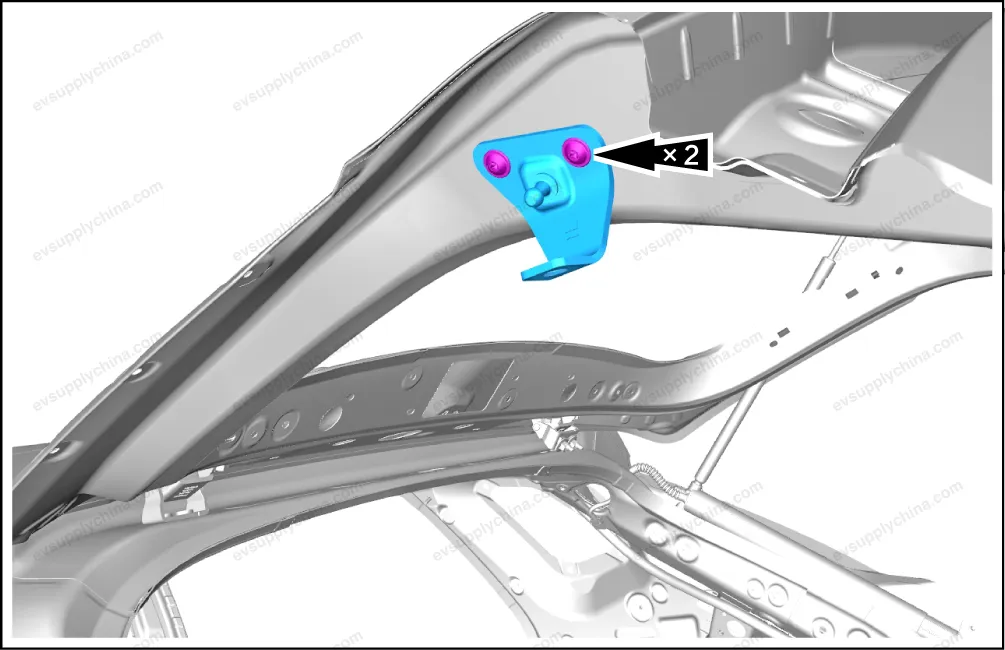

- Remove 2 fixing bolt. Take out the tailgate left air spring body bracket.
Caution When detaching the tailgate left air spring body, the help of another technician is required to support the tailgate assembly. When prying up the pin with a minisize slot type screwdriver, do not pry up the pin completely from the ball cage.
Installation
- The installation steps are opposite to the removal steps.
Tailgate Left Gas Spring Door Bracket - Removal and Installation
Removal
- Open the tailgate.

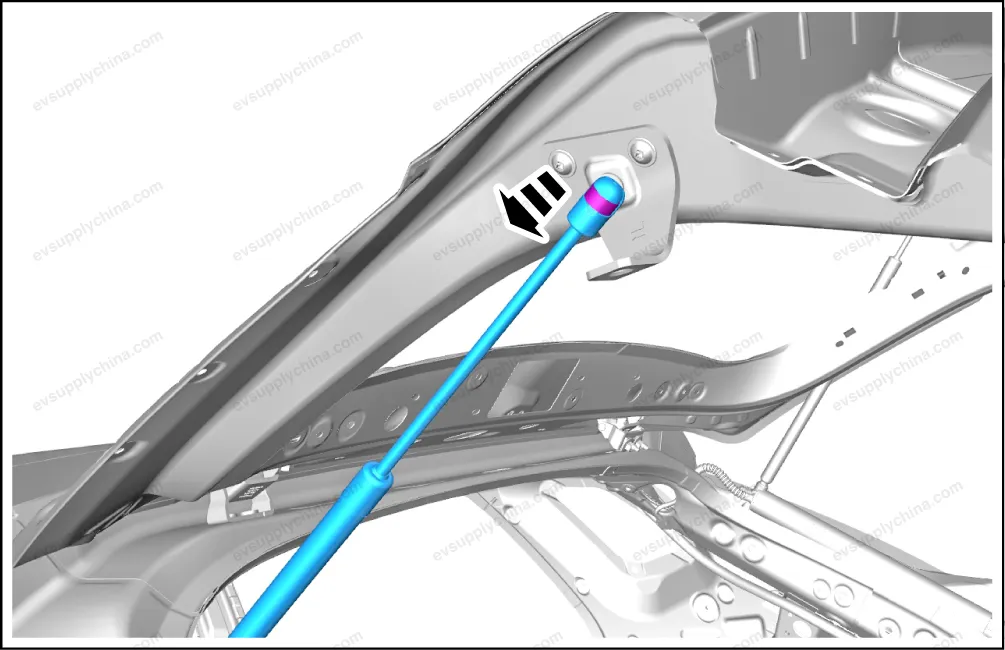

- Pry up the pin with a minisize flat-head screwdriver, and detach from the tailgate left gas spring door bracket.

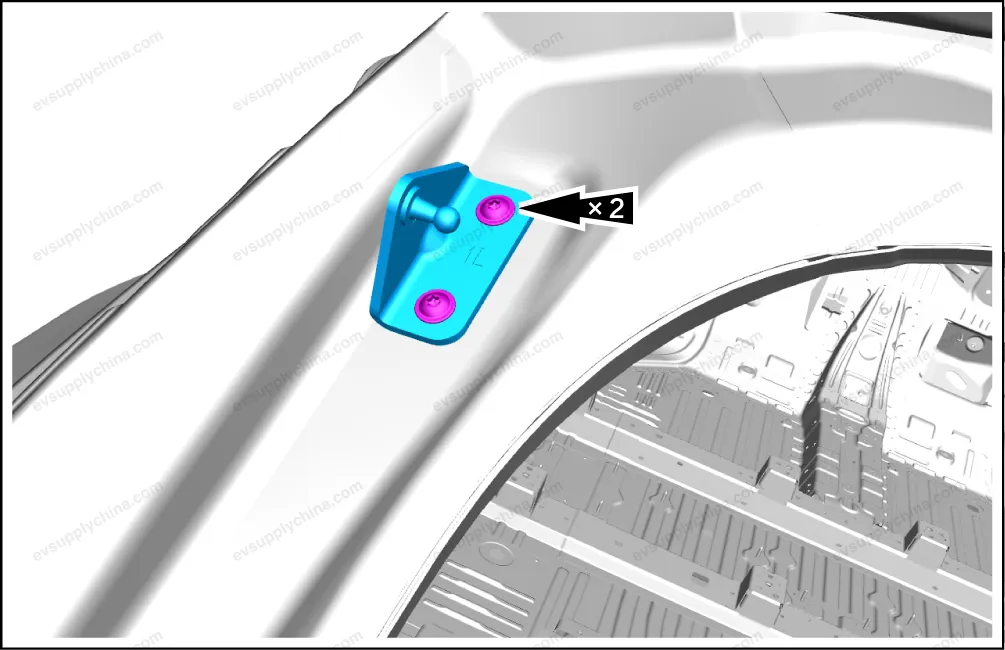

- Remove 2 fixing bolts, and take out the tailgate left air spring door bracket.
Caution When detaching the tailgate left air spring body, the help of another technician is required to support the tailgate assembly. When prying up the pin with a minisize slot type screwdriver, do not pry up the pin completely from the ball cage.
Installation
- The installation steps are opposite to the removal steps.
Tailgate Left Air Spring - Removal and Installation
Removal
- Open the tailgate.

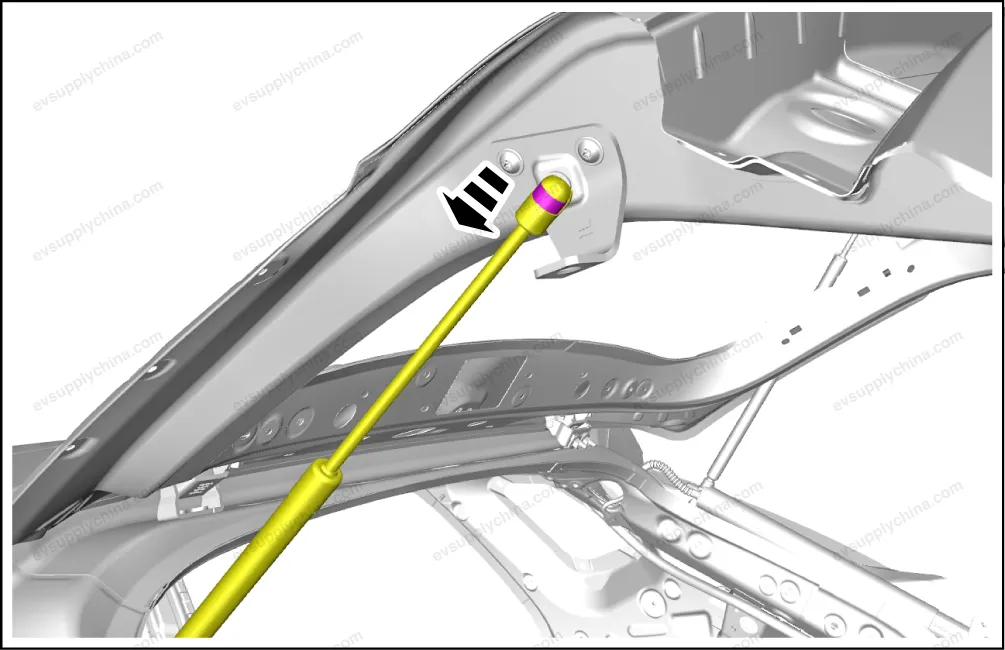

- Pry up the pin with a minisize flat-head screwdriver, and disconnect from the tailgate left gas spring body bracket.
- Pry up the pin with a minisize flat-head screwdriver, and disconnect from the tailgate left gas spring door bracket, and take
out the left air spring body.
Caution When detaching the tailgate left air spring body, the help of another technician is required to support the tailgate assembly. When prying up the pin with a minisize slot type screwdriver, do not pry up the pin completely from the ball cage.
Installation
- The installation steps are opposite to the removal steps.
