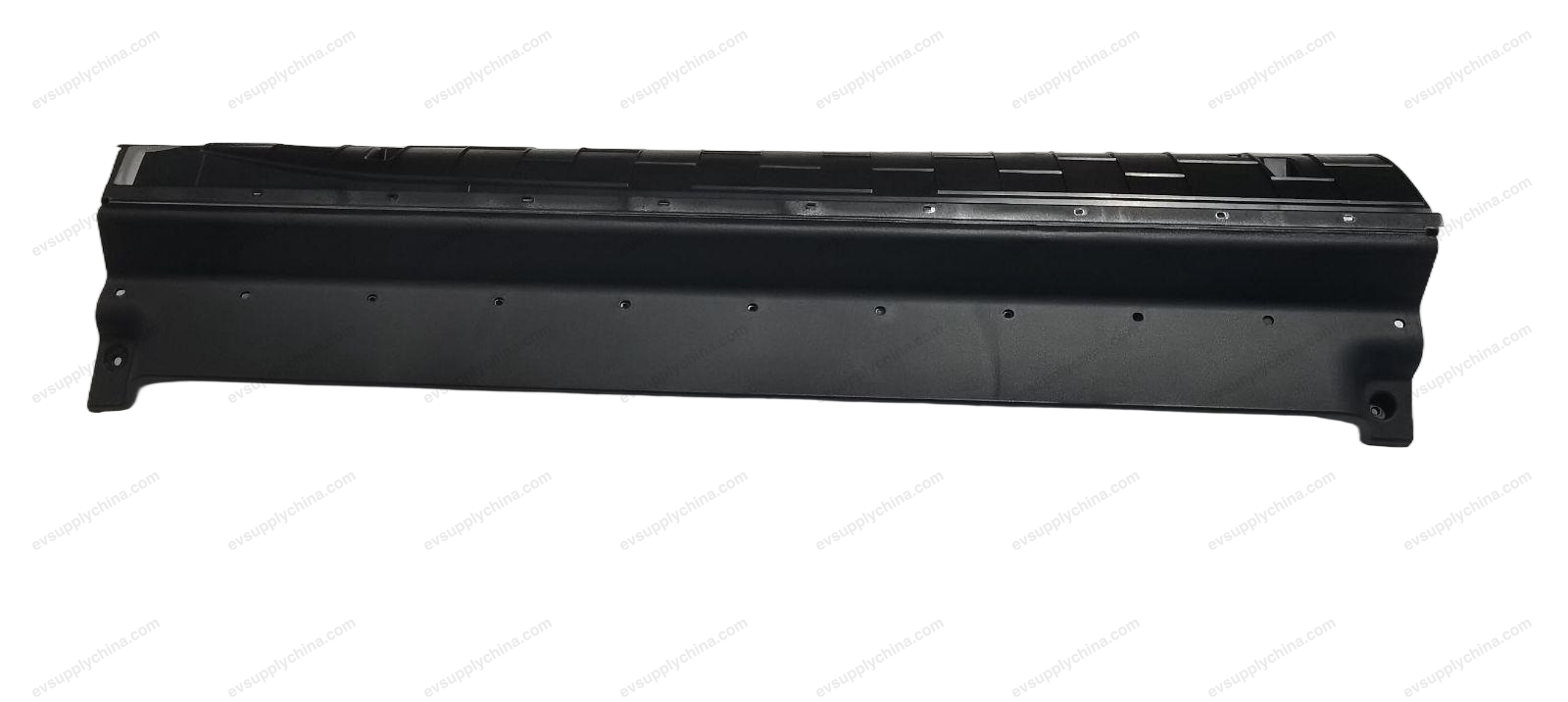

Left front door skirt panel body
OE / Material Codes
13732971-00SC2E-5402831Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Doors & Tailgates
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left front door skirt panel body
Left front door skirt panel body Workshop Guide — BYD Atto 3
Replacement of Front Connecting Plate Assembly of Left Door Sill Inner Panel
Removal
- Remove the left door sill inner panel assembly. See Replacement of Left Door Sill Inner Panel Assembly

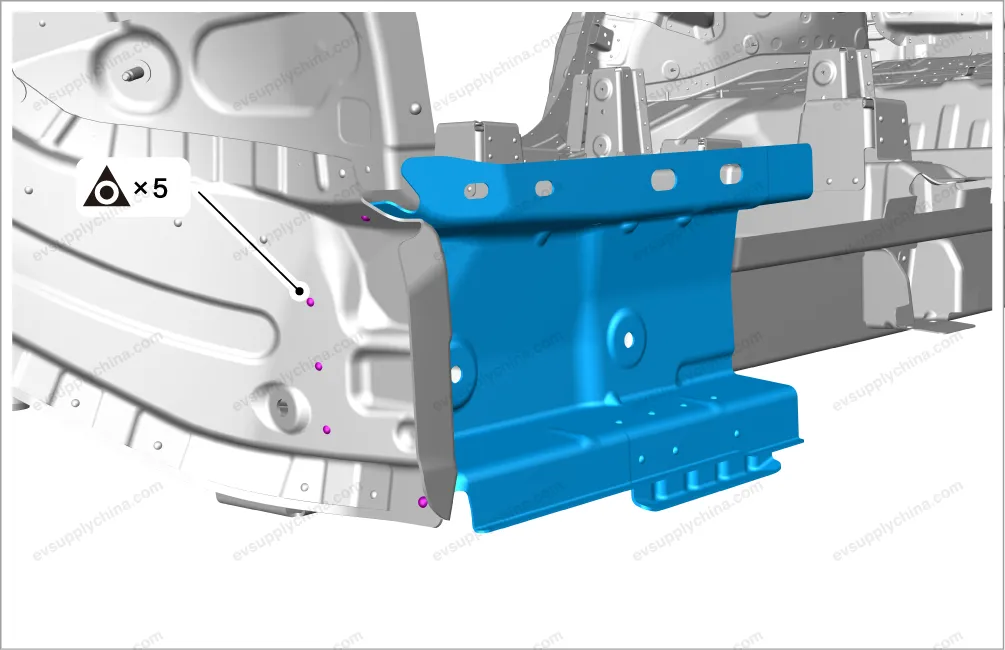

- Clear 5 welding spots from the left door sill inner panel front connecting plate assembly.

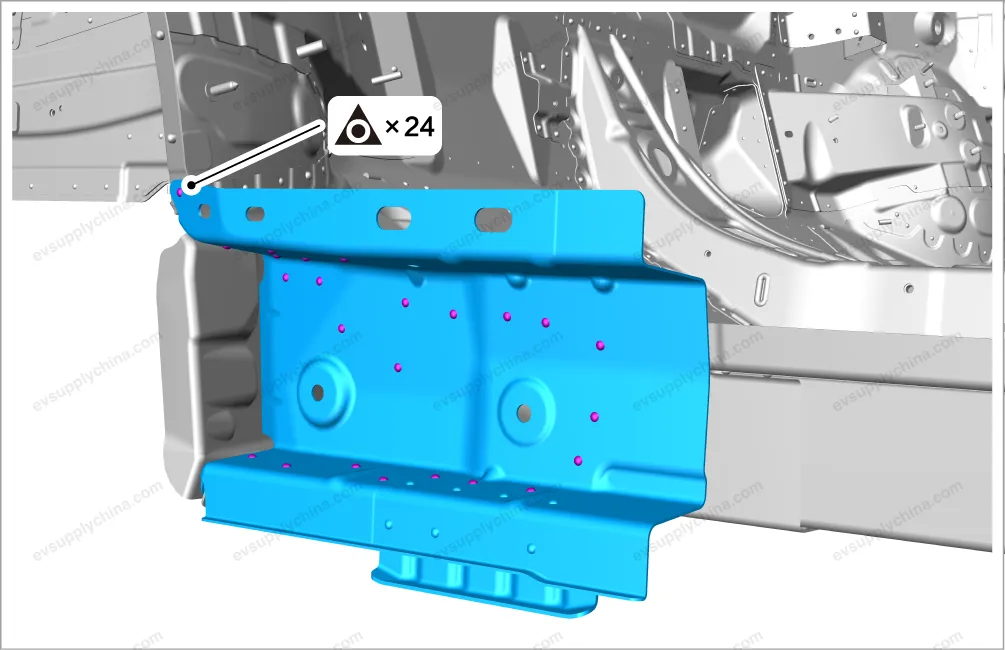

- Clear 24 welding spots, and take out the left door sill inner panel front connecting plate assembly.
Installation
- Fix the left door sill inner panel front connecting plate assembly to the mounting position.
- Check and adjust the relative position and dimensions of the left door sill inner panel front connecting plate assembly and the surrounding parts.
- Weld 24 welding spots on the left door sill inner panel front connecting plate assembly.
- Weld 5 welding spots on the left door sill inner panel front connecting plate assembly.
- Apply body sealant and internal coating at corresponding positions.
- After the external coating is applied, the anti rust agent shall be applied on the inner panel of the welding spots of the closed section structure.
Replacement of Left Door Sill Inner Panel Assembly
Removal
- Remove the left side wall assembly. See

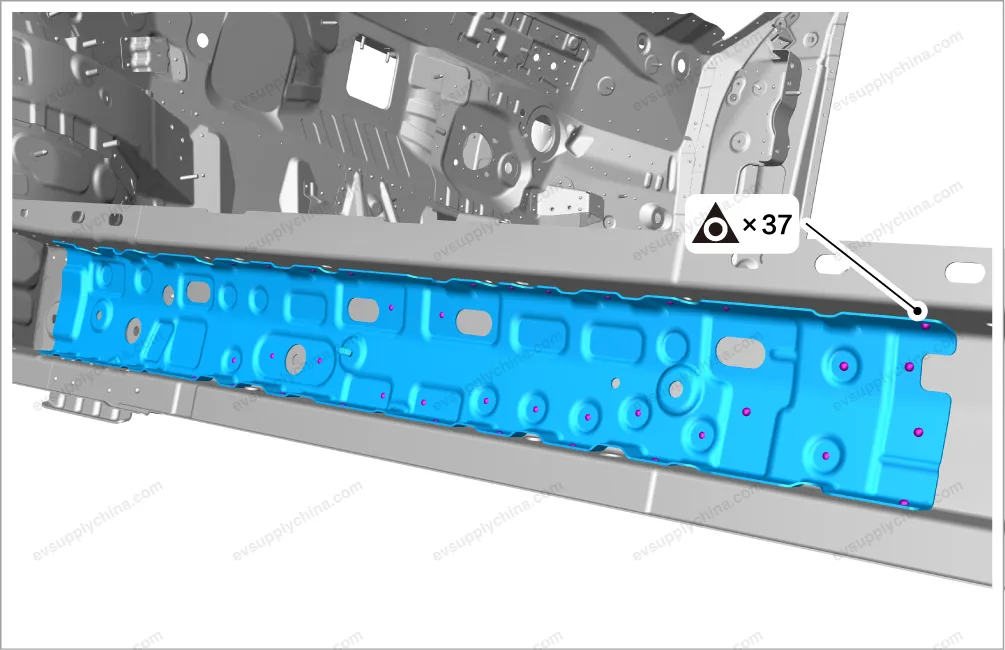

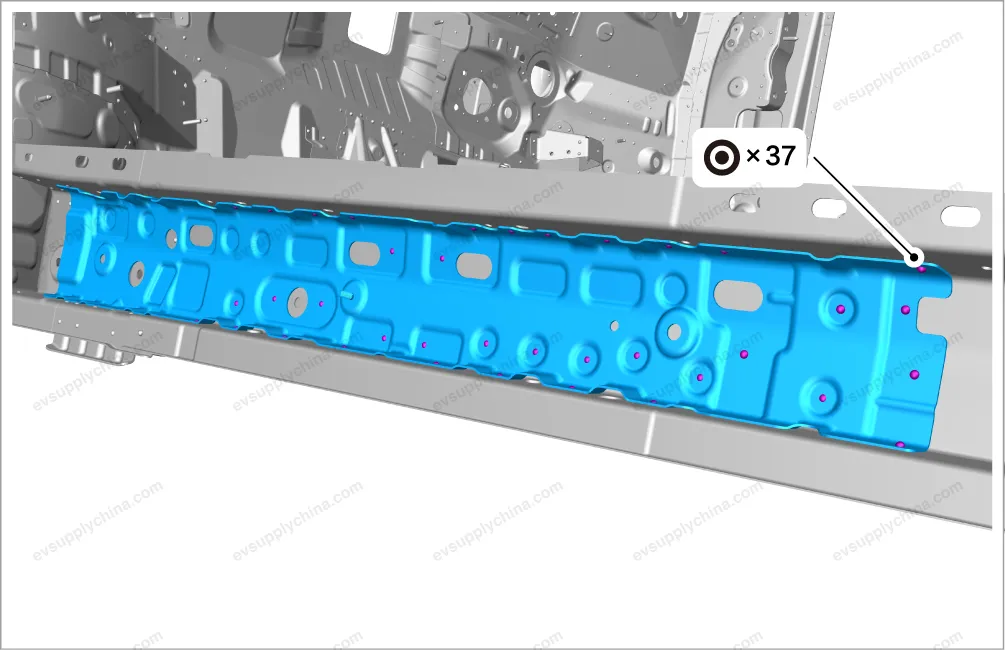

- Clear 37 welding spots, and take out the reinforcement plate of left door sill inner panel.

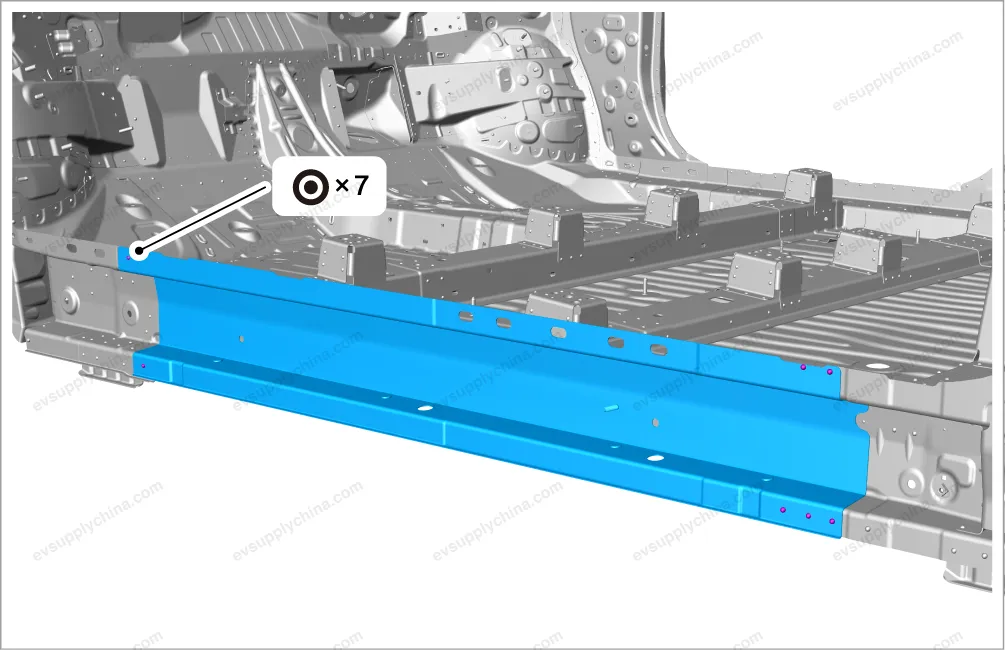

- Clear 7 welding spots, and take out the left door sill inner panel assembly.
Installation
- Secure the left door sill inner panel assembly to the mounting position.
- Check and adjust the relative position and dimensions of the left door sill inner panel assembly and the surrounding parts.
- Weld 7 welding spots on the left door sill inner panel assembly.
- Fix the reinforcement plate of left door sill inner panel to the mounting position.
- Check and adjust the relative position and dimensions of the reinforcement plate of left door sill inner panel and the surrounding parts.
- Weld 37 welding spots on the reinforcement plate of left door sill inner panel.
- Apply body sealant and internal coating at corresponding positions.
- After the external coating is applied, the anti rust agent shall be applied on the inner panel of the welding spots of the closed section structure.
Left Front Door Skirt Panel Assembly - Removal and Installation
Removal

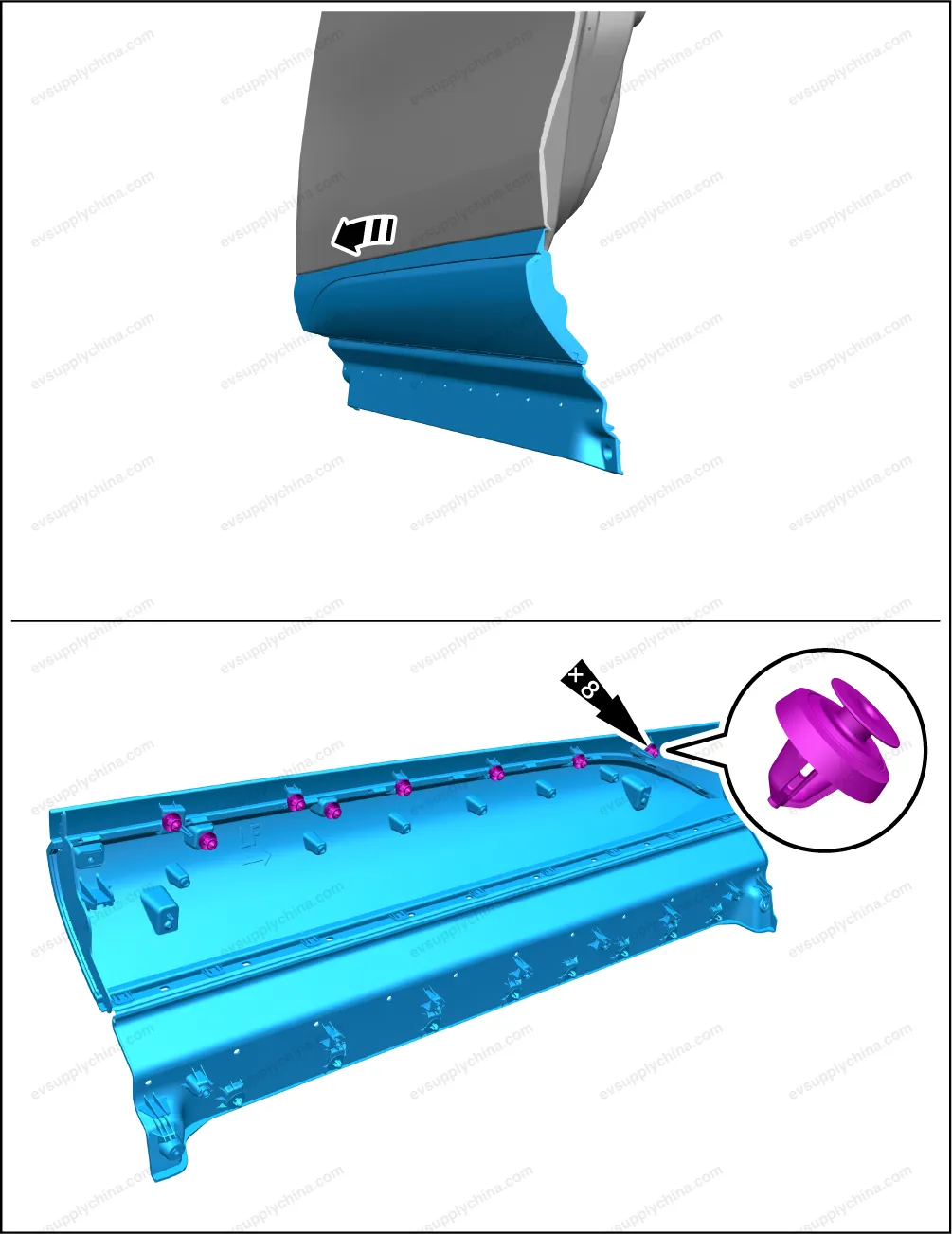

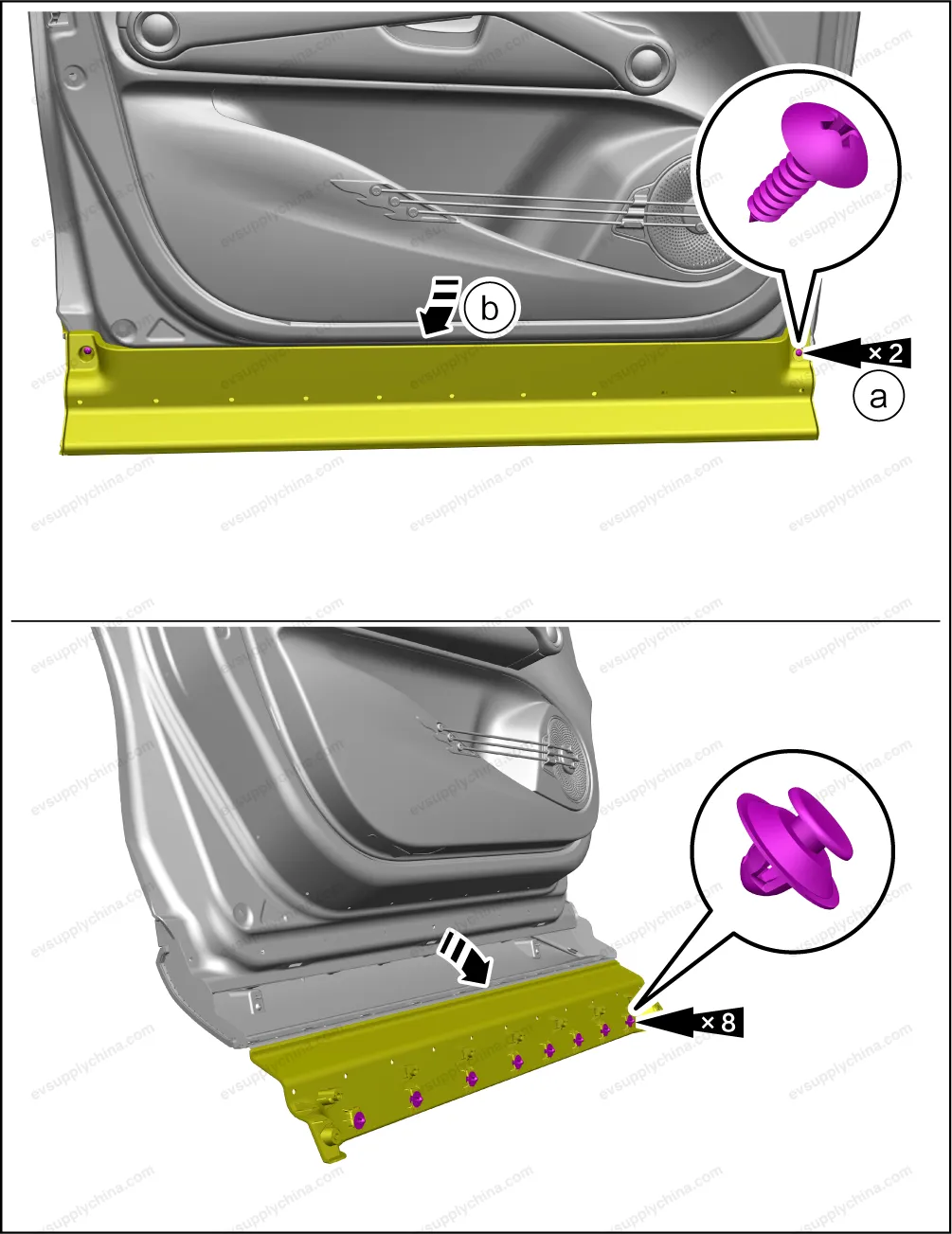

- Pry up the connection between the left front door skirt panel assembly and the inside of the left front door.
- Remove 2 fixing screws.
- Pry up the connection between the left front door skirt panel assembly and the inside of the left front door.
- Pry up the connection between the left front door skirt panel assembly and the outside of the left front door, and take it
out.
Installation
- The installation steps are opposite to the removal steps.
Caution Before installation, it is necessary to check whether all the clips are missing or damaged, and if so, install new clips, and then install the trim panel; After installation, check whether all clips are installed in place. The installation position of the trim panel may deviate, resulting in warping or abnormal gaps.
Right Front Door Skirt Panel Assembly - Removal and Installation
Removal

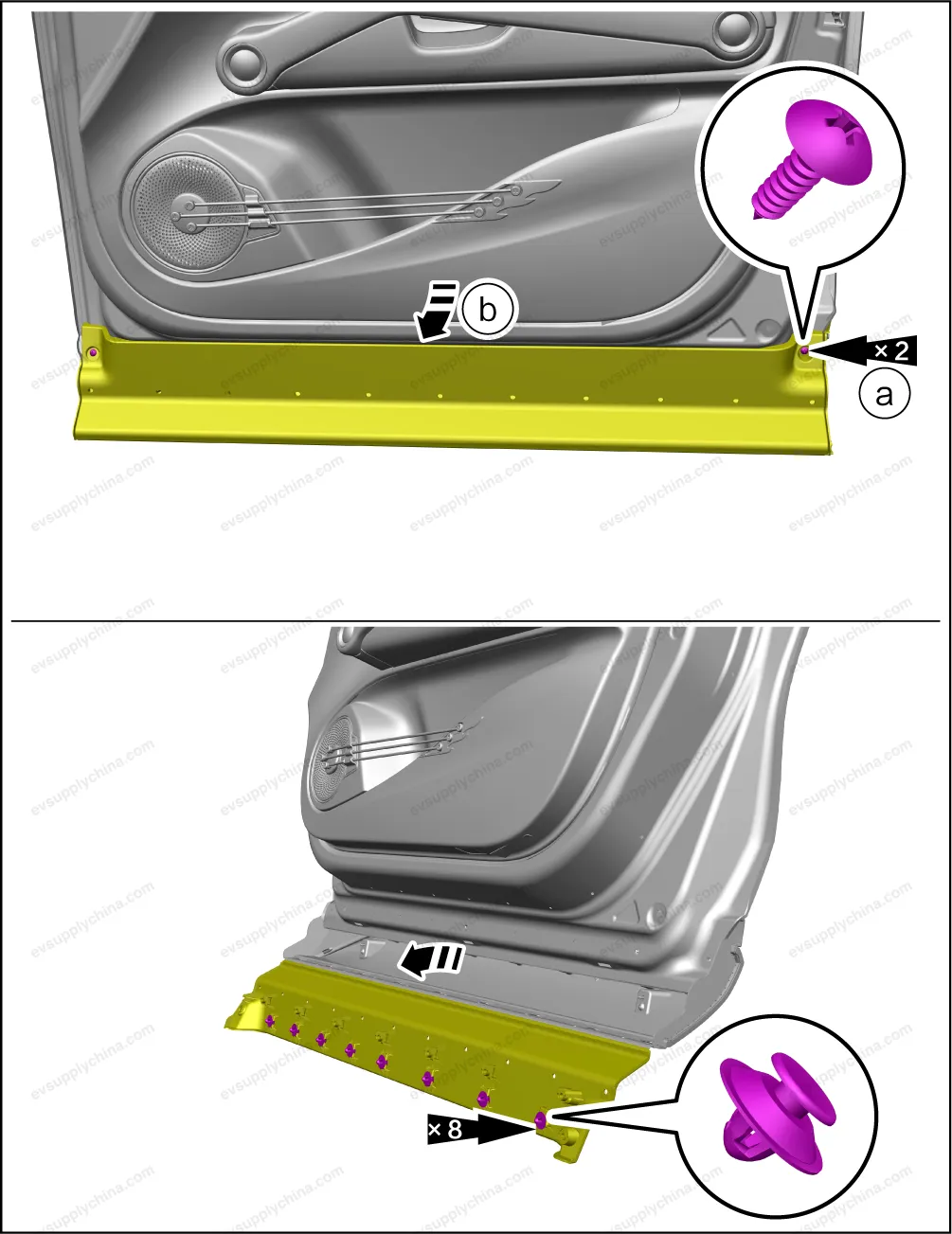

- Pry up the connection between the right front door skirt panel assembly and the inside of the right front door.
- Remove 2 fixing screws.
- Pry up the connection between the right front door skirt panel assembly and the inside of the right front door.

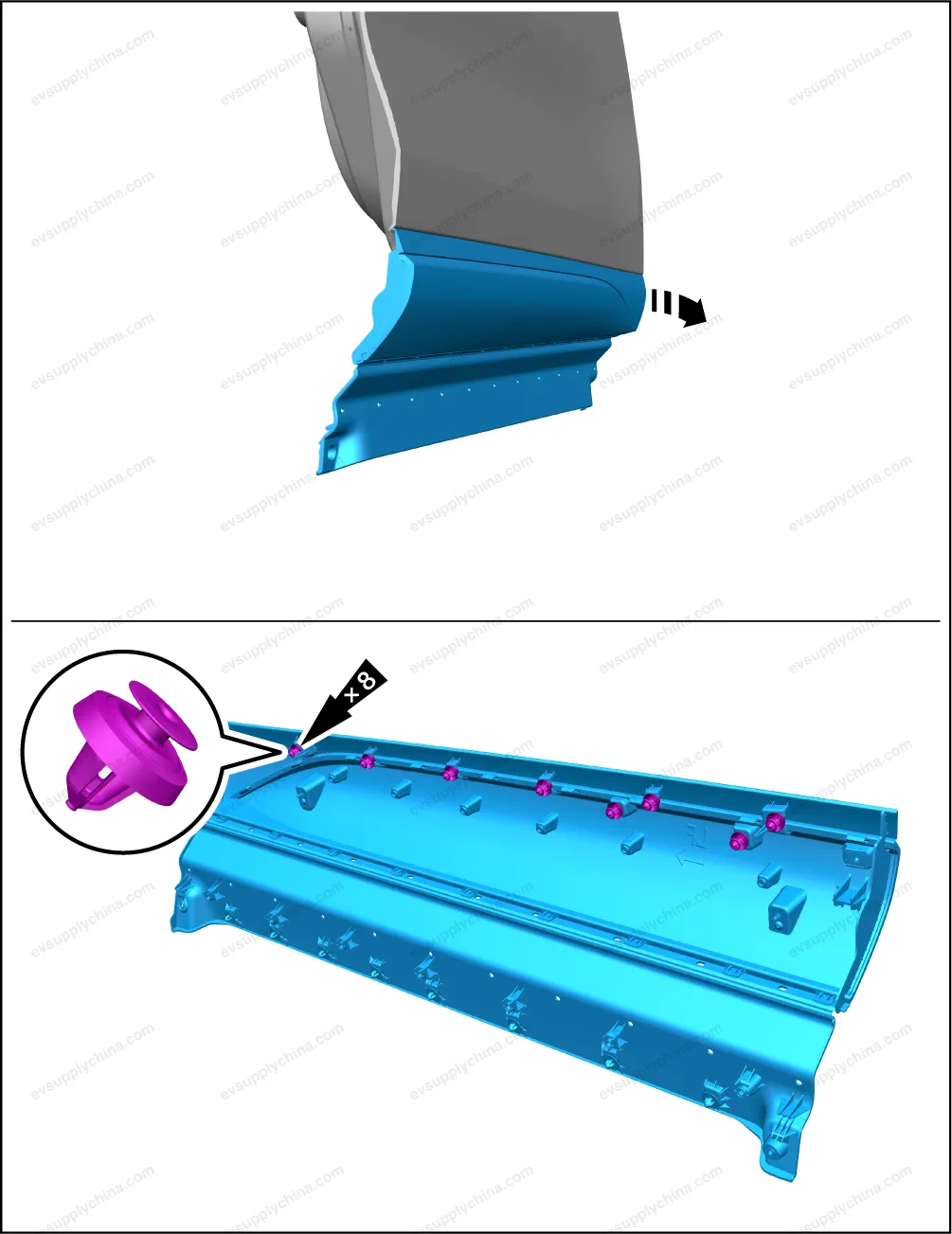

- Pry up the connection between the right front door skirt panel assembly and the outside of the right front door, and take
it out.
Install
- The installation is performed in reverse order of removal.
Caution Before installation, it is necessary to check whether all the clips are missing or damaged, and if so, install new clips, and then install the trim panel; After installation, check whether all clips are installed in place. The installation position of the trim panel may deviate, resulting in warping or abnormal gaps.
Left Front Door Lock Body Assembly - Removal and Installation
Removal
- Remove the left front door sealing plug I. See Left Front Door Sealing Plug I - Removal and Installation
- Remove the left front door movable guide rail and mud tank assembly. See Left Front Door Movable Guide Rail and Mud Tank Assembly - Removal and Installation
- Detach one fixing clip, and detach the left front door lock outward-opening lever from the left front door lock body assembly.
- Disconnect one connector of left front door lock assembly.
- Remove the left front door lock body assembly.
- Detach the fixing rubber plug from the left front door assembly.
- Remove 3 fixing bolts, and take out the left front door lock body assembly.
Installation
- Follow the removal steps in reverse order to install.
Caution After the installation, check the functionality of the front door lock body assembly.
