OEM
BYD Atto 3

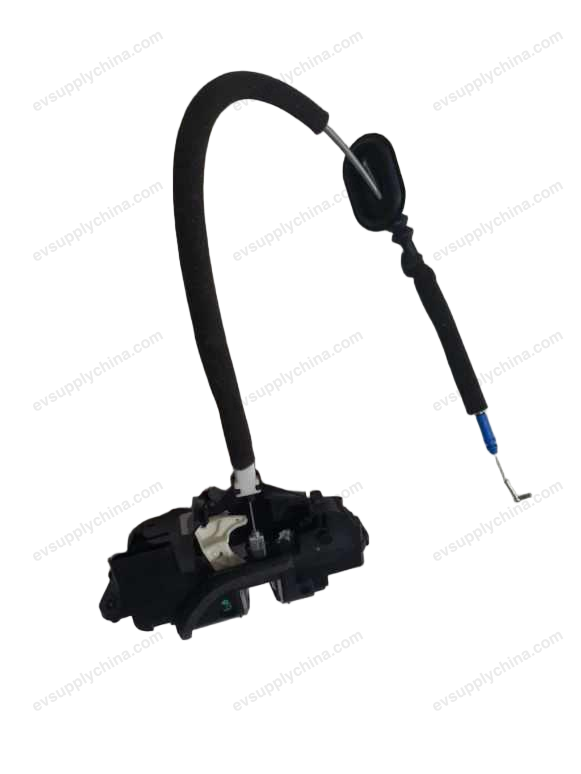

Left front door lock assembly
OE / Material Codes
13466920-00SC2EM-6105200A$23USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Left front door lock assembly Workshop Guide — BYD Atto 3
Left Front Door Lock Body Assembly - Removal and Installation
Removal
- Remove the left front door sealing plug I. See Left Front Door Sealing Plug I - Removal and Installation
- Remove the left front door movable guide rail and mud tank assembly. See Left Front Door Movable Guide Rail and Mud Tank Assembly - Removal and Installation
- Detach one fixing clip, and detach the left front door lock outward-opening lever from the left front door lock body assembly.

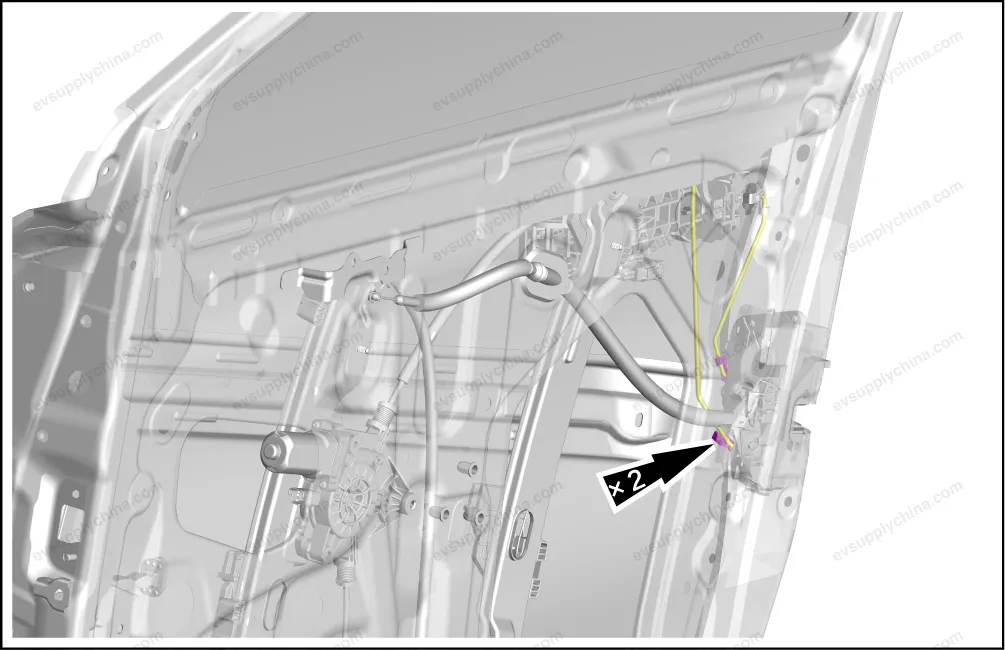

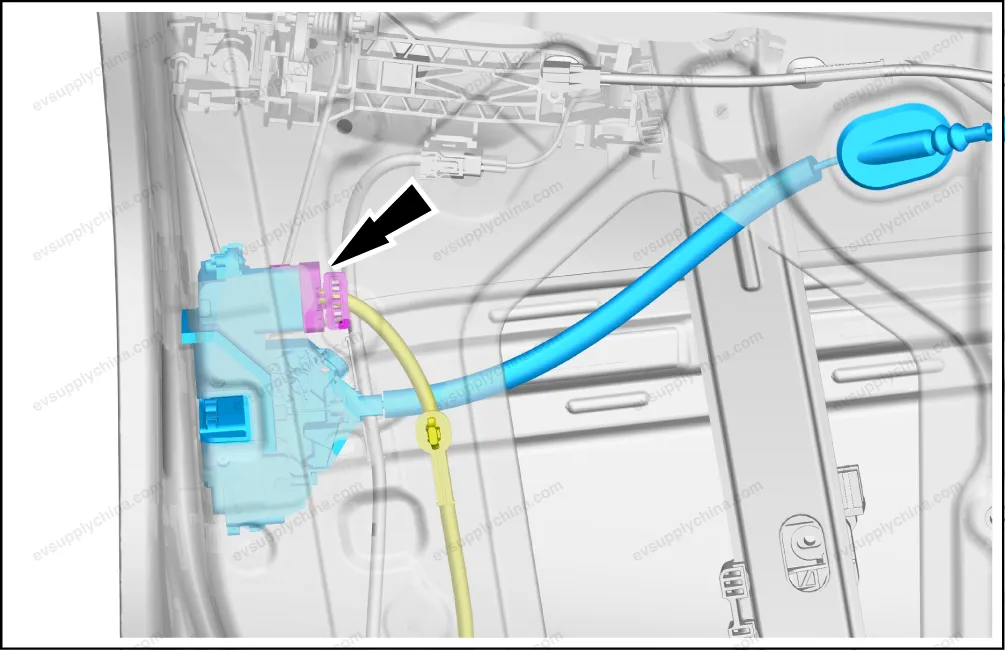

- Disconnect one connector of left front door lock assembly.
- Remove the left front door lock body assembly.

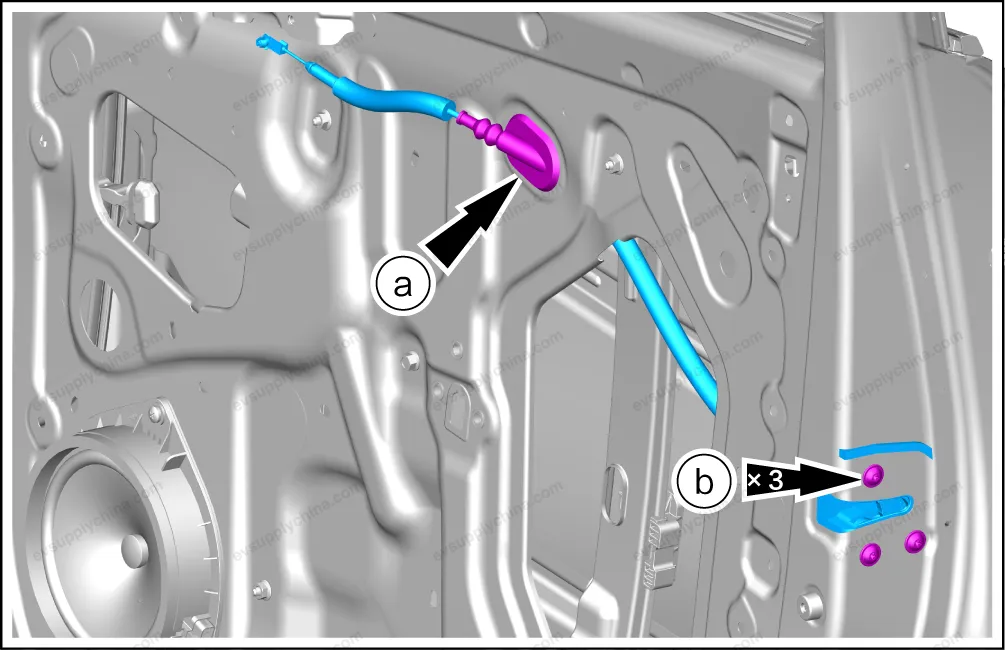

- Detach the fixing rubber plug from the left front door assembly.
- Remove 3 fixing bolts, and take out the left front door lock body assembly.
Installation
- Follow the removal steps in reverse order to install.
Caution After the installation, check the functionality of the front door lock body assembly.
Right Front Door Lock Body Assembly - Removal and Installation
Removal
- Remove the right front door sealing plug I. See Right Front Door Sealing Plug I - Removal and Installation
- Remove the right front door movable guide rail and mud tank assembly. See Right Front Door Movable Guide Rail and Mud Tank Assembly - Removal and Installation
- Detach 2 fixing clips, and detach the right front door lock cylinder lever, the right front door lock outward-opening lever
and the right front door lock body assembly.

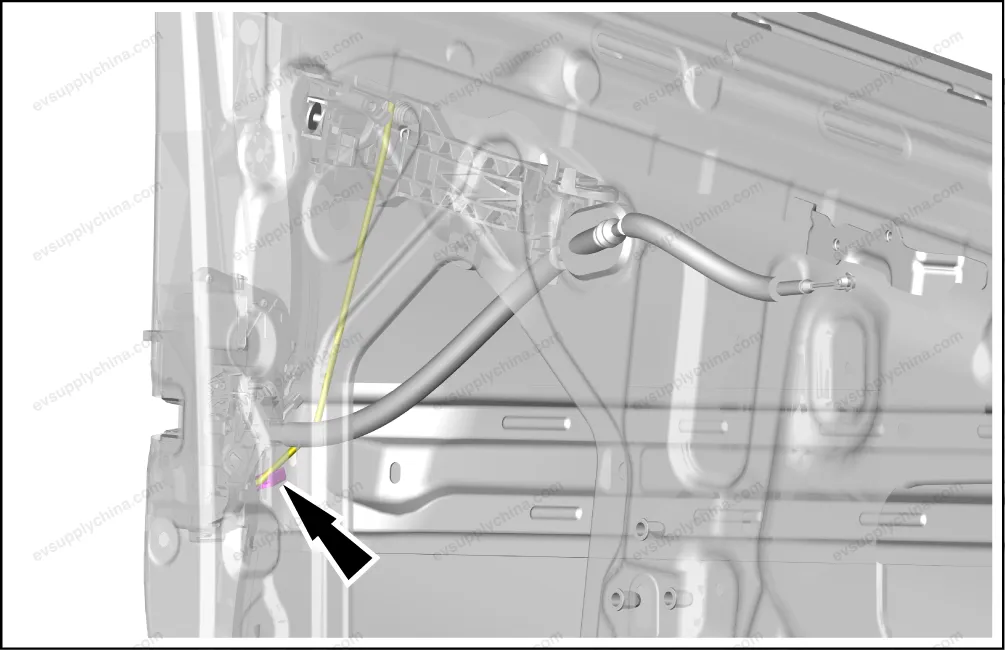

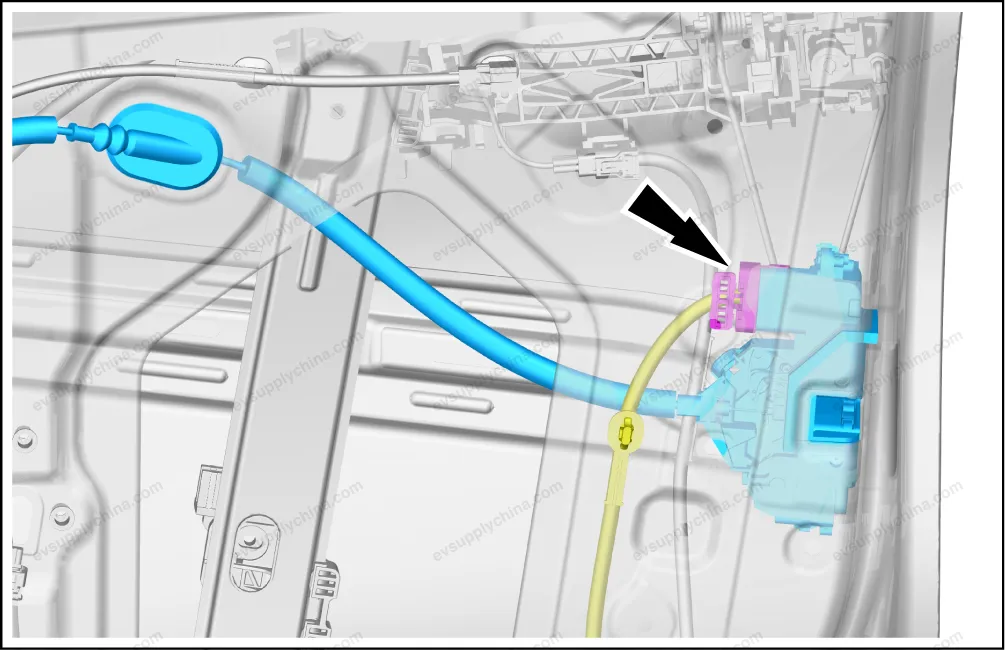

- Disconnect one connector of right front door lock assembly.
- Remove the right front door lock body assembly.

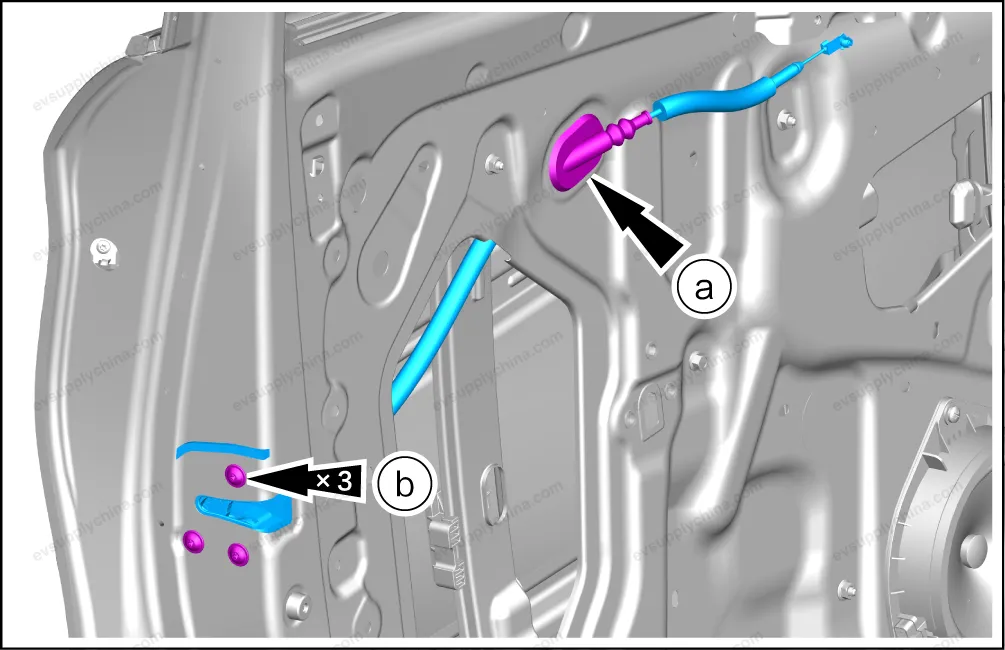

- Detach the fixing rubber plug from the right front door assembly.
- Remove 3 fixing bolts, and take out the right front door lock body assembly.
Installation
- Follow the removal steps in reverse order to install.
Caution After the installation, check the functionality of the front door lock body assembly.

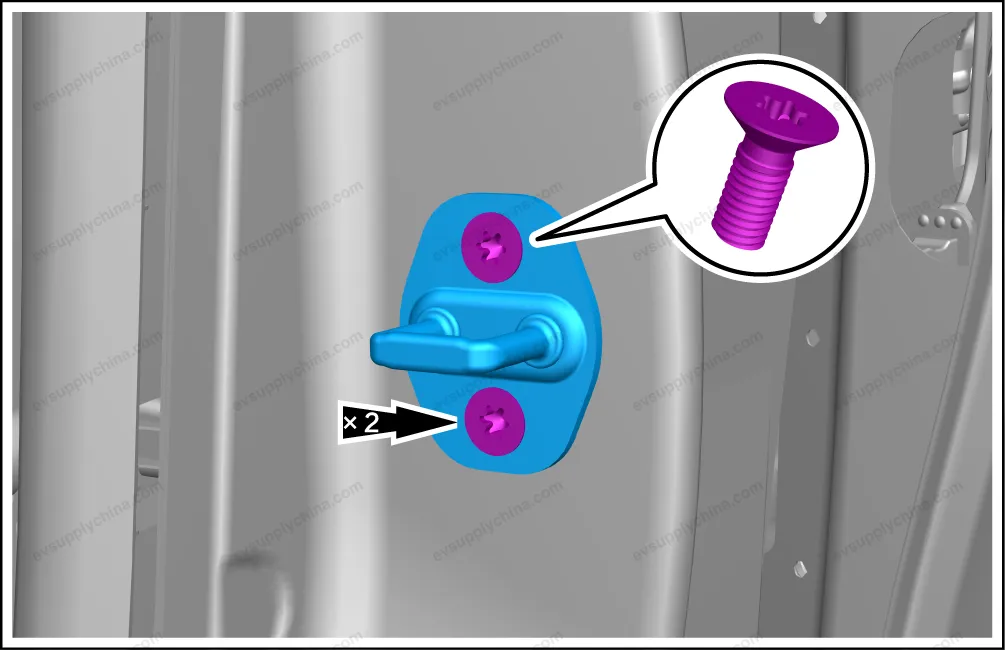

Side Door Lock Ring Assembly - Removal and Installation
Removal
- Remove 2 fixing bolts, and take out the side door lock ring assembly.
Installation
- The installation steps are opposite to the removal steps.
