OEM
BYD Atto 3

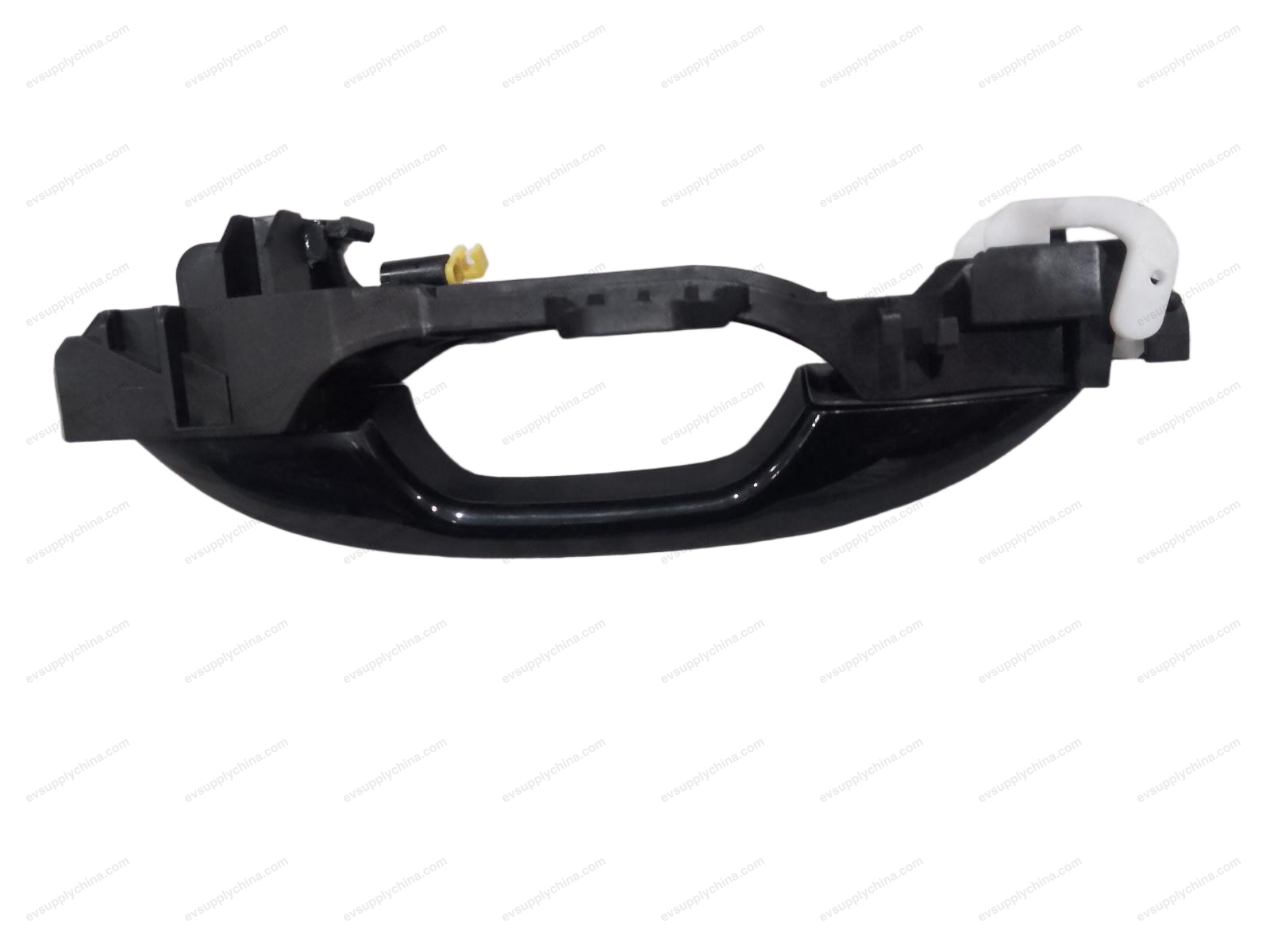

Left front door handle assembly
OE / Material Codes
13451190-00SC2EM-6105100$26USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Left front door handle assembly Workshop Guide — BYD Atto 3
Left Front Door Outer Handle Assembly - Removal and Installation
Removal
- Raise the left front door glass to the limit position.
- Remove the left front door sealing plug I. See Left Front Door Sealing Plug I - Removal and Installation

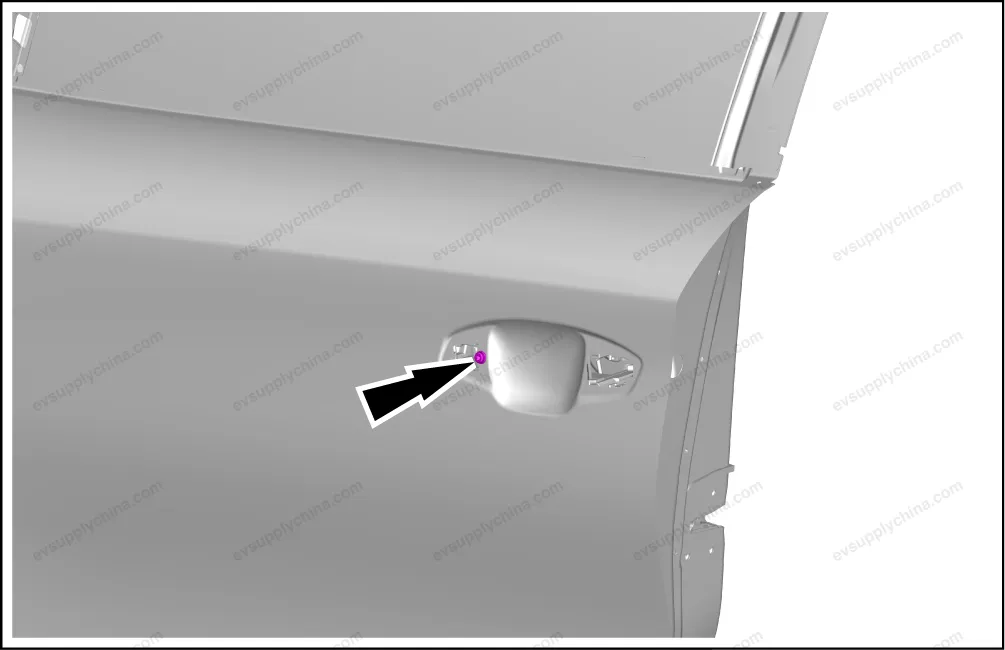

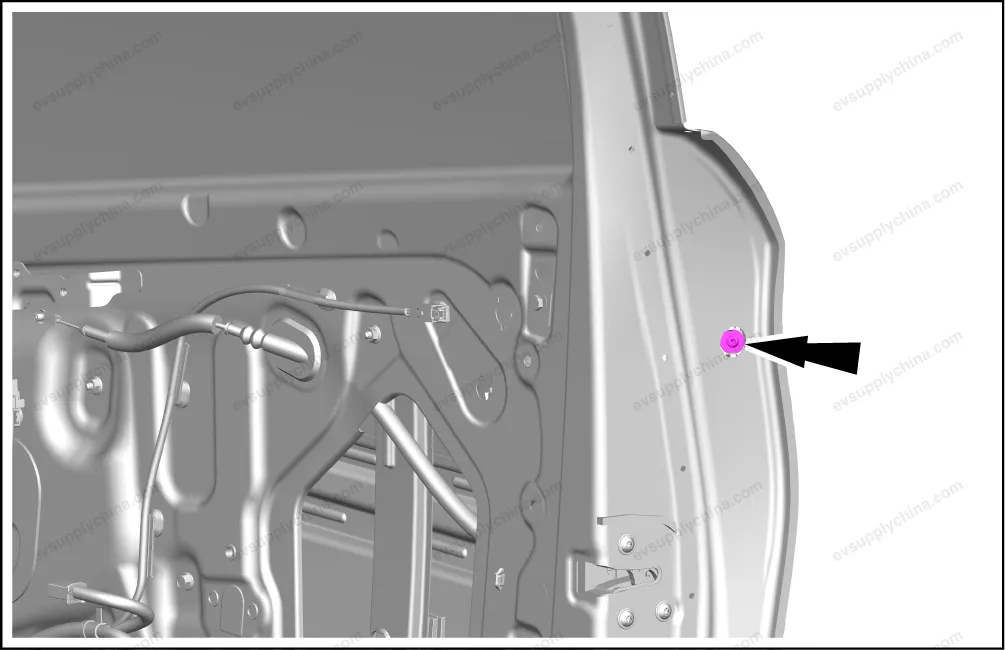

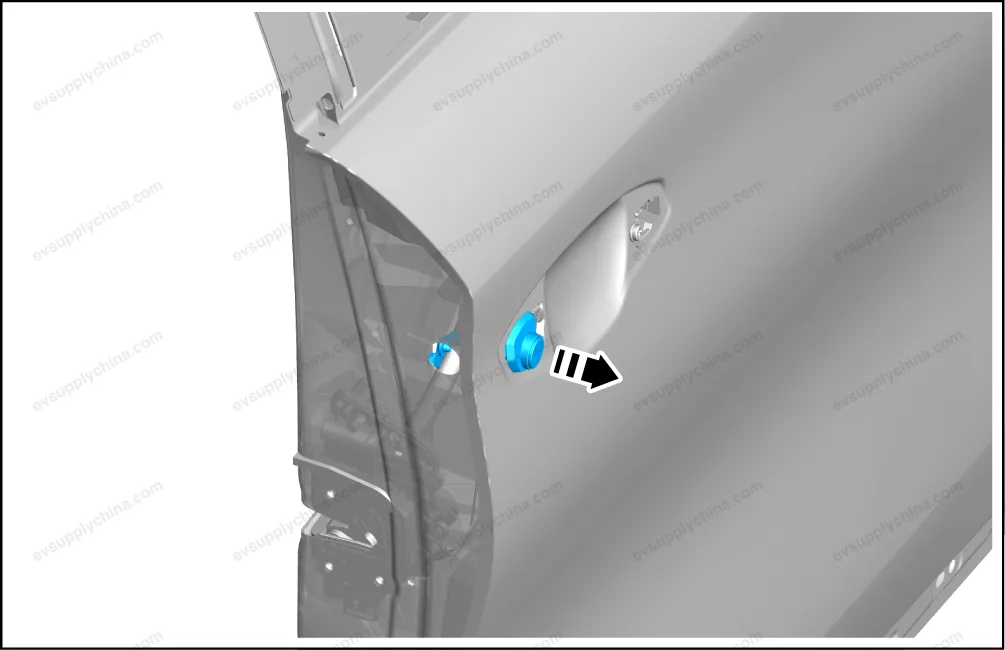

- Take out 1 screw cover, and loosen 1 fixing screw of the left front door outer handle assembly.

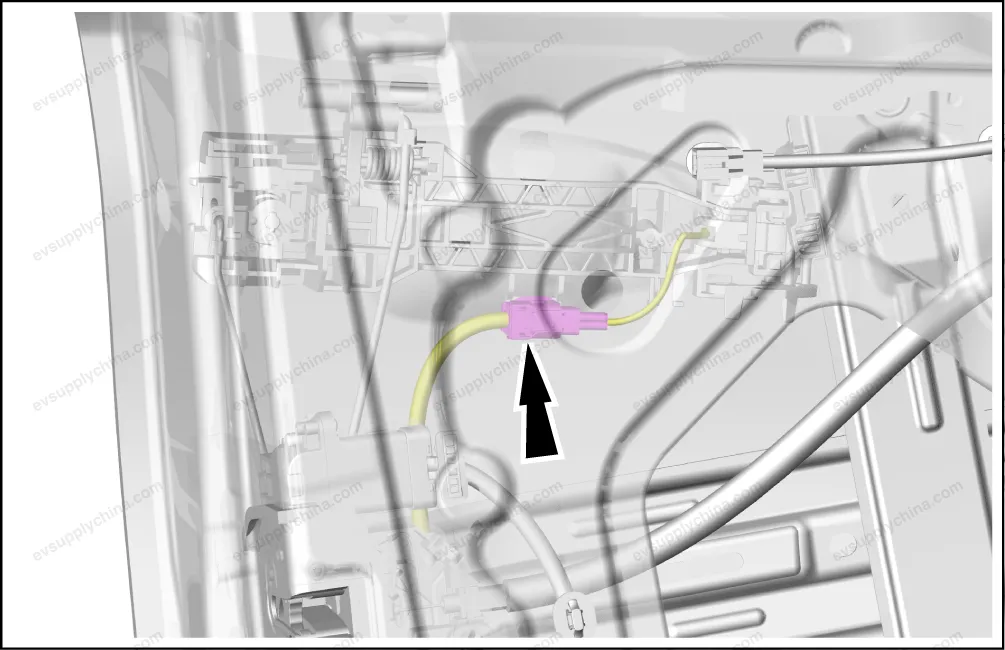

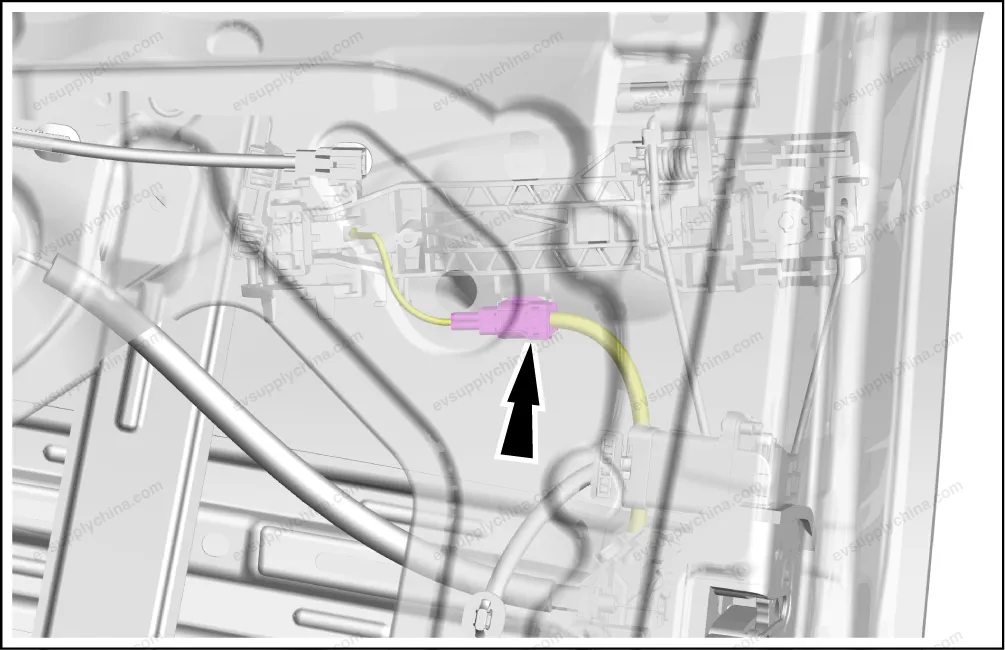

- Disconnect 1 connector of left front door outer handle assembly.

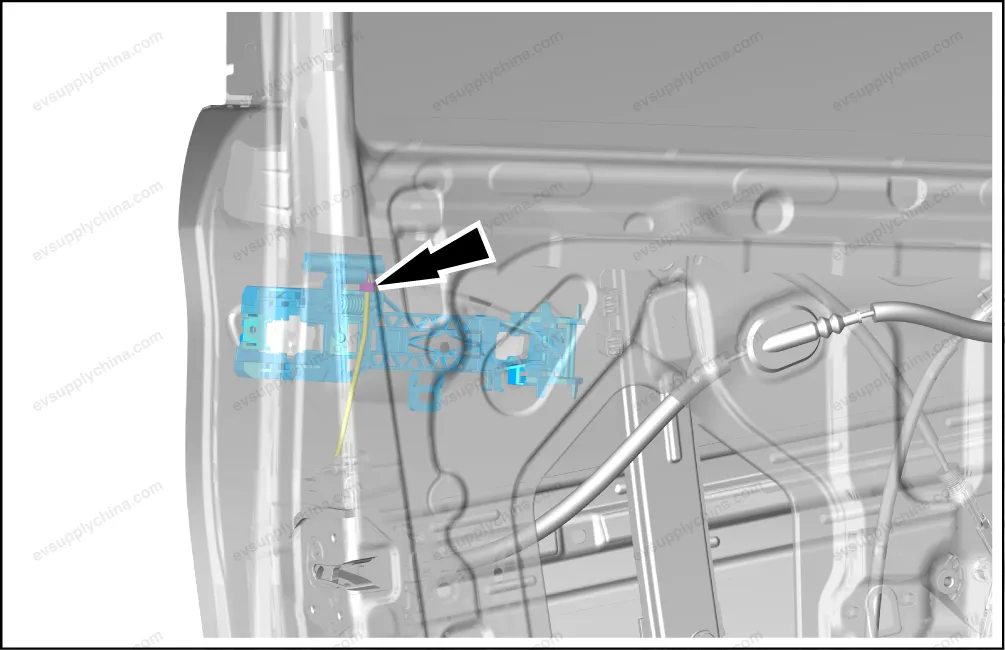

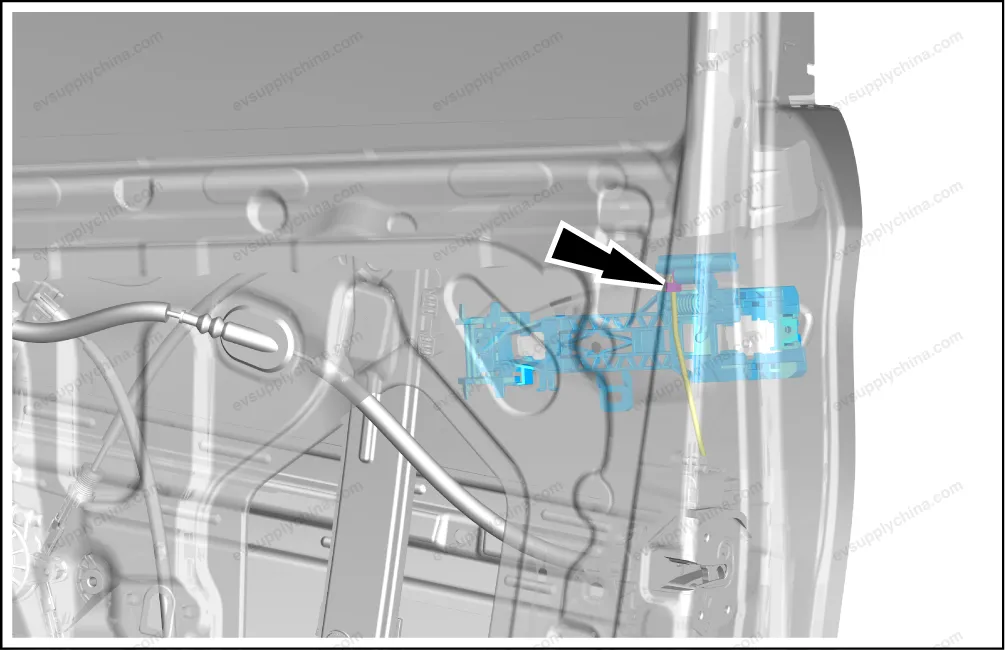

- Detach 1 fixing clip.

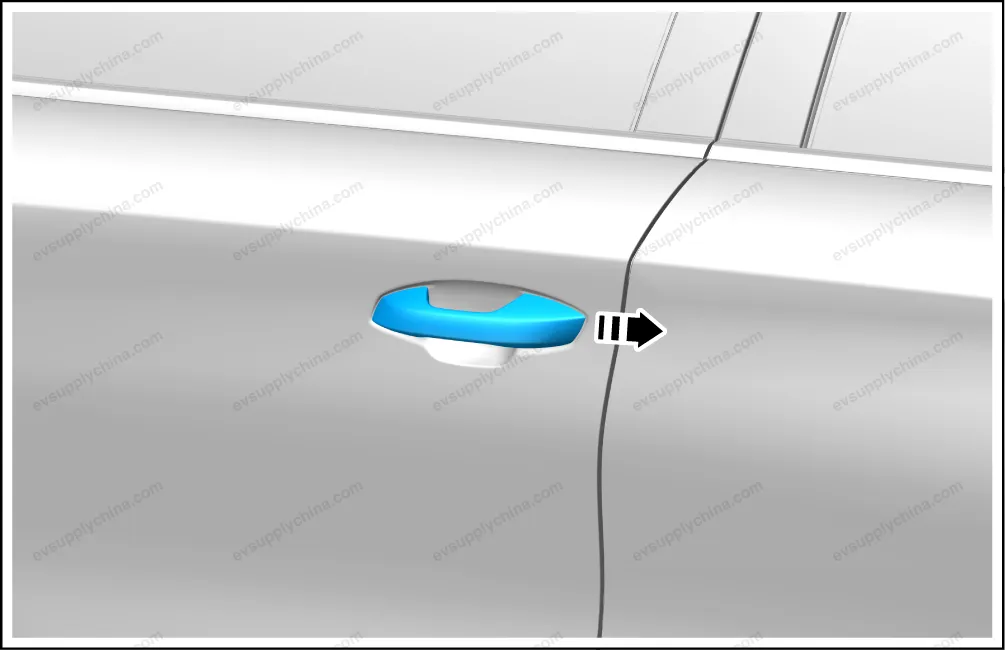

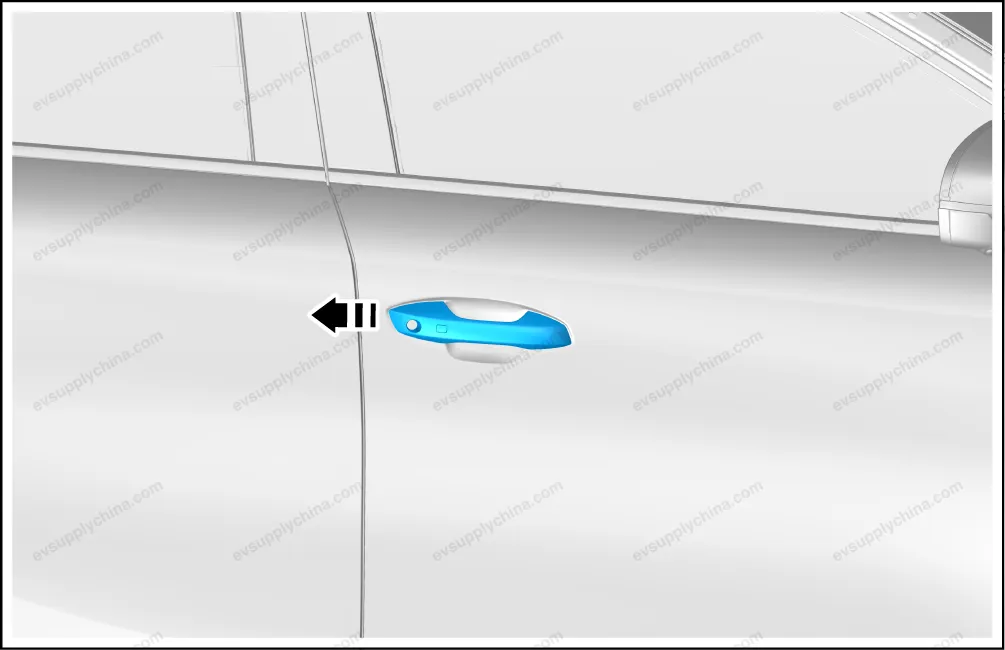

- Take out the left front door outer handle assembly.

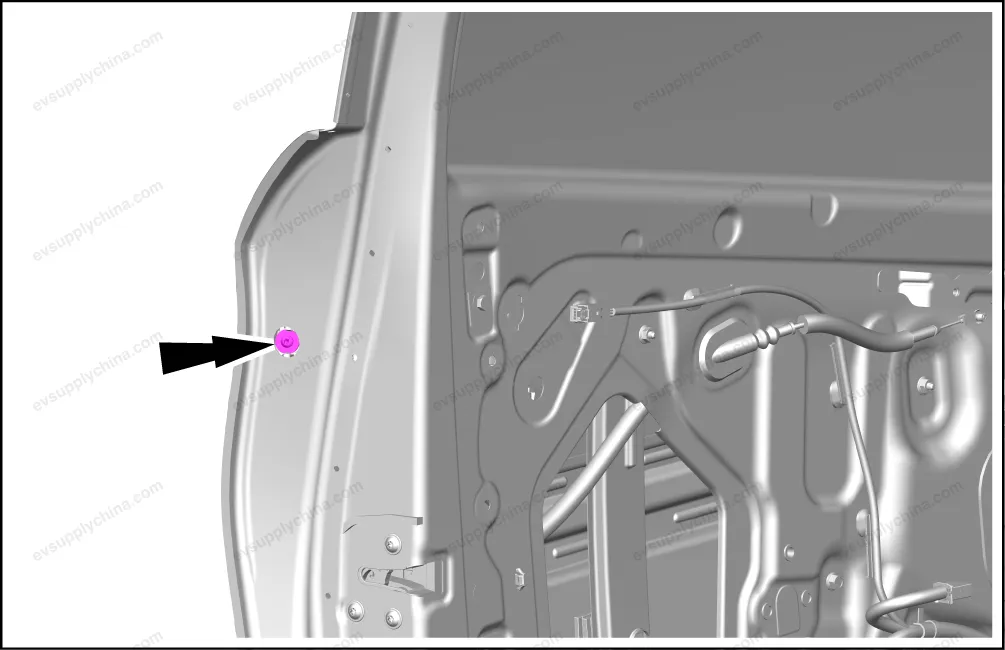

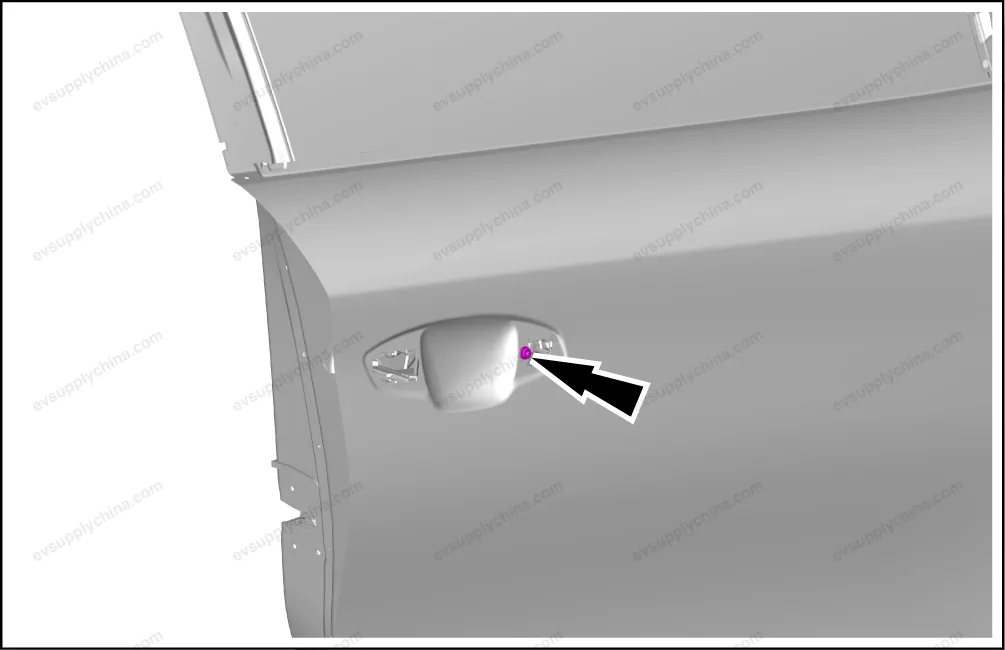

- Remove 1 fixing screw of the left front door outer handle seat assembly.

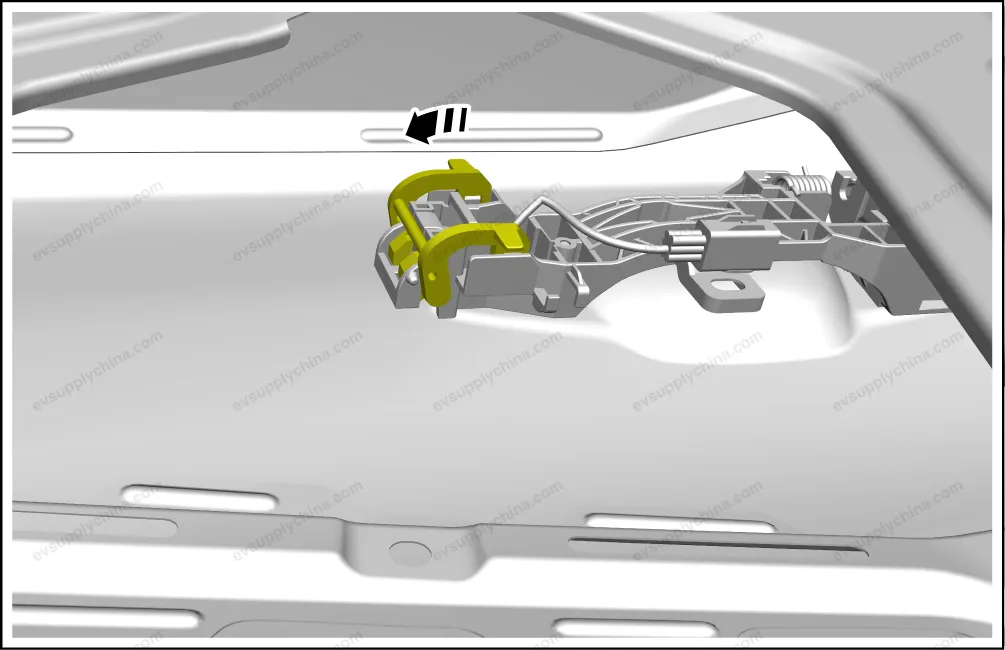

- Remove the left front door outer handle seat assembly.

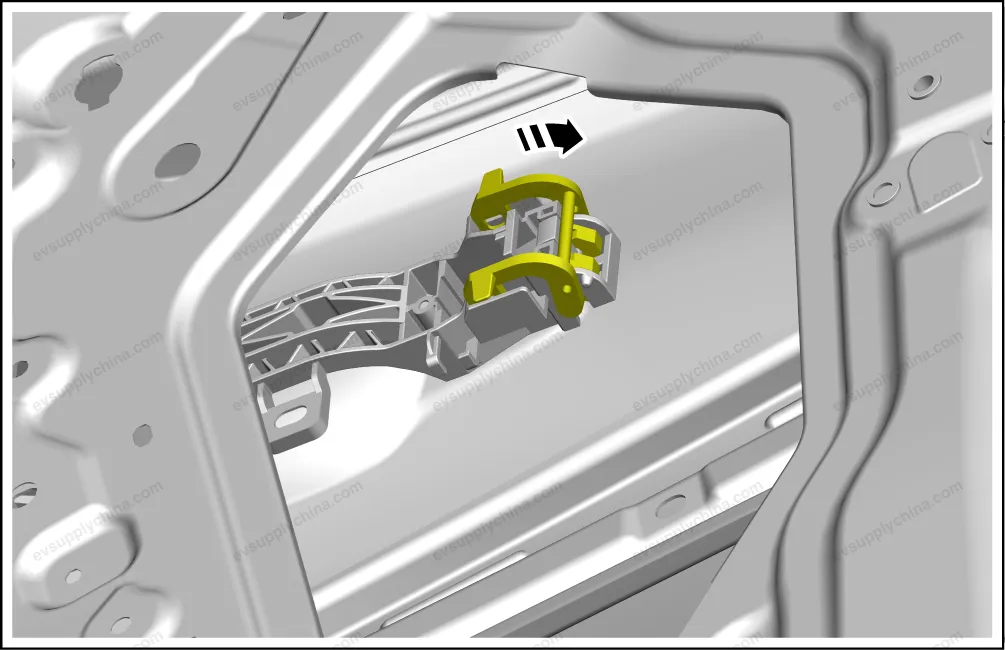

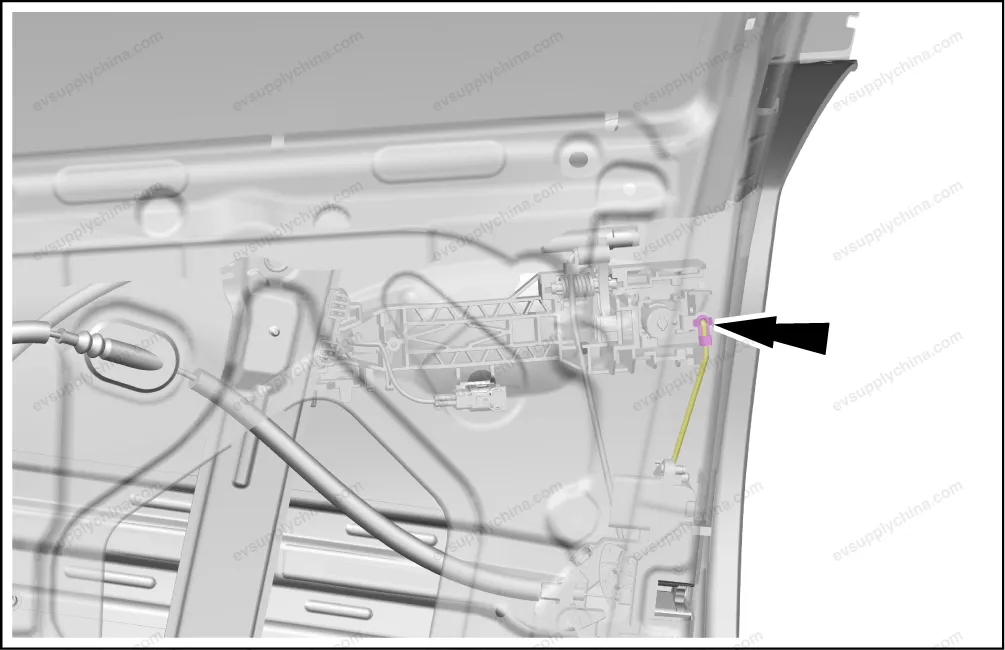

- Detach 1 fixing clip, and detach the left front door lock outward-opening lever from the left front door outer handle seat assembly.
- Take out the left front door outer handle seat assembly.
Installation
- The installation steps are opposite to the removal steps.
Left Front Door Handle Box Cover Removal and Installation
Removal

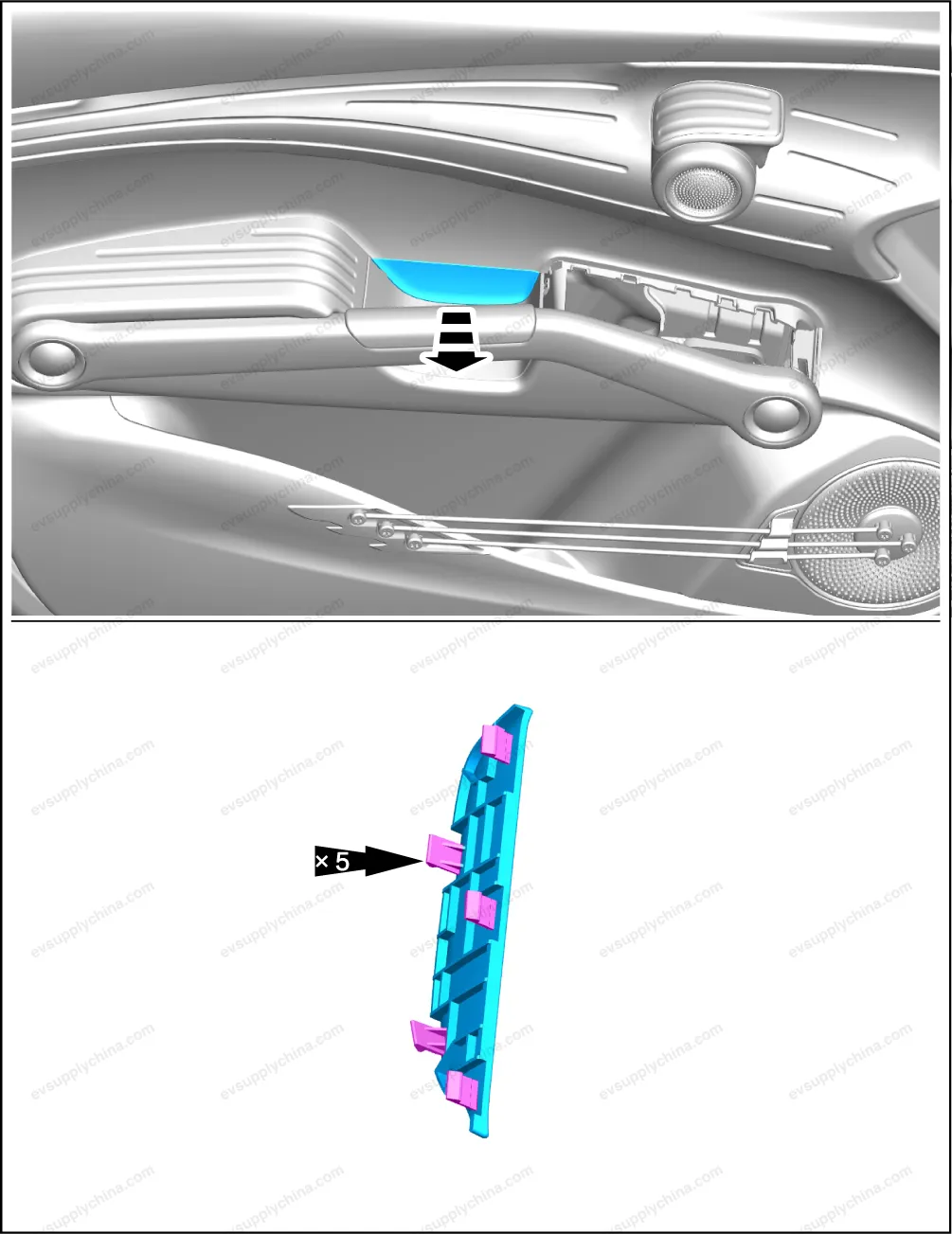

- Pry up the left front door handle box cover.
Caution Be careful when removing the trim panel to avoid scratching the surface material.
Installation
- The installation steps are opposite to the removal steps.
Right Front Door Outer Handle Assembly - Removal and Installation
Removal
- Lift the right front door glass to the limit position.
- Remove the right front door sealing plug I. See Right Front Door Sealing Plug I - Removal and Installation
- Take out 1 screw cover, and loosen 1 fixing screw of the right front door outer handle assembly.
- Disconnect 1 connector of the right front door outer handle assembly.
- Detach 1 fixing clip.
- Take out right front door outer handle assembly.
- Detach 1 fixing clip, and detach the left front door lock cylinder lever from the vehicle lock cylinder key assembly.
- Take out the vehicle lock cylinder key assembly.
- Remove 1 fixing screw of the right front door outer handle seat assembly.
- Remove the right front door outer handle seat assembly.
- Detach 1 fixing clip, and detach the right front door lock outward-opening lever from the right front door outer handle seat assembly.
- Take out the right front door outer handle seat assembly.
Installation
- The installation steps are opposite to the removal steps.
