OEM
BYD Atto 3
High-mounted brake light
OE / Material Codes
13093494-00SC2E-4134100$11USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Rear Tail Lights
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — High-mounted brake light
BYDYuan PLUS/Atto 3
2022–2025BYDSong Pro New Energy DM-i
2023–2025BYDSealion 05 DM-i
2025High-mounted brake light Workshop Guide — BYD Atto 3
Brake Light Switch - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Disconnect 1 connector of brake light switch.
- Turn the brake light switch counterclockwise by 45 ° and take it out.
Installation
- The installation steps are opposite to the removal steps.
High-mount Stop Light - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Remove the tailgate upper guard assembly. See Tailgate Upper Guard Assembly - Removal and Installation
- Disconnect the wiring harness of spoiler assembly.
- Disconnect 1 connectors.

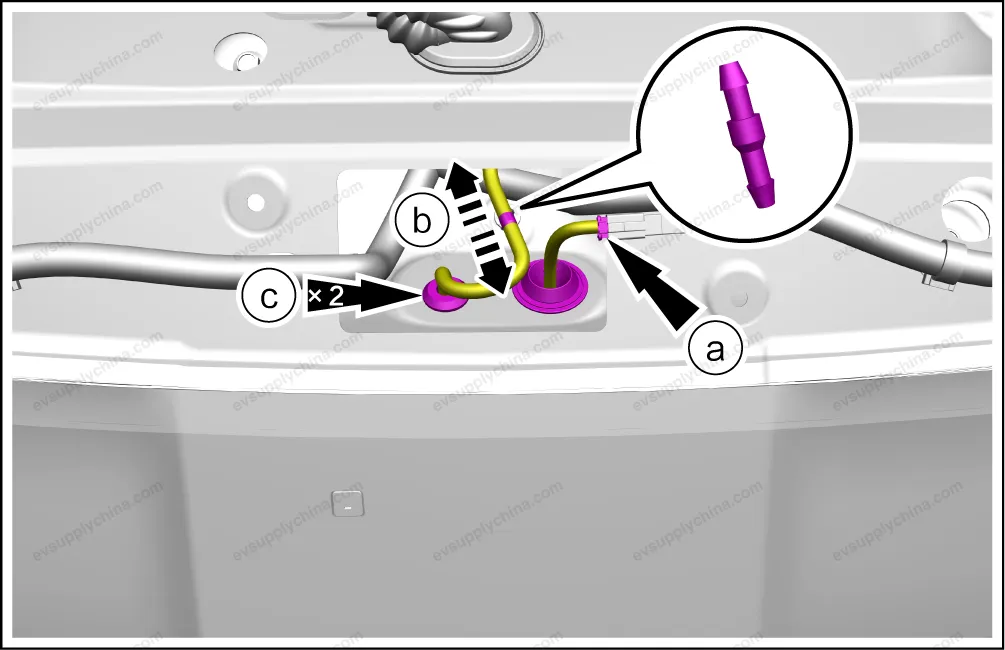

- Detach the rear wash line sub-assembly IV from the rear wash line sub-assembly III.
- Detach 2 silicon seals.

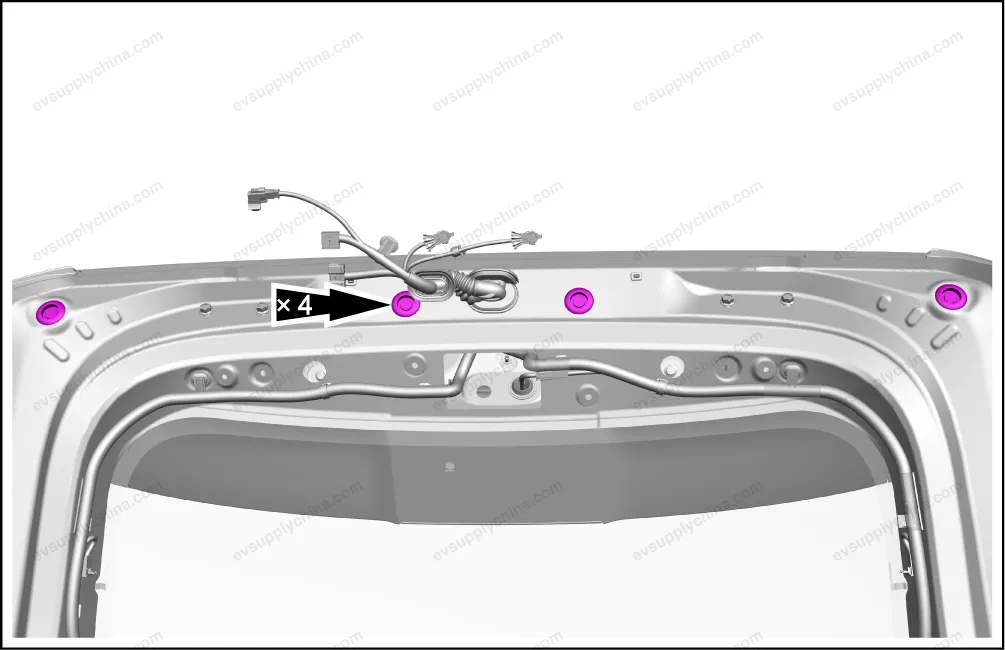

- Remove 4 rubber covers from the tailgate.
- Remove the fasteners from the spoiler assembly and its accessories.

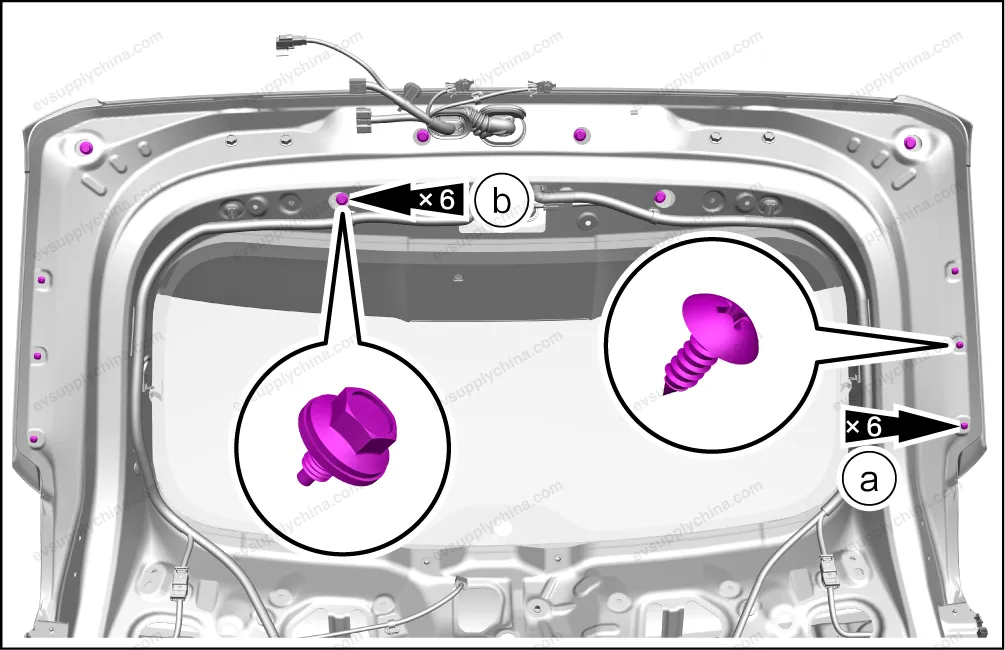

- Remove 6 fixing screw.
- Remove 6 fixing bolts

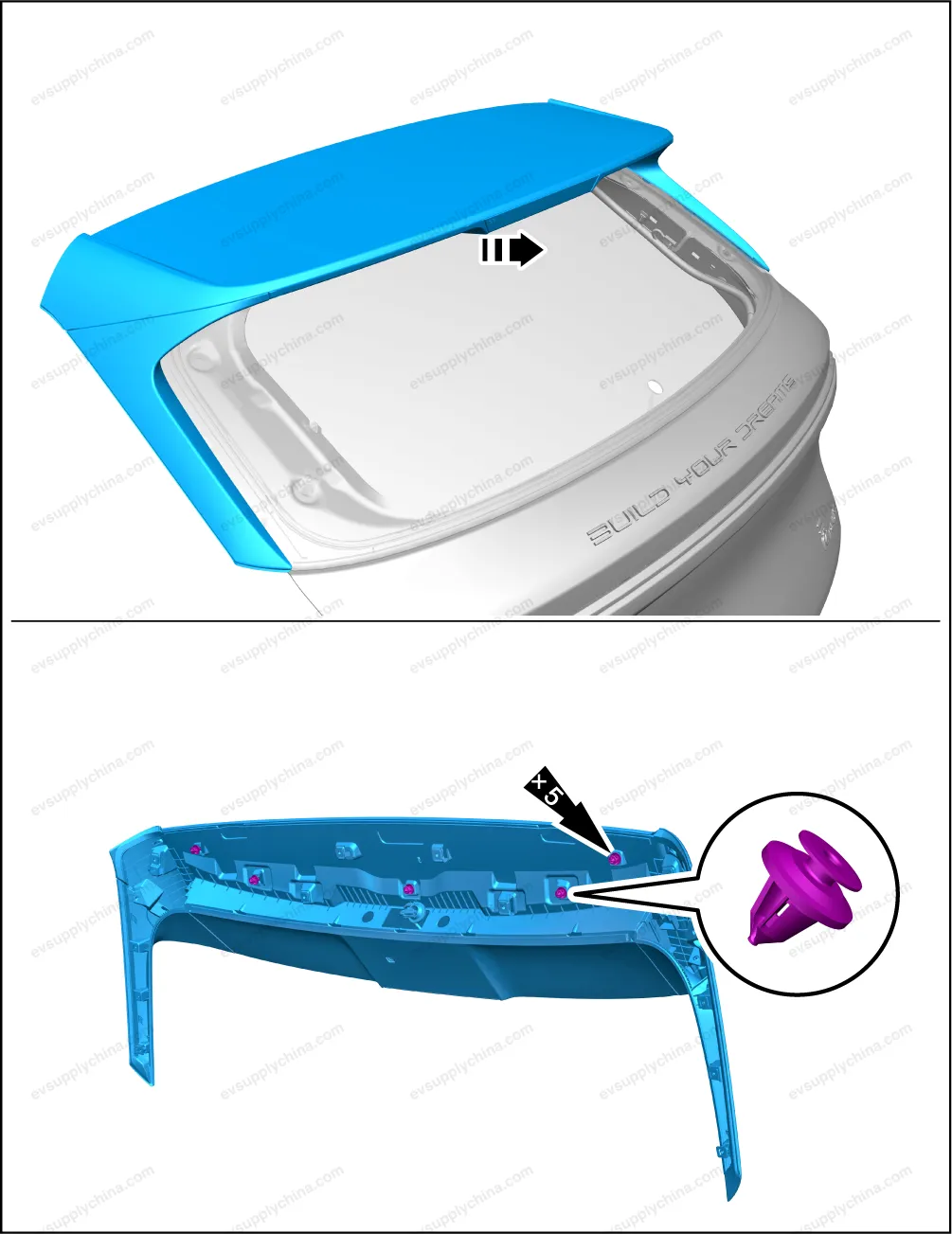

- Pry up the spoiler assembly and its accessories.
- Remove the fasteners from the high-mount stop light.

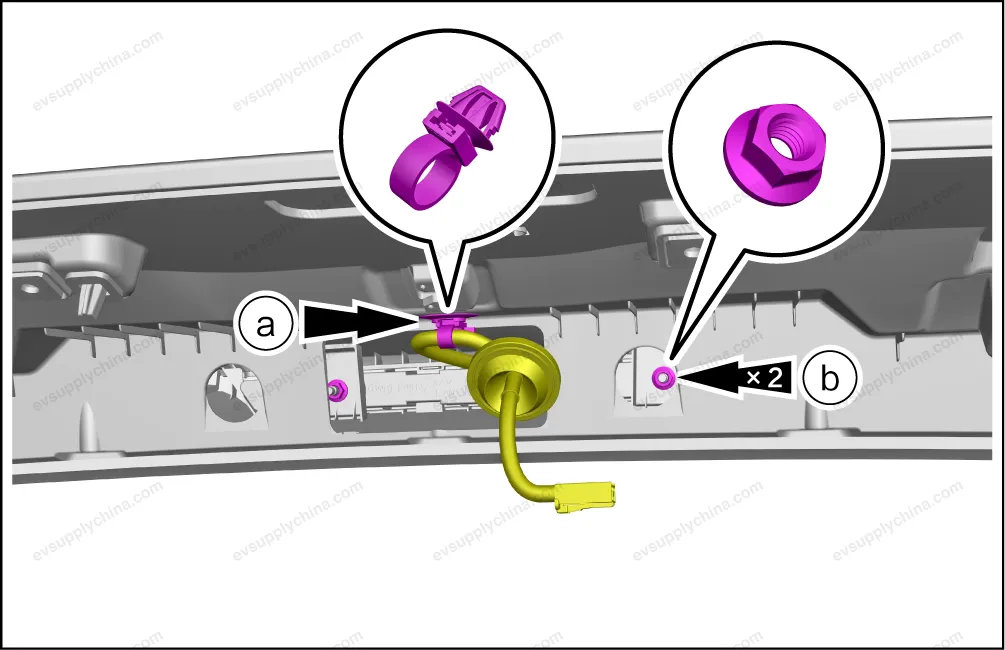

- Detach one wiring harness clips.
- Remove 2 fixing nut.

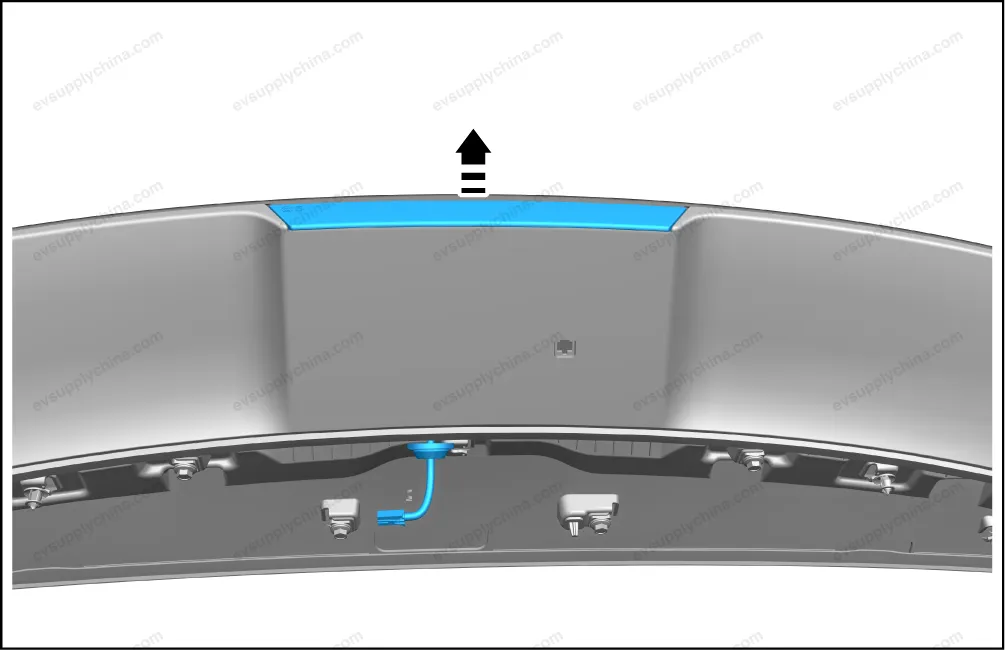

- Pry up the high-mount stop light.
Installation
- Follow the removal steps in reverse order to install.
