BYD Atto 3

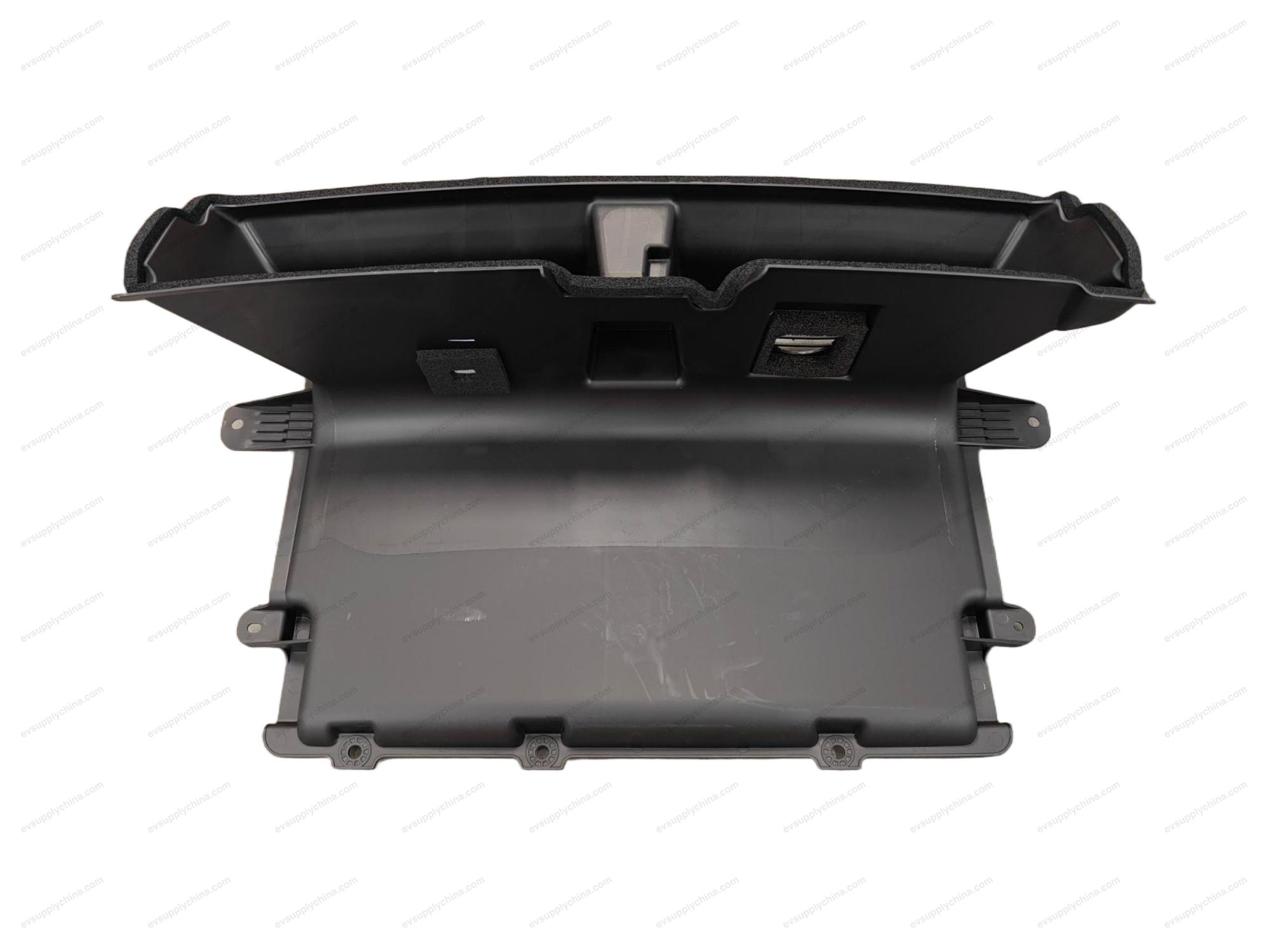

Fully enclosed deflector assembly
OE / Material Codes
15480080-00SC2E-5302490M-D1Available on Request
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Exterior Body Parts
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Fully enclosed deflector assembly
BYDYuan PLUS/Atto 3
2024Fully enclosed deflector assembly Workshop Guide — BYD Atto 3
Totally Enclosed Deflector Assembly - Removal and Installation
Removal
- Remove the front bumper assembly. See Front Bumper Assembly - Removal and Installation

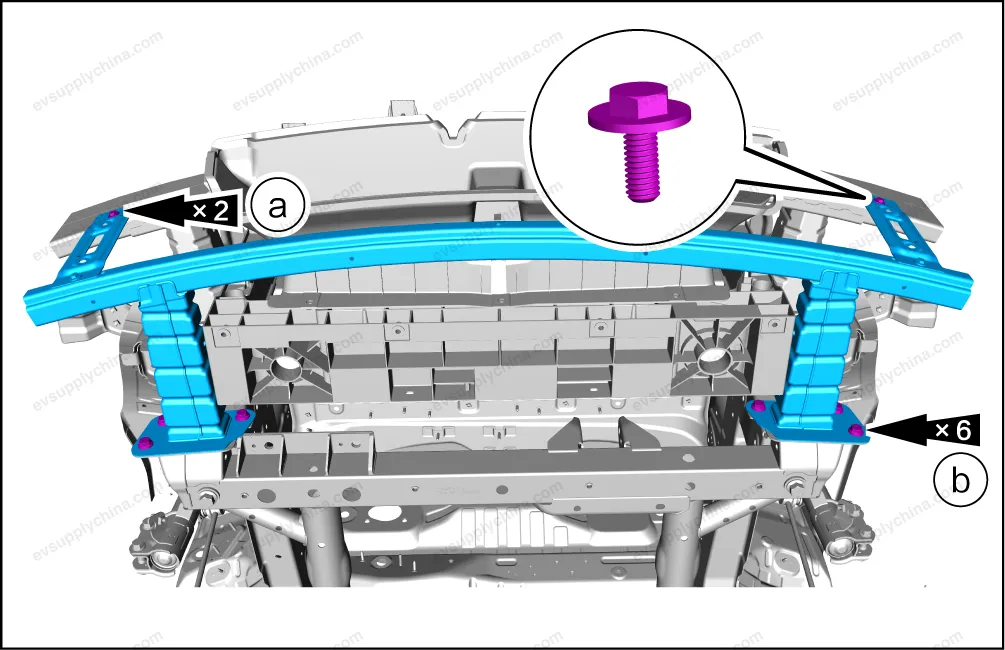

- Remove the front subframe extension bracket.
- Remove 2 fixing bolt.
- Remove 6 fixing bolts, and take out the front subframe extension bracket.

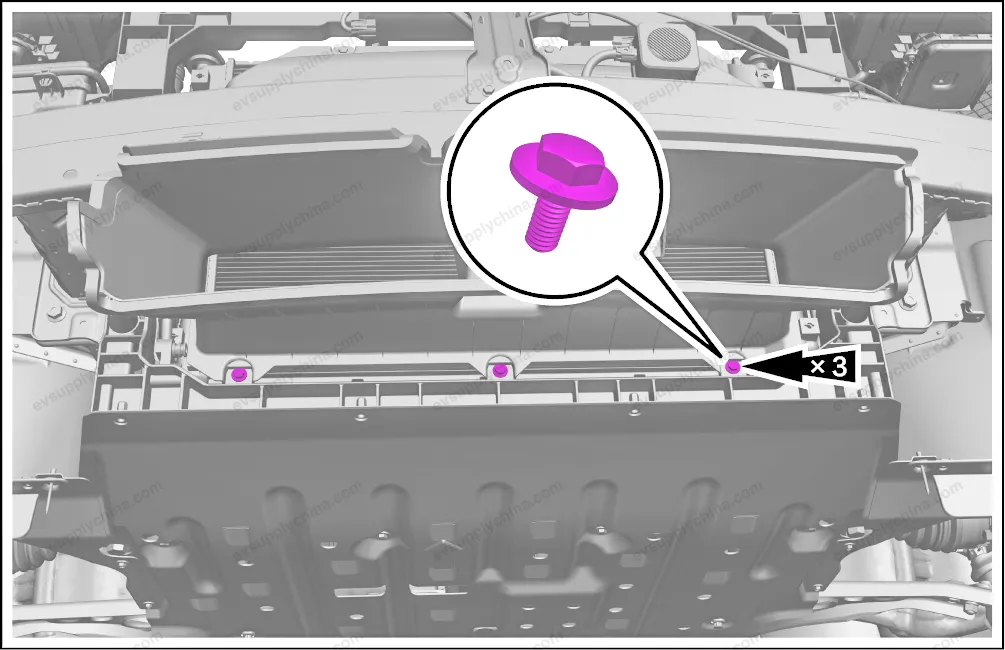

- Remove 3 fixing bolts of the totally enclosed deflector assembly.
- Remove the totally enclosed deflector assembly.

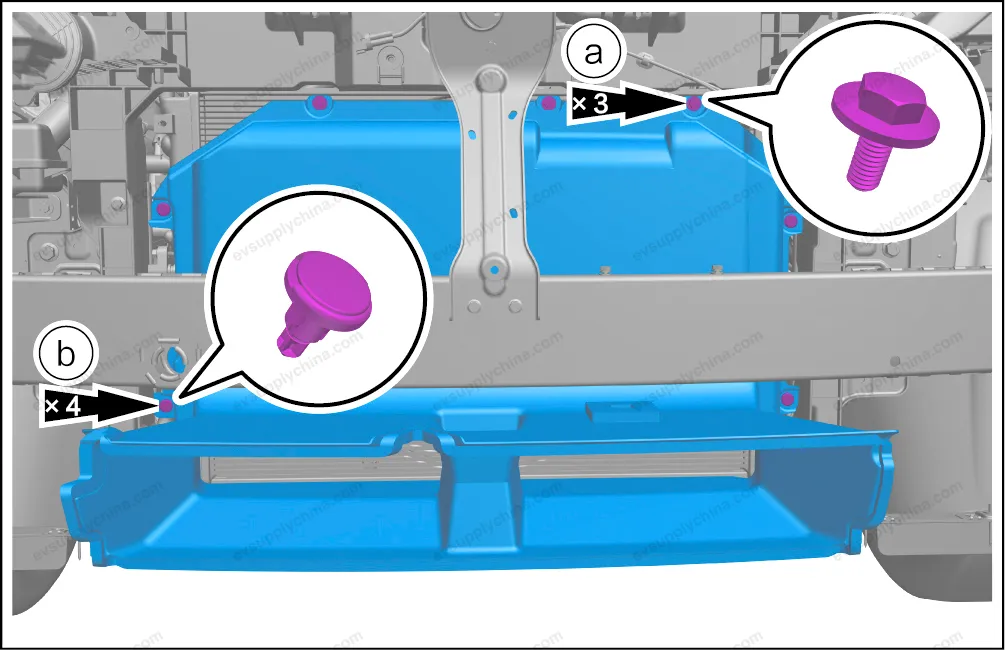

- Remove 3 fixing bolt.
- Remove 4 fixing clips, and take out the totally enclosed deflector assembly.
Installation
- Follow the removal steps in reverse order to install.
