Front stabilizer bar tie rod and ball joint assembly

OE / Material Codes

13457771-00SC2EM-2906020

$10USD

In Stock

Quality availability

Genuine OEMPremium OEM-GradeAftermarket

Need bulk or wholesale pricing?

Technical Specifications

Vehicle Model: BYD Atto 3
Steering Configuration: Universal (Left & Right-Hand Drive)
Category: Suspension & Steering

Shipping & Returns

Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Compatible Vehicles — Front stabilizer bar tie rod and ball joint assembly

BYDTang New Energy DM

2018–2021

BYDQin PLUS EV

2021–2024

BYDYuan PLUS/Atto 3

2024–2025

BYDYuan UP/Atto 2

2024

BYDXia DM-i

2025

Front stabilizer bar tie rod and ball joint assembly Workshop Guide — BYD Atto 3

Stabilizer Bar Tie Rod and Ball Joint Assembly - Removal and Installation

Removal

Remove the left front wheel assembly. See Wheel Assembly - Removal and Installation
Remove 2 fixing nuts and take out the front stabilizer bar tie rod and ball joint assembly.

Installation

The installation steps are opposite to the removal steps.

Front Stabilizer Bar Fitting Assembly - Removal and Installation

Removal

Remove the front subframe and power assembly. See Front Subframe and Power Assembly - Removal and Installation

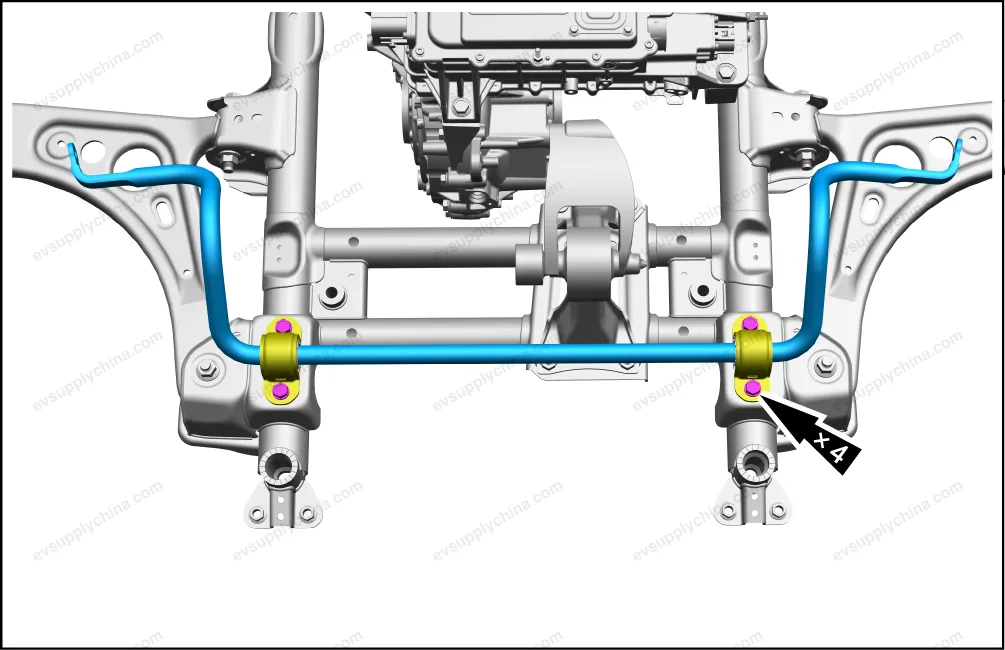

Remove 4 fixing bolts and take out the front stabilizer bar fitting assembly.

Installation

The installation steps are opposite to the removal steps.

Front Stabilizer Bar & Bushing - Removal and Installation

Removal

Remove the front stabilizer bar fitting assembly. See Front Stabilizer Bar Fitting Assembly - Removal and Installation

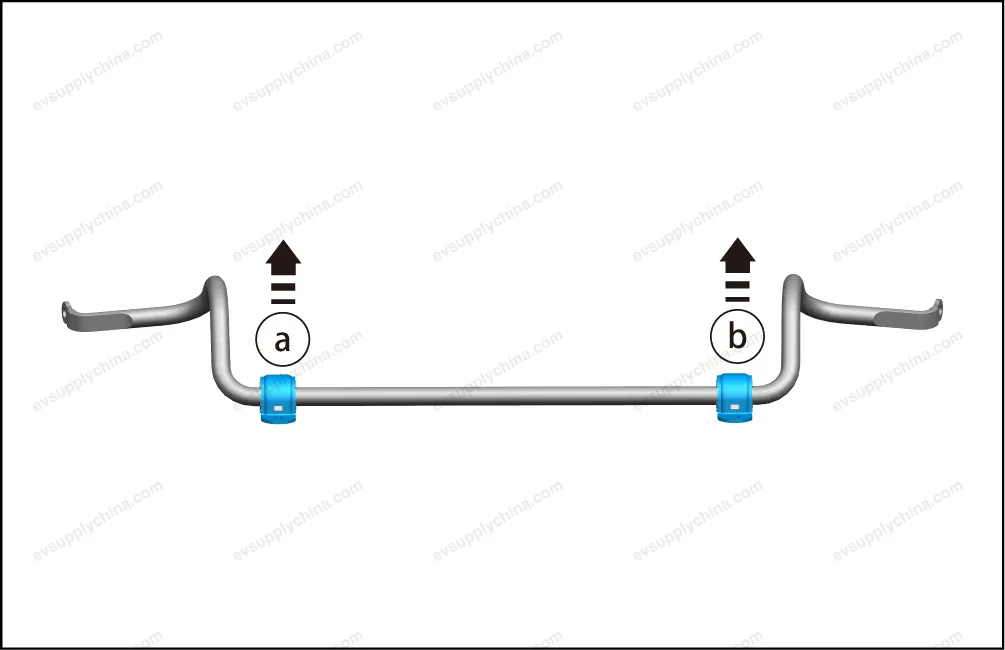

Take out the front stabilizer bar & bushing.
Remove the left pressing plate of the front stabilizer bar.
Remove the right pressing plate of the front stabilizer bar.
