OEM
BYD Atto 3

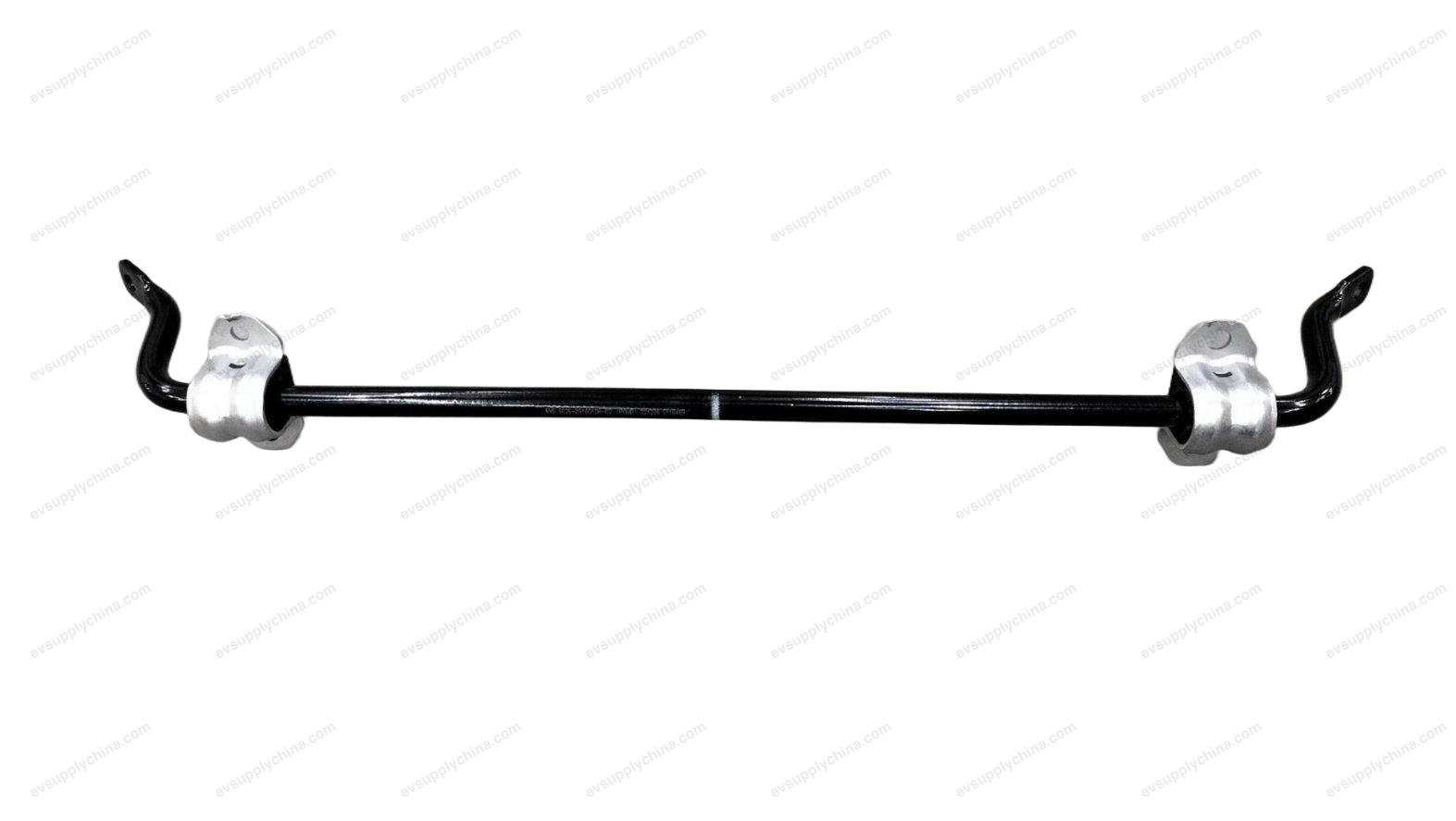

Rear stabilizer bar assembly
OE / Material Codes
13825929-00SC2E-2916010A-D2$63USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Suspension & Steering
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Rear stabilizer bar assembly Workshop Guide — BYD Atto 3

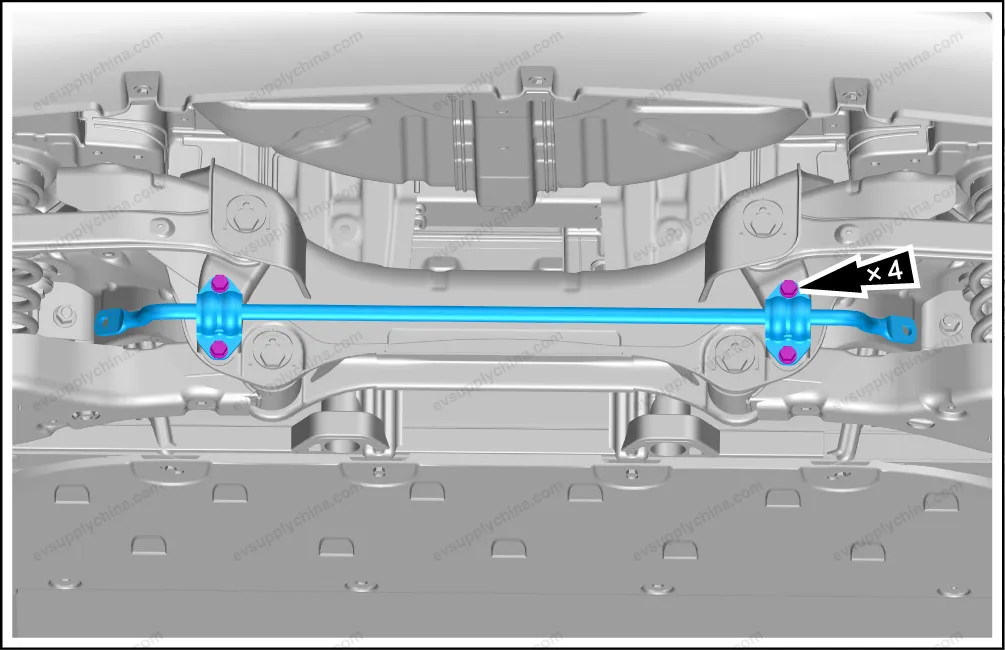

Rear Stabilizer Bar Fitting Assembly - Removal and Installation
Removal
- Remove the left/right rear stabilizer bar tie rod and ball joint assemblies. See Rear Stabilizer Bar Tie Rod and Ball Joint Assembly - Removal and Installation
- Remove 4 fixing bolts and take out the rear stabilizer bar fitting assembly.
Installation
- The installation steps are opposite to the removal steps.

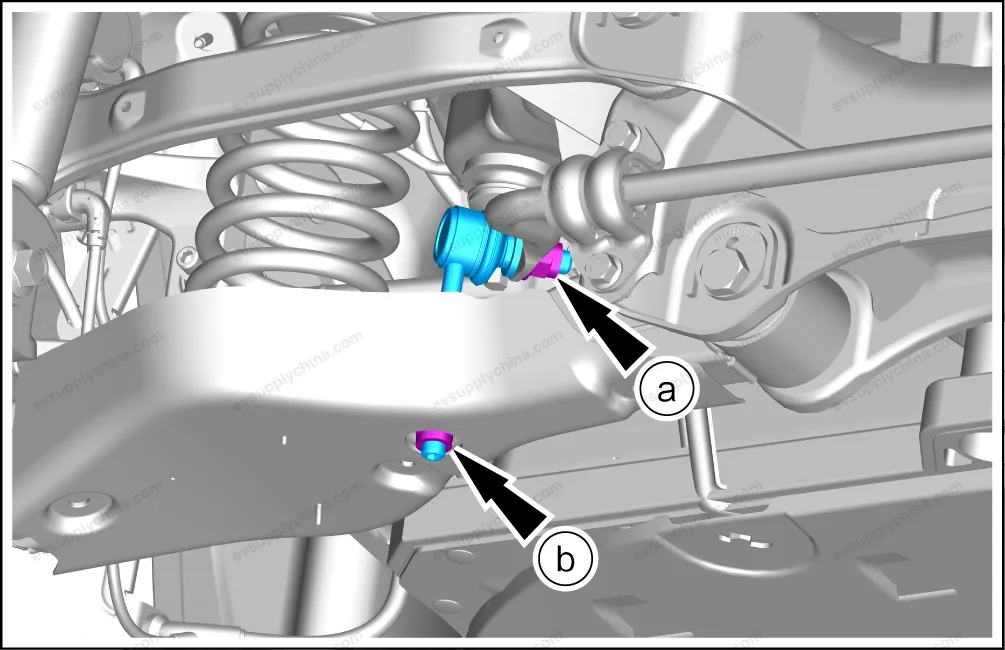

Rear Stabilizer Bar Tie Rod and Ball Joint Assembly - Removal and Installation
Removal
- Lift the vehicle.
- Remove the rear stabilizer bar tie rod and ball joint assembly.
- Remove 1 fixing nuts.
- Remove 1 fixing nuts and take out the rear stabilizer bar tie rod and ball joint assembly.
Installation
- The installation steps are opposite to the removal steps.
