OEM
BYD Atto 3
Evaporator temperature sensor
OE / Material Codes
10895109-006B-8114310$3USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Radiator & Cooling
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Evaporator temperature sensor
BYDS7
2015–2017BYDe6 400
2016–2017BYDTang
2018–2019BYDTang New Energy
2017BYDTang 100
2017Evaporator temperature sensor Workshop Guide — BYD Atto 3
Pressure & Temperature Sensor - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Recover the refrigerant See Recovery and Filling of Refrigerant
- Disconnect one connector of pressure & temperature sensor.
- Remove the pressure & temperature sensor.
Installation
- Follow the removal steps in reverse order to install.
Caution For the installation, all “O-rings” of the pipeline must be replaced, and refrigerant oil shall be applied on the surface of the seal rings and the seal rings shall be connected according to the stipulated torque.
Plate Temperature Sensor - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Remove the plate end temperature sensor.
- Disconnect 1 connectors.
- Detach the plate end temperature sensor from the compressor discharge pipe assembly 1, and take it out.
Install
- The installation is performed in reverse order of removal.

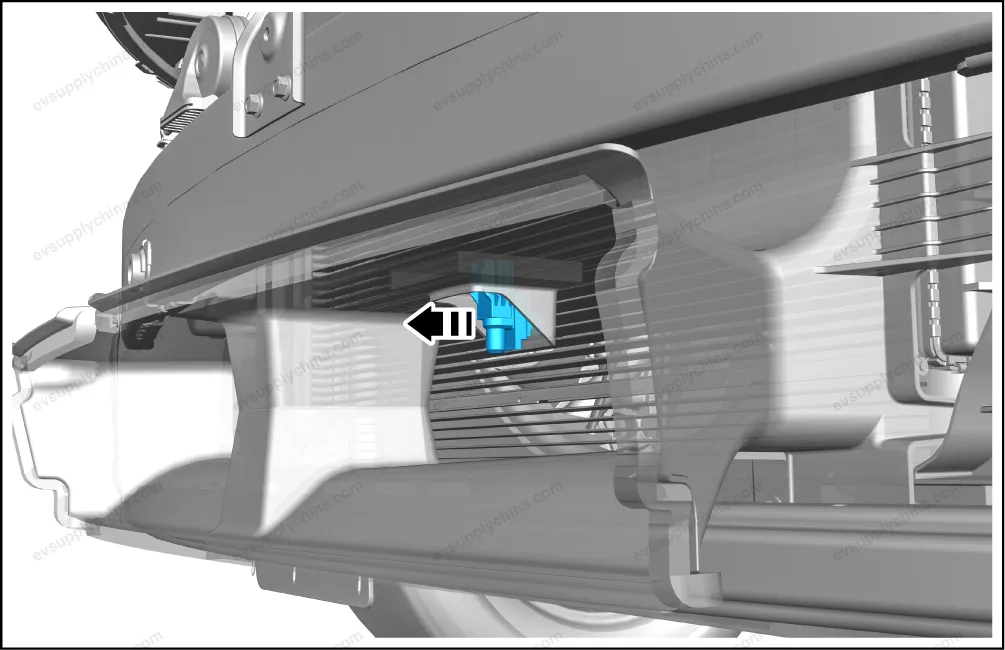

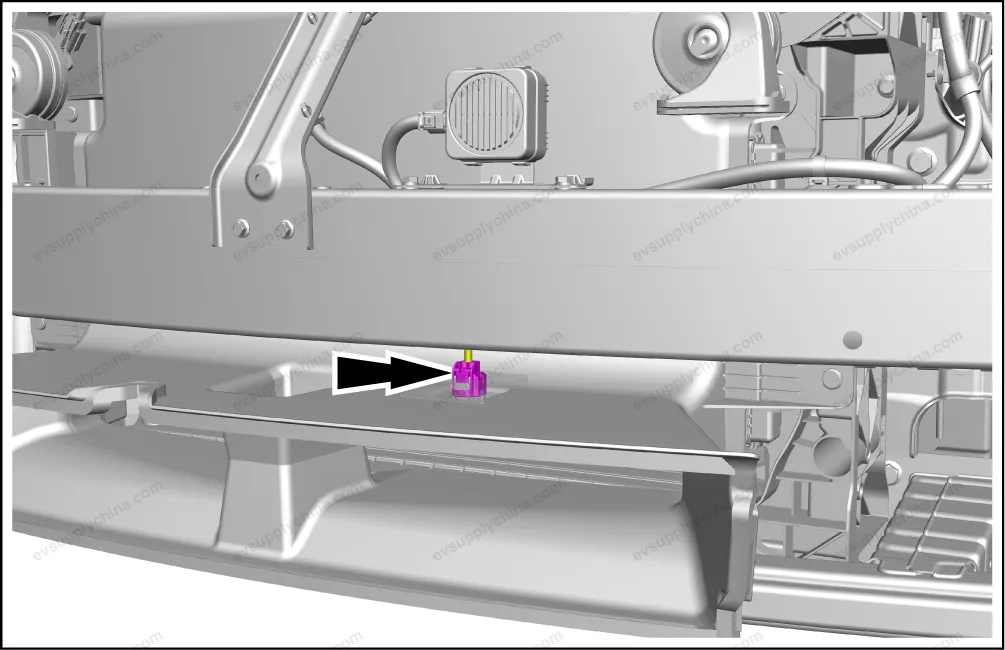

Outside Temperature Sensor - Removal and Installation
Removal
- Remove the grille upper cover assembly. See Grille Upper Cover Assembly - Removal and Installation
- Disconnect 1 connector.
- Pry up the outside temperature sensor.
Installation
- The installation steps are opposite to the removal steps.
Evaporator temperature sensor Fitment Diagram — BYD Atto 3
