BYD Atto 3

Front bumper body

OE / Material Codes

13161518-00SC2E-2803111
$206USD
In Stock
Quality availability

Technical Specifications

Vehicle Model
BYD Atto 3
Steering Configuration
Left-Hand Drive & Right-Hand Drive
Category
Bumpers

Shipping & Returns

Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Compatible Vehicles — Front bumper body

BYDYuan PLUS/Atto 3
2022–2025

Front bumper body Workshop Guide — BYD Atto 3

Front Bumper Body - Removal and Installation

Removal

  1. Remove the front middle position light. See Front Middle Position Light - Removal and Installation
  2. Remove the front bumper wire. See Front Bumper Line - Removal and Installation
  3. Remove the left trim cover of front bumper. See Left Trim Cover of Front Bumper - Removal and Installation
  4. Remove the right trim cover of front bumper. See Right Trim Cover of Front Bumper - Removal and Installation
  5. Remove the front small probe. See Front Small Probe - Removal and Installation
  6. Remove the front-view camera assembly. Attendance Front-View Camera Assembly - Removal and Installation

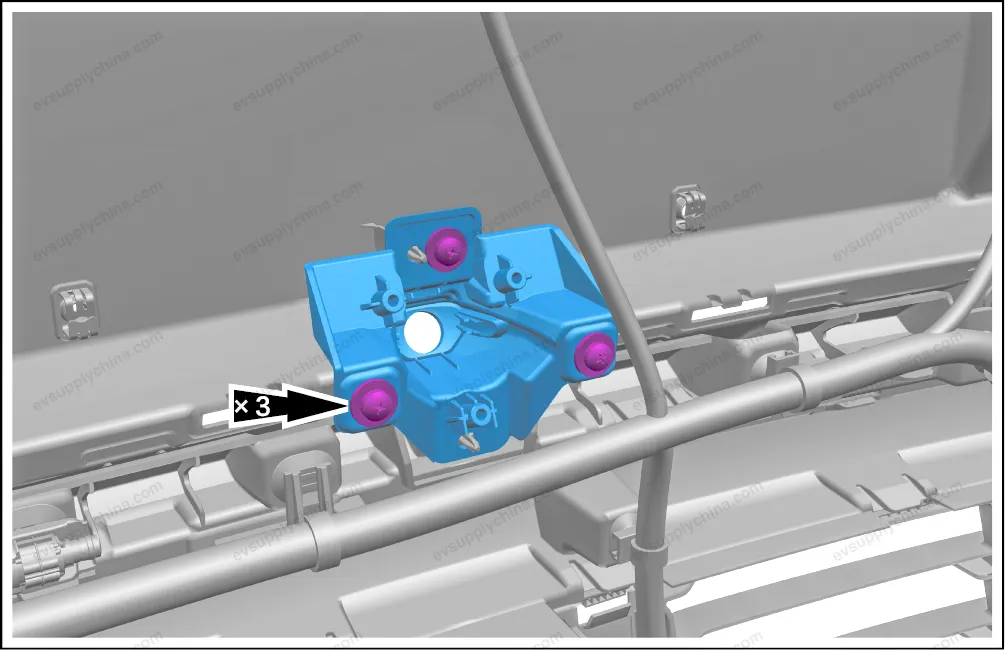

  7. Remove 3 fixing screws, and take out the camera cover.
    Front bumper body — BYD BYD Atto 3 — OE 13161518-00, SC2E-2803111

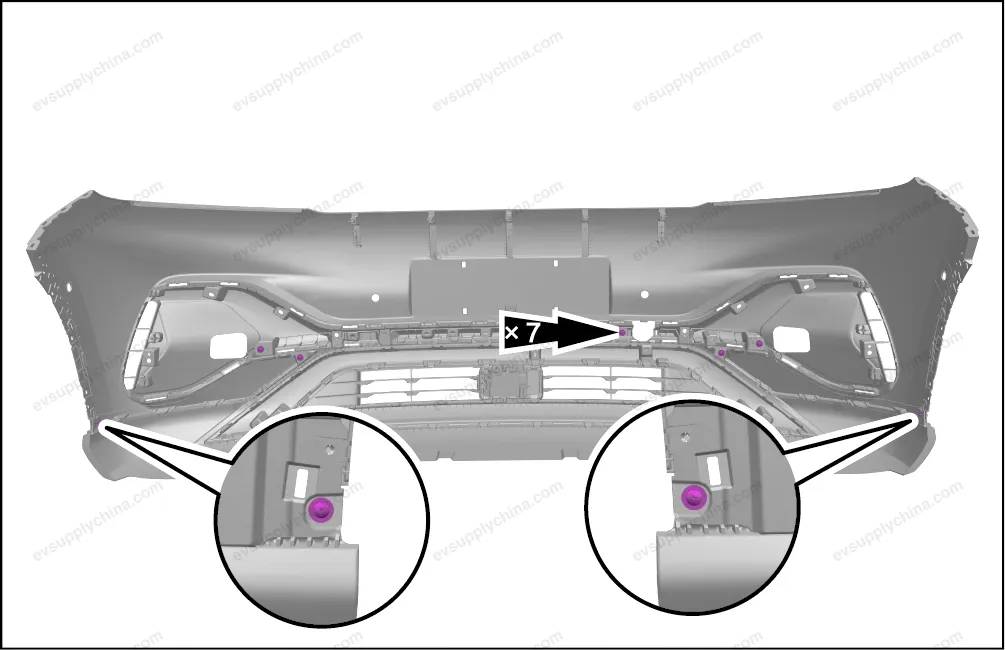

  8. Remove 7 fixing screws from the front bumper body.
    Front bumper body — BYD BYD Atto 3 — OE 13161518-00, SC2E-2803111

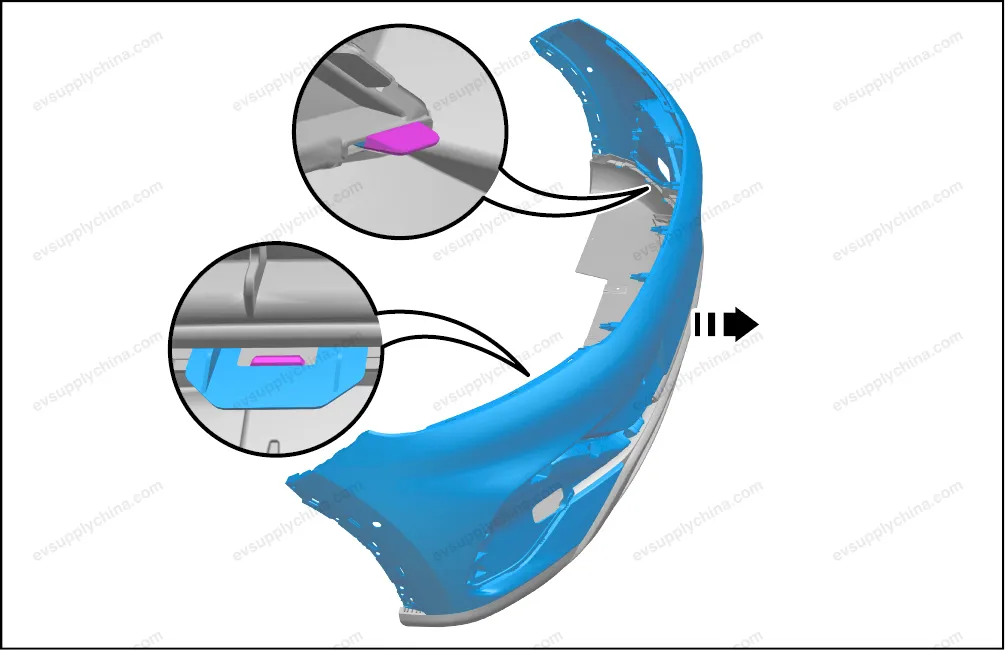

  9. Pry up the front bumper lower body.
    Front bumper body — BYD BYD Atto 3 — OE 13161518-00, SC2E-2803111

Installation

  1. The installation steps are opposite to the removal steps.

Front Bumper Lower Body - Removal and Installation

Removal

  1. Remove the camera cover. See Camera Cover - Removal and Installation
  2. Remove the front bumper lower body kit trim. See Front Bumper Lower Body Kit Trim - Removal and Installation
  3. Remove the front bumper wire. See Front Bumper Line - Removal and Installation
  4. Remove the front millimeter wave radar. See Front Millimeter Wave Radar - Removal and Installation

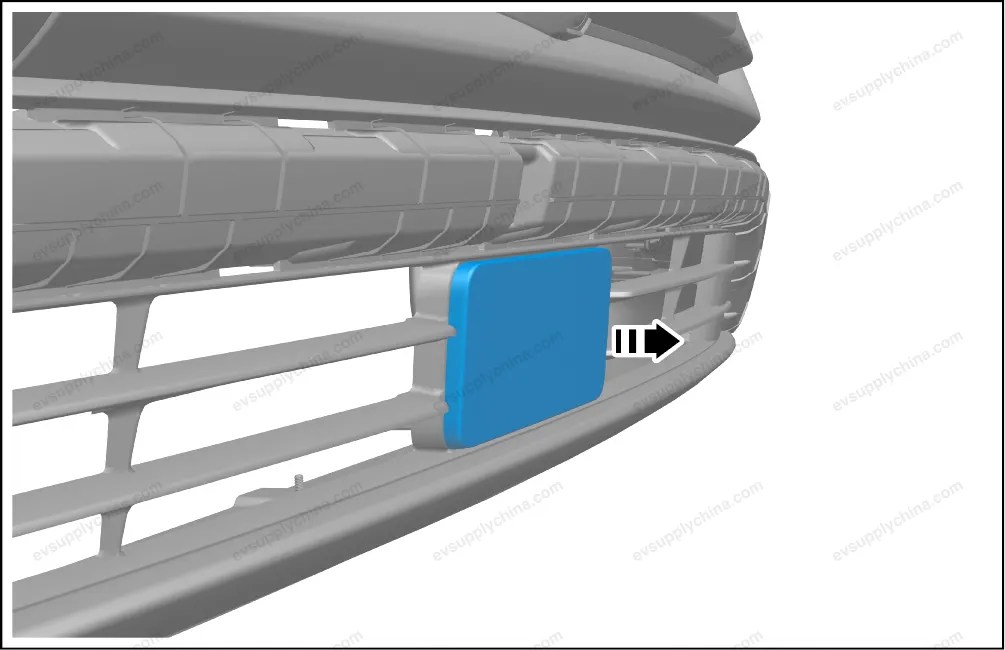

  5. Use a plastic crow bar to pry up the ACC plug.
    Front bumper body — BYD BYD Atto 3 — OE 13161518-00, SC2E-2803111

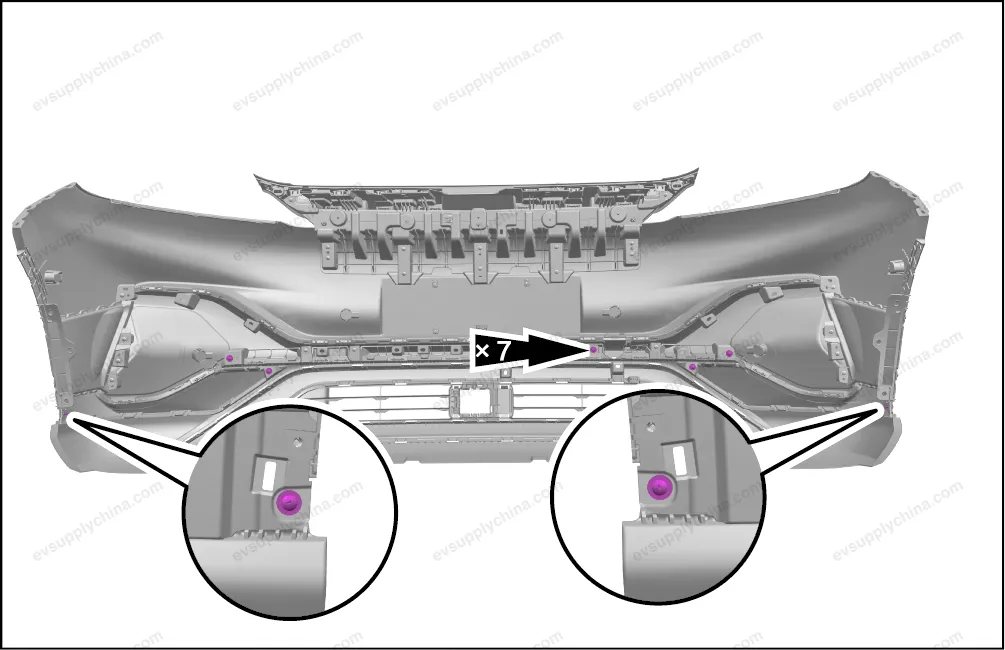

  6. Remove 7 fixing screws of the front bumper assembly lower body.
    Front bumper body — BYD BYD Atto 3 — OE 13161518-00, SC2E-2803111

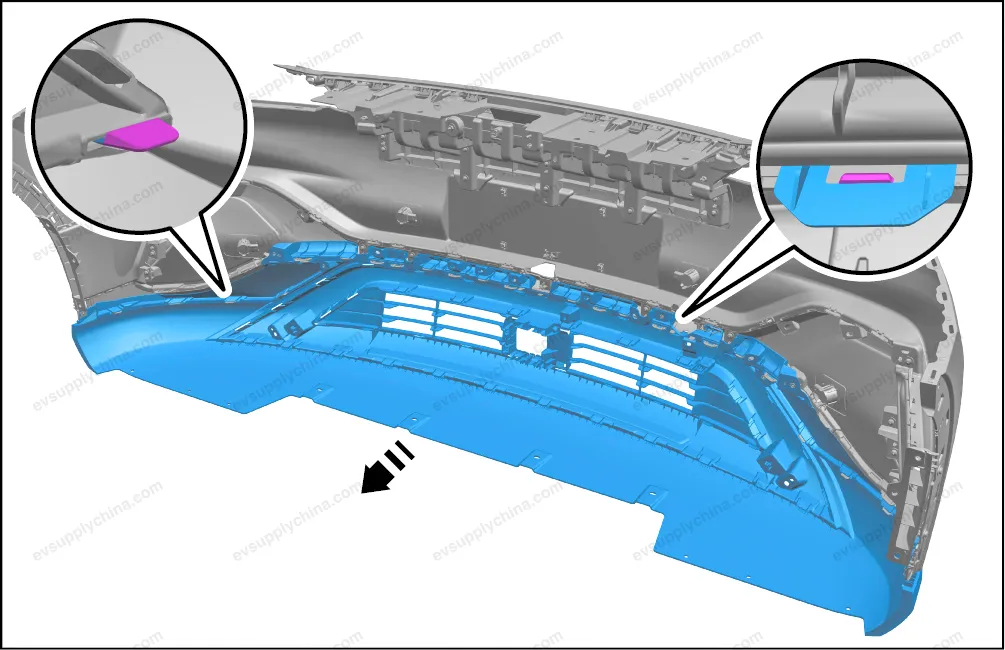

  7. Pry up the front bumper lower body.
    Front bumper body — BYD BYD Atto 3 — OE 13161518-00, SC2E-2803111

Installation

  1. The installation steps are opposite to the removal steps.

Front Bumper Lower Body Kit Trim - Removal and Installation

Removal

  1. Remove the front bumper lower trim. See Front Bumper Lower Trim - Removal and Installation

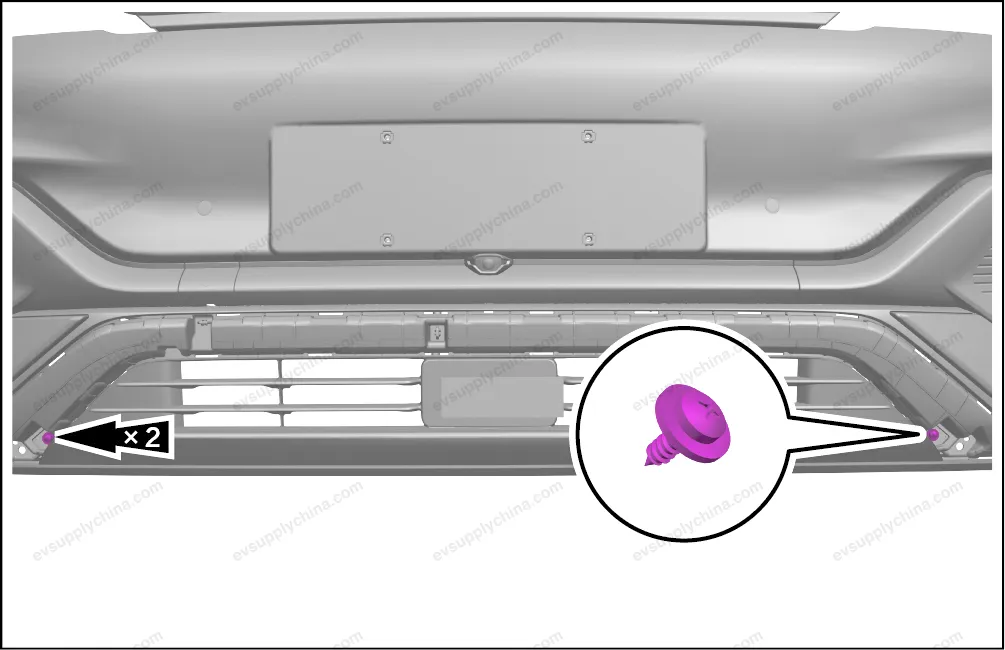

  2. Remove 2 fixing screws from the front bumper lower body kit trim.
    Front bumper body — BYD BYD Atto 3 — OE 13161518-00, SC2E-2803111

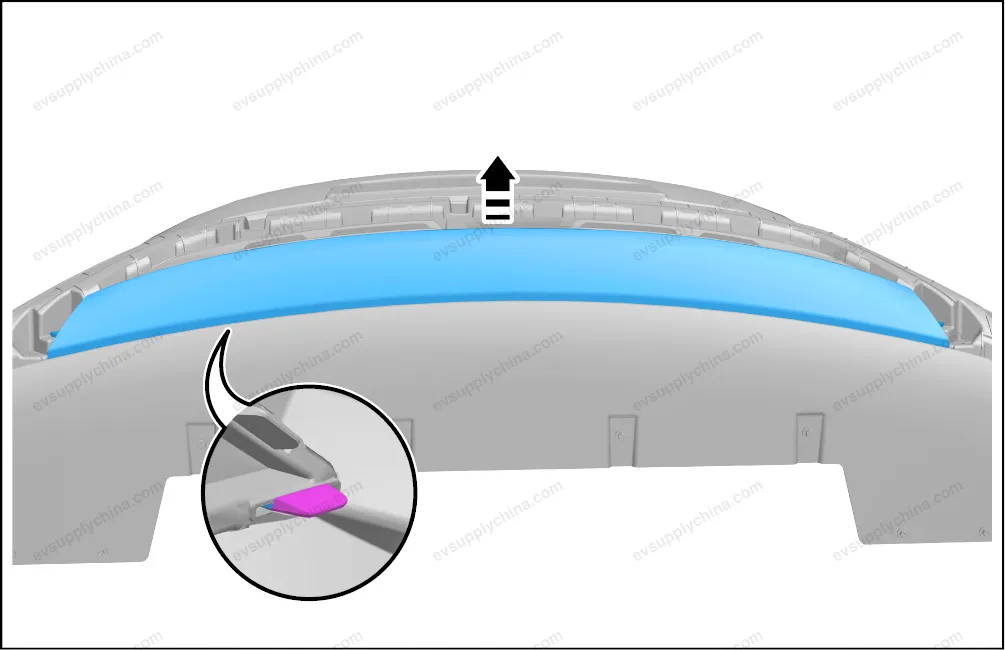

  3. Use a plastic crow bar to carefully pry up the front bumper lower body kit trim.
    Front bumper body — BYD BYD Atto 3 — OE 13161518-00, SC2E-2803111

Installation

  1. The installation steps are opposite to the removal steps.
