OEM
BYD Atto 3
Water tank upper crossbeam right connecting plate assembly
OE / Material Codes
13443028-00SC2EM-5301579$28USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Radiator & Cooling
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Water tank upper crossbeam right connecting plate assembly
BYDYuan PLUS/Atto 3
2024Water tank upper crossbeam right connecting plate assembly Workshop Guide — BYD Atto 3
Replacement of Right Side Wall Front Connecting Plate Assembly
Removal

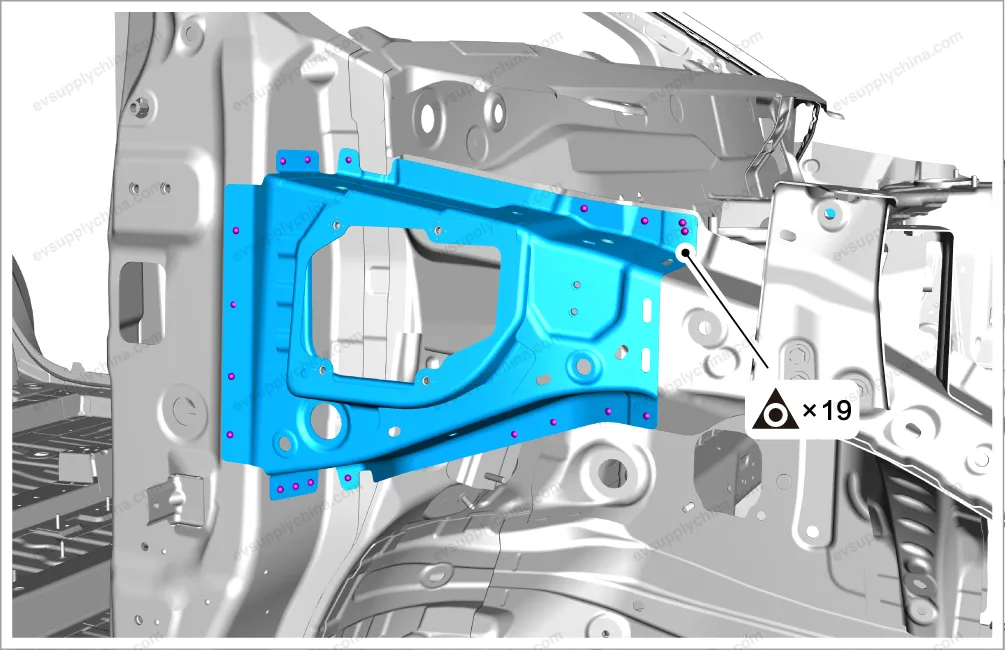

- Clear 19 welding spots, and take out the right side wall front connecting plate assembly.
Installation
- Secure the right side wall front connecting plate assembly to the mounting position.
- Check and adjust the relative position and dimensions of the right side wall front connecting plate assembly and the surrounding parts. See Front Door
- Weld 19 welding spots on the right side wall front connecting plate assembly.
- Apply body sealant and internal coating at corresponding positions.
- After the external coating is applied, the anti rust agent shall be applied on the inner panel of the welding spots of the closed section structure.
Water Tank Upper Beam Right Connecting Plate Assembly - Removal and Installation
Removal
- Remove the front compartment right trim panel assembly. See Front Compartment Right Trim Panel Assembly - Removal and Installation
- Remove 5 fixing bolts, and take out the water tank upper beam right connecting plate assembly.
Installation
- The installation steps are opposite to the removal steps.
Left Connecting Plate of Upper Beam of Water Tank - Removal and Installation
Removal
- Remove the front compartment left trim panel assembly. See Front Compartment Left Trim Panel Assembly - Removal and Installation
- Remove 4 fixing bolts, and take out the left connecting plate of upper beam of water tank.
Installation
- The installation steps are opposite to the removal steps.
