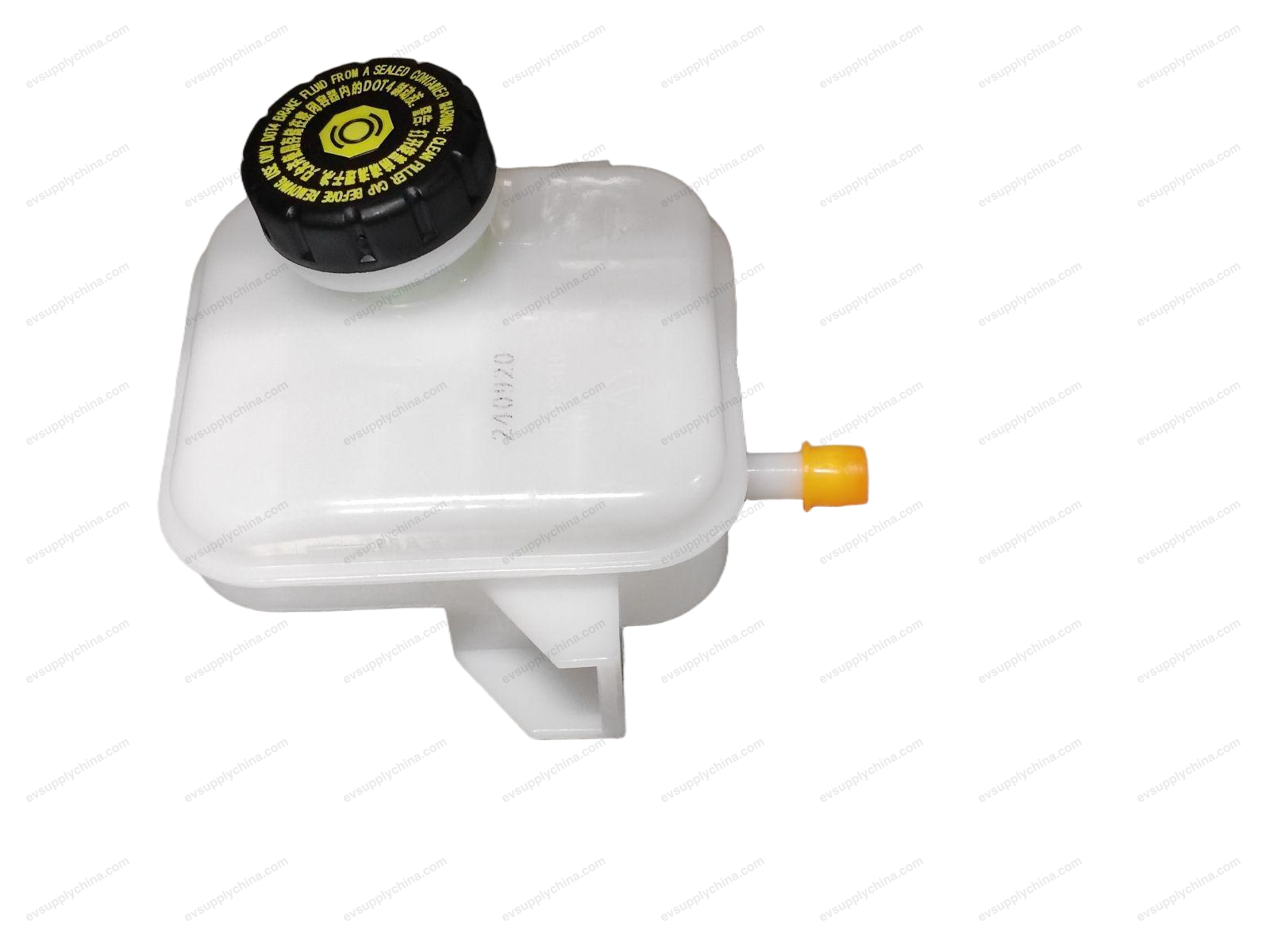

Brake fluid reservoir assembly
OE / Material Codes
12686089-00STHA-3540020Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Brakes
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Brake fluid reservoir assembly
Brake fluid reservoir assembly Workshop Guide — BYD Atto 3
Brake Fluid Reservoir Assembly - Removal and Installation
Removal
- Draw brake fluid pot oil. Replacement of Brake Fluid

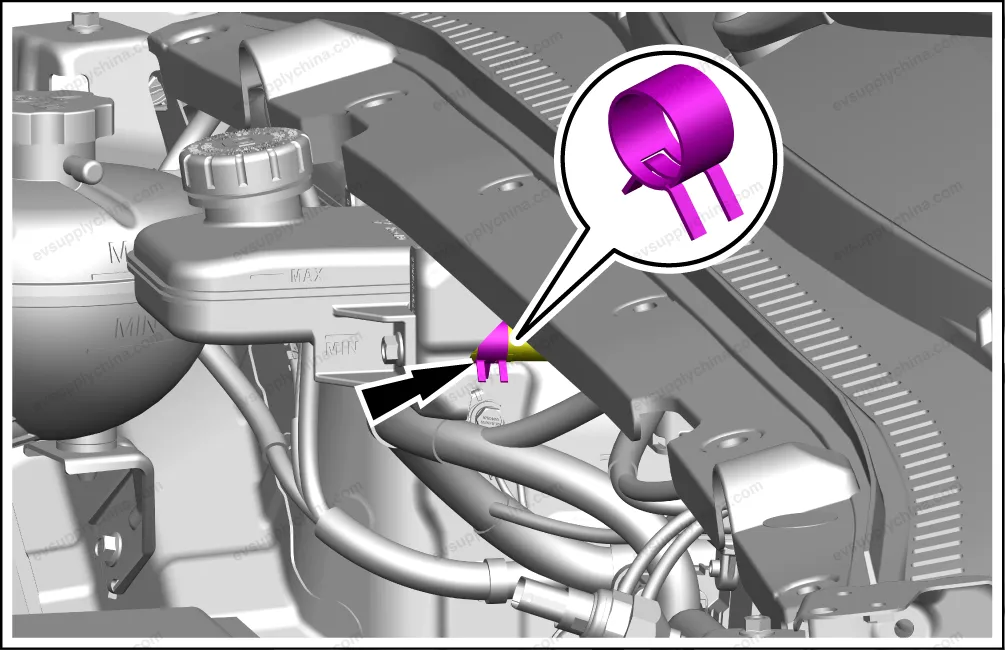

- Loosen 1 fixing clamp, and detach the brake fluid reservoir connecting hose assembly from the brake fluid reservoir assembly.

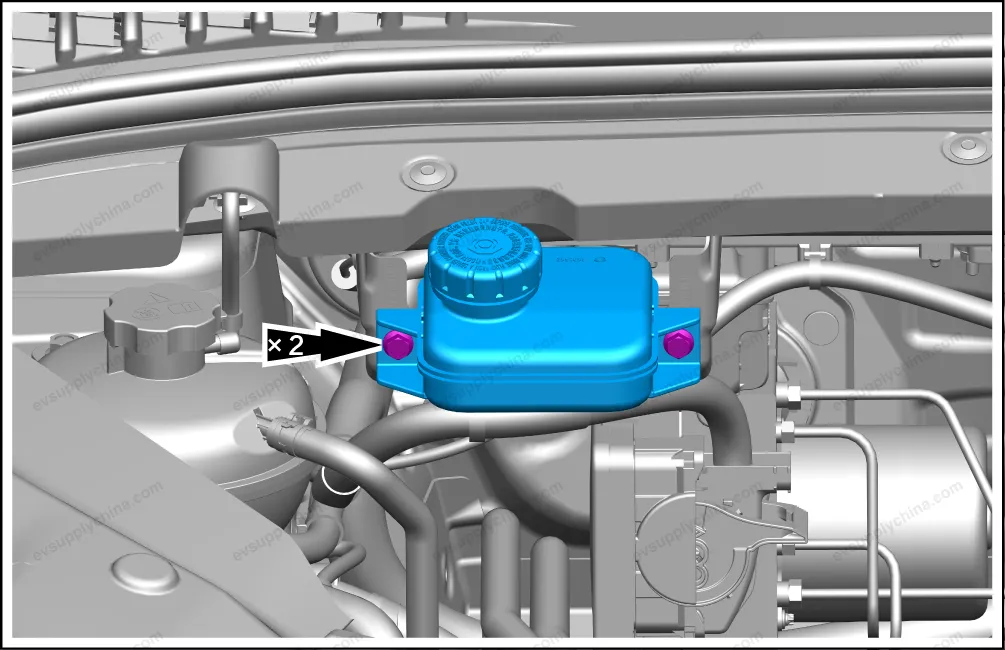

- Remove 2 fixing bolts, and take out the brake fluid reservoir assembly.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, add brake fluid to the level between the MAX and MIN scales of the brake fluid reservoir assembly. After installation, check that there is no oil leakage at the connection of the pipeline. If there is any, it needs to be overhauled.
Brake Fluid Reservoir Connecting Hose Assembly - Removal and Installation
Installation
- Draw brake fluid pot oil. See Replacement of Brake Fluid
- Remove the brake fluid reservoir assembly. See Brake Fluid Reservoir Assembly - Removal and Installation

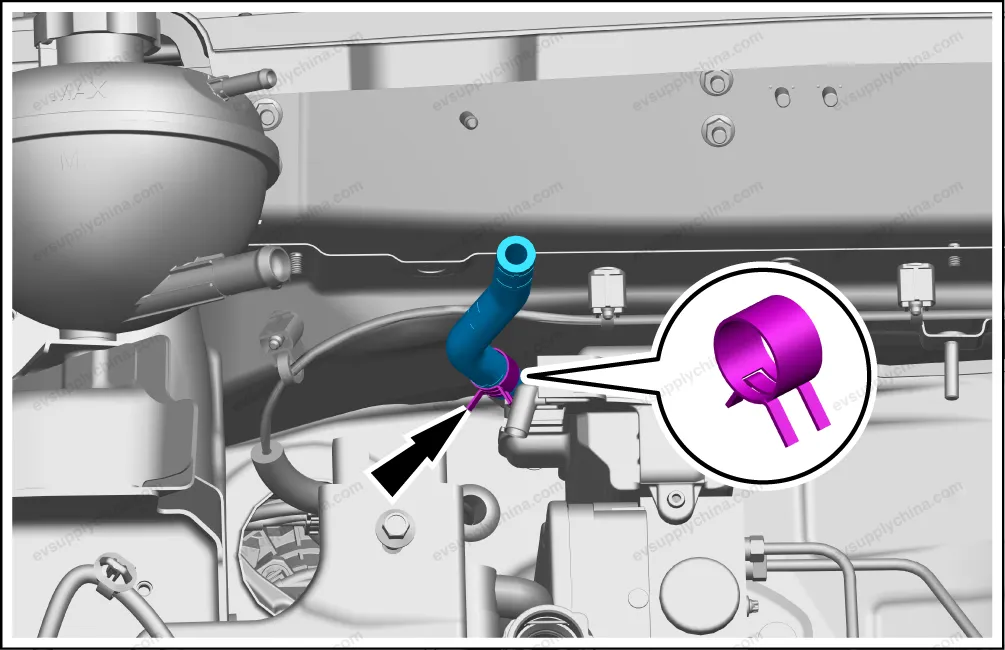

- Remove 1 fixing clamp, and take out the brake fluid reservoir connecting hose assembly.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, add brake fluid to the level between the MAX and MIN scales of the brake fluid reservoir assembly. After installation, check that there is no oil leakage at the connection of the pipeline. If there is any, it needs to be overhauled.
Brake Fluid Reservoir Mounting Bracket Assembly - Removal and Installation
Removal
- Remove 2 fixing bolts, and detach the brake fluid reservoir assembly.
- Remove the brake fluid reservoir mounting bracket assembly.
- Remove 1 fixing clip, and detach the front compartment wiring harness.
- Remove 4 fixing nuts, and take out the brake fluid reservoir mounting bracket assembly.
Installation
- The installation steps are opposite to the removal steps.
