OEM
BYD Atto 3

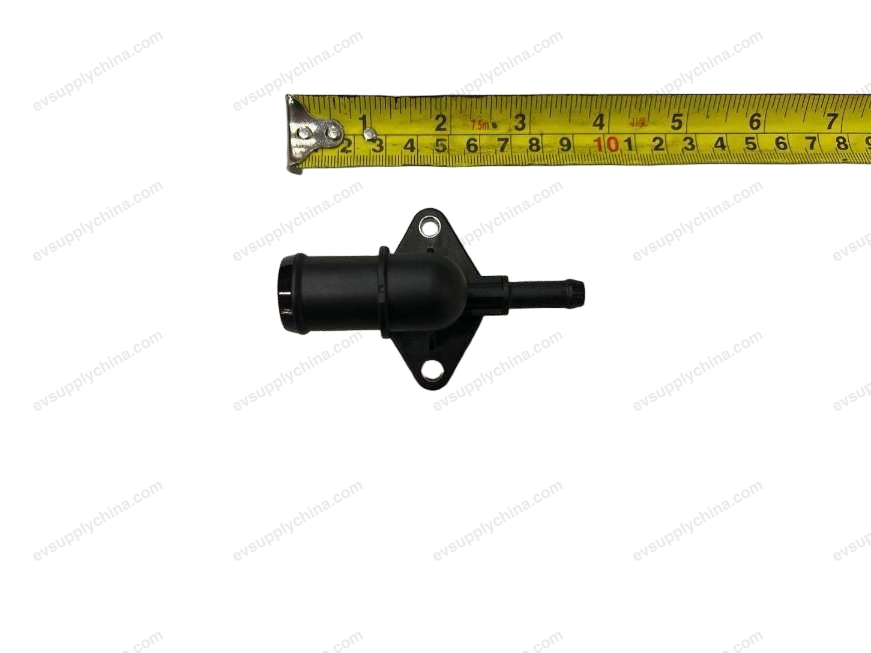

Water outlet pipe of the box
OE / Material Codes
13515771-00EM2E-2142516B$4USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Radiator & Cooling
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Water outlet pipe of the box
BYDDolphin
2021–2024BYDYuan PLUS/Atto 3
2022–2024BYDe2
2023–2024BYDQin PLUS EV
2023–2024BYDQin New Energy EV
2021BYDYuan Pro
2023BYDSong PLUS New Energy EV
2023BYDHan EV
2024BYDYuan UP/Atto 2
2024Water outlet pipe of the box Workshop Guide — BYD Atto 3
Box Outlet Pipe - Removal and Installation
Removal
- Power off the high voltage electrical system. See Power-off and Power-on of High Voltage Electrical System
- Discharge coolant. See Change of Coolant

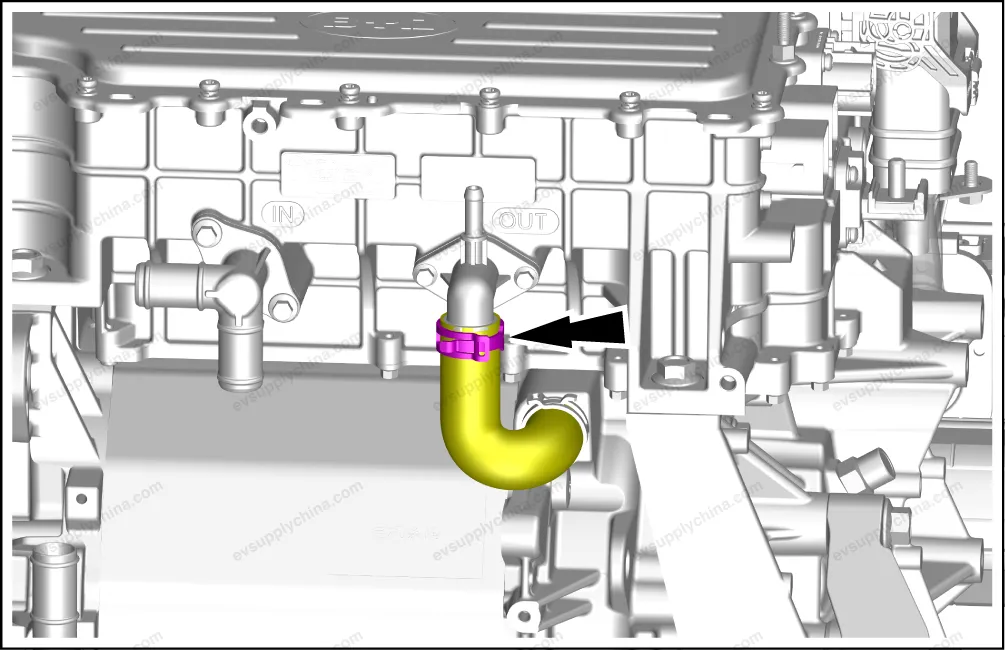

- Loosen 1 fixing clamp, and detach the cooling pipe assembly 5 from the box outlet pipe.

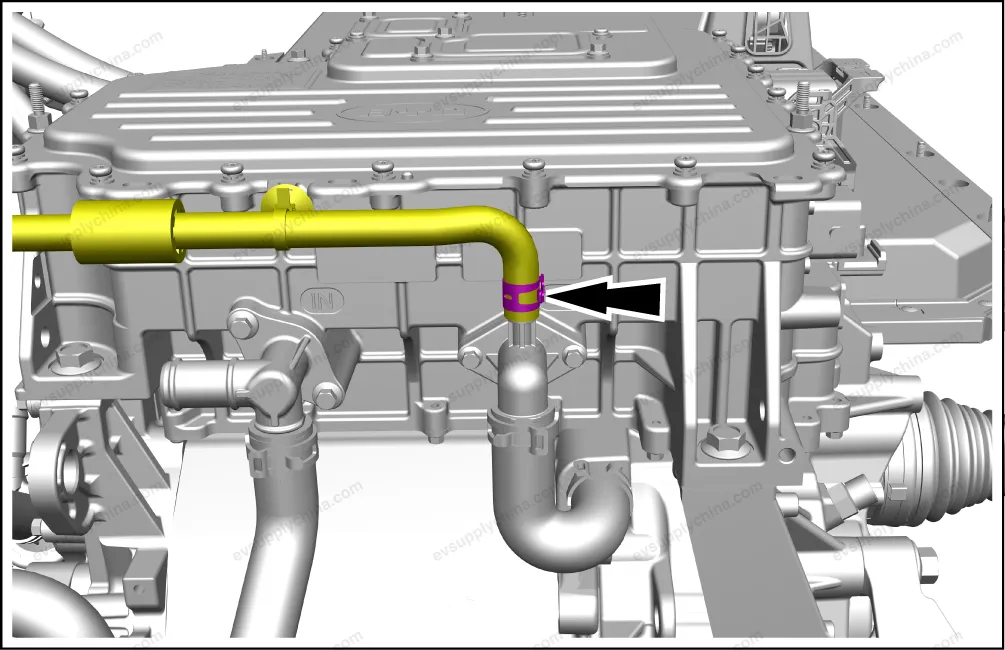

- Loosen 1 fixing clamp, and detach the cooling water pipe assembly from the box outlet pipe.

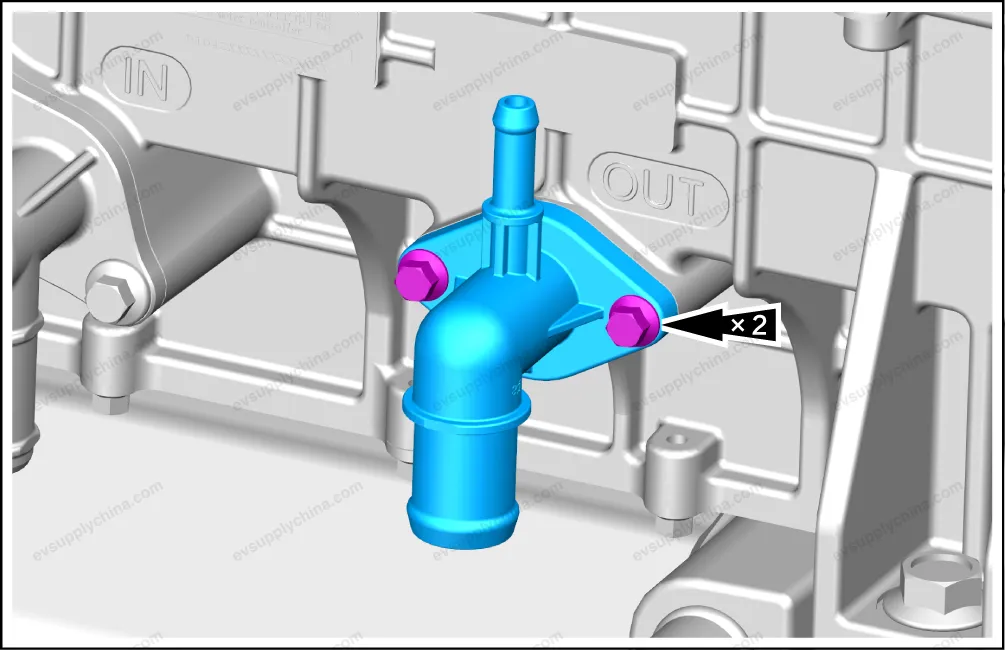

- Remove 2 fixing bolts, and take out the box outlet pipe.
Installation
- The installation steps are opposite to the removal steps.
Cooling Water Pipe Assembly - Removal and Installation
Removal
- Power off the high voltage electrical system. See Power-off and power-on of high voltage electrical system
- Discharge coolant. See Replacement of Coolant
- Loosen 2 fixing clamps, and remove the cooling water pipe assembly.
Installation
- The installation steps are opposite to the removal steps.
- After the installation, fill in the coolant. See Replacement of Coolant
Caution After installation, check the pipeline joints to make sure there is no leakage. If any, the inspection and repair shall be carried out again.
Left Front Water Pipe Assembly - Removal and Installation
Removal
- Remove the instrument panel upper body assembly. See Instrument Panel Upper Body Assembly - Removal and Installation
- Remove the ceiling assembly. See Ceiling Assembly - Removal and Installation

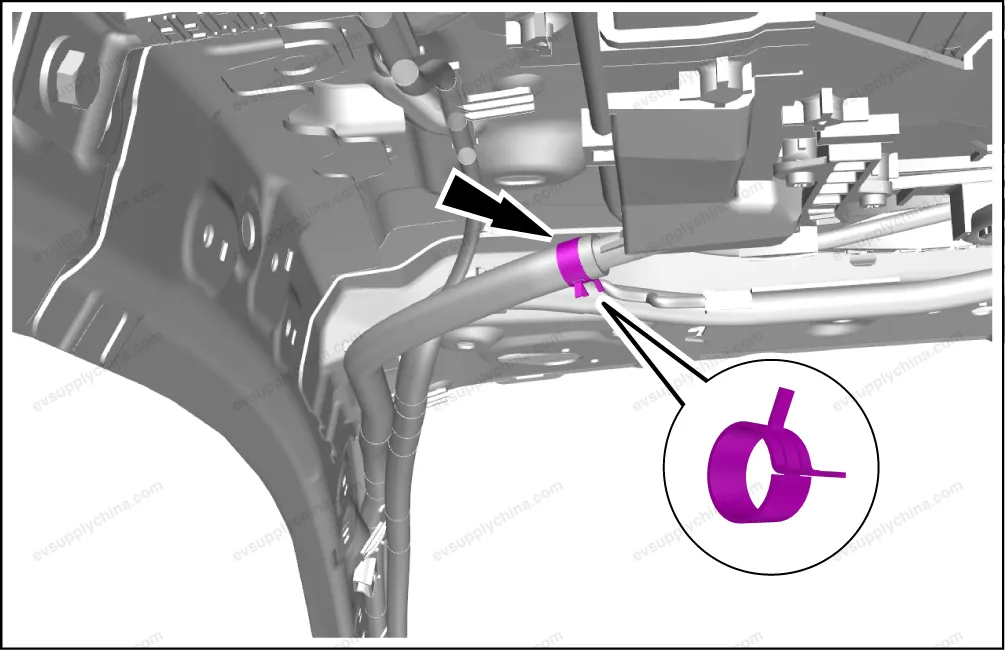

- Loosen the hoop, and detach the left front water pipe component from the sunroof.

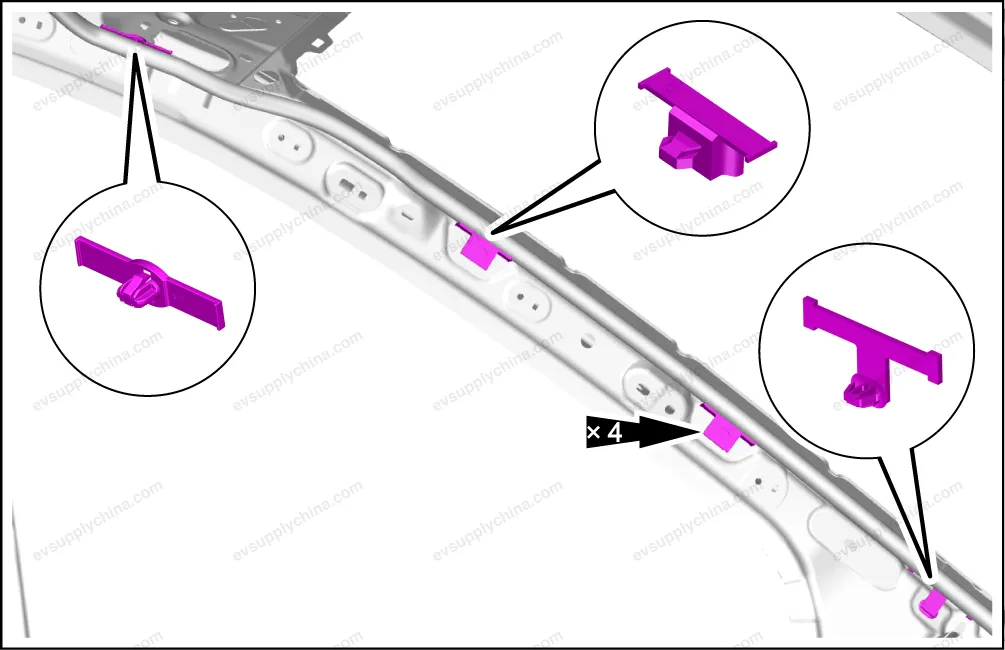

- Detach the 4 pipe clamps.

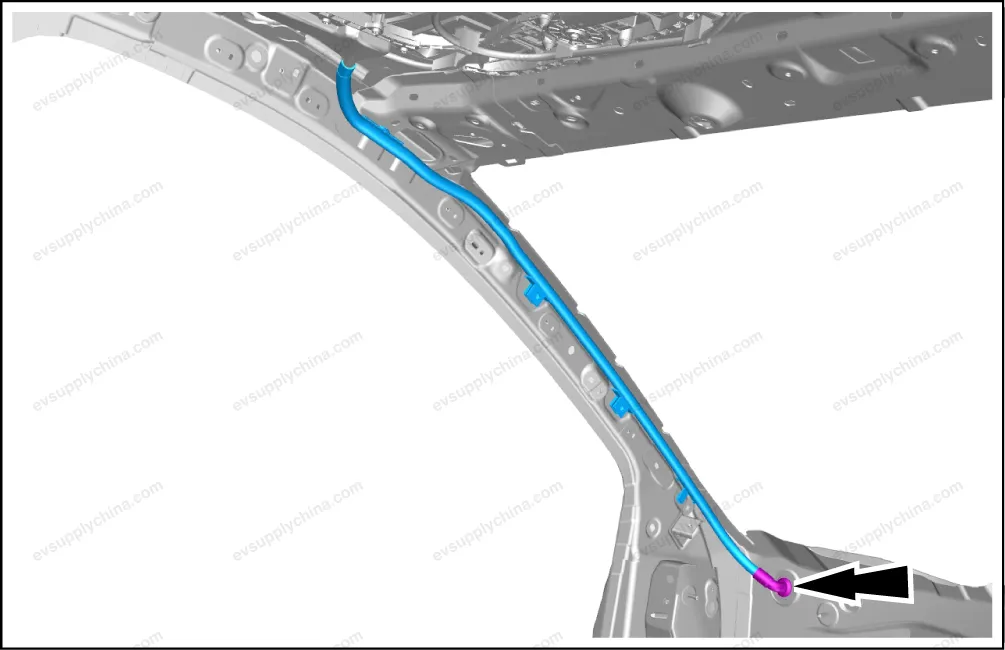

- Detach the left front water pipe component from the vehicle body, and take it out.
Installation
- The installation steps are opposite to the removal steps.
