BYD Atto 3

Upper front bumper mounting bracket

OE / Material Codes

13496355-00SC2E-2803115M
$36USD
In Stock
Quality availability

Technical Specifications

Vehicle Model
BYD Atto 3
Steering Configuration
Left-Hand Drive & Right-Hand Drive
Category
Bumpers

Shipping & Returns

Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Compatible Vehicles — Upper front bumper mounting bracket

BYDYuan PLUS/Atto 3
2024

Upper front bumper mounting bracket Workshop Guide — BYD Atto 3

Replacement of Front Bumper Beam Right Mounting Plate Assembly

Removal

  1. Remove the front end module locating mounting plate. See Front Module Locating Mounting Plate

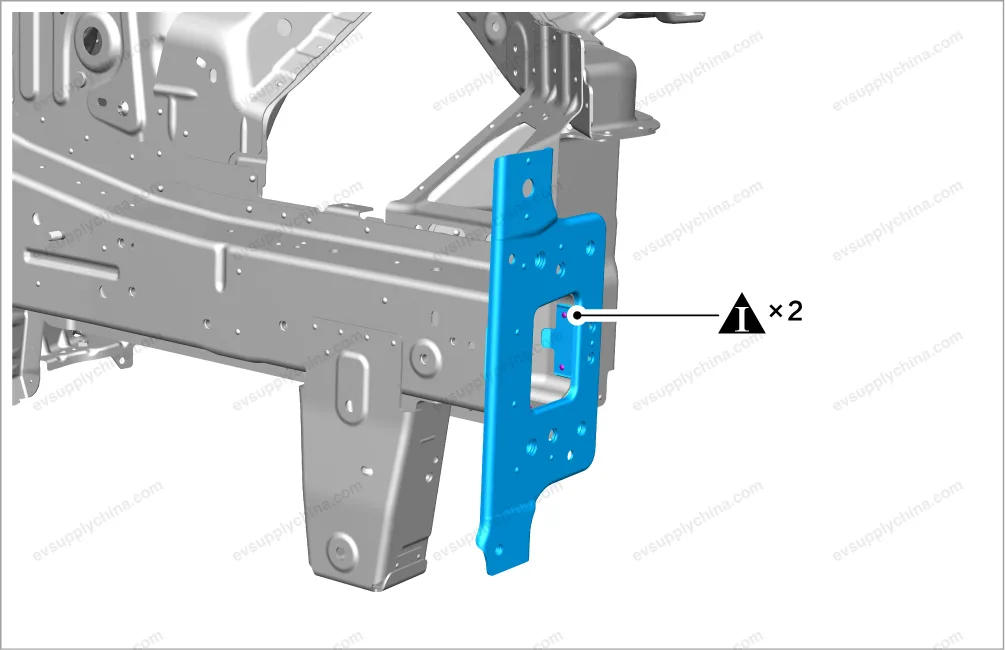

  2. Clear 2 welding spots from the front bumper beam right mounting plate assembly.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

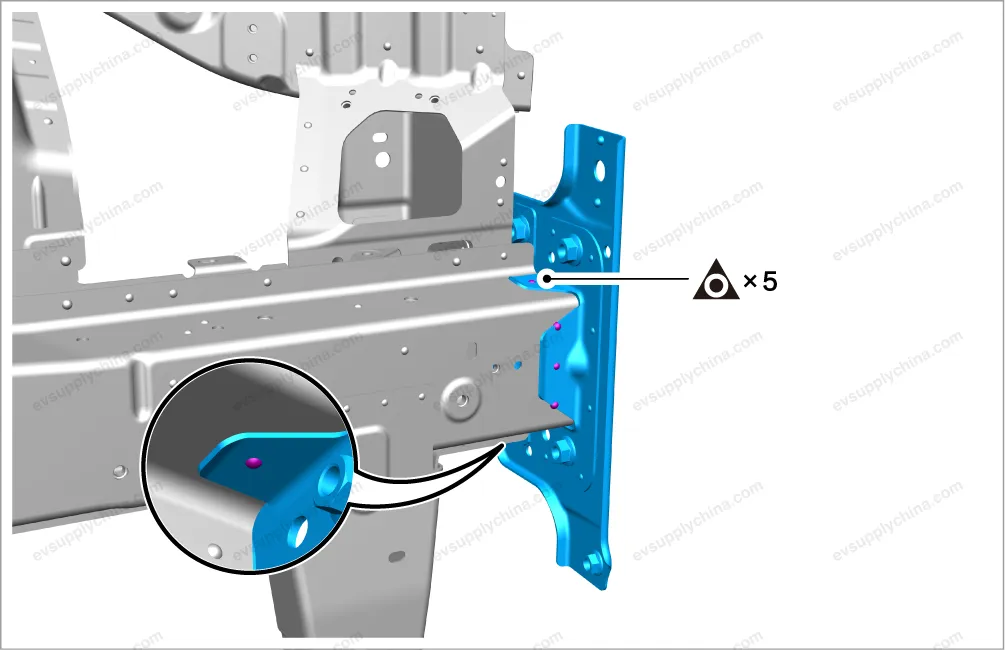

  3. Clear 5 welding spots, and take out the front bumper beam right mounting plate assembly.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

Installation

  1. Secure the front bumper beam right mounting plate assembly to the mounting position.
  2. Check and adjust the relative position and dimensions of the front bumper beam right mounting plate assembly and surrounding parts.

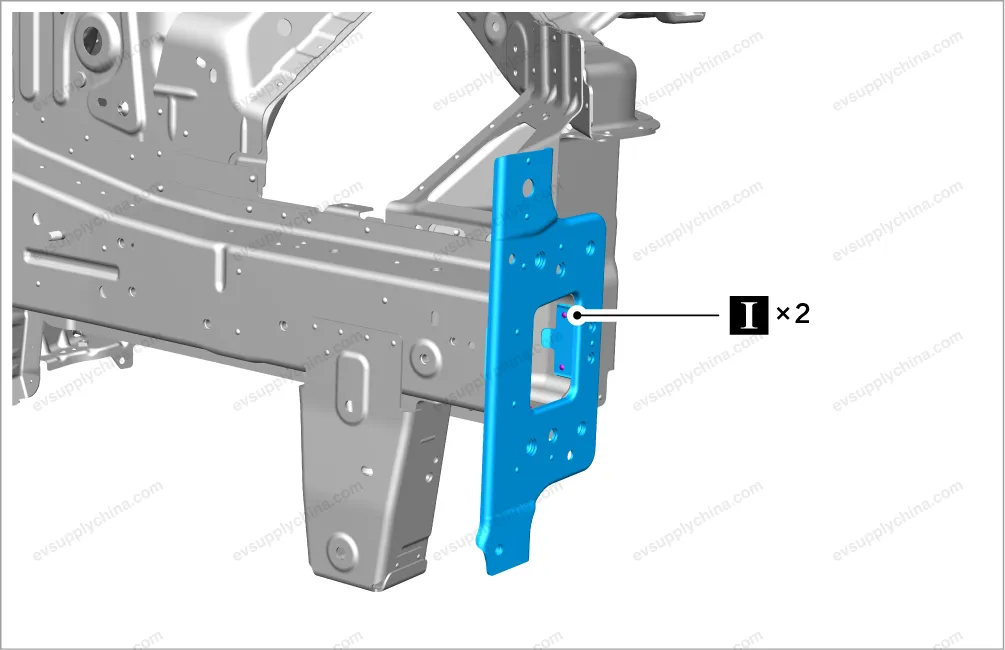

  3. Weld 2 welding spots on the front bumper beam right mounting plate assembly.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

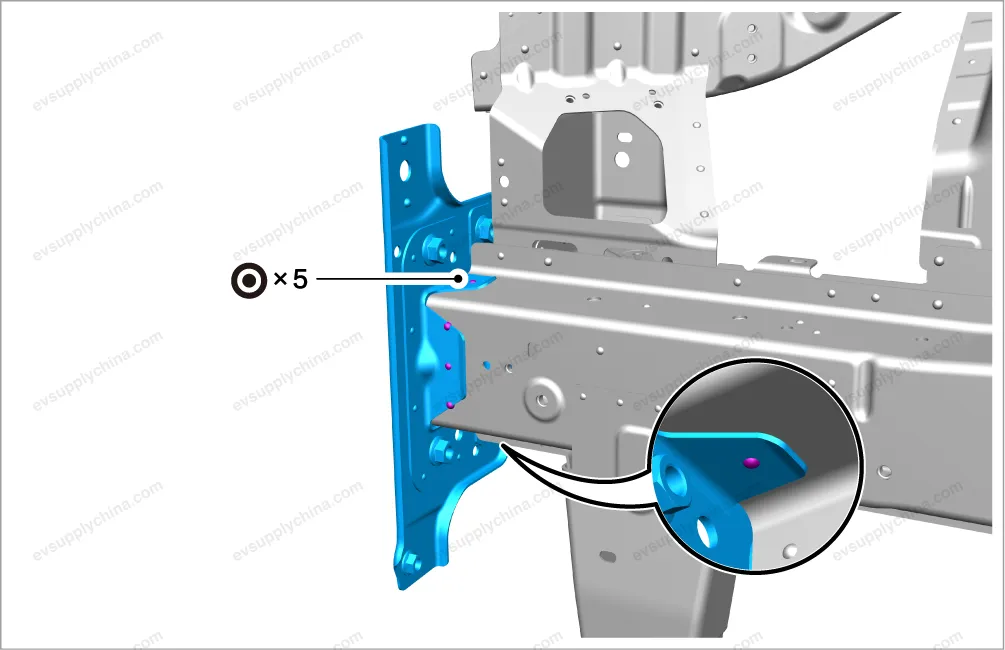

  4. Weld 5 welding spots on the front bumper beam right mounting plate assembly.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

Replacement of Front Bumper Beam Left Mounting Plate Assembly

Removal

  1. Remove the front end module locating mounting plate. See Front Module Locating Mounting Plate

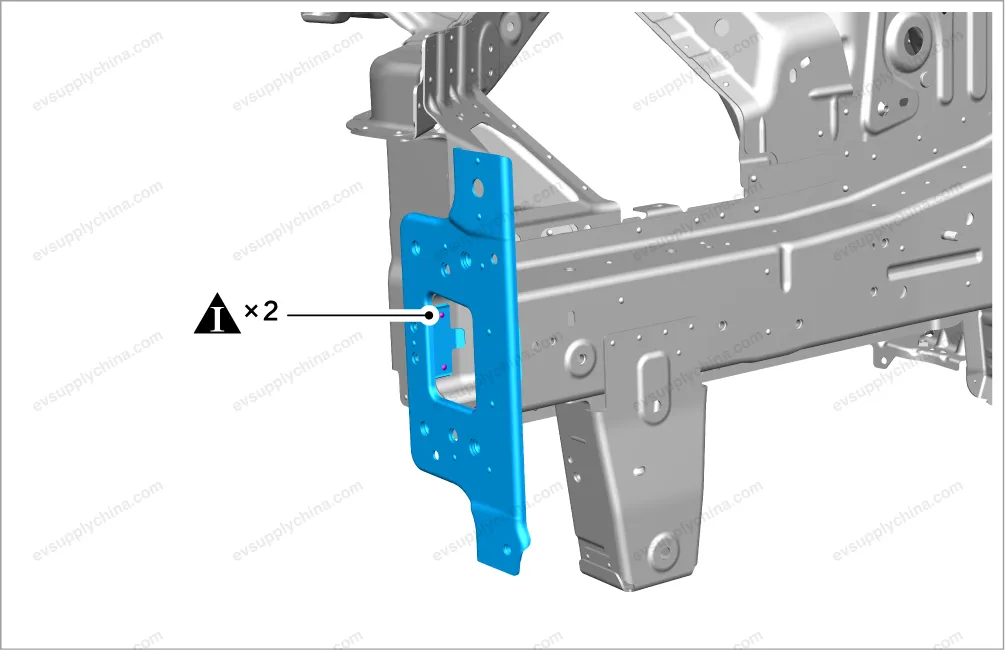

  2. Clear 2 welding spots from the front bumper beam left mounting plate assembly.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M
  3. Clear 5 welding spots, and take out the front bumper beam left mounting plate assembly.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

Installation

  1. Secure the front bumper beam left mounting plate assembly to the mounting position.
  2. Check and adjust the relative position and dimensions of the front bumper beam left mounting plate assembly and surrounding parts.

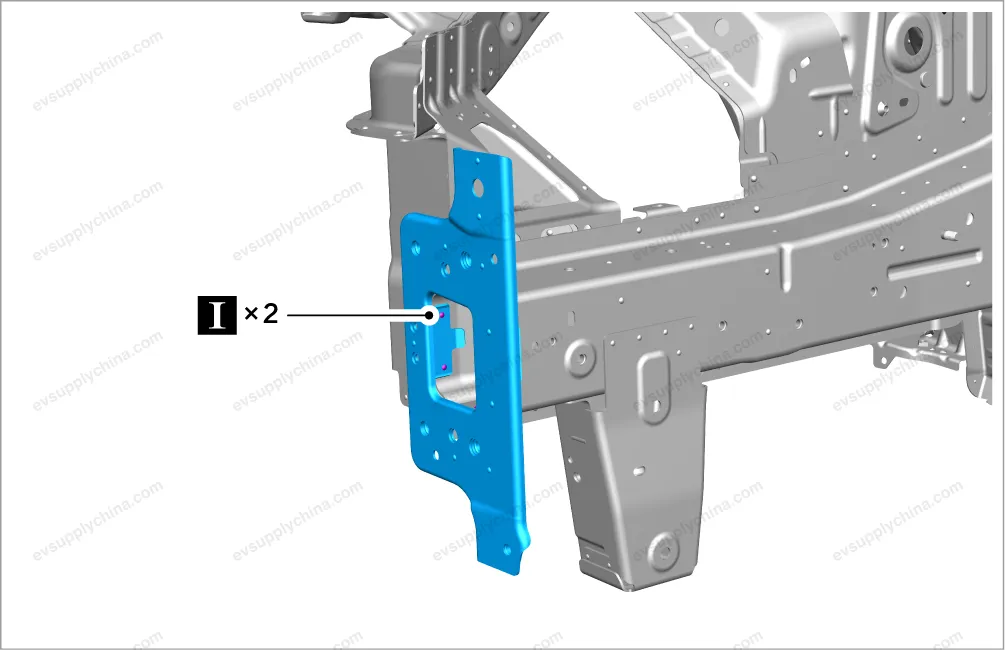

  3. Weld 2 welding spots on the front bumper beam left mounting plate assembly.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M
  4. Weld 5 welding spots on the front bumper beam left mounting plate assembly.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

Upper Mounting Bracket of Front Bumper - Removal and Installation

Removal

  1. Remove the logo trim from the upper part of front bumper. See Logo Trim on the Upper Part of Front Bumper - Removal and Installation
  2. Detach the front bumper wiring harness.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M
  3. Disconnect 1 connector.
  4. Detach 1 wiring harness clips.
  5. Remove the fasteners from the upper mounting bracket of front bumper.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M
  6. Remove 5 fixing nuts.
  7. Remove 10 fixing screws.
  8. Take out the front bumper upper mounting bracket.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

Installation

  1. The installation steps are opposite to the removal steps.

Front Bumper Left Bracket - Removal and Installation

Removal

  1. Remove the front bumper assembly. See Front Bumper Assembly - Removal and Installation
  2. Remove 3 fixing bolts, and take out the front bumper left bracket.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

Installation

  1. The installation steps are opposite to the removal steps.

Front Bumper Right Bracket - Removal and Installation

Removal

  1. Remove the front bumper assembly. See Front Bumper Assembly - Removal and Installation
  2. Remove 3 fixing bolts, and take out the front bumper right bracket.
    Upper front bumper mounting bracket — BYD BYD Atto 3 — OE 13496355-00, SC2E-2803115M

Installation

  1. The installation steps are opposite to the removal steps.

Upper front bumper mounting bracket Fitment Diagram — BYD Atto 3

Fitment Diagram — Upper front bumper mounting bracket

Other parts in this assembly

Front bumper grille trimUpper logo trim piece for front bumperFront bumper trimFront bumper lower trimFront bumper lower trimCamera coverFront tow hook plugACC plug
