OEMPremium
BYD Atto 3
Small probe - Piano Black
OE / Material Codes
13195410-00HA2E-3603300G-00BX$7USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Sensors & Cameras
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Small probe - Piano Black
BYDYuan PLUS/Atto 3
2022–2024BYDSeal
2022–2024DenzaDenza D9 DM-i
2022–2024DenzaDenza D9 EV
2022–2024BYDDolphin
2023–2024BYDQin L DM-i
2024Small probe - Piano Black Workshop Guide — BYD Atto 3

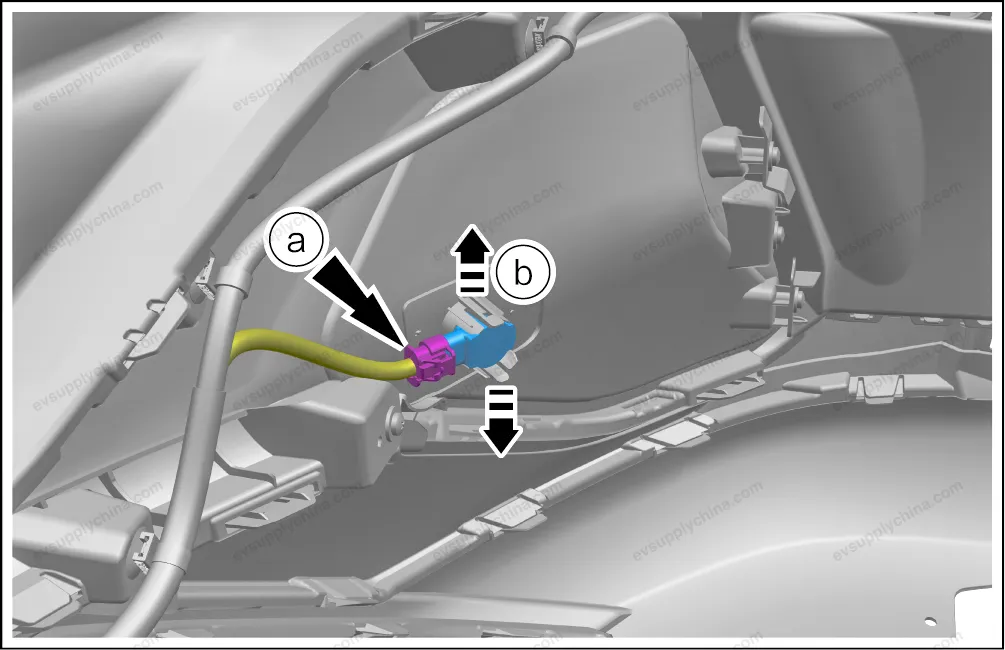

Front Small Probe - Removal and Installation
Removal
- Remove the front bumper assembly. See Front Bumper Assembly - Removal and Installation
- Remove the front small probe.
- Disconnect 1 connector.
- Detach the fixing clip in the direction of the arrow, and take out the front small probe.
Installation
- The installation steps are opposite to the removal steps.

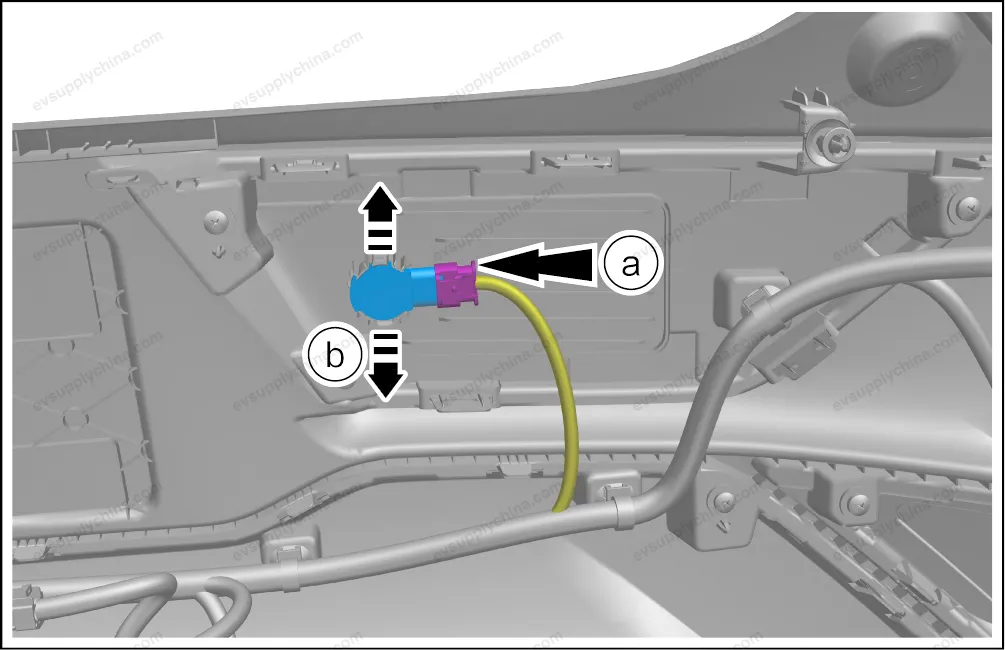

Rear Small Probe - Removal and Installation
Removal
- Remove the rear bumper assembly. See Rear Bumper Assembly - Removal and Installation
- Remove the rear small probe.
- Disconnect 1 connectors.
- Detach the fixing clip in the direction of the arrow, and take out the rear small probe.
Install
- The installation is performed in reverse order of removal.
