BYD Atto 3

ACC mounting bracket

OE / Material Codes

15335885-00SC2E-2803224S
Price on requestAvailable on Request

Technical Specifications

Vehicle Model
BYD Atto 3
Steering Configuration
Left-Hand Drive & Right-Hand Drive
Category
Sensors & Cameras

Shipping & Returns

Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Compatible Vehicles — ACC mounting bracket

BYDYuan PLUS/Atto 3
2024

ACC mounting bracket Workshop Guide — BYD Atto 3

Console Middle Mounting Bracket Assembly - Removal and Installation

Removal

  1. Remove the floor duct assembly. See Floor Duct Assembly - Removal and Installation

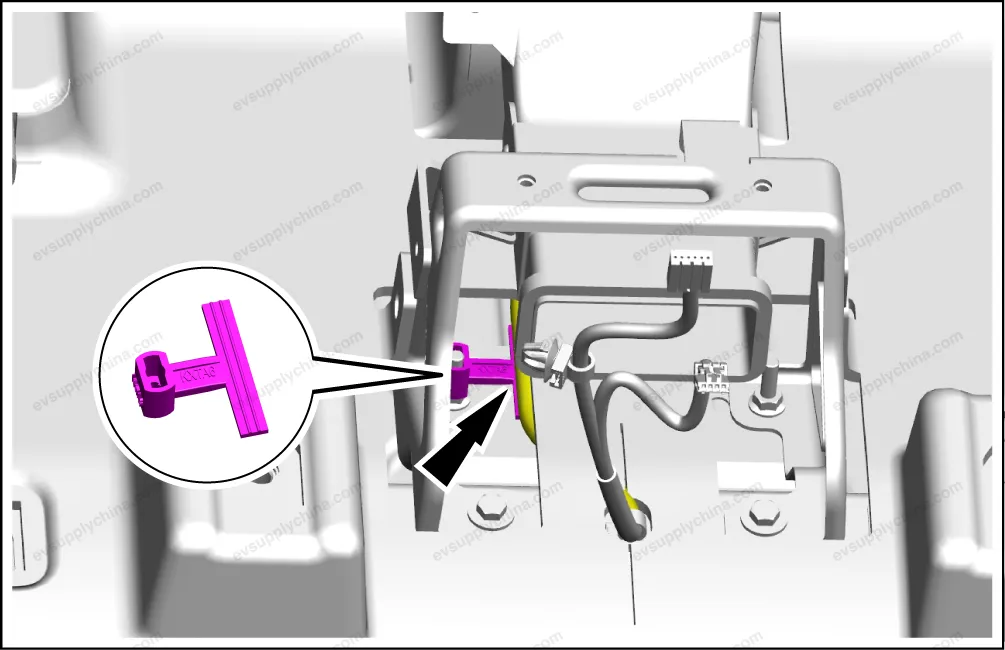

  2. Detach 2 wiring harness clips from the console middle mounting bracket assembly.
    ACC mounting bracket — BYD BYD Atto 3 — OE 15335885-00, SC2E-2803224S

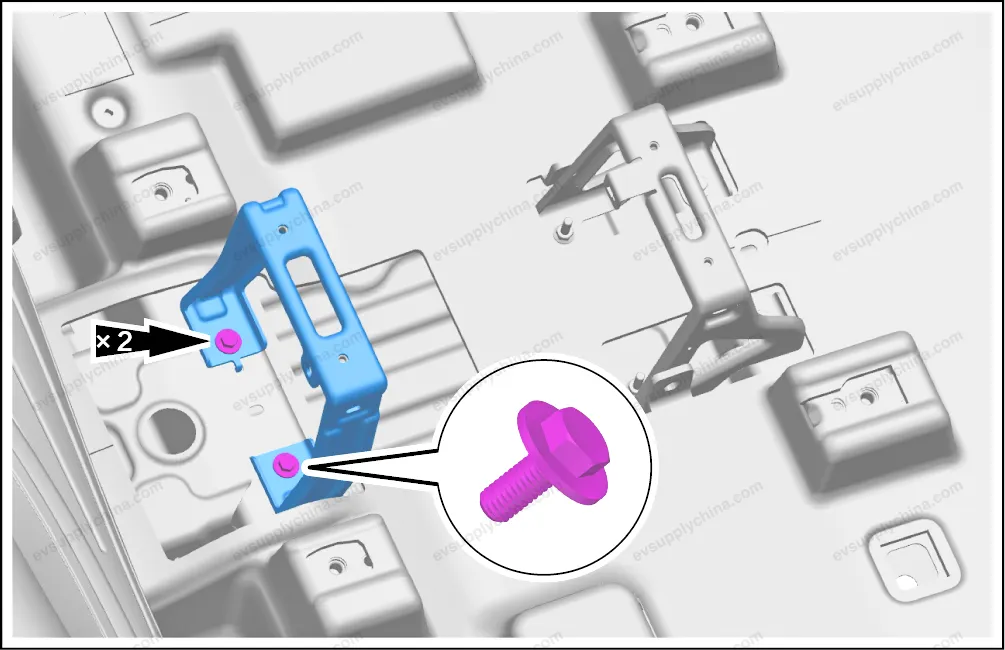

  3. Remove 2 fixing nuts, and take out the console middle mounting bracket assembly.
    ACC mounting bracket — BYD BYD Atto 3 — OE 15335885-00, SC2E-2803224S

Installation

  1. The installation steps are opposite to the removal steps.

Console Rear Mounting Bracket Assembly - Removal and Installation

Removal

  1. Remove the console body assembly. See Console Body Assembly - Removal and Installation
  2. Remove the interior detection antenna assembly (console rear mounting bracket). See Interior Detection Antenna Assembly (Rear Mounting Bracket of Console) - Removal and Installation

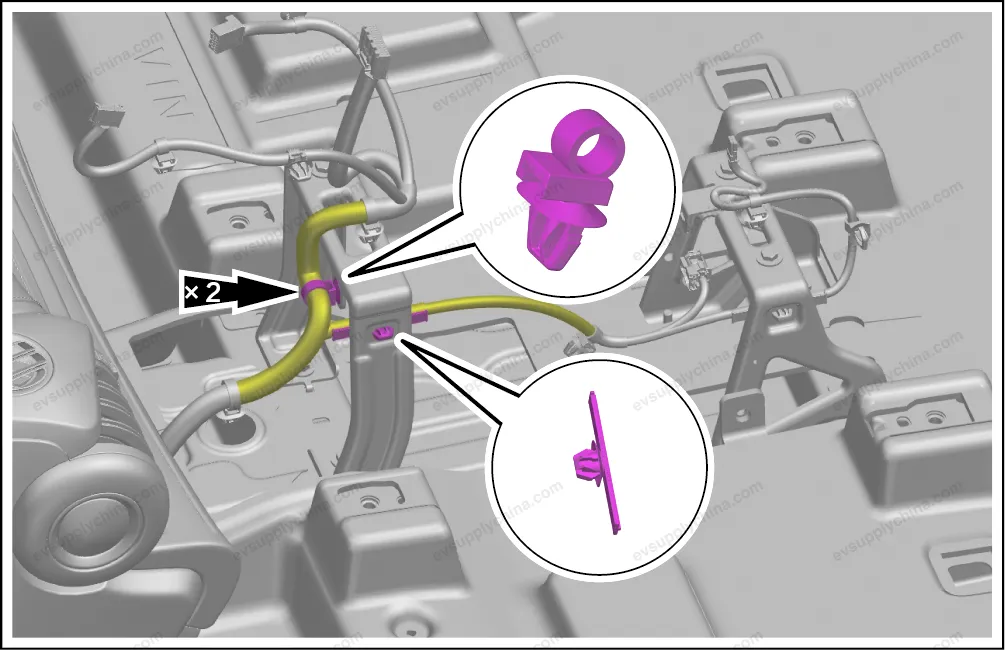

  3. Detach the floor wiring harness clip from the console rear mounting bracket assembly.
    ACC mounting bracket — BYD BYD Atto 3 — OE 15335885-00, SC2E-2803224S

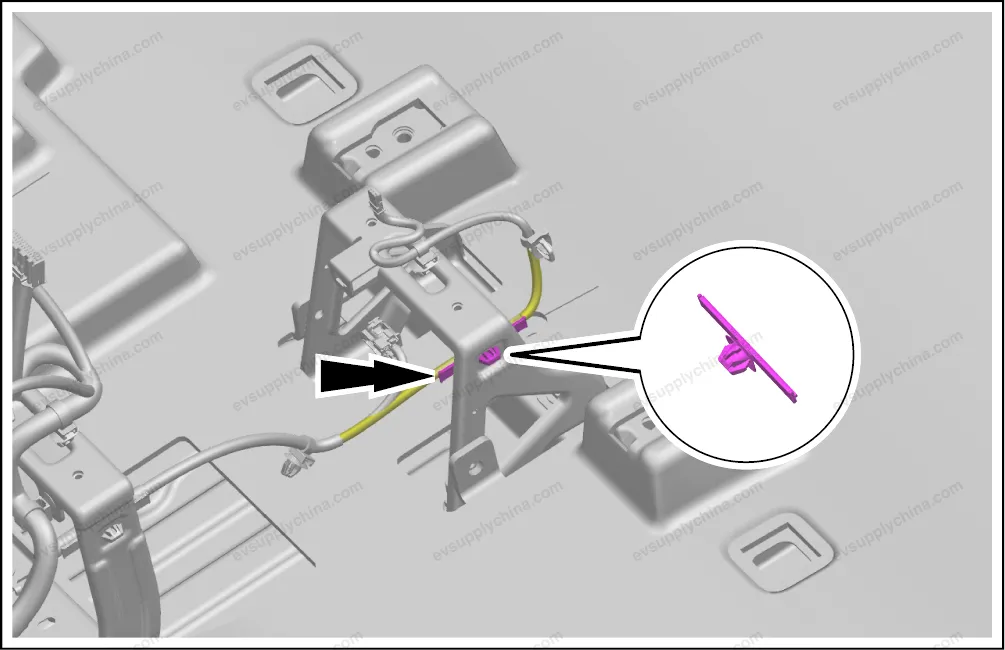

  4. Detach the instrument wiring harness clip from the console rear mounting bracket assembly.
    ACC mounting bracket — BYD BYD Atto 3 — OE 15335885-00, SC2E-2803224S

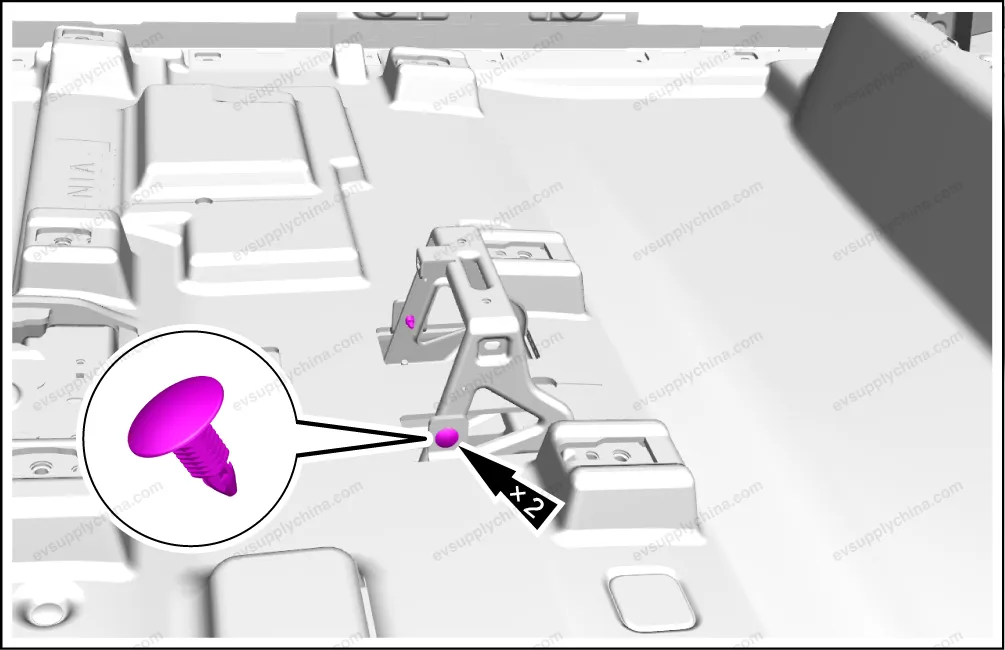

  5. Remove 2 clips connecting the console rear mounting bracket assembly and the carpet.
    ACC mounting bracket — BYD BYD Atto 3 — OE 15335885-00, SC2E-2803224S
  6. Remove the console rear mounting bracket assembly.
    ACC mounting bracket — BYD BYD Atto 3 — OE 15335885-00, SC2E-2803224S

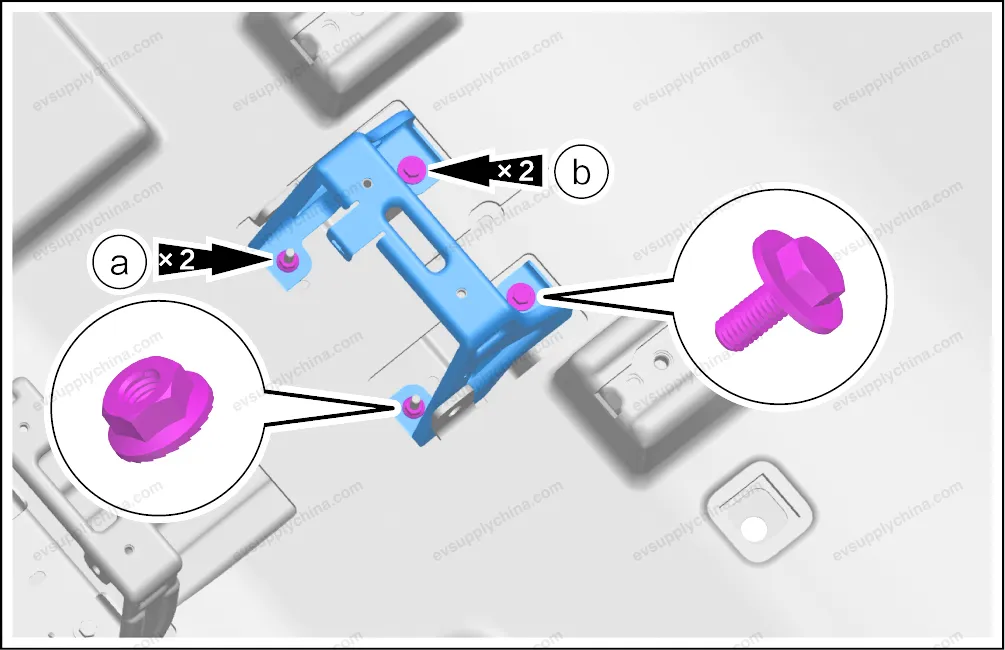

  7. Remove 2 fixing nuts.
  8. Remove 2 fixing screws, and take out the console rear mounting bracket assembly.

Installation

  1. The installation steps are opposite to the removal steps.

Brake Fluid Reservoir Mounting Bracket Assembly - Removal and Installation

Removal

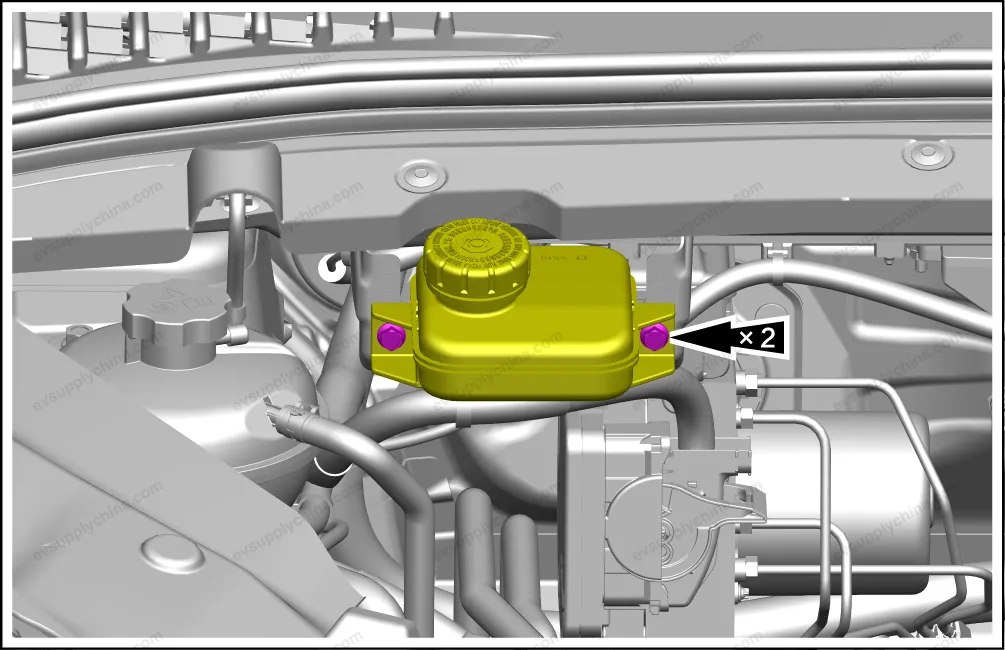

  1. Remove 2 fixing bolts, and detach the brake fluid reservoir assembly.
    ACC mounting bracket — BYD BYD Atto 3 — OE 15335885-00, SC2E-2803224S
  2. Remove the brake fluid reservoir mounting bracket assembly.
    ACC mounting bracket — BYD BYD Atto 3 — OE 15335885-00, SC2E-2803224S

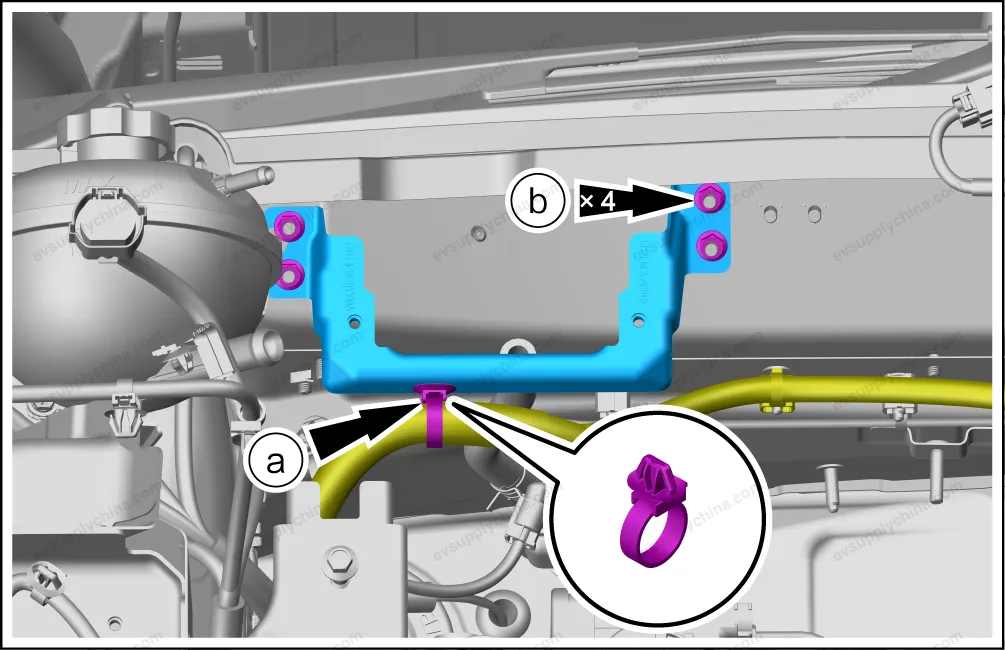

  3. Remove 1 fixing clip, and detach the front compartment wiring harness.
  4. Remove 4 fixing nuts, and take out the brake fluid reservoir mounting bracket assembly.

Installation

  1. The installation steps are opposite to the removal steps.
